Powered Epique 7" Mini Subwoofer Kit 300 Watts

Product description

Occupying only 9,9L, this Hi-Fidelity mini 17,78cm (7") subwoofer kit will deliver surprisingly powerful output making it a perfect addition to smaller stereo and home theater systems. With the brand new Epique H180HE-44 MMAG ultra-low distortion 7" driver and powered by a SPA300-D amplifier, this subwoofer kit has more power and flexibility than you would expect from a system this small.

.

Highlights

Extremely compact design will fit almost anywhere

300 watt ultra-efficient Class D amplifier offers plenty of headroom

Selectable 6dB/oct 30 Hz bass boost for application flexibility

Use multiples to help minimize room modes for more even, room-filling low end

High excursion, extended range Epique E180HE-44 7" driver with 300 watt amplifier provides powerful output capability

CNC-cut 19mm MDF panels for precise fit, easy assembly, and smooth finish

.

Product Details

Powered Dayton Audio Epique 7" Mini Subwoofer Kit 300 Watts

Housed in just a 25,4cm cube, the Hi-Fidelity Epique E180HE-44 17,78cm (7") 300 Watt Mini Subwoofer Kit is the perfect solution for providing high performance bass response without taking up much space. With the Epique high excursion extended range E180HE-44 7" subwoofer driver powered by the extremely versatile SPA300-D 300W plate amplifier  you can expect incredibly accurate response with low distortion. The selectable 6 dB bass boost at 30 Hz can help with the lower octaves if you want a little more low-end extension. Thanks to the small size this subwoofer is ideal for using multiples strategically positioned around rooms to minimize room nodes (null and peaks) for more even bass distribution.

If your endgame is ultimate fidelity in a small package, this is the subwoofer for you. The Epique E180HE-44 will immerse you in clarity and low distortion low frequencies. Perfect for a desktop, 2.1 music system, small studio or even in your car, the Hi-Fidelity Epique 7" mini subwoofer kit is one of the best sounding small subwoofers available anywhere.

.

Simulated Performance Specifications:

• Maximum output: 107 dB • F3: 60 Hz • F10: 34 Hz • Boosted F10: 26 Hz

.

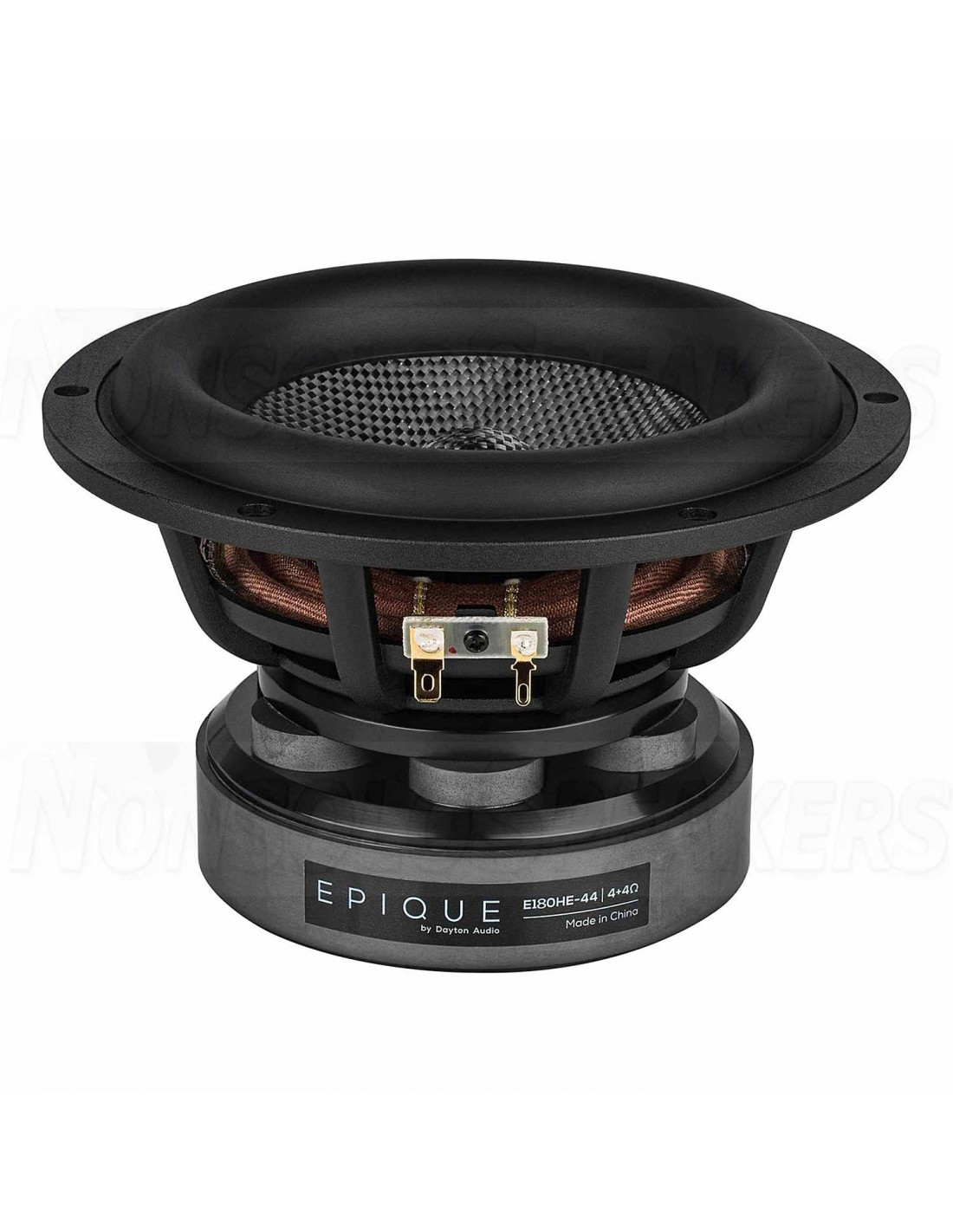

Epique E180HE-44 7" Subwoofer Specifications:

• Power handling: 200 watts RMS/400 watts max • Le: 1.5 mH • Impedance: 8 ohms (series)• Re: 6.8 ohms • Frequency range: 25 to 3,000  Hz • Fs: 35 Hz • SPL: 85.7 dB 2.83V/1m • Vas 16L. • Qms: 2.93 • Qes: .54 • Qts: .46 • Xmax: 14.7 mm

.

Dayton Audio SPA300-D 300W Subwoofer Plate Amplifier Specifications:

• Power output: 300 watts RMS into 4 ohms, THD+N <1.5% • Signal to noise ratio: 101 dB (A-weighted) • Low pass adjustment: 40 - 200 Hz • Phase adjustment: Switchable from 0º (normal) to 180º (reverse) • Bass Boost: Selectable, 6 dB/octave at 30 Hz • Power requirements: 110~120/220~240 VAC selectable, 50/60 Hz.

.

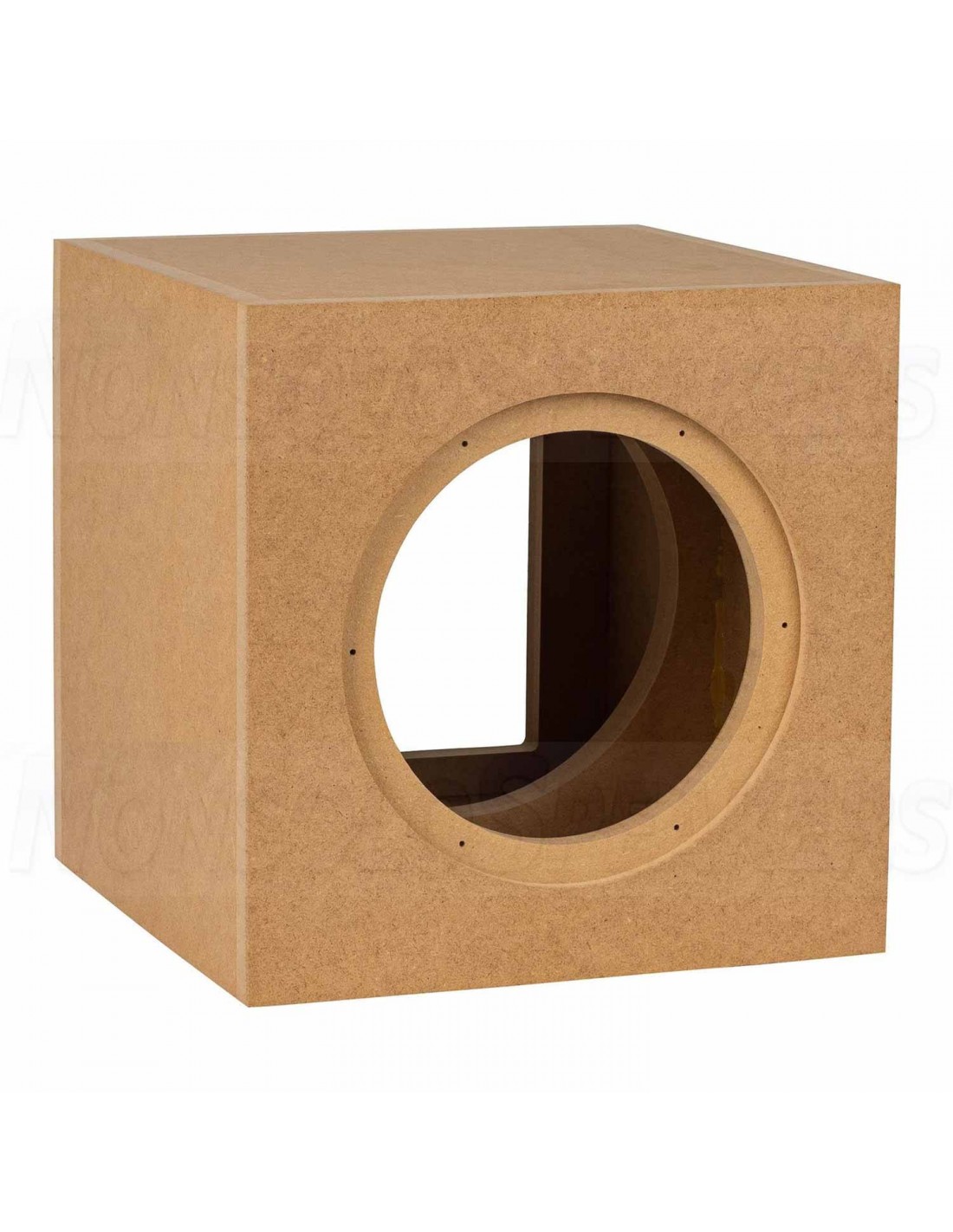

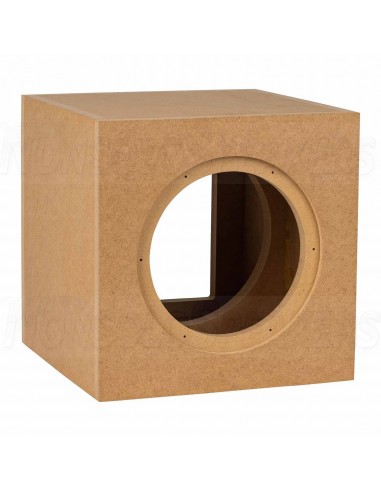

Enclosure Specifications: • Panel thickness: 19mm • Panel material:

Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 9,9L • External dimensions: 25,4cm H x 25,4cm W x 25,4cm D • Weight: 10,4kg. • Made in the USA.

.

Note: Mounting screws and feet are not included.
