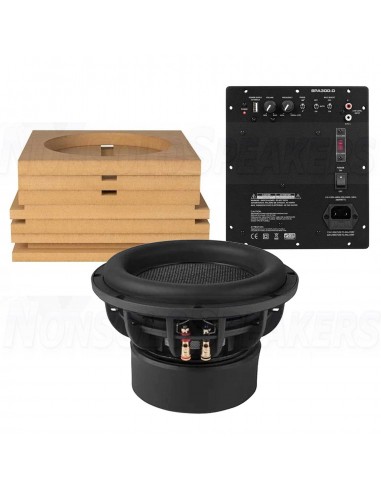

Powered Ultimax 8" Mini Subwoofer Kit 300 Watts

Product description

Occupying only 9.9L, this Hi-Performance mini 20,3cm (8") subwoofer kit will deliver surprisingly powerful output making it a perfect addition to smaller stereo and home theater systems. With the popular Dayton Audio UM8-22 8" driver and powered by a SPA300-D amplifier, this subwoofer kit has more power and flexibility than you would expect from a system this small.

.

Highlights

Extremely compact design will fit almost anywhere

300 watt ultra-efficient Class D amplifier offers plenty of headroom

Selectable 6dB/oct 30 Hz bass boost for application flexibility

Use multiples to help minimize room modes for more even, room-filling low end

High excursion Dayton Audio UM8-22 8" driver with 300 watt amplifier provides powerful output capability

CNC-cut 19mm MDF panels for precise fit, easy assembly, and smooth finis

.

Product Details

Powered Dayton Audio Ultimax 8" Mini Subwoofer Kit 300 Watts

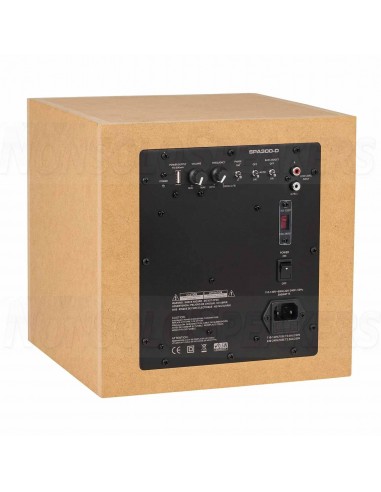

Housed in just a 25,4cm cube, the Hi-Performance Dayton Audio Ultimax 8" 300 Watt Mini Subwoofer Kit is the perfect solution for providing high performance bass response without taking up much space. With Dayton Audio's high excursion UM8-22 8" subwoofer driver powered by the extremely versatile SPA300-D 300W plate amplifier  you can expect incredibly accurate response with low distortion. The selectable 6 dB bass boost at 30 Hz can help with the lower octaves if you want a little more low-end extension. Thanks to the small size this subwoofer is ideal for using multiples strategically positioned around rooms to minimize room nodes (null and peaks) for more even bass distribution.

.

The Hi-Performance Ultimax mini subwoofer kit is the last stop for small home theater applications. It will amaze you with incredible dynamics and seemingly endless low-end capabilities.

.

Simulated Performance Specifications:

• Maximum output: 107.2 dB • F3: 48 Hz • F10: 31 Hz • Boosted F10: 24 Hz

.

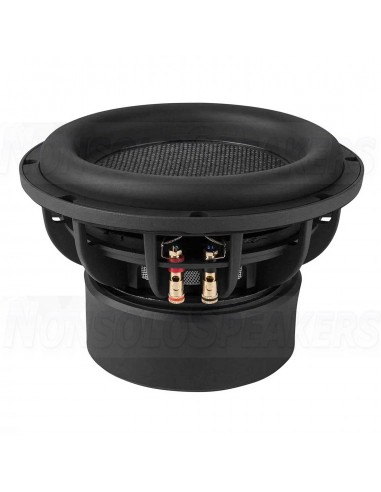

Dayton Audio UM8-22 8" Subwoofer Specifications:

• Power handling: 300 watts RMS/600 watts max • Le: 1.14 mH • Impedance: 4 ohms • Re: 4.2 ohms • Frequency range: 30 to 800  Hz • Fs: 31.6 Hz • SPL: 84.2 dB 2.83V/1m • Vas 21,2L. • Qms: 2.51 • Qes: 0.75 • Qts: 0.58 • Xmax: 16 mm.

.

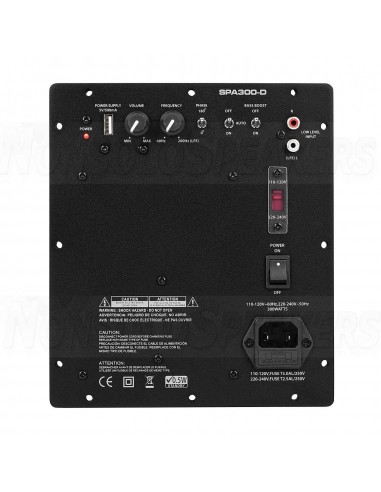

Dayton Audio SPA300-D 300W Subwoofer Plate Amplifier Specifications:

• Power output: 300 watts RMS into 4 ohms, THD+N <1.5% • Signal to noise ratio: 101 dB (A-weighted) • Low pass adjustment: 40 - 200 Hz • Phase adjustment: Switchable from 0º (normal) to 180º (reverse) • Bass Boost: Selectable, 6 dB/octave at 30 Hz • Power requirements: 110~120/220~240 VAC selectable, 50/60 Hz.

.

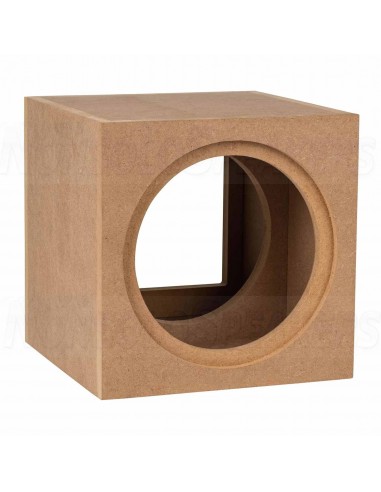

Enclosure Specifications:

• Panel thickness: 19mm • Panel material: Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 0.35 cubic feet • External dimensions: 25.4cm H x 25.4cm W x 25.4cm D • Weight: 10,4kg. • Made in the USA.

Note: Mounting screws and feet are not included.
