Dayton Audio AMT Mini-8 Air Motion Transformer Tweeter 8 Ohm

Dayton Audio AMT Mini-8 Air Motion Transformer Tweeter 8 Ohm

Dayton Audio AMT Mini-8 Air Motion Transformer Tweeter 8 Ohm

The Dayton Audio AMT Mini-8 model features a round housing and compact AMT element, for wide dispersion that easily replaces dome tweeters in retrofit or new design applications. The AMT Mini-8 is small enough to be used in compact satellite speakers, or installed in the center of a mid-woofer to create a full-bandwidth coaxial driver, or implemented in other ways -- including line arrays. The sealed rear chamber design of the AMT Mini-8 eliminates the need for a separate internal chamber in the loudspeaker enclosure.

Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.

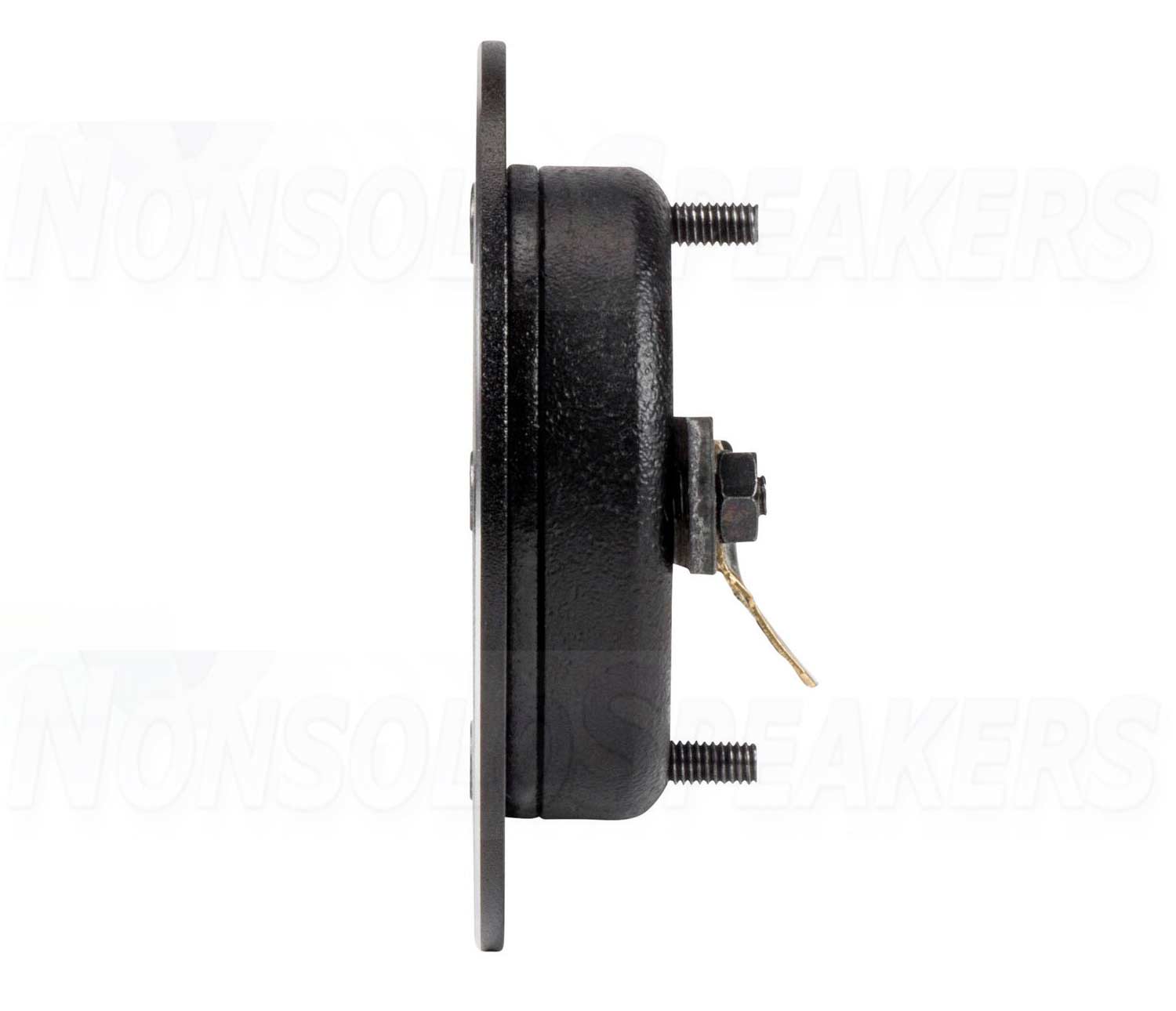

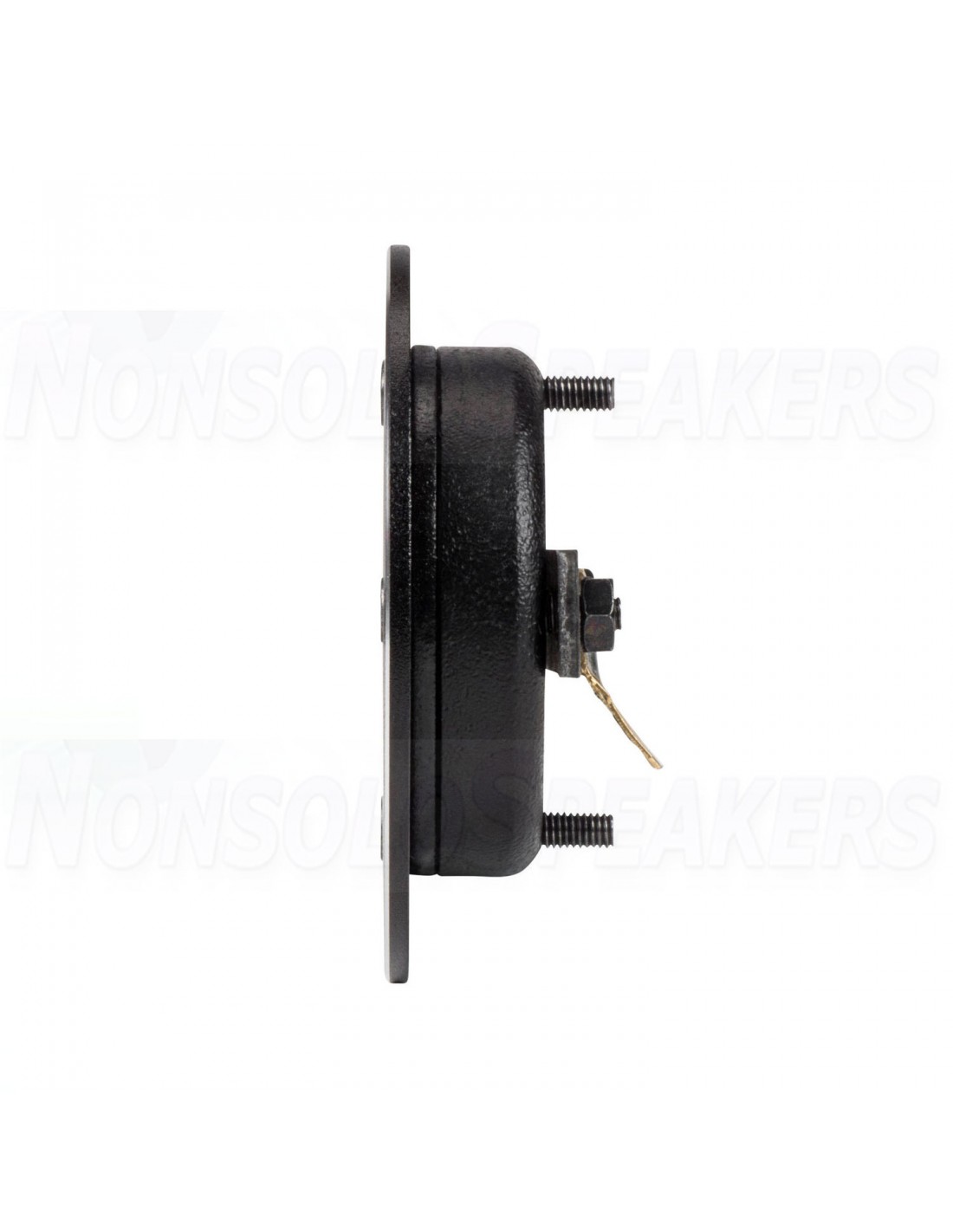

Note: This tweeter was designed for press-fit mounting, but now includes a 2.25" diameter faceplate for front baffle mounting.

Product Details

Brand Dayton Audio

Model AMT Mini-8

Part Number 275-095

UPC 848791000652

Unit of Measure Each

Weight 0.1278

Product Specifications

Cutout Diameter 1.59

Tweeter Type AMT Air Motion Transformer

Power Handling (RMS) 15 Watts

Impedance 8Ω

Frequency Response 3,500 to 40,000Hz

Sensitivity 88dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs) 3500Hz

DC Resistance (Re) 7.92Ω

Mechanical Q (Qms) 1.86

Total Q (Qts) 1.84

Mounting Information

Overall Outside Diameter With faceplate 2.25"

Depth 0.91"
