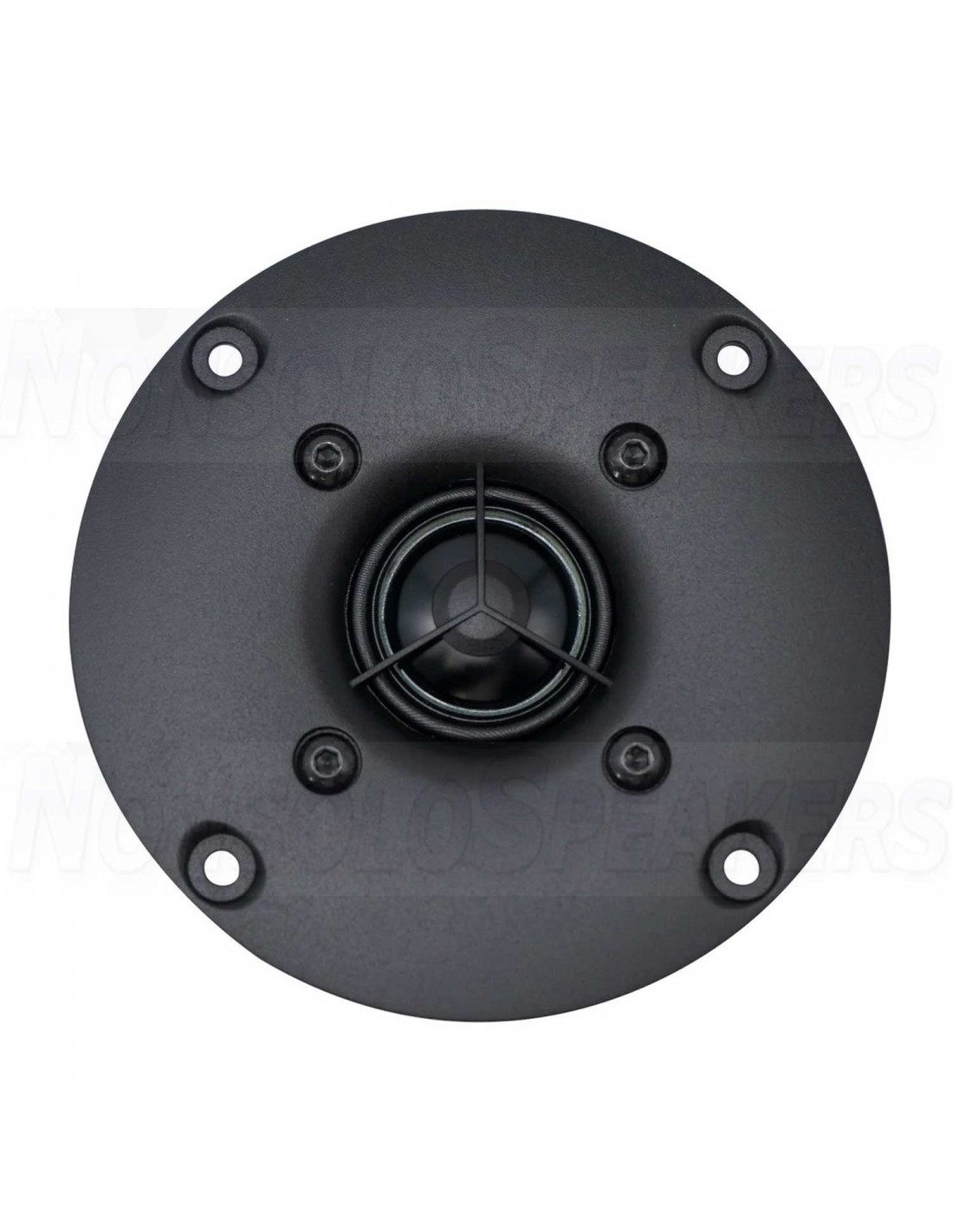

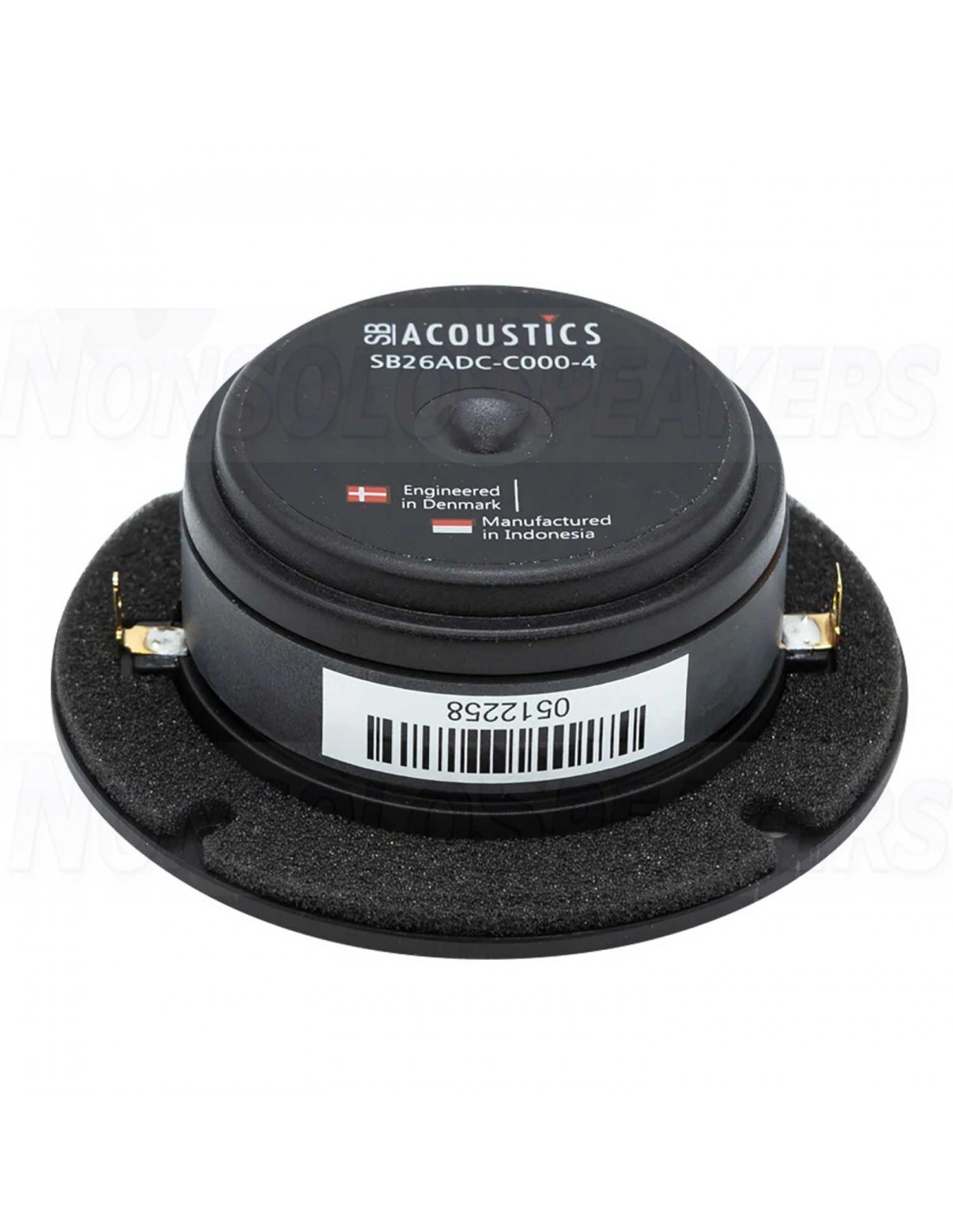

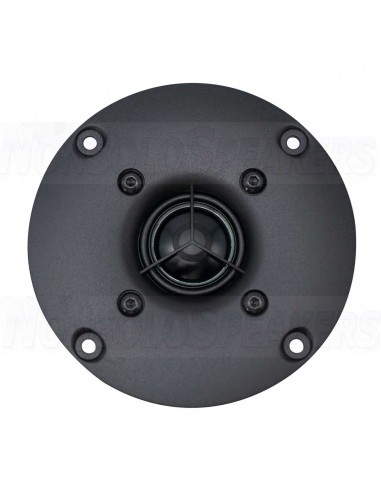

SB ACOUSTICS SB26ADC-C000-4 - Tweeter 25mm
SB ACOUSTICS SB26ADC-C000-4 - Tweeter 25mm
SB ACOUSTICS SB26ADC-C000-4 - Tweeter 25mm
SB ACOUSTICS SB26ADC-C000-4 - Tweeter 25mm
SB ACOUSTICS SB26ADC-C000-4 - Tweeter 25mm
SB ACOUSTICS SB26ADC-C000-4 - Tweeter 25mm
SB ACOUSTICS SB26ADC-C000-4 - Tweeter 25mm
SB ACOUSTICS SB26ADC-C000-4 - Tweeter 25mm
SB ACOUSTICS SB26ADC-C000-4 - Tweeter 25mm
SB ACOUSTICS SB26ADC-C000-4 - Tweeter 25mm

SB ACOUSTICS SB26ADC-C000-4 - Tweeter 25mm

SB ACOUSTICS SB26ADC-C000-4 - Tweeter 25mm

The dome and surround have been designed to push the "break-up" to frequencies beyond the audible range. This tweeter has all the detail that a metal dome provides without the objectionable break-up.

SHIPMENT IN 7-10 WORKING DAYS
€49.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SB26ADC-C000-4 - Tweeter 25mm

.

Product description

Phase optimized diaphragm design for coherent high frequency radiation

Copper cap for reduced voice coil inductance and minimum phase shift

Saturation controlled motor system for low distortion

Non-reflective rear chamber with optimized damping for improved dynamics

Flow optimized vented pole piece for optimum coupling to rear chamber

CCAW voice coil for low moving mass

Long life silver lead wires

Low resonance frequency

.

Product details

SB Acoustics SB26ADC-C000-4 Aluminum Dome Tweeter

The dome and surround have been designed to push the "break-up" to frequencies beyond the audible range.  This tweeter has all the detail that a metal dome provides without the objectionable break-up.

Specifications: BL Product (BL): 1.6 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.38 g • Maximum Linear Excursion (Xmax): 0.6 mm • Surface Area of Cone (Sd): 6.2 cm2

.

Specifications

Article numberSB26ADC-C000-4
Tweeter TypeDome
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)120 Watts
Impedance (Z)4 Ω
Sensitivity (SPL at 1m / 2.83V)90 dB
Resonant Frequency (Fs)680 Hz
DC Resistance (Re)3.2 ohms
Voice Coil Inductance (Le)0.04 mH
Mechanical Q (Qms)2.9
Electromagnetic Q (Qes)2
Total Q (Qts)1.20

SB26ADC-C000-4
