TANG BAND W5-1138SMF 5-1/4" Subwoofer Speaker

SHIPMENT IN 7/10 WORKING DAYS
€55.10 €58.00 -5%
Tax included
rating Read the 2 reviews
Average rating: 10/10 Number of reviews: 2

TANG BAND W5-1138SMF 5-1/4" Subwoofer Speaker

Amazing bass in a compact package! The one-of-a-kind Tang Band W5-1138SMF 5-1/4" subwoofer has a generous 9.25 mm of Xmax. A wide roll surround, raised flat spider, and large 1-1/4" 4-layer voice coil ensure impressive bass performance and high power handling

Quantity Unit discount You Save
2 7% €8.12
Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND W5-1138SMF 5-1/4" Subwoofer Speaker

Amazing bass in a compact package! The one-of-a-kind Tang Band W5-1138SMF 5-1/4" subwoofer has a generous 9.25 mm of Xmax. A wide roll surround, raised flat spider, and large 1-1/4" 4-layer voice coil ensure impressive bass performance and high power handling. The vented pole and vented spider allow good airflow around the coil to improve heat dissipation and reduce power compression. The ultimate miniature subwoofer driver!

-

Product Details

  • Brand Tang Band
  • Model W5-1138SMF
  • Part Number 264-917
  • UPC 844632092855

.

Unit of Measure Each

  • Weight 3.75

.

Product Specifications

  • Nominal Diameter 5-1/4"
  • Moving Mass Of Diaphragm (Mmd) 28.81
  • Power Handling (RMS) 40 Watts
  • Power Handling (MAX) 80 Watts
  • Impedance 4Ω

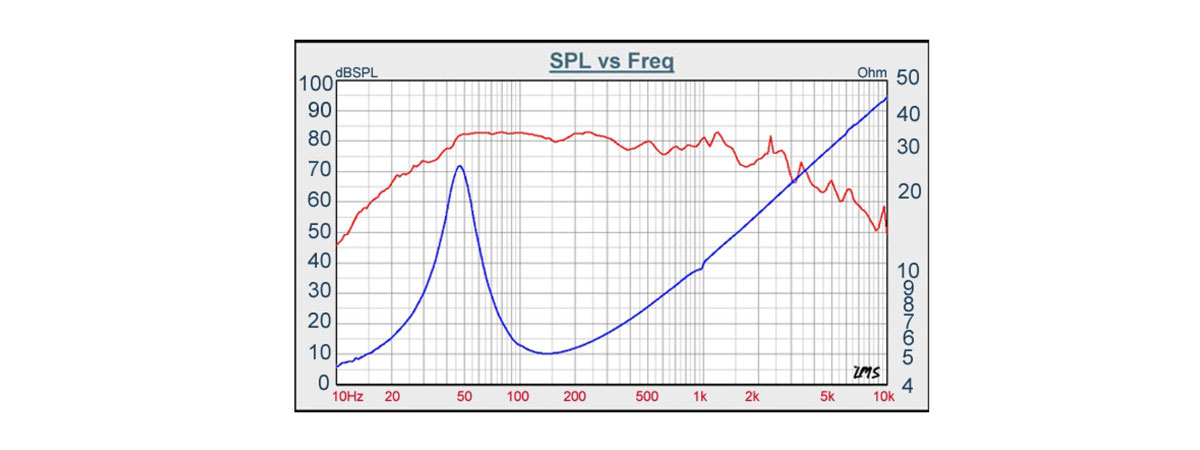

  • Frequency Response 45 to 1,500Hz
  • Sensitivity 82dB 2.83V/1m
  • Voice Coil Diameter 1.25"

.

Thiele-Small Parameters

  • Resonant Frequency (Fs) 45Hz
  • DC Resistance (Re) 3.4Ω
  • Voice Coil Inductance (Le) 0.34mH
  • Mechanical Q (Qms) 3.56
  • Electromagnetic Q (Qes) 0.57
  • Total Q (Qts) 0.49
  • Compliance Equivalent Volume (Vas) 0.17ft³
  • Mechanical Compliance of Suspension (Cms) 0.37mm/N
  • BL Product (BL) 7.17T·m
  • Maximum Linear Excursion (Xmax) 9.25mm
  • Surface Area of Cone (Sd) 94cm²

.

Materials of Construction

  • Cone Material Paper
  • Surround Material Rubber
  • Basket / Frame Material Steel
  • Magnet Material Ferrite

.

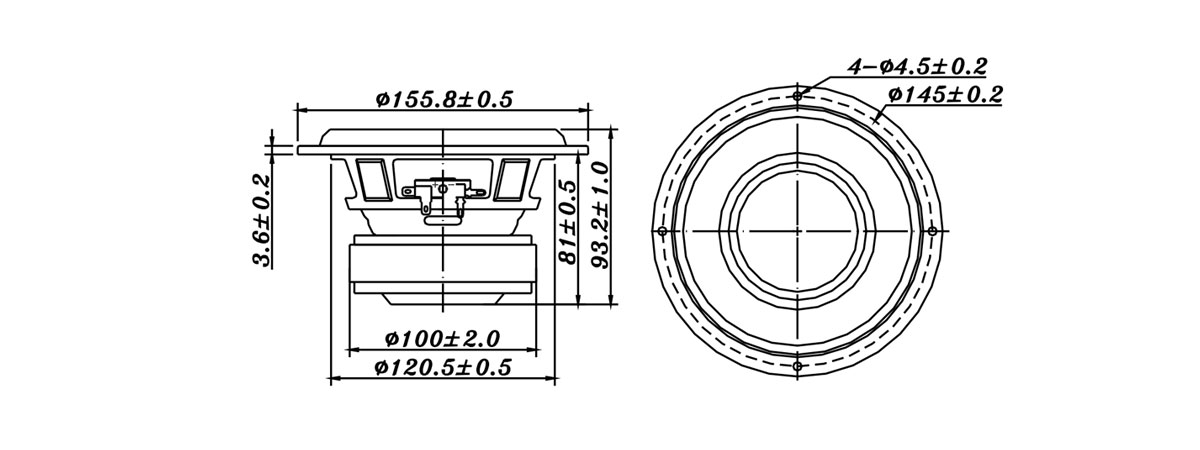

Mounting Information

  • Overall Outside Diameter 6.14"
  • Baffle Cutout Diameter 4.74"
  • Depth 3.67"
  • # Mounting Holes 4

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

  • Sealed Volume 0.1ft³
  • Sealed F3 73Hz
  • Vented Volume 0.26ft³
  • Vented F3 35Hz

W5-1138SMF
257 Items
Tang Band w5
rating
03/20/2022
G h.
Alles top
A
rating
01/22/2022
Stolti
Powerfull for that size
