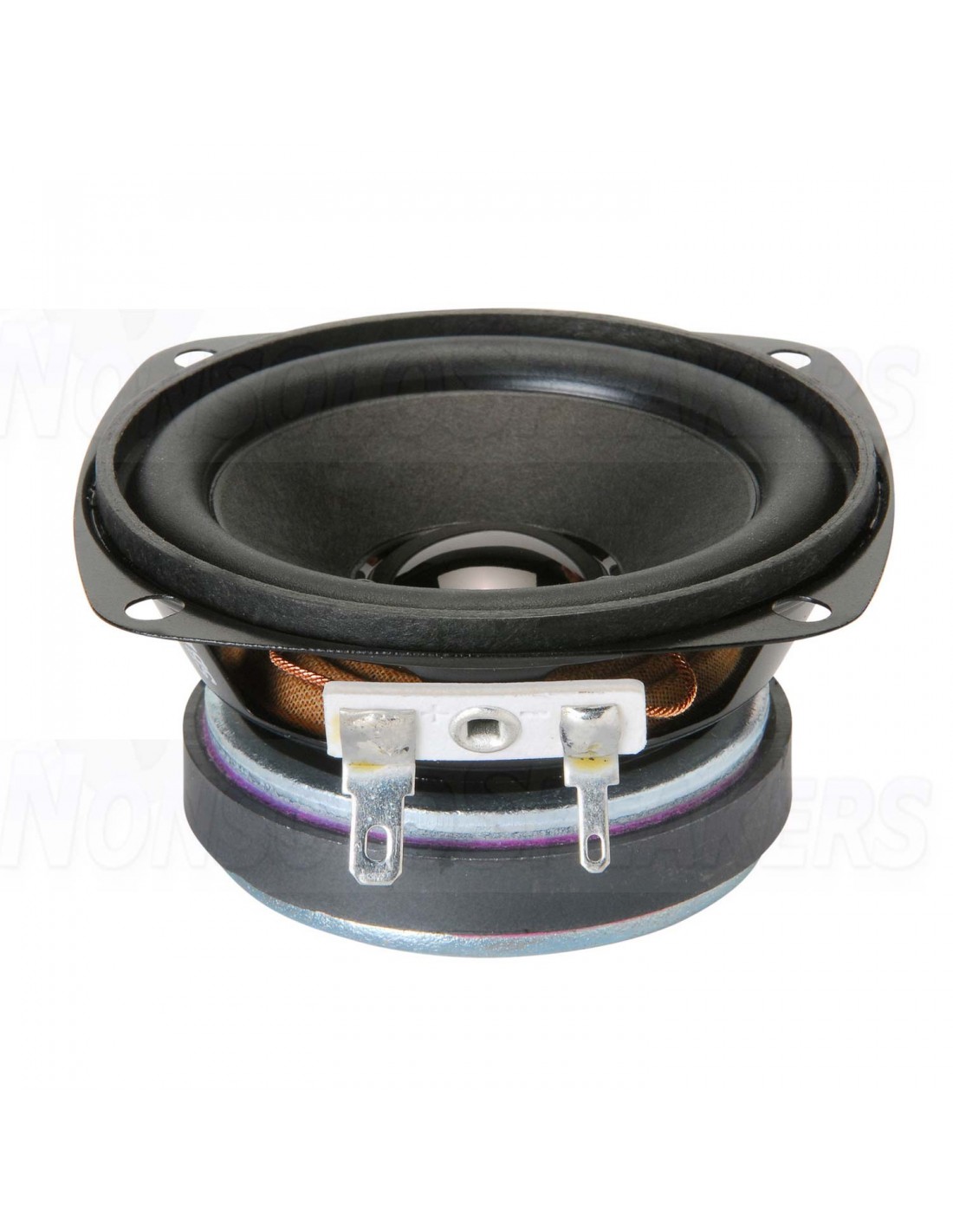

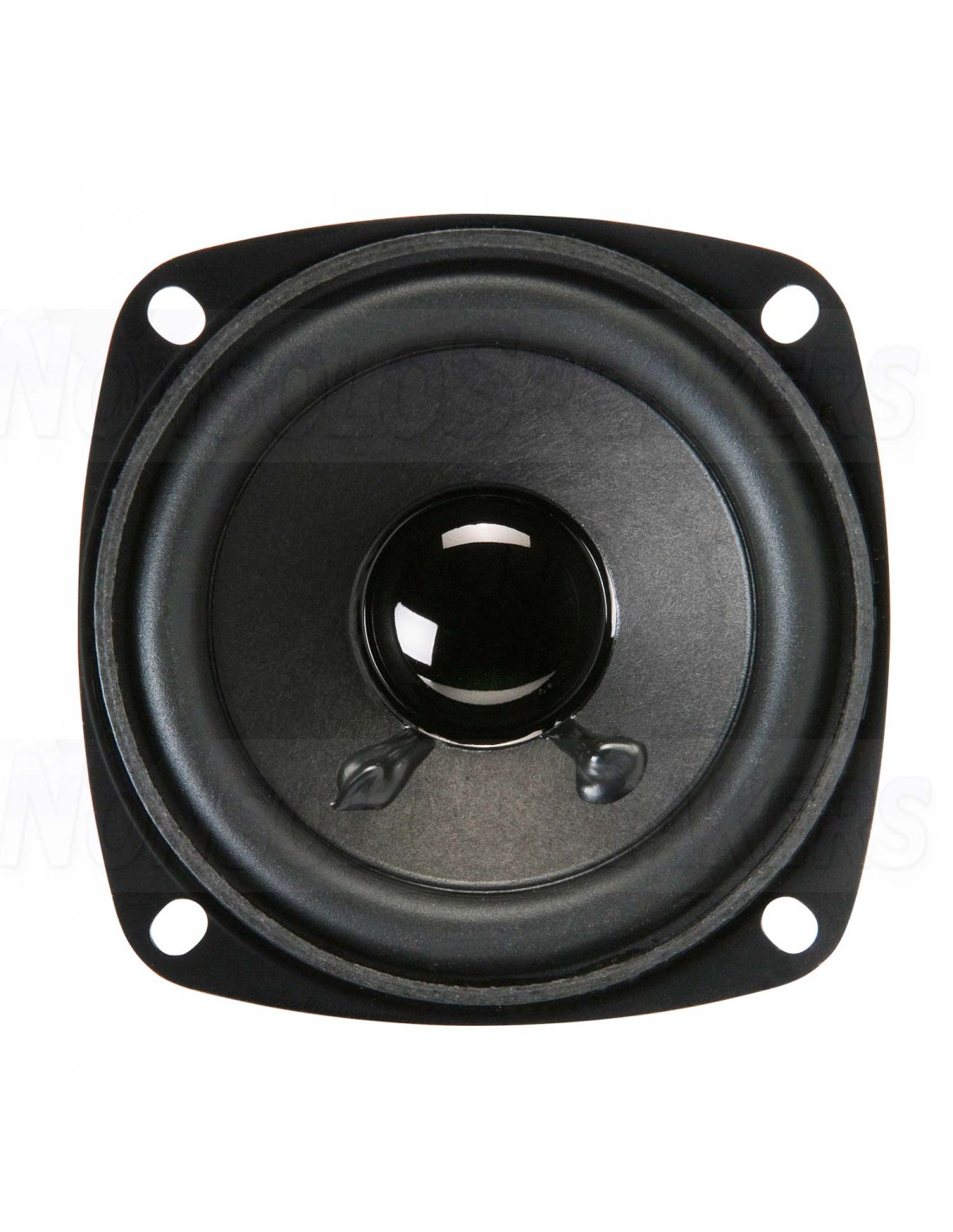

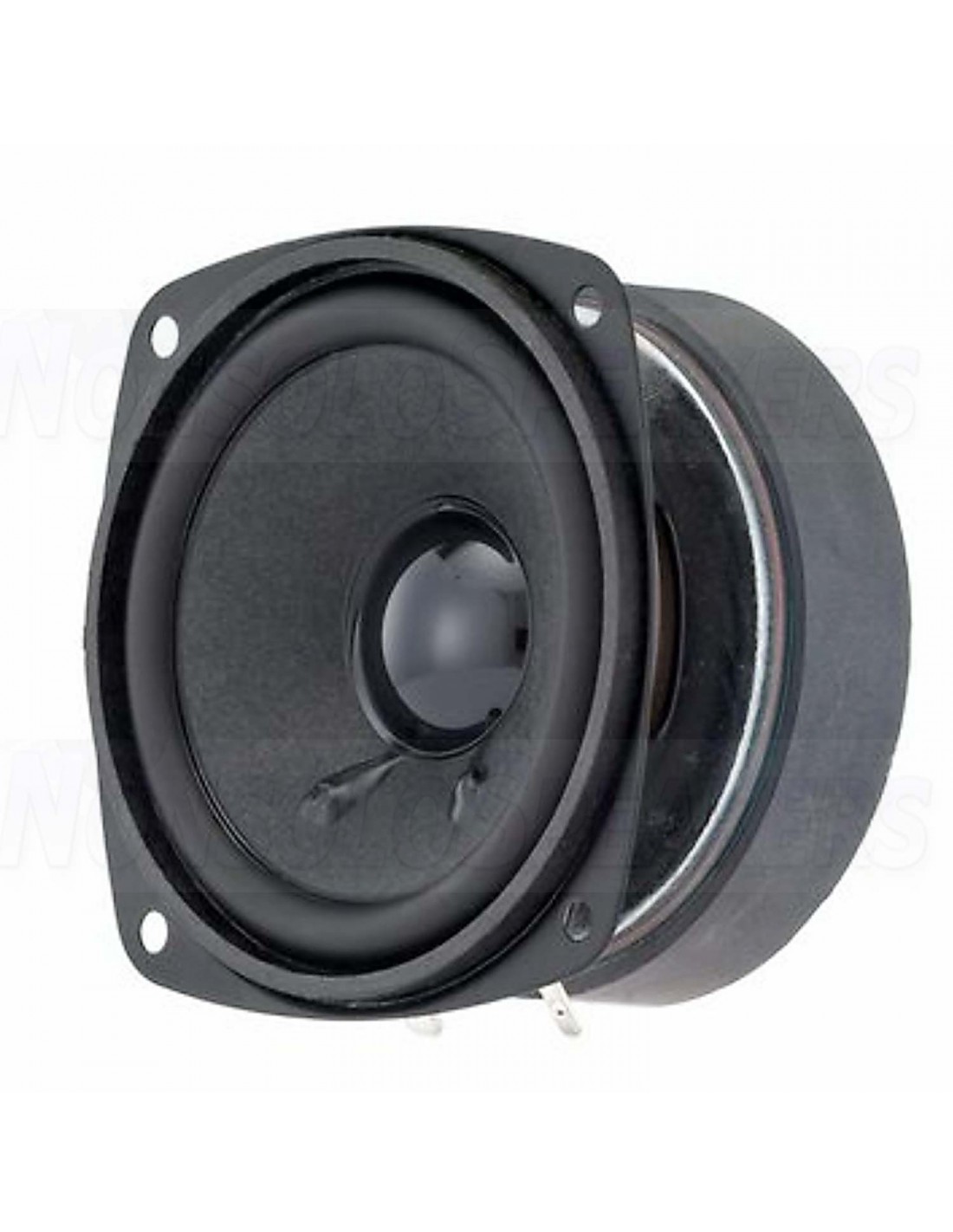

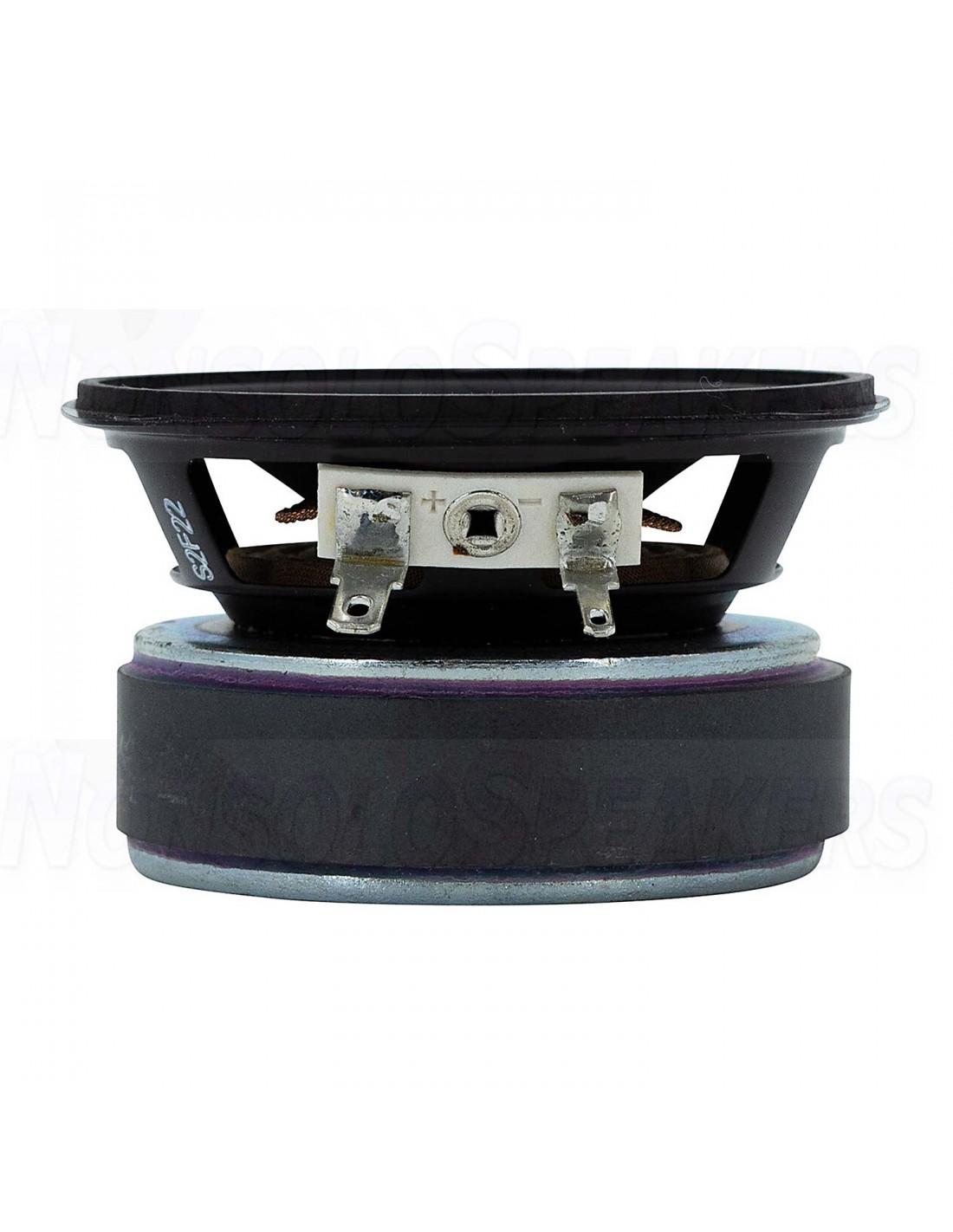

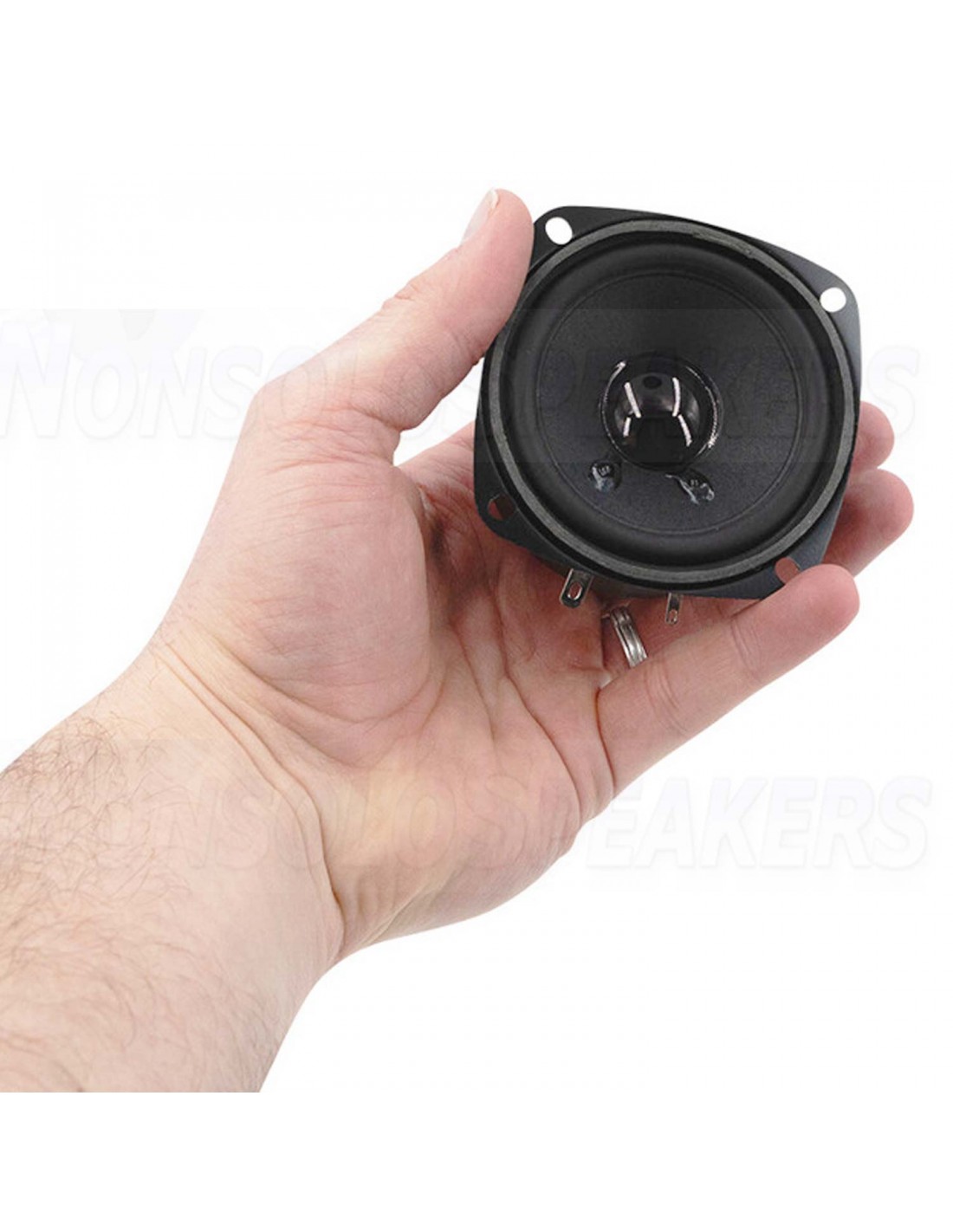

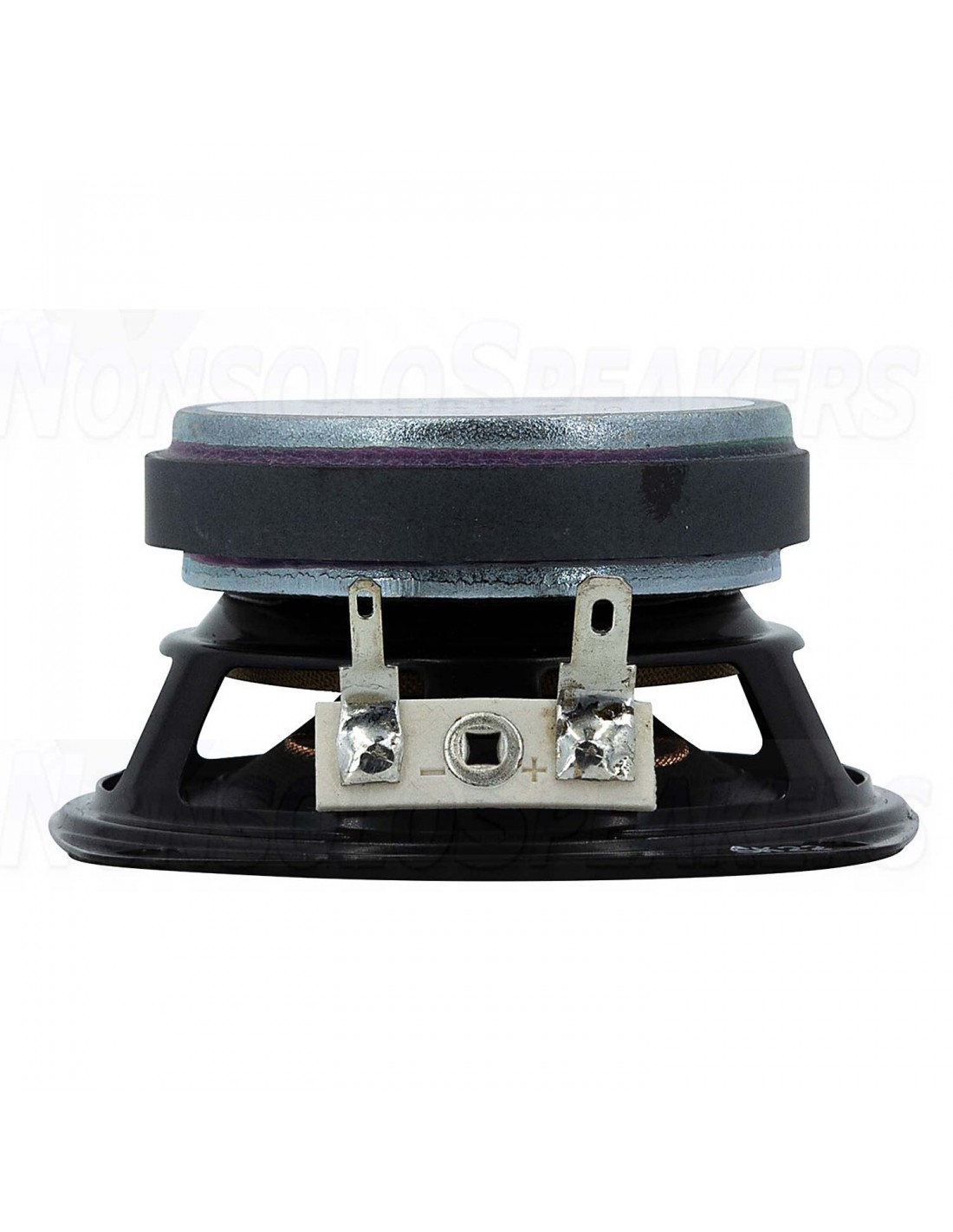

3.3" Full-range speaker with high force factor and good sensitivity. Special developed for use in line arrays and small bass-reflex cabinets such as in small F.A.S.T. speakers or other small satellite speakers.

SHIPMENT IN 5-7 WORKING DAYS
€15.45
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like

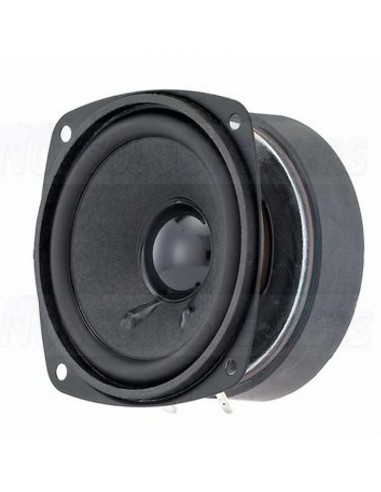

Visaton FRS 8 M Full-range Woofer

3.3" Full-range speaker with high force factor and good sensitivity. Special developed for use in line arrays and small bass-reflex cabinets such as in small F.A.S.T. speakers or other small satellite speakers.

.

Highlights

  • Augmented highs for a larger sweet spot
  • Great price/performance ratio
  • Relatively high power handling

.

Product Details

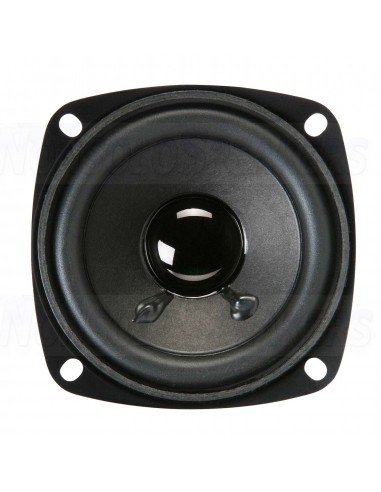

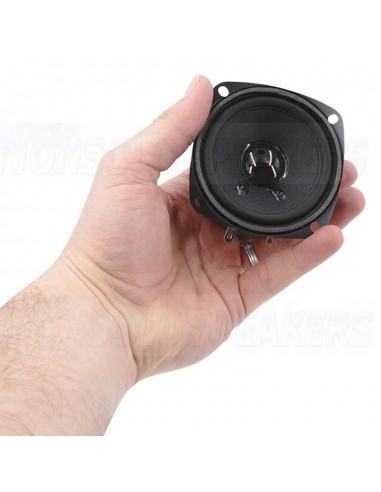

Visaton FRS 8 M Full-range woofer 3.3"

Full-range speaker with high force factor and good sensitivity. Special developed for use in line arrays and small bass-reflex cabinets such as in small F.A.S.T. speakers or other small satellite speakers.

The augmented upper octave allows for listening off-axis without losing much of your top-end sparkle.

Technical Specifications

  • Article number FRS 8 M
  • Woofer Type Full-range woofer
  • Nominal Diameter 3.3''
  • Power Handling (RMS) 30 Watt
  • Power Handling (max) 50 Watts
  • Impedance (Z) 8 Ohms
  • Sensitivity (SPL at 1m / 2.83V) 88 dB
  • Frequency Response 100–20000 Hz
  • Voice Coil Diameter 20 mm
  • DC Resistance (Re) 7.2 Ohms
  • Voice Coil Inductance (Le) 0.3 mH
  • Resonant Frequency (Fs) 125 Hz
  • Mechanical Q (Qms) 3.24
  • Electromagnetic Q (Qes) 0.58
  • Total Q (Qts) 0.49
  • Diaphragm Mass Inc. Airload (Mms) 1.8 g
  • Surface Area of Cone (Sd) 29 cm²
  • BL Product (BL) 4.0 Tm
  • Compliance Equivalent Volume (Vas) 1.1 l
  • Maximum Linear Excursion (Xmax) 0.25 mm
  • Cone / Diaphragm Material Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Overall Outside Diameter 78 x 78 mm
  • Overall Depth 44 mm Baffle Cutout
  • Diameter 77 mm
  • # Mounting Holes 4 Mounting Hole
  • Diameter 4 mm
