SHIPMENT IN 7-10 WORKING DAYS
€20.00

Tax included
rating No review at the moment

Dayton Audio TT25-8 PUCK Tactile Transducer Mini Bass Shaker 8 Ohm

Dayton Audio's TT25-8 PUCK is a small, 8 ohm tactile transducer or mini bass shaker that is intended to be used in home theater, gaming, and auto sound applications. Now includes convenient surface mounting kit for quick and easy installation onto any flat surface

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?



Dayton Audio TT25-8 PUCK Tactile Transducer Mini Bass Shaker 8 Ohm

The PUCK™ by Dayton Audio is a small, economical tactile transducer otherwise known as a mini bass shaker that is intended to be used in home theater, gaming, and auto sound applications. This mini bass shaker has the unique ability to transfer low frequency sound waves directly to the listener by mounting the PUCK™ to surface areas that a listener's body will come into contact with. Because the listener "feels" the low frequency, the volume of the overall sound can be kept to a minimum without sacrificing the audio quality.

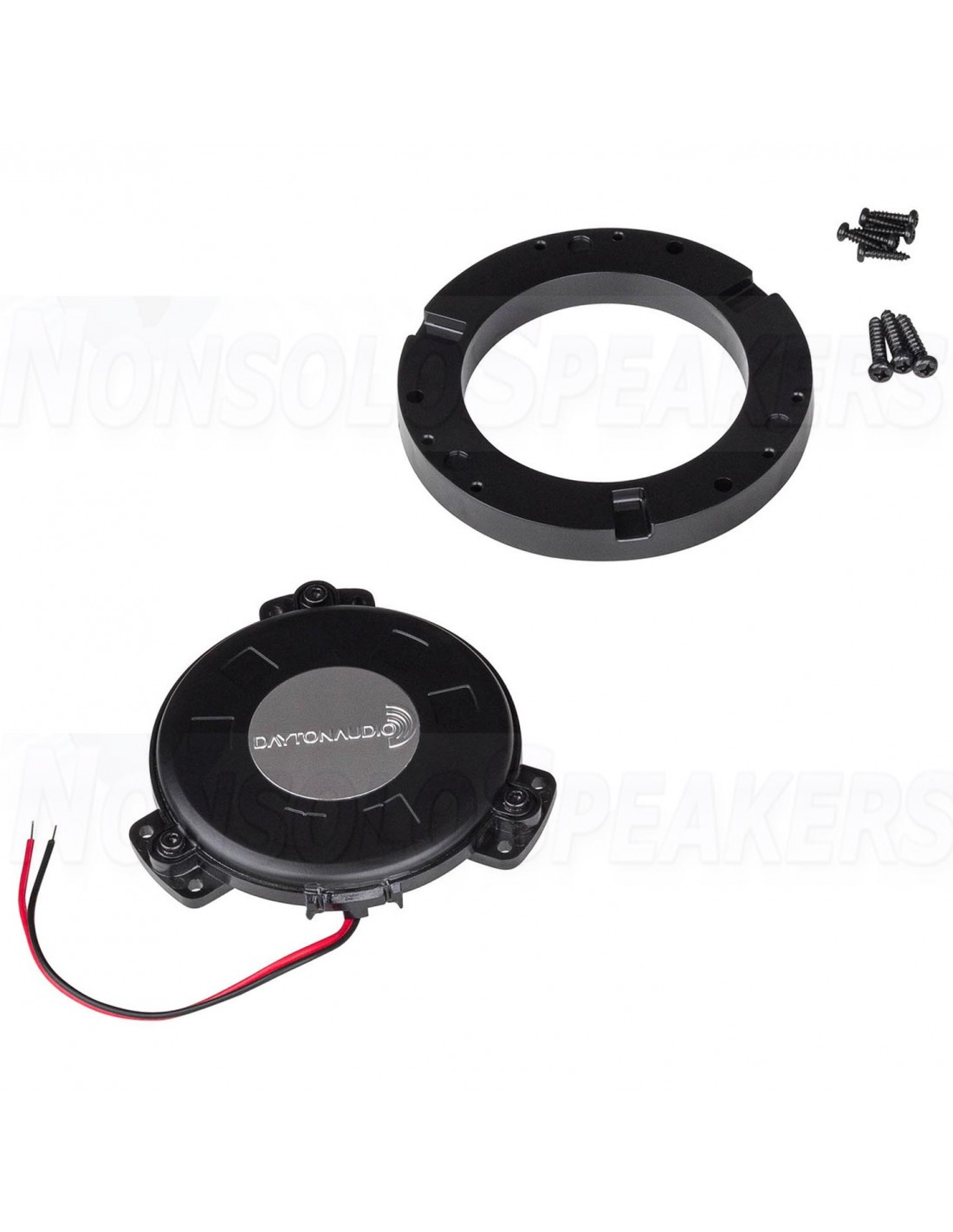

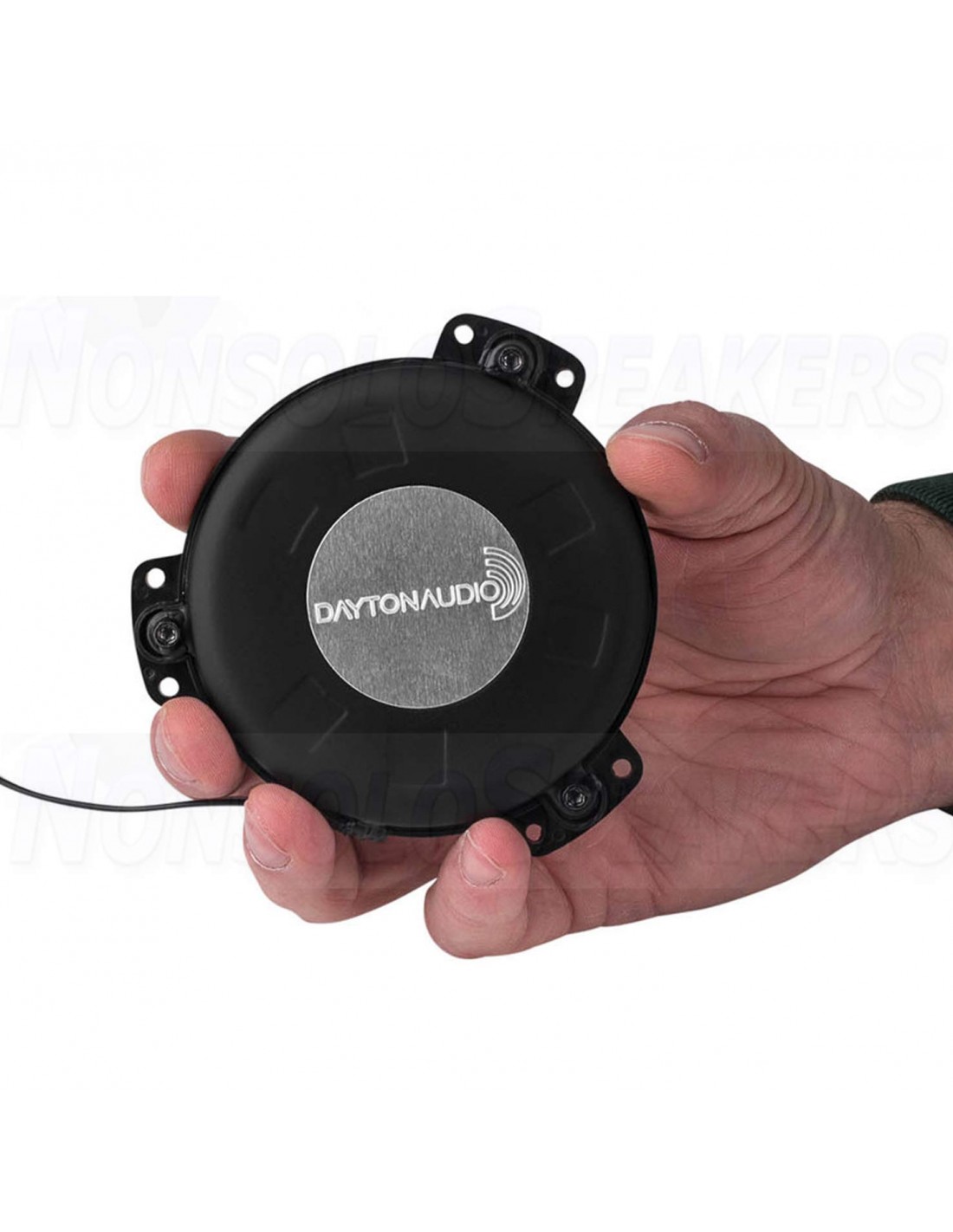

The PUCK measures a mere 3-1/2" diameter and 1" depth, nearly identical in size to an ice hockey puck. The small depth and diameter of the PUCK™ mini bass shaker make it uniquely suited for tight spaces and unobtrusive applications. 4 layer Voice Coil with 1" aluminum former. The included surface mounting ring makes the Puck easy to install directly onto any flat surface.

.

Specifications:

• Power handling: 15 watts RMS/30 watts max

• Impedance: 8 ohms

• Re: 7.7 ohms

• Le: 1.30 mH @ 1k Hz

• Fs: 40 Hz

• Usable frequency response: 20-80 Hz

• Force peak: 30 lbs. per ft. total when used in 4 PUCK configuration

• Dimensions: 3-1/2" dia. x 1" H

• Cutout: 70 mm with 25 mm slot for wire pass through

• Consult owners manual for cut-out template and wiring information.

.

Product Details

Brand Dayton Audio

Model TT25-8

UPC 848791000102

Unit of Measure Each

Weight 0.360 grams

.

Product Specifications

Application Low Frequency Bass Shaker

Power Handling (RMS) 15 Watts

Impedance 8Ω

TT25-8 PUCK
