W5-1611SAF - 5" Full Range TB-Speakers TANG BAND
W5-1611SAF - 5" Full Range TB-Speakers TANG BAND
W5-1611SAF - 5" Full Range TB-Speakers TANG BAND
W5-1611SAF - 5" Full Range TB-Speakers TANG BAND

TANG BAND W5-1611SAF - 5" Full Range TB-Speakers

TANG BAND W5-1611SAF - 5" Full Range TB-Speakers

Versatility and fidelity are the Tang Band W5-1611SAF 5" speaker's chief attributes. It is small enough to offer articulation and great HF dispersion, but big enough to pack a punch.

SHIPMENT IN 5-7 WORKING DAYS
€95.79 €103.00 -7%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Quantity Unit discount You Save
2 7% €14.42
4 10% €41.20
Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND W5-1611SAF - 5" Full Range TB-Speakers

.

The Tang Band W5-1611SAF 5" speaker has a fiberglass-reinforced nylon frame, black polypropylene cone, and wide temperature range/high-loss rubber surround. An underhung 1" voice coil provides linear travel and the aluminum pole piece phase plug improves dispersion. The W5-1611SAF's extremely smooth, extended frequency response makes it suitable for a variety of applications, including full-range point source loudspeaker systems, line arrays, and midrange duty.

.

Product Details

  • Brand Tang Band
  • Model W5-1611SAF
  • Part Number 264-918
  • UPC 844632092862
  • Unit of Measure Each
  • Weight 3.8

.

Product Specifications

  • Nominal Diameter 5"
  • Moving Mass Of Diaphragm (Mmd) 5.99
  • Power Handling (RMS) 28 Watts
  • Power Handling (MAX) 56 Watts
  • Impedance 8Ω

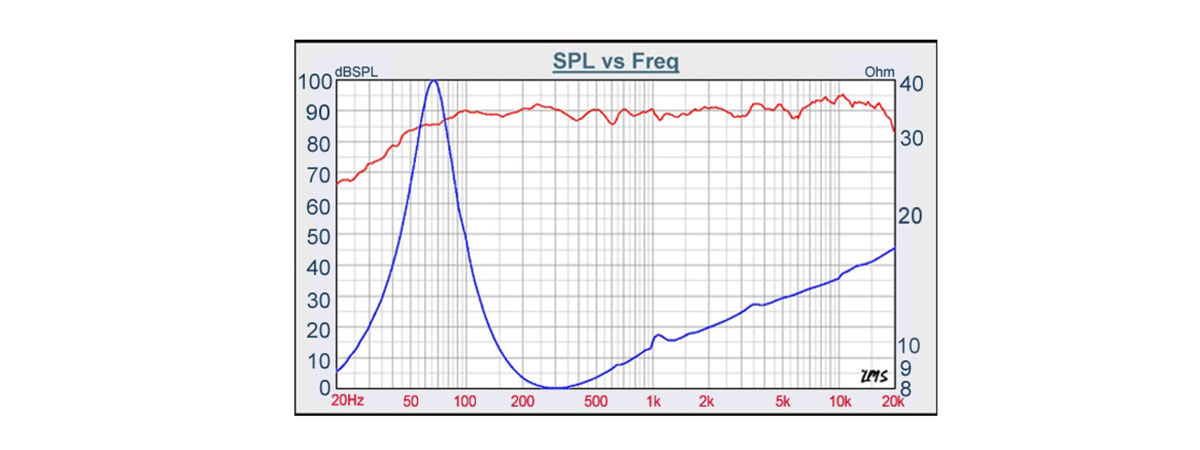

  • Frequency Response 60 to 20,000Hz
  • Sensitivity 90dB 2.83V/1m
  • Voice Coil Diameter 1"

.

Thiele-Small Parameters

  • Resonant Frequency (Fs) 60Hz
  • DC Resistance (Re) 6.3Ω
  • Voice Coil Inductance (Le) 0.02mH
  • Mechanical Q (Qms) 2.8
  • Electromagnetic Q (Qes) 0.52
  • Total Q (Qts) 0.44
  • Compliance Equivalent Volume (Vas) 0.41ft³
  • Mechanical Compliance of Suspension (Cms) 1.31mm/N
  • BL Product (BL) 5.53T·m
  • Maximum Linear Excursion (Xmax) 3mm
  • Surface Area of Cone (Sd) 94cm²

.

Materials of Construction

  • Cone Material Poly
  • Surround Material Rubber
  • Basket / Frame Material Polymer
  • Magnet Material Ferrite

.

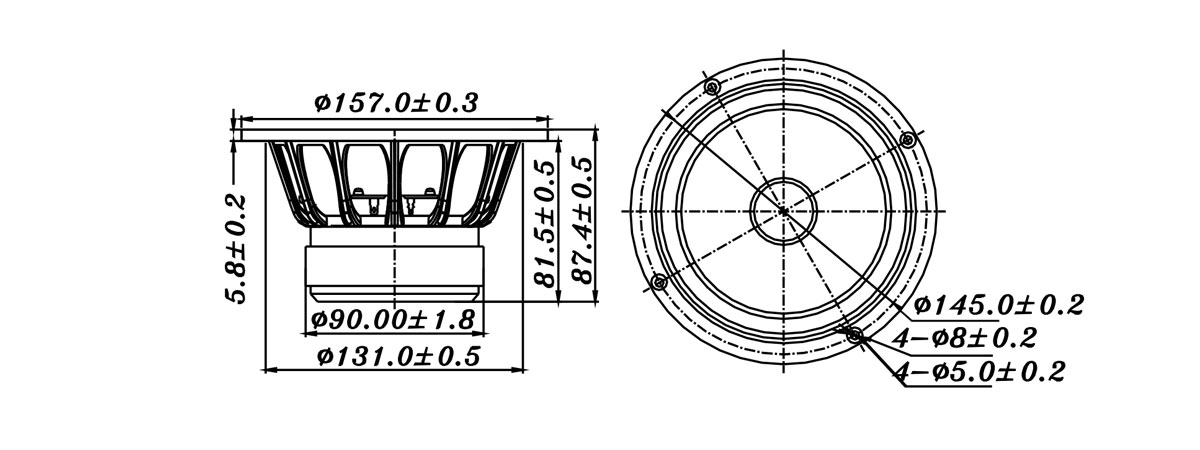

Mounting Information

  • Overall Outside Diameter 6.18"
  • Baffle Cutout Diameter 5.16"
  • Depth 3.44"
  • # Mounting Holes 4

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

  • Sealed Volume 0.17ft³
  • Sealed F3 109Hz
  • Vented Volume 0.44ft³
  • Vented F3 56Hz
