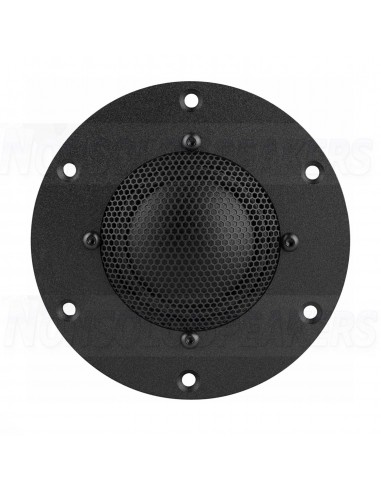

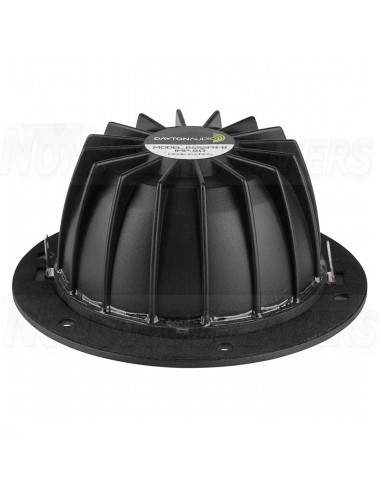

Dayton Audio RS52AN-8 Mid-range Dome
Dayton Audio RS52AN-8 Mid-range Dome
Dayton Audio RS52AN-8 Mid-range Dome
Dayton Audio RS52AN-8 Mid-range Dome
Dayton Audio RS52AN-8 Mid-range Dome
Dayton Audio RS52AN-8 Mid-range Dome

Dayton Audio RS52AN-8 Mid-range Dome

Dayton Audio RS52AN-8 Mid-range Dome

Out-of-Stock
€64.95
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?



Dayton Audio RS52AN-8 Mid-range Dome

Product description

The Dayton Audio Reference Series dome midrange delivers excellent off-axis response and midrange performance. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece.

.

Highlights

Large damped rear chamber for low resonance point

2" Aluminum diaphragm for good clarity and dispersion

Neodymium magnet minimizes stray magnetic field

Copper clad motor reduces distortion for transparent sound

.

Product details

Dayton Audio RS52AN-8 2" Dome Midrange

The Dayton Audio Reference Series dome midrange delivers excellent off-axis response and midrange performance. Its black anodized 2" diaphragm is extremely linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical two-way designs with large woofers. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series, but will also work well with any high-performance driver.

.

Specifications

Article numberRS52AN-8
Woofer SeriesReference Series
Woofer TypeMid-dome
Nominal Diameter2"
Power Handling (RMS)60 watts
Power Handling (max)120 watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)89.4 dB
Frequency Response500 - 14,000 Hz
Voice Coil Diameter52 mm
DC Resistance (Re)6 ohms
Voice Coil Inductance (Le)0.13 mH @ 1 kHz
Resonant Frequency (Fs)341 Hz
Mechanical Q (Qms)3.16
Electromagnetic Q (Qes)1.18
Total Q (Qts)0.86
Diaphragm Mass Inc. Airload (Mms)1.7g
Mechanical Compliance of Suspension (Cms)0.13 mm/N
Surface Area of Cone (Sd)26.4 cm²
Volume of Displacement (Vd)2.64 cm³
BL Product (BL)4.26 Tm
Compliance Equivalent Volume (Vas)0.13 liters
Maximum Linear Excursion (Xmax)1 mm
Cone / Diaphragm MaterialMetal Dome
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Magnet MaterialNeodymium
Overall Outside Diameter130 mm
Overall Depth57 mm
Baffle Cutout Diameter100 mm
# Mounting Holes6
