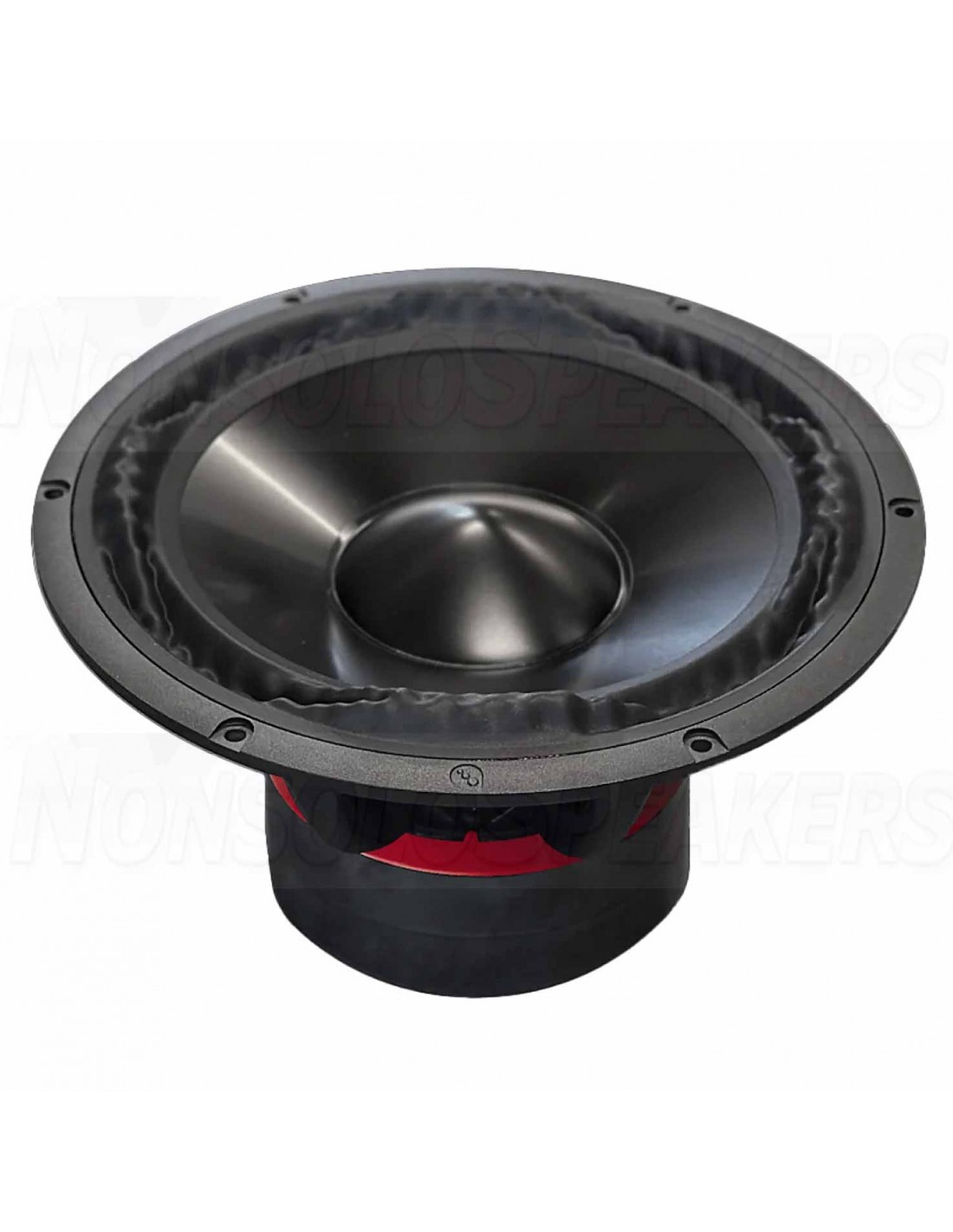

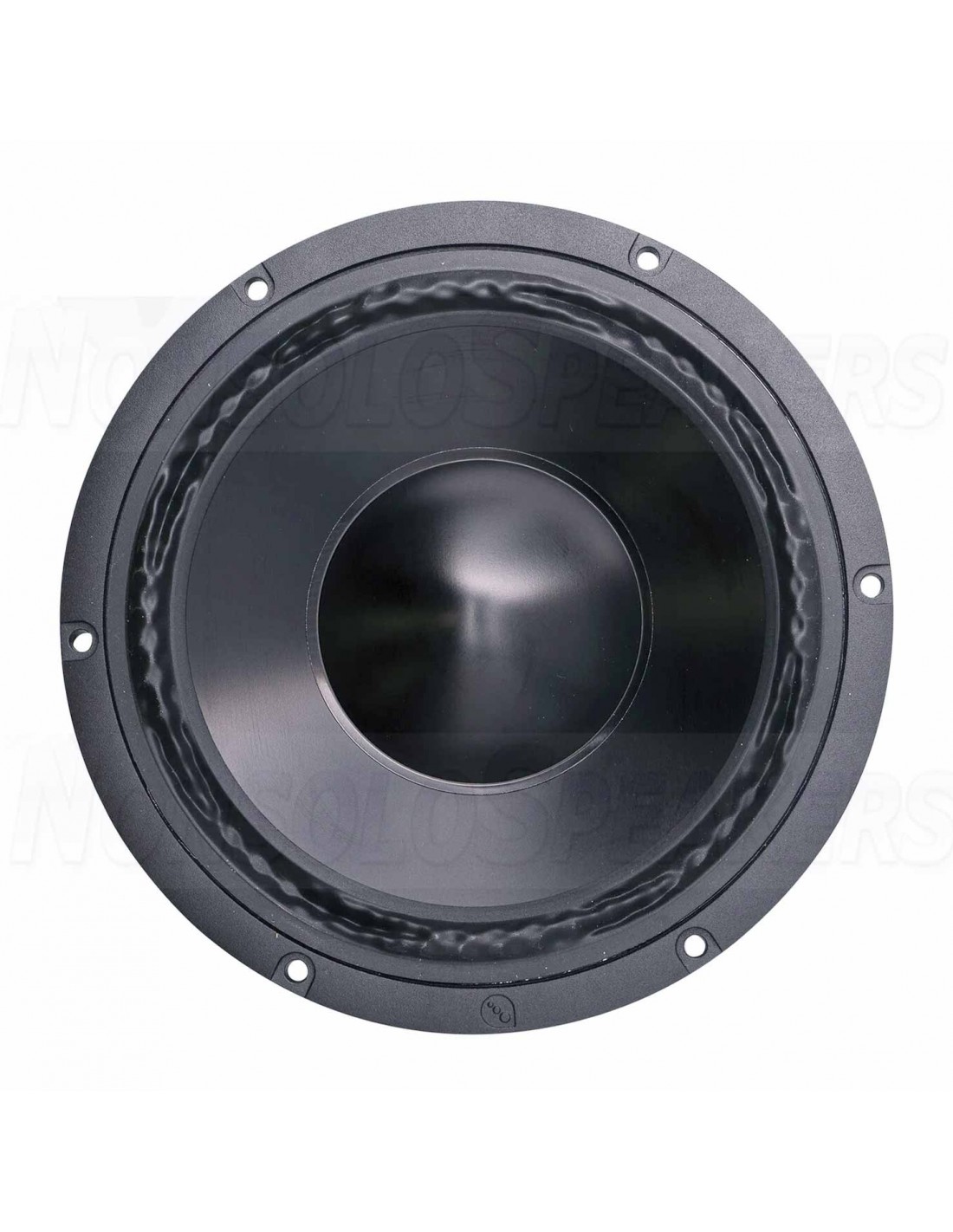

PURIFI PTT10.0X08-NAB-01 Ultra Low Distortion Extended Woofer 8 Ohm

The PTT10.0X08-NAB-01 is an Ultra Low Distortion Extended Woofer that is sure to take your audio experience to the next level.


Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like



PURIFI PTT10.0X08-NAB-01 Ultra Low Distortion Extended Woofer 8 Ohm

.

The PTT10.0X08-NAB-01 is an Ultra Low Distortion Extended Woofer that is sure to take your audio experience to the next level. With its powerful bass response and crystal-clear highs, this woofer is perfect for any genre of music. Whether you're a fan of hip hop, rock, or classical, the PTT10.0X08-NAB-01 will deliver the sound you crave.

.

Highlights

  • 10-inch nominal diameter
  • 8 ohm nominal impedance
  • 350 watt power handling
  • Ultra low distortion
  • Extended-stroke performance
  • Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
  • Ultra-low Magnetic Hysteresis Distortion (MHD)

.

Product Details

PURIFY PTT10.0X08-NAB-01 Ultra Low Distortion Extended Woofer 8 Ohm
The PTT10.0X08-NAB-01 is also incredibly durable, making it perfect for even the most demanding environments. Whether you're using it in a home theater, recording studio, or live performance venue, you can be sure that the PTT10.0X08-NAB-01 will perform flawlessly. If you're looking for a woofer that can deliver the ultimate audio experience, the PTT10.0X08-NAB-01 is the perfect choice for you.
With its powerful bass, crystal-clear highs, and ultra low distortion, this woofer will transport you to the heart of your music.
.

Technical Specifications

  • Item number: PTT10.0X08-NAB-01
  • EAN 8785256859771
  • Woofer type: Bass-Midwoofer
  • Nominal diameter: 10"
  • Power handling (QMW) 350 watts plus (TBD)
  • Impedance (Z) 8 Ω
  • Sensitivity (SPL at 1m / 2.83V) 84.2 dB
  • Frequency response: 22-3,500 Hz
  • Voice coil diameter: 52 mm
  • DC resistance (Re) 6.4 Ω
  • Voice coil inductance (Le) 1.06 mH
  • Resonance frequency (Fs) 22 Hz
  • Mechanical quality factor (Qms) 6.1
  • Electrical quality factor (Qes) 0.42
  • Total quality factor (Qts) 0.4
  • Moving mass (Mms) 118 g
  • Diaphragm Area (Sd) 360 cm2
  • Force Factor (BL) 15.7 N/A
  • Equivalent Volume (Vas) 81 liters
  • Maximum Displacement (Xmax) +/- 25.0 mm
  • Driver's Mechanical Losses (Rms) 2.69 kg/s
  • Outer Diameter 269 mm
  • Overall Depth 145 mm
  • Cutout Diameter 242 mm
  • Bolt Circle Diameter 257.5 mm
  • Mounting Holes 6
  • Mounting Hole Diameter 5.2 mm
