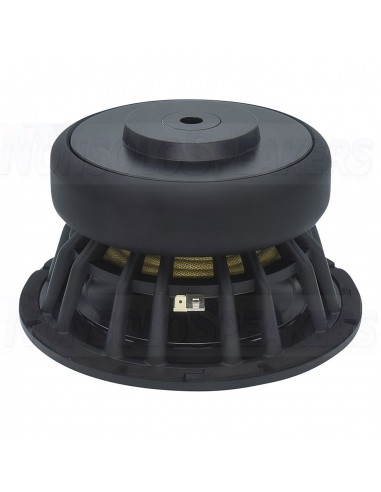

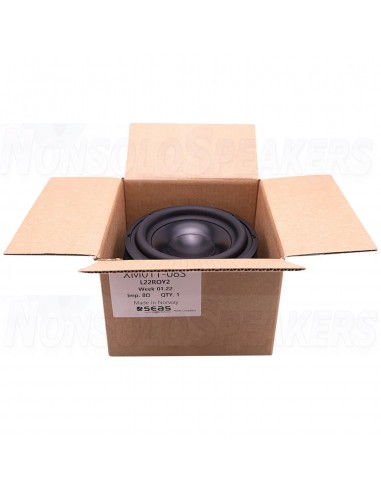

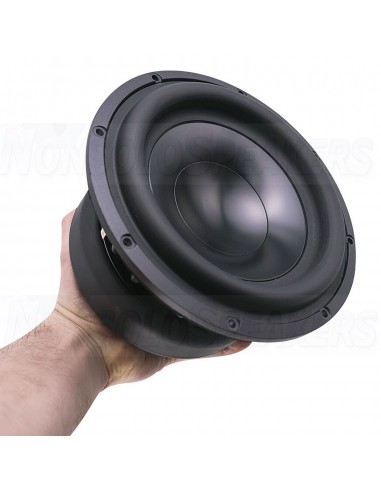

SEAS Extreme L22ROY2 - XM011-8 Subwoofer
Product description

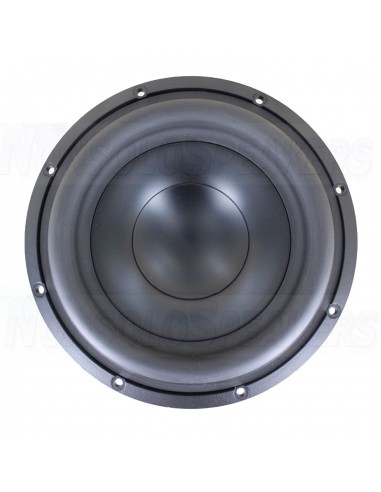

The L22ROY is a High Fidelity woofer, intended for 3-way systems, closed box and transmission line designs. With an extremely stiff aluminium cone, it provides a tremendous bass precision.
Highlights
High power titanium voice coil former
Large rubber surround
Large FEA optimised magnet system
Reduce nonlinear and modulation distortion
.
Product details
SEAS Extreme L22ROY2 - XM011-8 Subwoofer
A 2” diameter high power titanium voice coil former with a long copper winding for excellent force transfer and transient sound reproduction. A large rubber surround together with a textile spider allow for the outstanding linear excursion of the coil while keeping it well centered at high power. These characteristics result in a very low mechanical damping for better clarity bringing up the micro details in music.

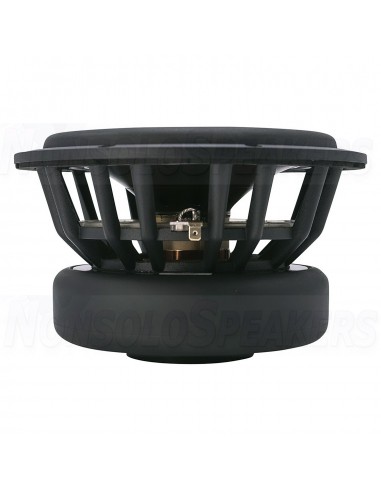

A large FEA optimised magnet system with a very big center hole through the pole piece and precisely fitted copper parts for excellent linearity, high power handling and low distortion. Below the T-shaped pole piece there is a heavy copper ring and on top, a thick aluminium ring, they both help to reduce nonlinear and modulation distortion. The stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance.
The frequency responses above show measured free field sound pressure in 0, 30, and 60 degrees angle using a 22L closed box. Input 2.83 Vrms, microphone distance 0.5m, normalized to SPL 1m.The dotted line is a calculated response in infinite baffle based on the parameters given for this specific driver. The impedance is measured in free air without baffle using a 2V sine signal.
.
General
Product type Cone driver
Brand SEAS
Reference L22ROY2
Product code XM011-08
Informations
Product manufacturer range 22 cm, Extreme, Woofer
Nominal impedance 8 ohm
Dimensional category 8.5 inch
Frequency coverage type Sub, Low, Midbass
Manufacturer sensitivity 83 dB
Calculated sensitivity 82.2 dB
Nominal power handling 250 W
Max power handling 500 W
Bandwidth 20÷2000 Hz
Fundamental parameters
Sd 221 cm²
Mms 84 gr
Cms 400 µm/N
Rms 3.56 kg/s
Le 0.4 mH
Re 6.2 ohm
Small signal parameters
Fs 27 Hz
Qes 0.49
Qms 4.11
Qts 0.44
Vas 27 L
Datas
Flux density 1.15 T
Xmax ±11.5 mm
Calculated Xmax ±14.1667 mm
Xvar, Xmech, Xlim ±23 mm
EBP 55 Hz
Fs / Qts 61 Hz
Vas * Qts² 5.23 L
Calculated efficiency 0.11 %
Weight ~6.5 kg
Demodulation ring Yes
Dimensions
Voice coil diameter 2 inch
Winding depth 31 mm
Gap height 8 mm
Outside diameter 222 mm
Baffle cutout diameter 193.4 mm
Front thickness 10.5 mm
Depth after front 118 mm
Shape & Materials
Front chape Cylindrical
Magnet type Ferrite
Basket masterial Aluminium
Winding material Copper
Voice coil former Titanium
Surround shape One roll
Surround material Rubberr
