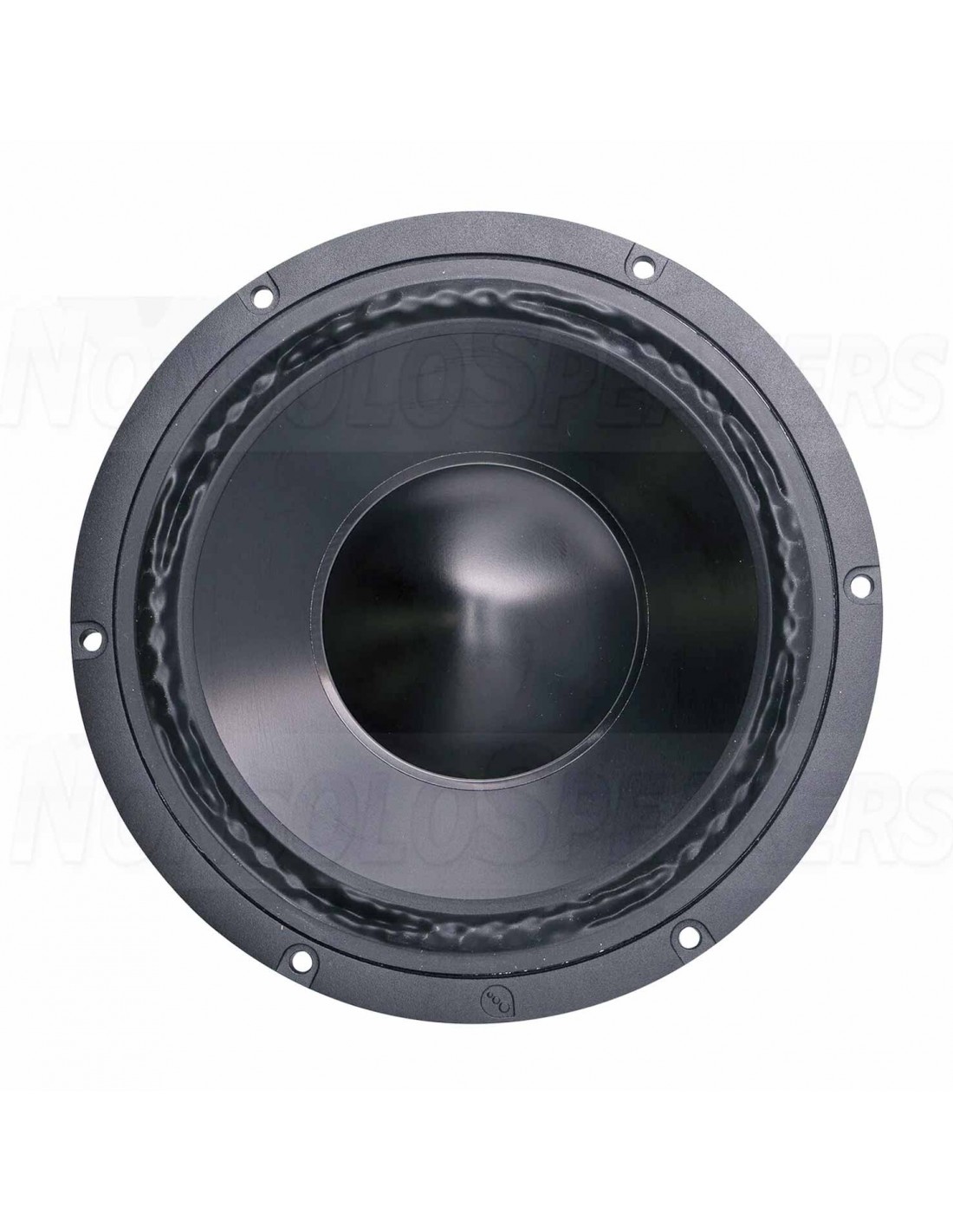

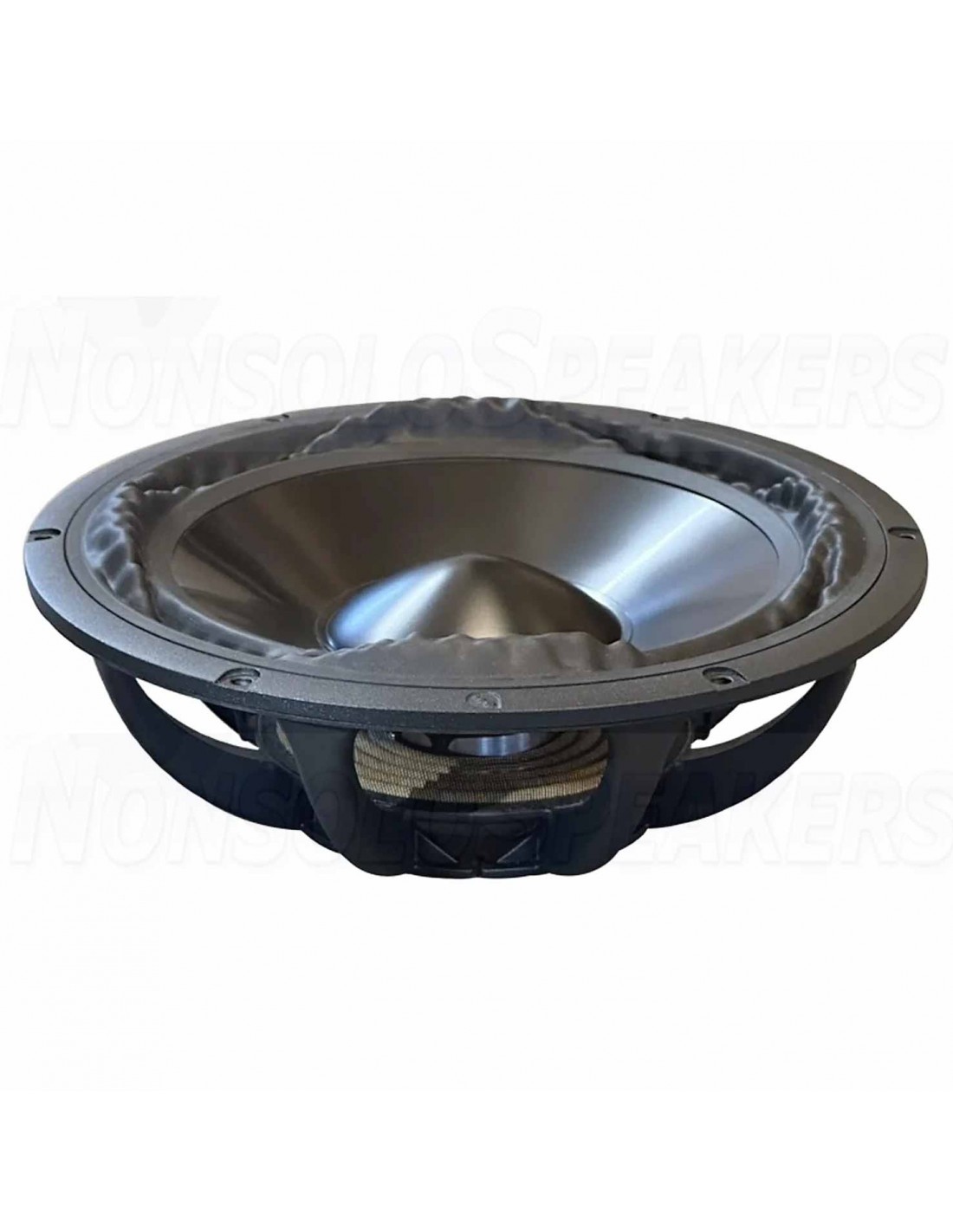

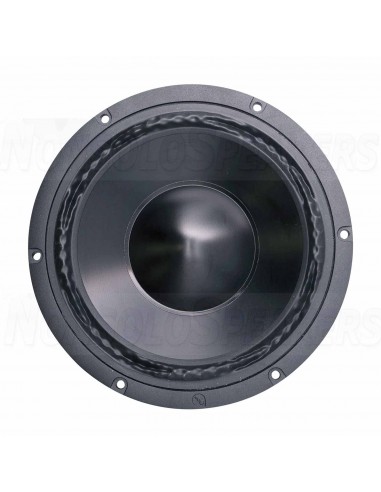

PURIFI PTT10.0PR-NA2-01 Passive Radiator

The PURIFI PTT10.0PR-NA2-01 is a 10-inch passive radiator, optimized for high-fidelity audio applications that require low distortion and precise bass handling.

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like



PURIFI PTT10.0PR-NA2-01 Passive Radiator

.

The PURIFI PTT10.0PR-NA2-01 is a 10-inch passive radiator, optimized for high-fidelity audio applications that require low distortion and precise bass handling. Its innovative NeutralSurround suspension eliminates Surround Radiation Distortion (SRD), ensuring cleaner sound reproduction.

This passive radiator is designed for use in compact speaker systems, providing an alternative to traditional reflex ports, which may otherwise limit performance.

.

Highlights

  • 10-inch passive radiator designed for ultra-low distortion
  • Black anodized aluminum cone for superior durability and sound quality
  • 25 mm one-way peak excursion with constant piston area (Sd)
  • M6 threaded mass plug allows for customizable mass tuning

.

Product Details

PURIFI PTT10.0PR-NA2-01 Passive Radiator - Black Anodized Aluminum Cone
The PTT10.0PR-NA2-01 features a 19 Hz resonance frequency and an effective piston area of 360 cm², making it an excellent choice for low-frequency extension in speaker systems. Its moving mass is 161 g, and it has a mechanical Xmax of ±25 mm, allowing it to deliver deep, controlled bass even in compact enclosures.
This passive radiator is designed and manufactured in Denmark, ensuring high-quality performance and craftsmanship.
.

Technical Specifications

  • Item number: PTT10.0X08-NAB-01
  • EAN 8785256859771
  • Woofer type: Bass-Midwoofer
  • Nominal diameter: 10"
  • Power handling (QMW) 350 watts plus (TBD)
  • Impedance (Z) 8 Ω
  • Sensitivity (SPL at 1m / 2.83V) 84.2 dB
  • Frequency response: 22-3,500 Hz
  • Voice coil diameter: 52 mm
  • DC resistance (Re) 6.4 Ω
  • Voice coil inductance (Le) 1.06 mH
  • Resonance frequency (Fs) 22 Hz
  • Mechanical quality factor (Qms) 6.1
  • Electrical quality factor (Qes) 0.42
  • Total quality factor (Qts) 0.4
  • Moving mass (Mms) 118 g
  • Diaphragm Area (Sd) 360 cm2
  • Force Factor (BL) 15.7 N/A
  • Equivalent Volume (Vas) 81 liters
  • Maximum Displacement (Xmax) +/- 25.0 mm
  • Driver's Mechanical Losses (Rms) 2.69 kg/s
  • Outer Diameter 269 mm
  • Overall Depth 145 mm
  • Cutout Diameter 242 mm
  • Bolt Circle Diameter 257.5 mm
  • Mounting Holes 6
  • Mounting Hole Diameter 5.2 mm

PURIFI PTT10.0PR-NA2-01
