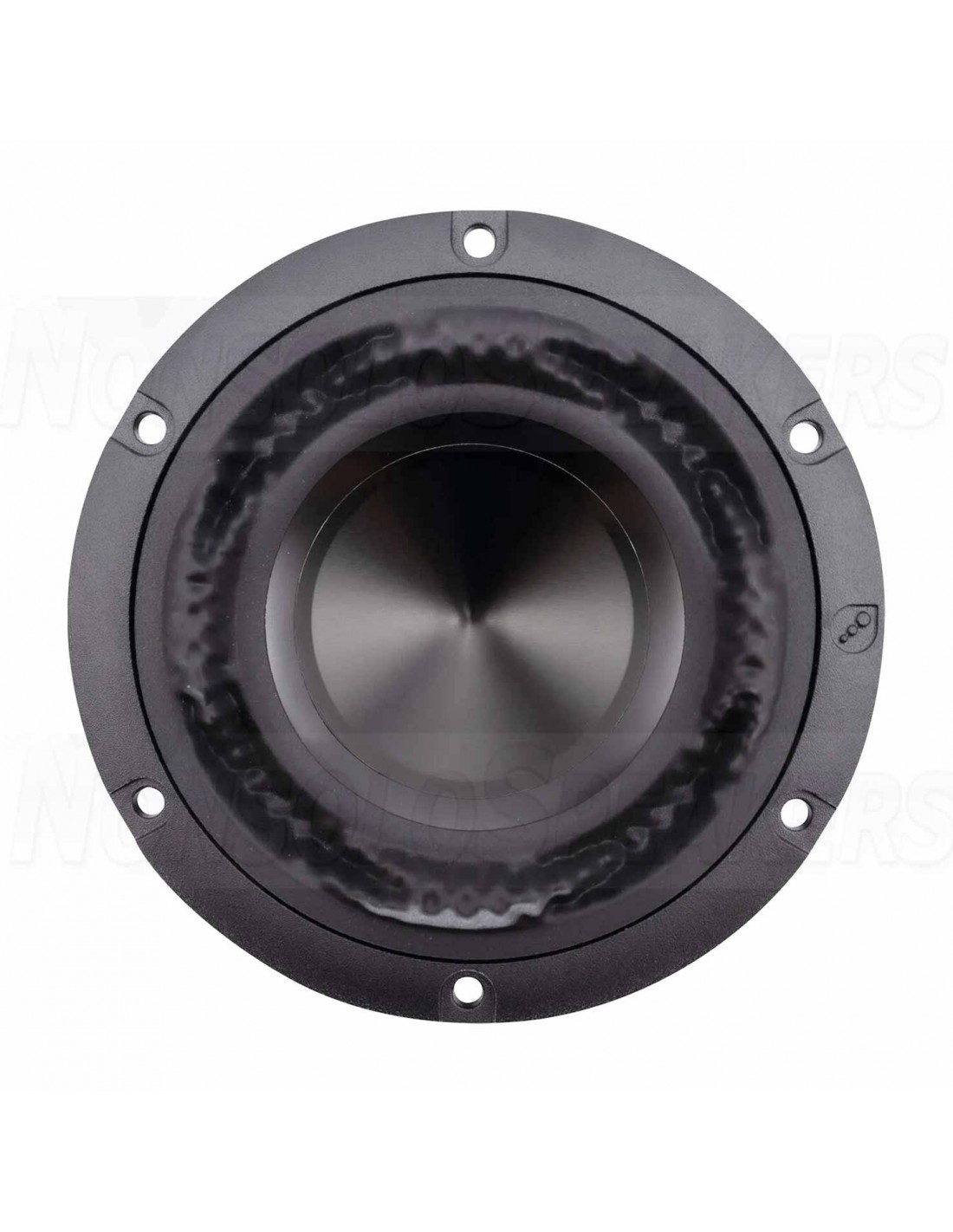

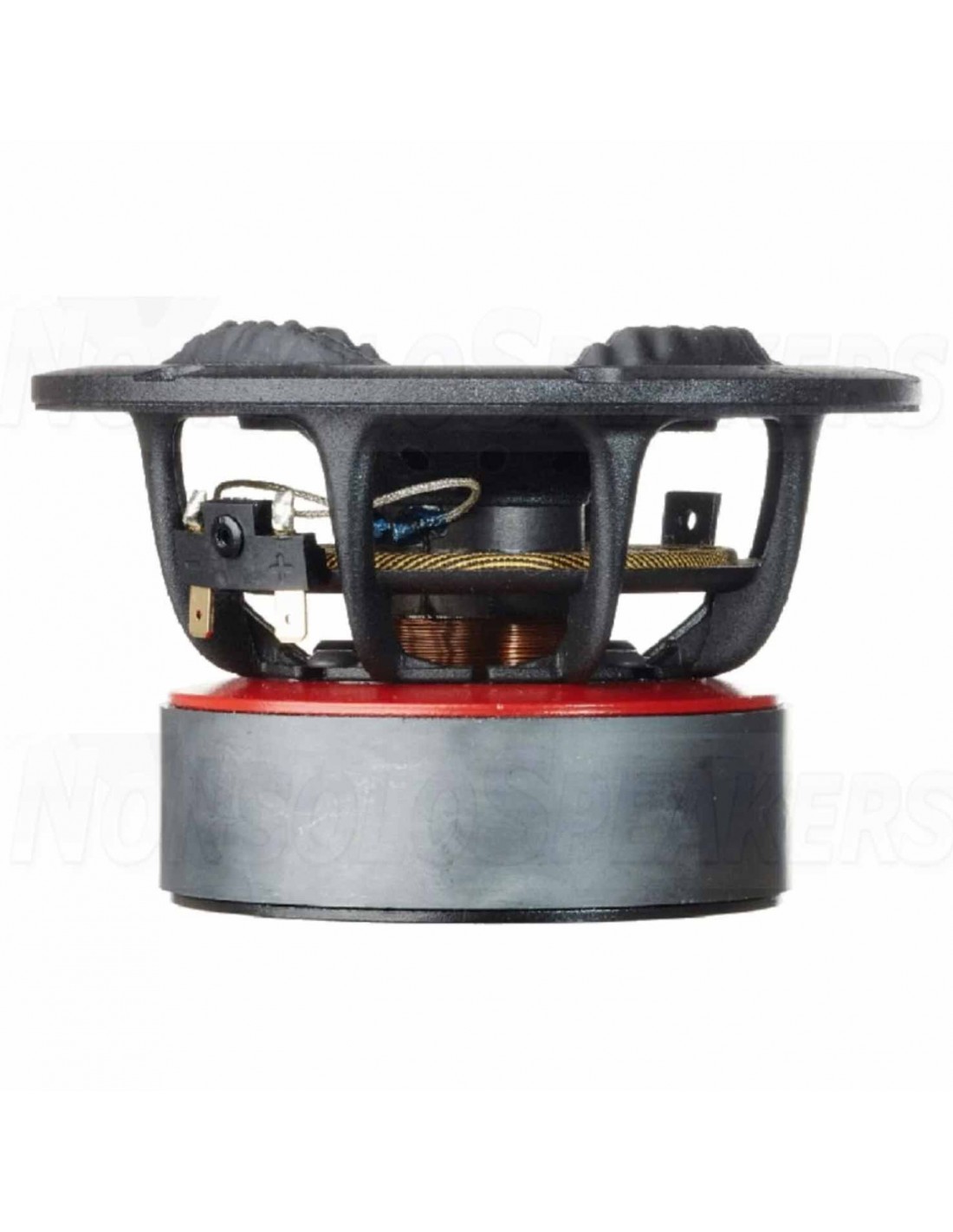

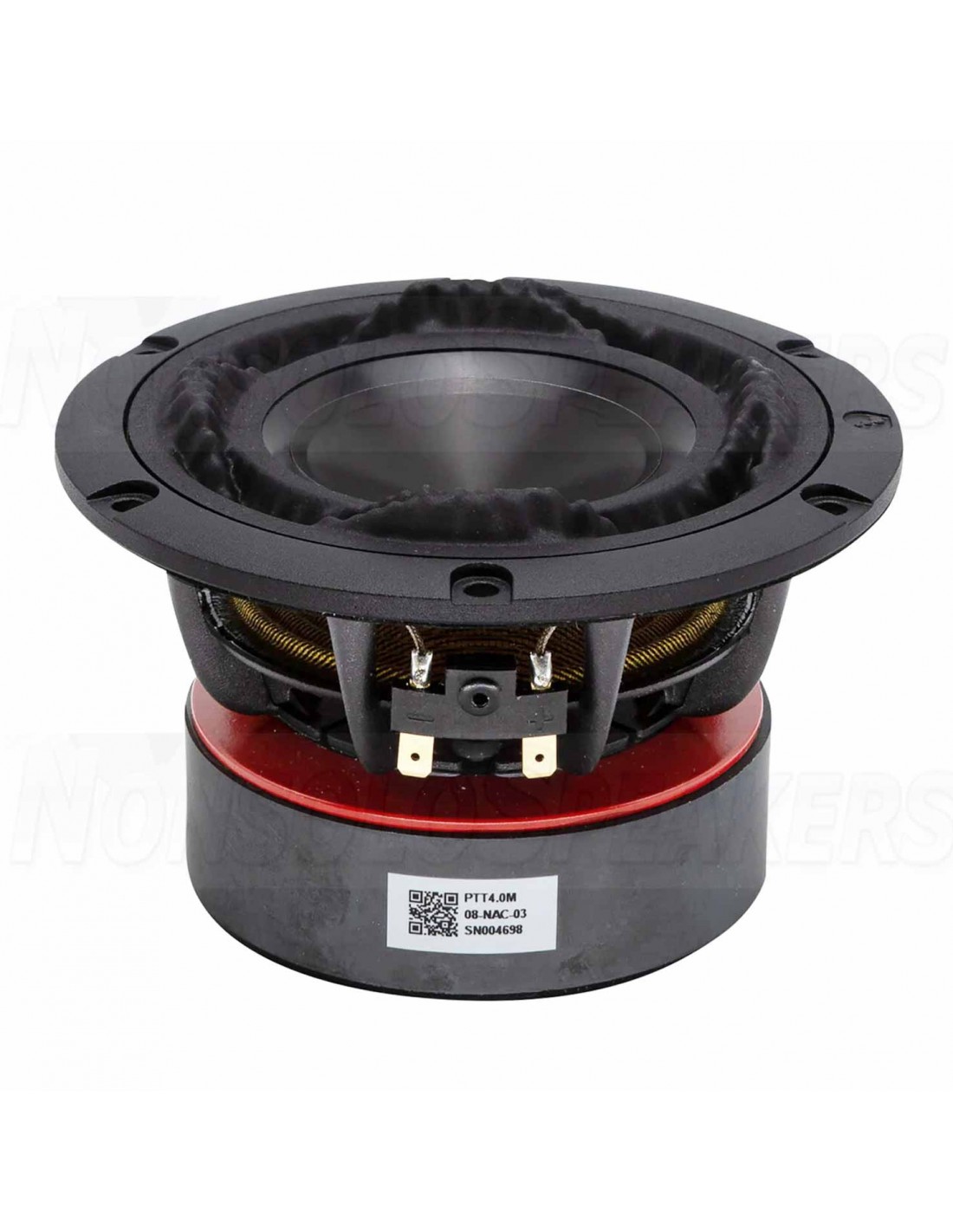

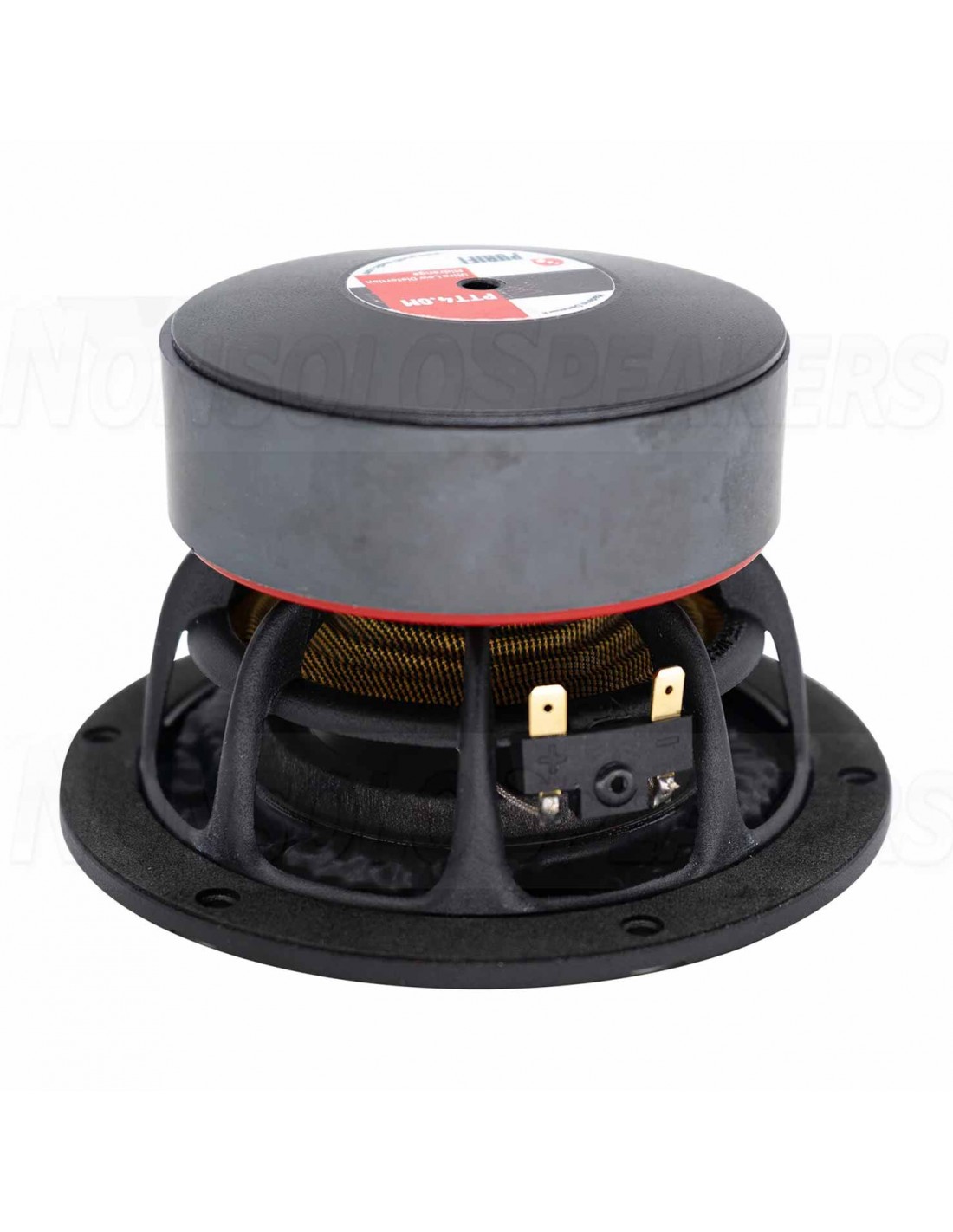

PURIFI PTT4.0M08-NAC-03 4" Ultra Low Distortion Midrange
PURIFI PTT4.0M08-NAC-03 4" Ultra Low Distortion Midrange
PURIFI PTT4.0M08-NAC-03 4" Ultra Low Distortion Midrange
PURIFI PTT4.0M08-NAC-03 4" Ultra Low Distortion Midrange
PURIFI PTT4.0M08-NAC-03 4" Ultra Low Distortion Midrange
PURIFI PTT4.0M08-NAC-03 4" Ultra Low Distortion Midrange
PURIFI PTT4.0M08-NAC-03 4" Ultra Low Distortion Midrange
PURIFI PTT4.0M08-NAC-03 4" Ultra Low Distortion Midrange

PURIFI PTT4.0M08-NAC-03 4" Ultra Low Distortion Midrange

PURIFI PTT4.0M08-NAC-03 4" Ultra Low Distortion Midrange

The 4” midrange driver has been optimized for higher sensitivity compared to the long stroke version.

SHIPMENT IN 7/10 WORKING DAYS
€275.95 €299.95 -8%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



PURIFI PTT4.0M08-NAC-03 4" Ultra Low Distortion Midrange

.

The 4” midrange driver has been optimized for higher sensitivity compared to the long stroke version. It incorporates the easily recognizable PURIFI NeutralSurround suspension and ultra-linear motor system PURIFI PureDrive technology working in concert to elevate performance to a whole new level despite of it’s compact size.

.

Highlights

  • Vibroacoustic optimized cone and dust cap in black anodized aluminum
  • Negligible Force Factor Modulation (FFM) and Surround
  • Radiation Distortion (SRD)
  • Low Magnetic Hysteresis Distortion (MHD)
  • Dedicated midrange driver with enhanced efficiency
  • Designed and manufactured in Denmark

.

Product Details

Purifi PTT4.0M08-NAC-03 4" Ultra Low Distortion Midrange
The PURIFI PTT4.0M08-NAC-03 is a mid-bass woofer that is designed to produce high-quality sound. It features a number of advanced technologies that help to reduce distortion and improve efficiency. The Vibroacoustic optimized cone and dust cap in black anodized aluminum help to reduce distortion, while the negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD) help to improve efficiency.
The low Magnetic Hysteresis Distortion (MHD) also helps to reduce distortion and improve sound quality.
.

Technical Specifications

  • Article number PTT4.0M08-NAC-03
  • EAN 8785256847655
  • Woofer Type Mid-bass
  • Woofer Nominal Diameter 4"
  • Power Handling (RMS) Not known yet
  • Impedance (Z) 8 Ω
  • Sensitivity (SPL at 1m / 2.83V) 84.5 dB
  • DC Resistance (Re) 5.6 Ω
  • Voice Coil Inductance (Le) 0.36 mH
  • Resonant Frequency (Fs) 50 Hz
  • Mechanical Q (Qms) 4.7
  • Electromagnetic Q (Qes) 0.34
  • Total Q (Qts) 0.32
  • Diaphragm Mass Inc. Airload (Mms) 9.7 g
  • Mechanical Compliance of Suspension (Cms) 1.07 mm/N
  • Surface Area of Cone (Sd) 57 cm2
  • Compliance Equivalent Volume (Vas) 4.9 Litres
  • Maximum Linear Excursion (Xmax) 13.7 mm
  • Cone / Diaphragm Material Black Anodized Aluminum
  • Overall Outside Diameter 125.3 mm
  • Overall Depth 74.5 mm
  • Baffle Cutout Diameter 101 mm
  • Mounting Holes 6
  • Mounting Hole Diameter 4.2 mm
