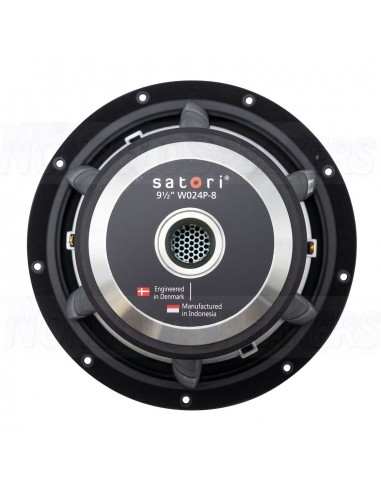

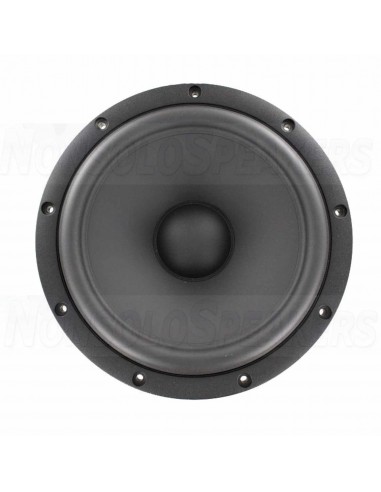

SB ACOUSTICS Satori WO24P-8 - Woofer 9.5"
Satori-WO24P-8
SB ACOUSTICS SATORI MW16P-8 - 6.5" Midwoofer SB Acoustics - 8ohm
Satori-WO24P-8
SB ACOUSTICS SATORI MW16P-8 - 6.5" Midwoofer SB Acoustics - 8ohm
SB ACOUSTICS SATORI MW16P-8 - 6.5" Midwoofer SB Acoustics - 8ohm
SB ACOUSTICS Satori WO24P-8 - Woofer 9.5"
SB ACOUSTICS Satori WO24P-8 - Woofer 9.5"
Satori-WO24P-8
SB ACOUSTICS SATORI MW16P-8 - 6.5" Midwoofer SB Acoustics - 8ohm
Satori-WO24P-8
SB ACOUSTICS SATORI MW16P-8 - 6.5" Midwoofer SB Acoustics - 8ohm
SB ACOUSTICS SATORI MW16P-8 - 6.5" Midwoofer SB Acoustics - 8ohm
SB ACOUSTICS Satori WO24P-8 - Woofer 9.5"

SB ACOUSTICS Satori WO24P-8 - Woofer 9.5"

SB ACOUSTICS Satori WO24P-8 - Woofer 9.5"

The Satori range was founded to separate more expensive projects from a wider range of more affordable – but still high-end – SB Acoustics products

SHIPMENT IN 7-10 WORKING DAYS
€235.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS Satori WO24P-8 - Woofer 9.5"

The Satori range was founded to separate more expensive projects from a wider range of more affordable – but still high-end – SB Acoustics products. “As we get more experience, new materials, better simulation tools, we believe in benefiting the customer with those improvements. We always knew that geometry is essential and we are working more and more with geometry. Every time we get new materials, like beryllium, and we optimize the designs, there’s always room for improvement. We’ve been able to implement significant improvements with beryllium, and we could obtain pretty good results in combination with geometry.”

.

Highlights

    Hard paper cone for improved piston operation (made in-house)

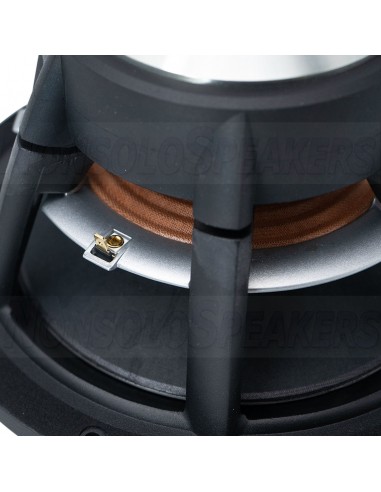

    Large optimized motor system with under-cut pole piece and dual shorting rings

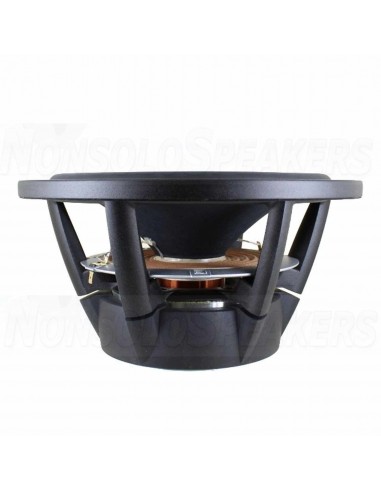

    Vented aerodynamic cast aluminum chassis for optimum strength and low compression
    Soft low damping rubber surround for optimum transient response
    Linear symmetric suspension design for improved dynamic performance
    Non-conducting fiber glass voice coil former for minimum damping
    Long life silver lead wires attached 180° apart for improved stability
    Vented pole piece for reduced compression
    High piston to chassis diameter ratio
    Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

.

Specifications

Article numberWO24P-8
Woofer SeriesSatori Series
Woofer TypeMidwoofer
Nominal Diameter9.5"
Power Handling (RMS)90 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)88 dB
Voice Coil Diameter1.94"
DC Resistance (Re)5.8 ohms
Voice Coil Inductance (Le)0.56 mH
Resonant Frequency (Fs)24.5 Hz
Mechanical Q (Qms)5.7
Electromagnetic Q (Qes)0.41
Total Q (Qts)0.38
Diaphragm Mass Inc. Airload (Mms)44.5 g
Mechanical Compliance of Suspension (Cms)0.95 mm/N
Surface Area of Cone (Sd)255 cm2
BL Product (BL)9.9 Tm
Compliance Equivalent Volume (Vas)3.09 ft.³
Maximum Linear Excursion (Xmax)8.5 mm

.

WO24P-8
