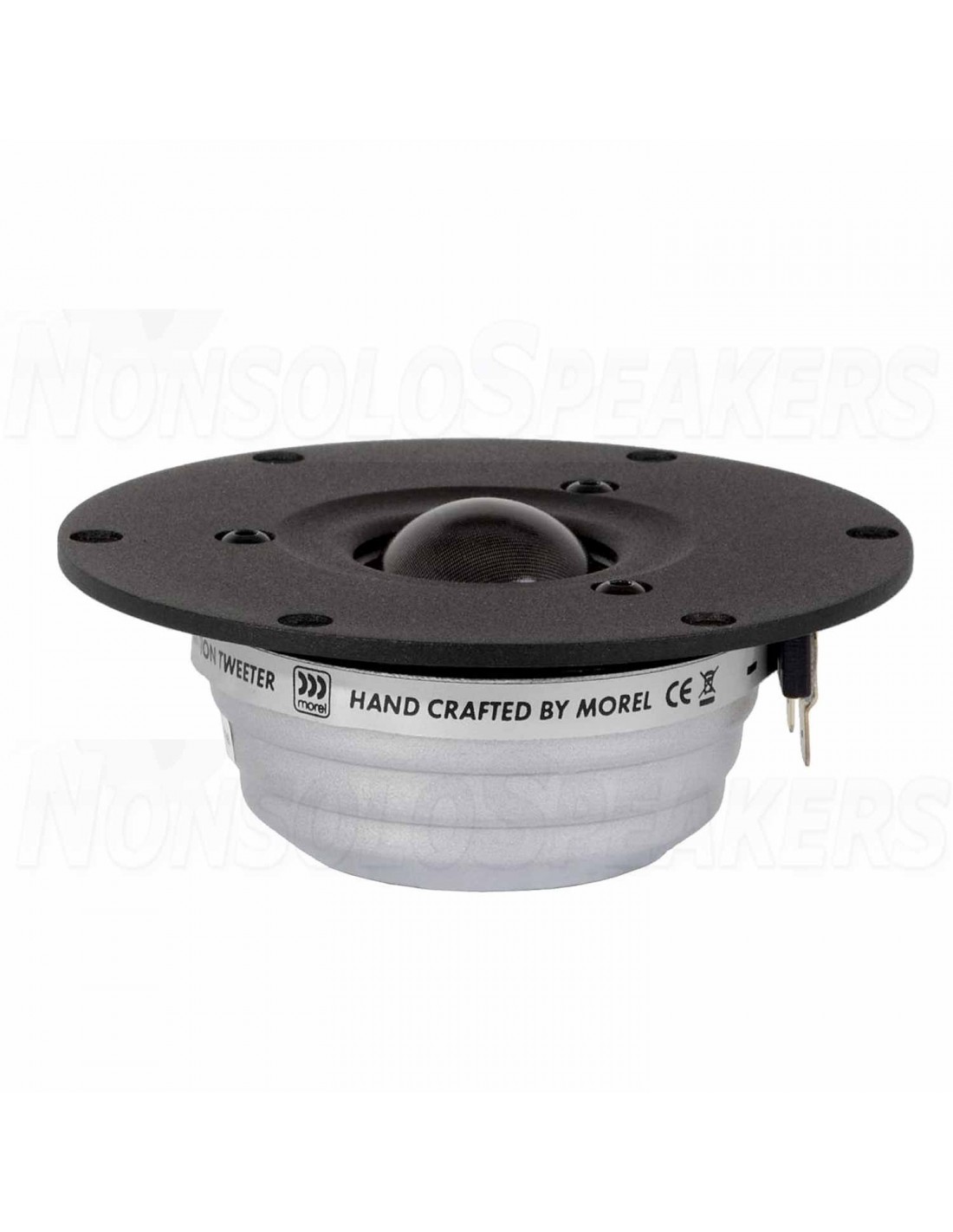

Morel Supreme ST 1108 1" Dome Tweeter
Morel Supreme ST 1108 1" Dome Tweeter
Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance.
Key Features
- Sold in factory matched pairs
- 110 mm IDR™ Improved Dispersion Recess aluminum faceplate
- Flat neodymium motor structure provides maximum flux
- Hexatech™ voice coil for maximum BL product and power handling
- Acuflex™ coated dome with the perfect blend of internal damping and rigidity
- Precisely matched acoustic loading between the dome cavity and rear chamber
You might also like
Morel Supreme ST 1108 1" Dome Tweeter
Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance. Their underhung voice coils move in a significantly higher magnetic field and remain there at all times during operation. As a result, the Morel Supreme tweeters provide more linear excursion, eliminate intermodulation distortion, reduce power compression at high levels, and considerably improve low frequency reproduction.
Product Details
Brand Morel
Model ST 1108
Part Number 277-096
UPC 848864022802
Unit of Measure Pairs
Weight 3
-
Product Specifications
Cone / Dome Diameter 1.125"
Cutout Diameter 2.95
Tweeter Type Soft Dome
Power Handling (RMS) 220 Watts
Impedance 8Ω
Frequency Response 1,400 to 22,000Hz
Sensitivity 91.5dB 2.83V/1m
-
Thiele-Small Parameters
Resonant Frequency (Fs) 680Hz
DC Resistance (Re) 5.2Ω
Voice Coil Inductance (Le) 0.09mH
-
Mounting Information
Overall Outside Diameter 4.33"
Depth 1.46"
