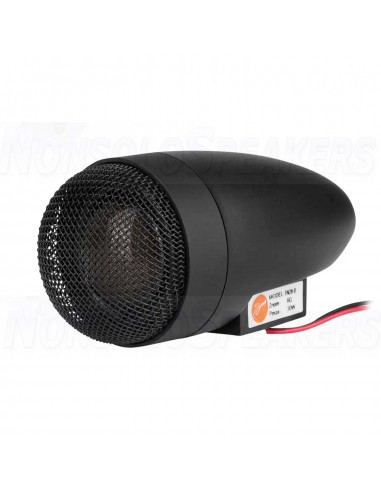

HiVi TN28-B Dome Tweeter 6 ohm

This HiVi TN28-B 1" Fabric Dome Tweeter has very smooth on and off axis frequency response while delivering excellent dispersion. Its versatile-mounting design minimizes diffraction making it easy to create speakers with a unique look.

.

Specifications

• Article number TN28-B
• Tweeter Type Soft Dome
• Cone / Dome Diameter 25 mm | 1"
• Power Handling (RMS) 15 Watts
• Impedance (Z) 6 Ω
• Sensitivity (SPL at 1m / 2.83V) 90 dB
• Frequency Response 2,500 to 20,000 Hz
• Resonant Frequency (Fs) 1300 Hz
• DC Resistance (Re) 5.1 ohms
• Overall Outside Diameter 1.875"
• Depth 3.91"

.

Highlights

• Top mount design for a unique and clean look
• Sleek styling minimizes diffraction and provides smooth off axis response
• Large rear chamber lowers Fs and reduces resonant peaks
• Hand treated soft dome delivers natural response

.

Product details

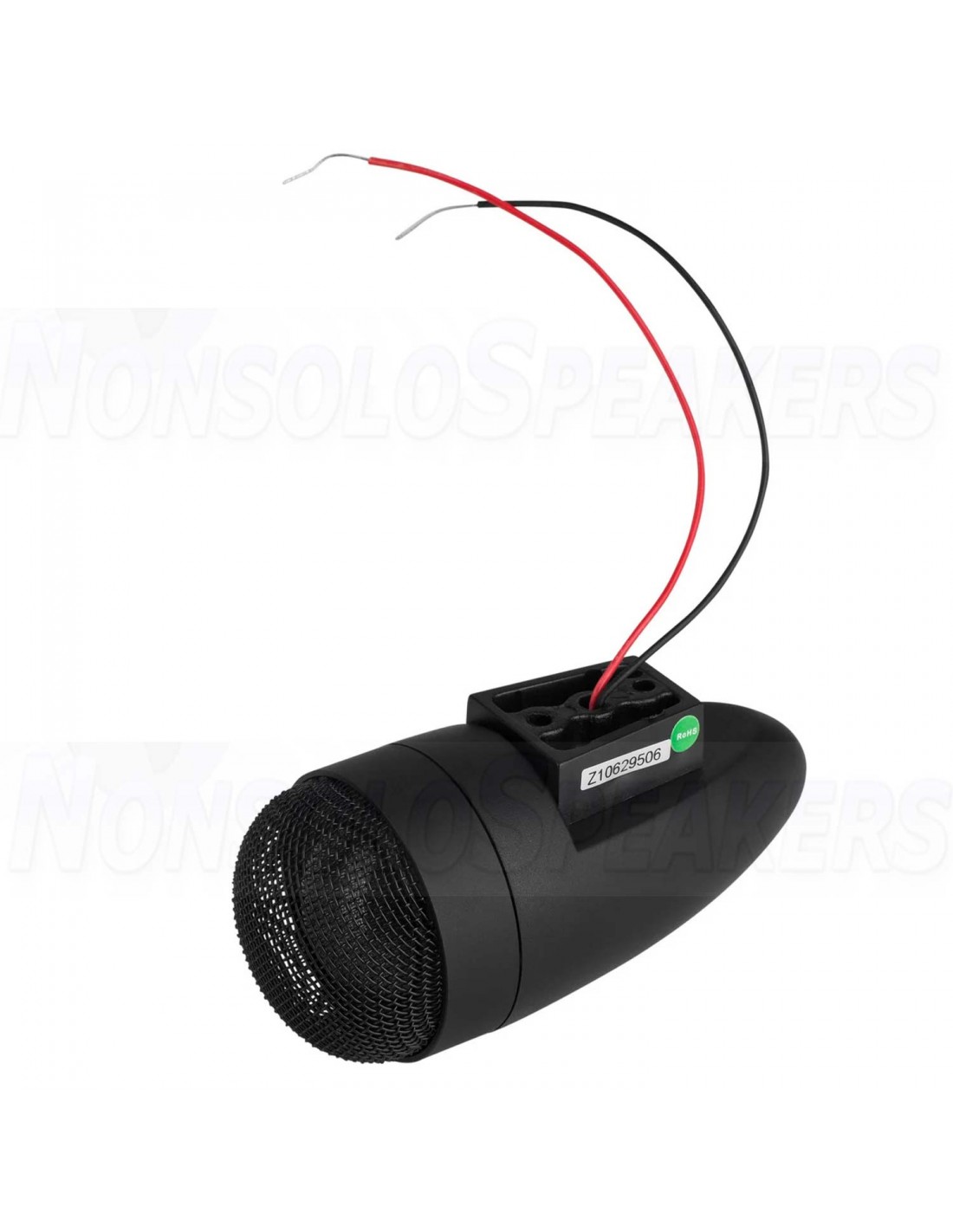

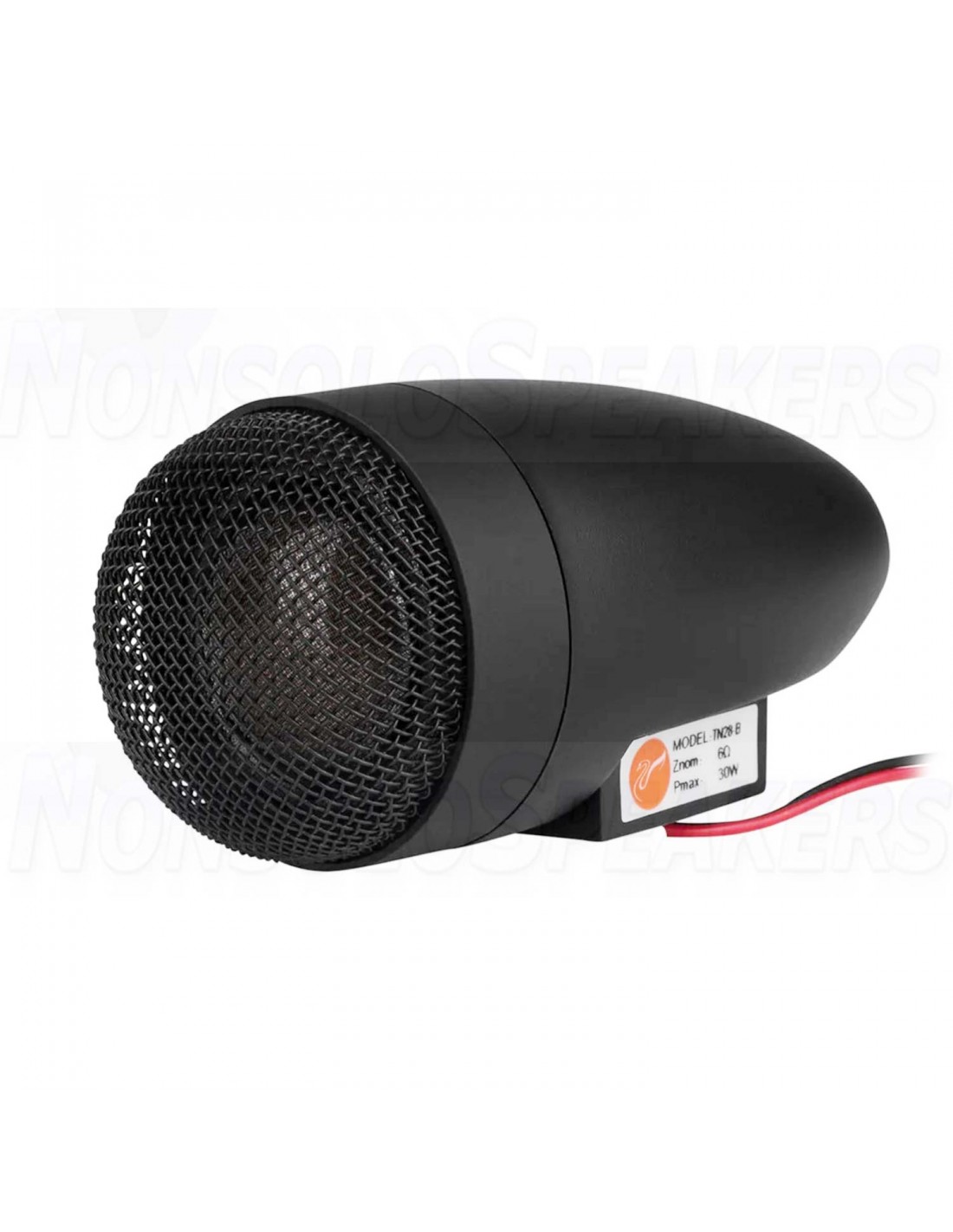

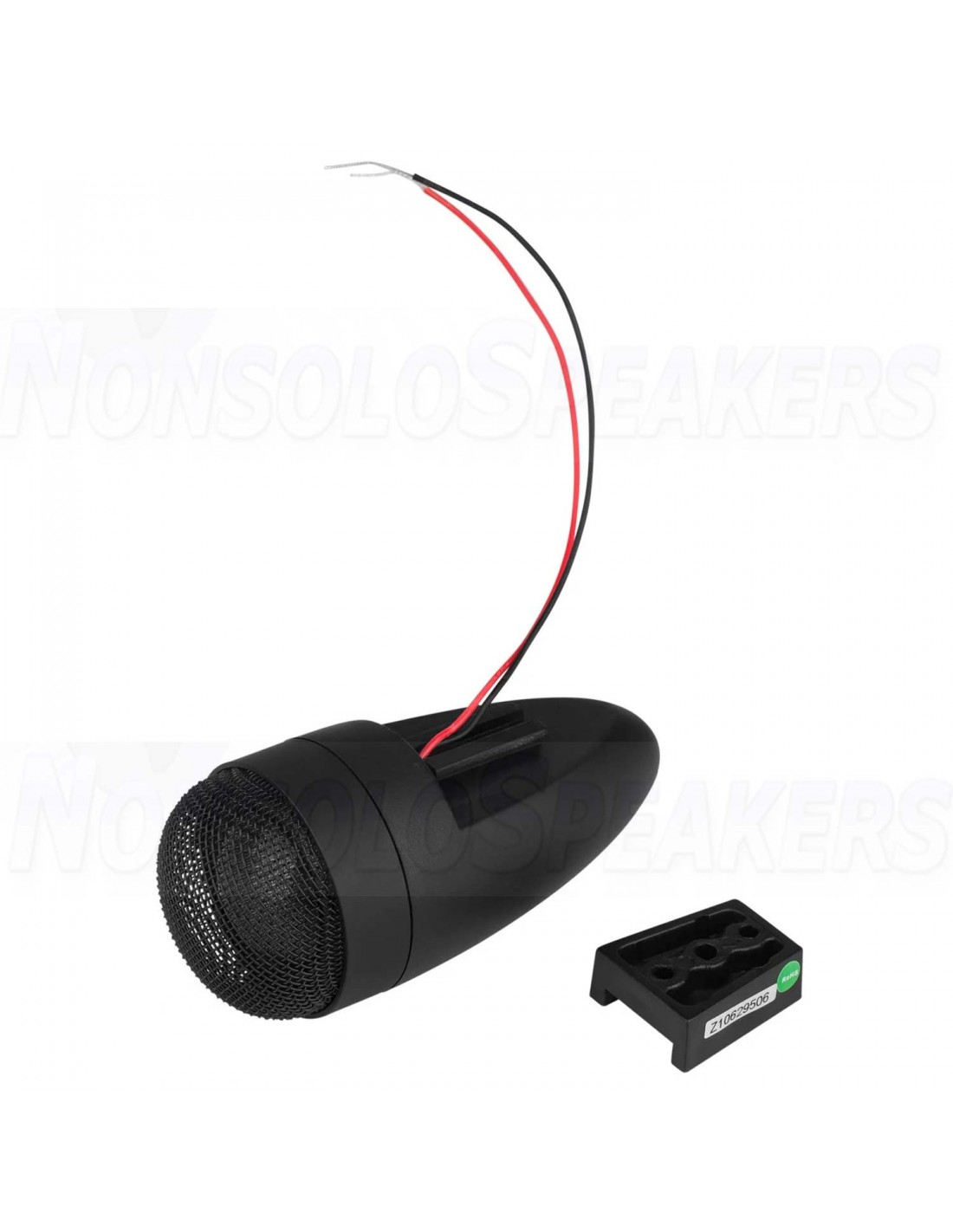

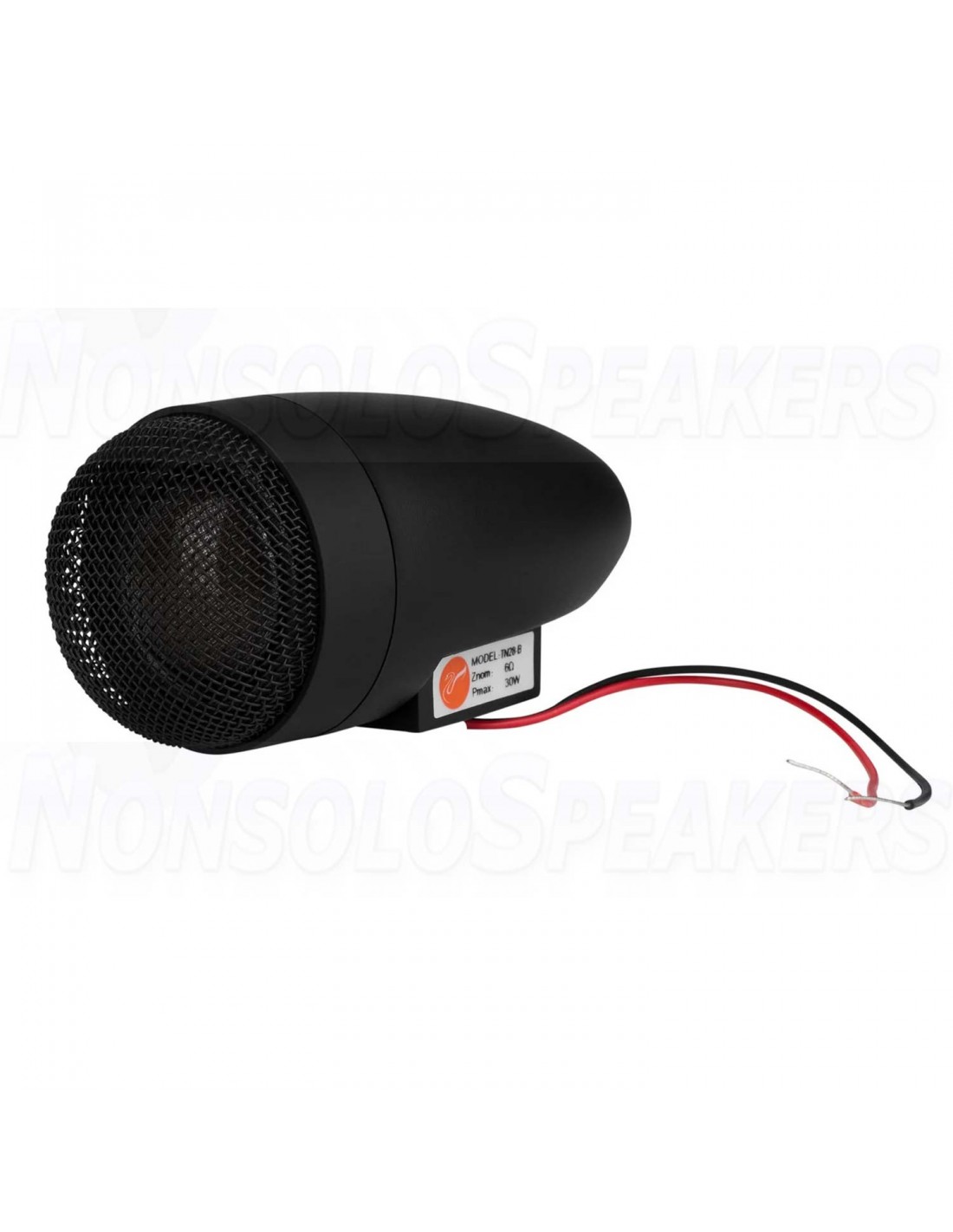

Hivi TN28-B 1" Top Mount Soft Dome Tweeter with Mounting Plate

HiVi's minimum diffraction versatile-mounting design and hand treated fabric dome gives this tweeter very smooth on and off axis frequency response delivering excellent dispersion. A Ferrofluid cooled 28 mm voice coil keeps it running cool when you are really giving it a workout. Shielded, vented double magnet system with two Neodymium rings and large non-resonant rear acoustic chamber give this dome tweeter its famous looks and acoustic qualities. Thanks to the unique top mount system, this tweeter can easily be used for car audio systems as well as home audio designs.
