MOREL TSCT 1044 TITANIUM SUPREME TWEETER

The Morel TSCT 1044 is an advanced high-end 28mm silk dome tweeter from the Supreme range. Features include a Hexatech™ Aluminium voice coil,  Neodymium flat pancake ring magnet, Titanium voice coil former, diecast alloy rear chamber and dual copper Faraday shorting rings (to negate rising impedance at higher frequencies). The dome assembly is hand coated with Acuflex damping compound and is field replaceable. Power handling is high at 200w. The TSCT 1044 has a very smooth, gently rising response; the critical 1.5kHz-10kHz band is held within 2.2 dB limits. A superb transducer.

Also available with 110mm faceplate : Morel TSCT 1104

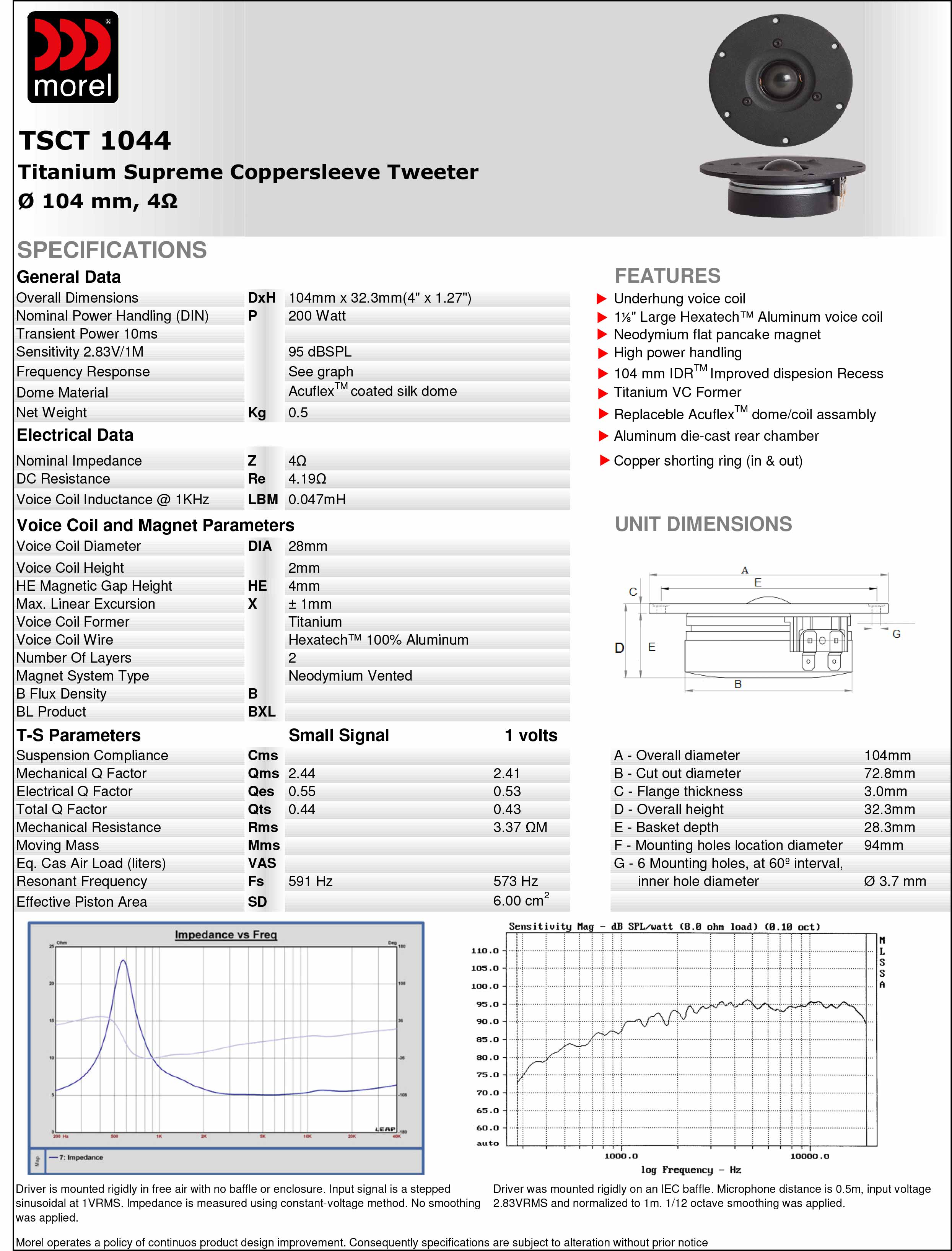

A full datasheet can be downloaded from the bottom of this page.

Decoding Morel type numbers: TSCT= Titanium Supreme Coppersleeve Tweeter; 1044= 104mm faceplate, 4ohm impedance.

-

Key Features:

Large Hexatech™ Aluminium voice coil

Neodymium flat pancake magnet

28mm pure silk dome treated with Acuflex

Dual copper Faraday shortings rings

Titanium Voice Coil Former

High power handling

Replaceable dome assembly

-

Basic parameters:

Resonant frequency (fs) 591 Hz Nominal impedance (Zn) 4 Ω

Effective diaphragm diameter 28mm DC resistance (Re) 4.19 Ω

Ferrofluid ? Y/N Yes RMS power handling 200W

Recommended crossover 2.5khz Faceplate diameter 104 mm

Sensitivity (2.83V/1m) 95 dB Cutout hole diameter 72.8 mm

Dimensions
