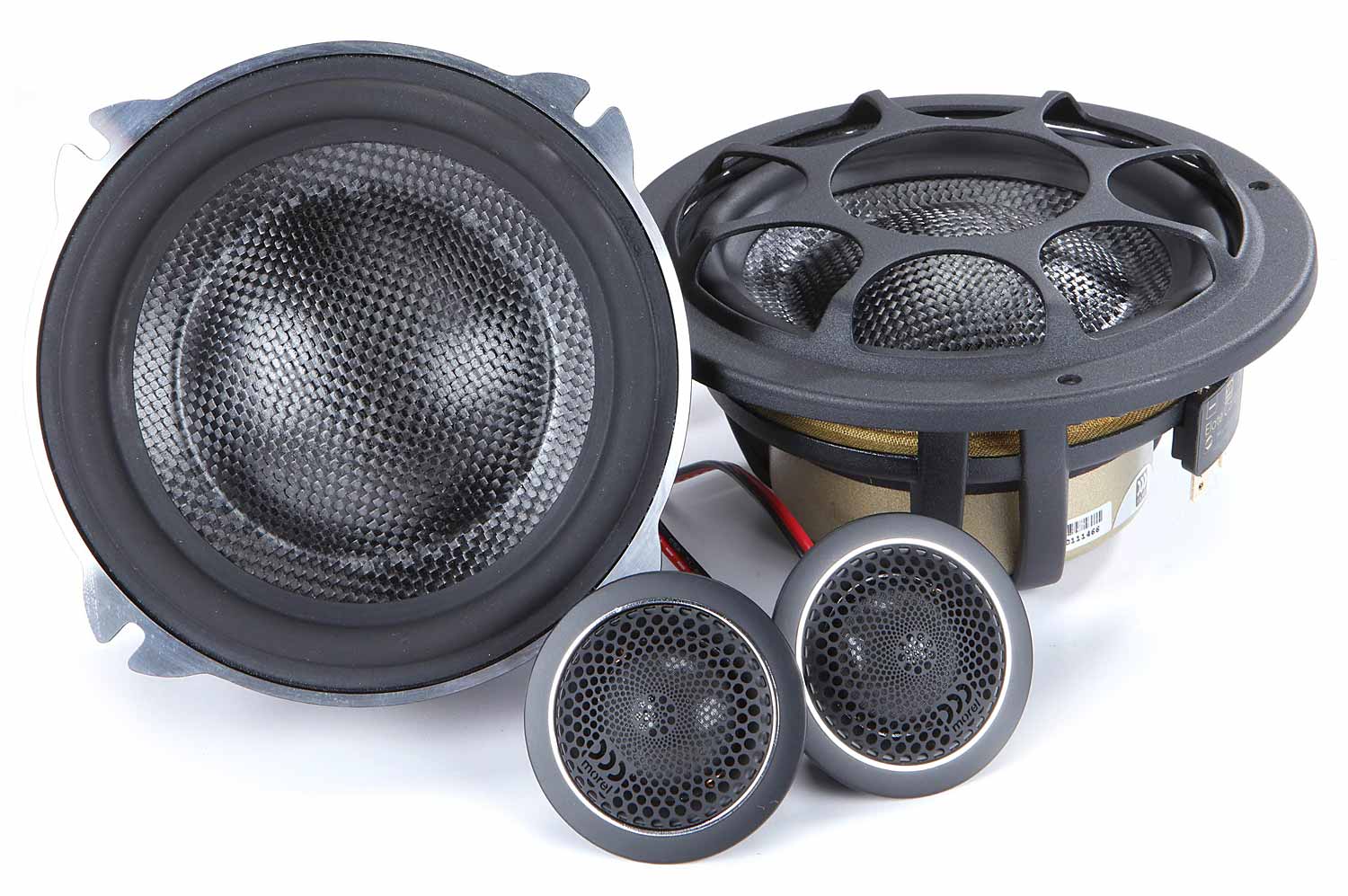

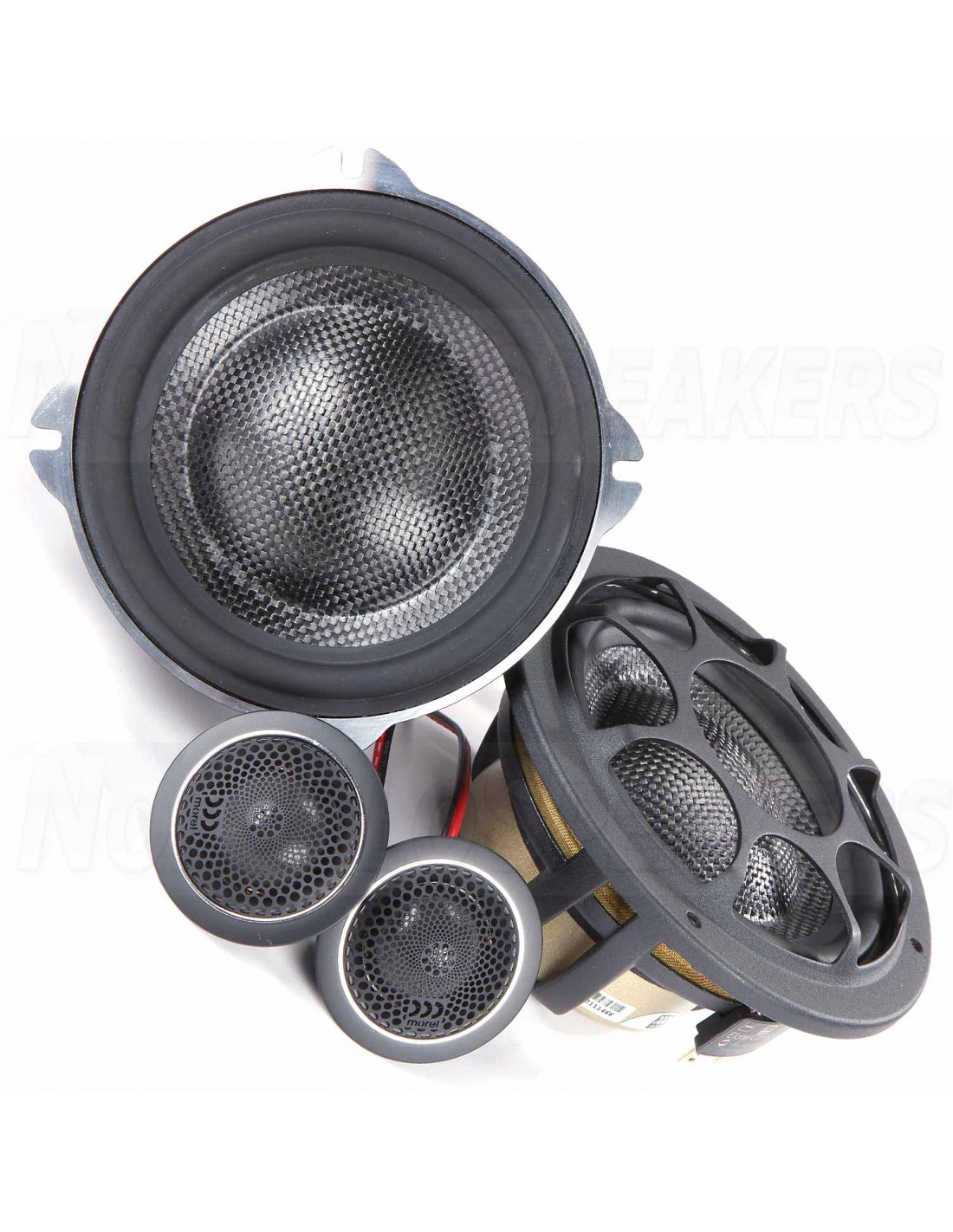

MOREL ELATE CARBON 52A - 13cm kit 2-Way Active

The MOREL ELATE CARBON 52 2-Way 5" (13cm) speaker set uses the same unique woofers and midrange drivers as the Elate Carbon Pro versions, but with the new compact MT450 tweeter with open-cavity design and dual neodymium magnet motor The style of Morel's iconic Lotus design speaker grilles alone will take your breath away, and then there's the sound... The Elate Carbon 52 5-1/4" 2-way active component system includes a 5-1 /4" woofer and the MT450 tweeter for fuller sound and excellent detail at impressive volumes. The woofer features a dual-layer carbon fiber/Rohacell diaphragm that minimizes distortion for the most precise sound possible.

Characteristics

• 2-way active component speaker system with two woofers and two tweeters

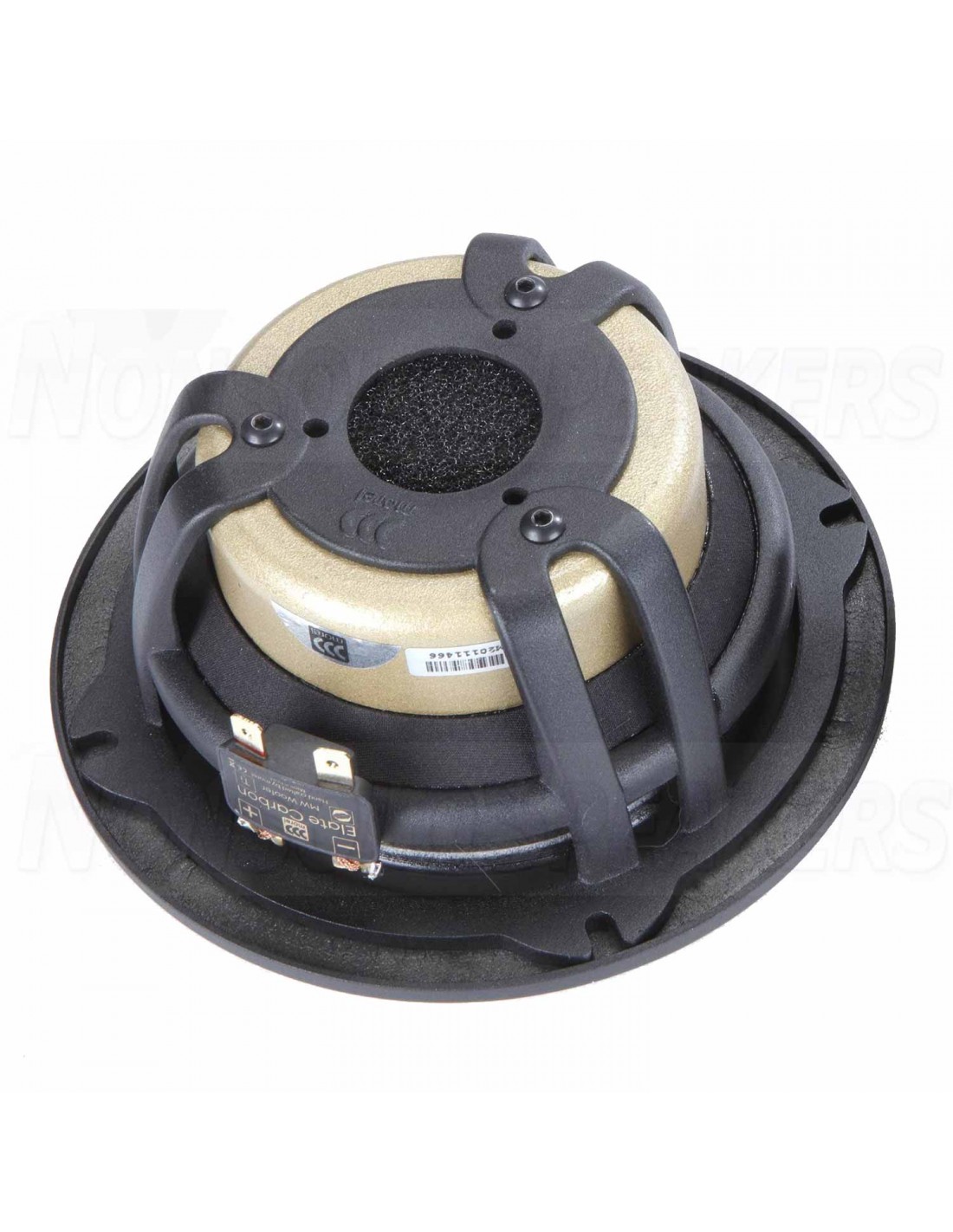

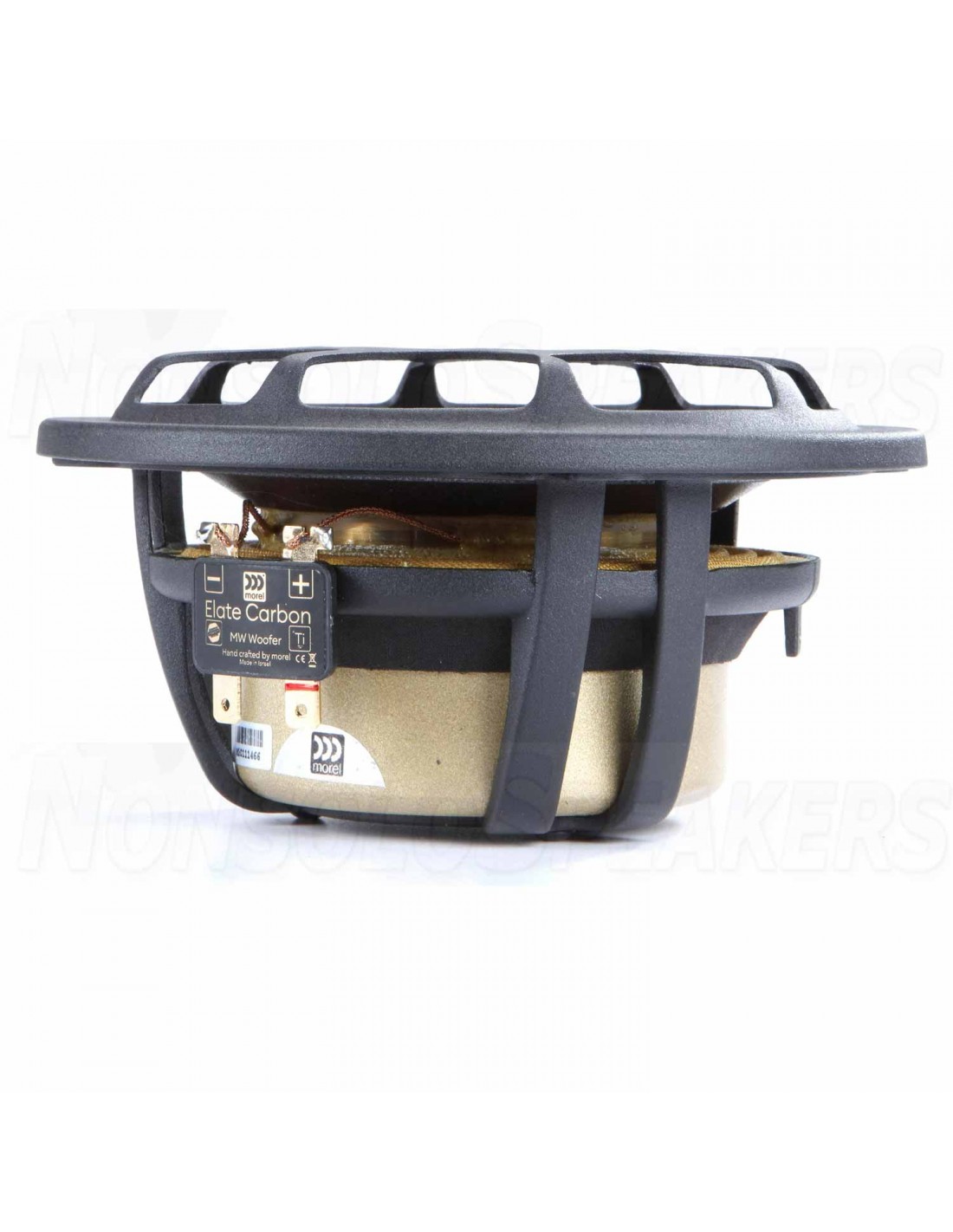

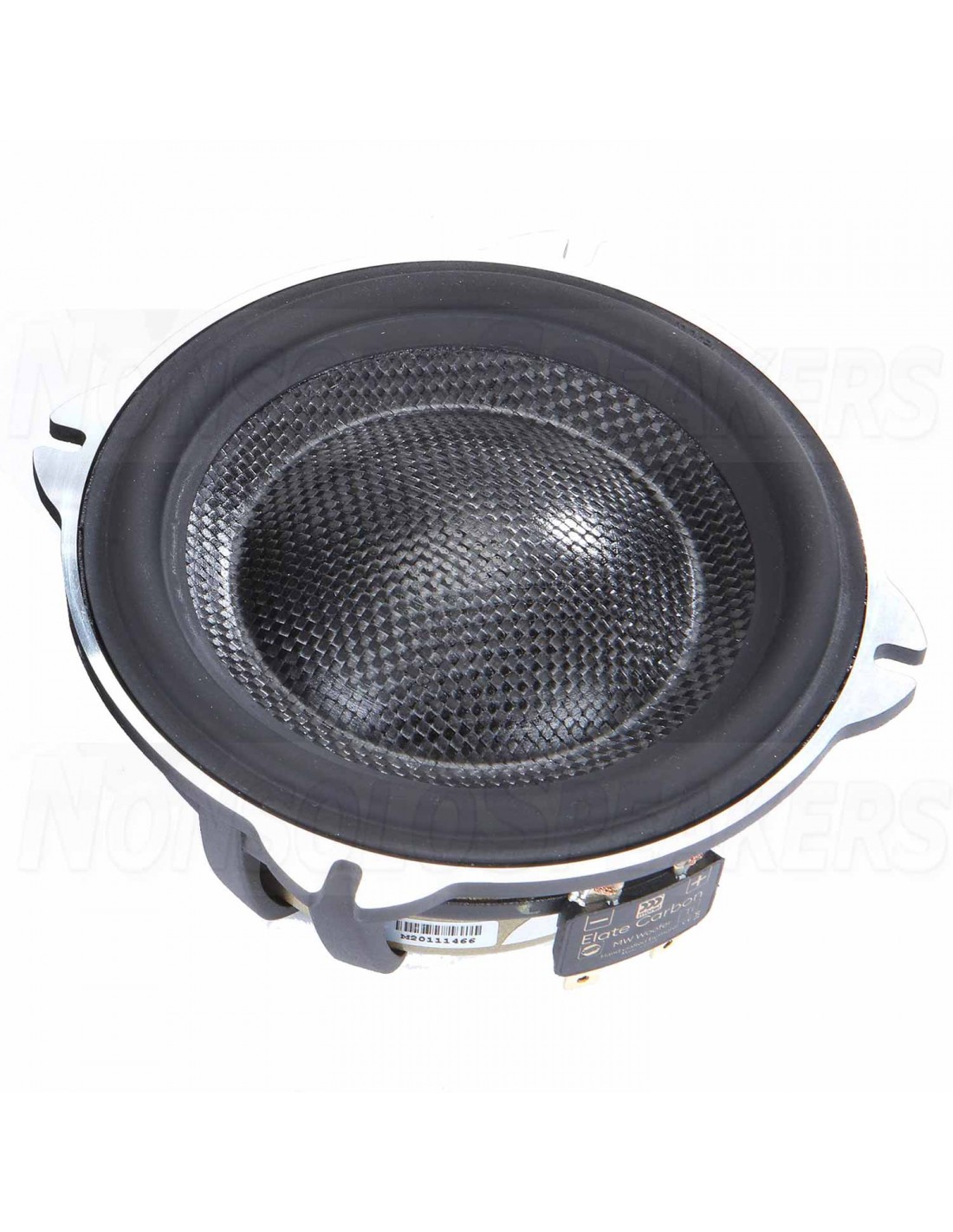

• 5-1/4" 3-layer carbon fiber/Rohacell woofer cone with butyl rubber surround

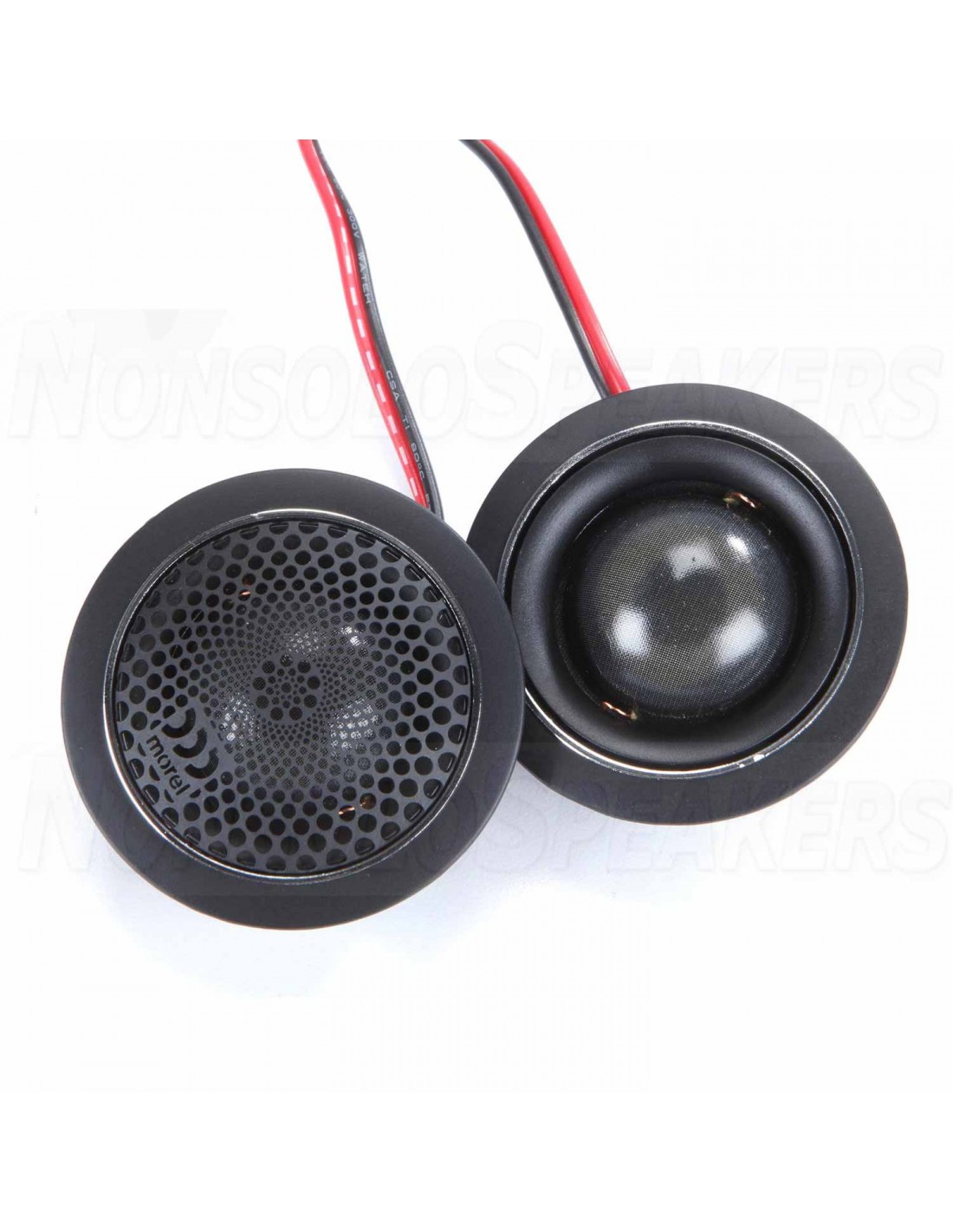

• 1.1" MT450 Acuflex coated silk dome tweeter
• Cast aluminum basket
• Can handle up to 160 watts RMS (1000 watts peak power)
• Frequency response: 40-25,000 Hz
• Sensitivity: 85dB at 2.83V
• Installation depth of woofer: 6.2cm
• Diameter of the woofer cutout: 12.2cm
• including grid

.

Contenents of package

• 2 MW5 woofers
• 2 MT 450 tweeters (with included 7" speaker cable)
• 2 woofer grilles
• 2 tweeter grilles (installed)
• 2 tweeter installation housings (tweeter installed)
• 2 brackets for flush mounting
• 2 angled surface mount tweeter enclosures
• 2 rubber feet for surface-mounted housings
• Eight 1-1/4" screws
• Four 1" screws
• 8 quick clamps
• Four 0.25" crimp-on receptacle quick connectors
• Two 0.187" crimp socket quick connectors
• Two .110" crimp-on receptacle quick connectors
• Two .187" insulating covers for quick slides
• Two .110" insulating covers for quick slides
• Installation manual
• Warranty card
