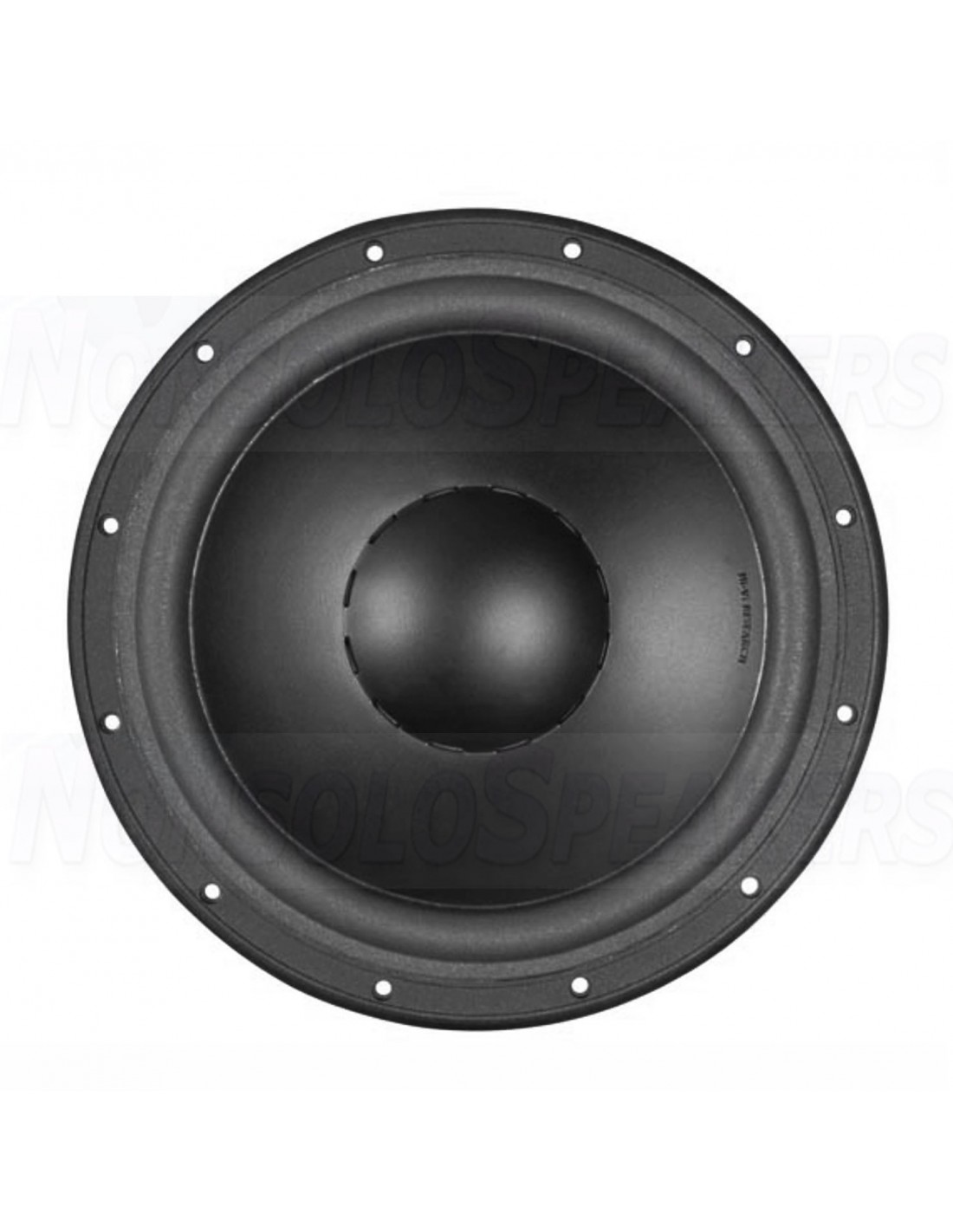

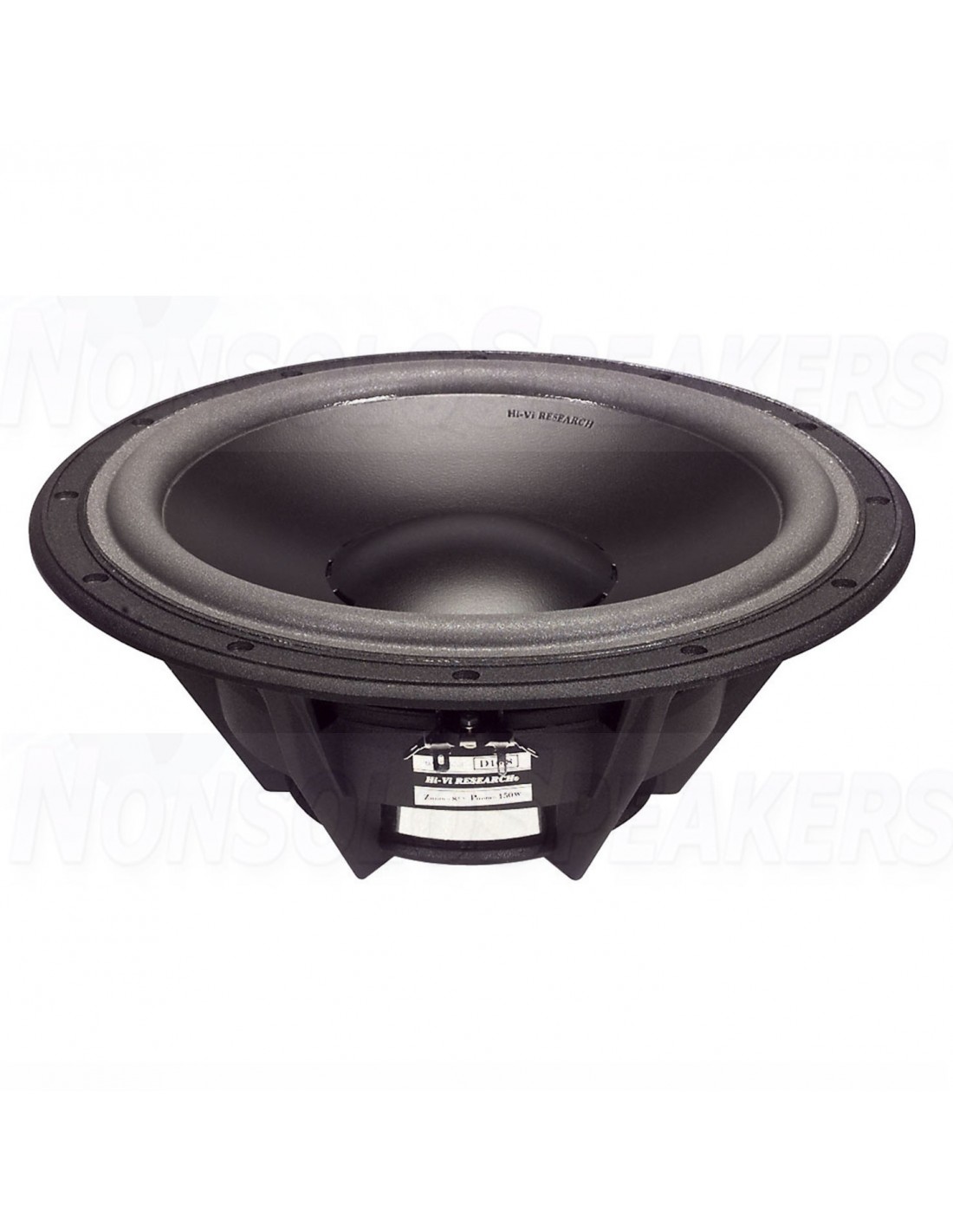

HiVi D10.8 10" Poly Cone Woofer 8 ohm

The HiVi D10.8 represents a design in which the voice coil is positioned over an undercut central pole piece with a large thermally stabilized neodymium magnet at the bottom and a high energy ceramic magnet on the top.

.

Highlights

• Extreme power handling 100 mm voice coil with a black anodized aluminum former
• Shielded vented magnet system with a huge Neodymium magnet
• Fatigue resistant foam surround
• Long-throw symmetrically driving motor structure
• Progressive spider with decompressed rear volume
• High density aluminum die-cast frame

.

Product details

HiVi D10.8 | 10"| Poly Cone Woofer

The HiVi D10.8 represents a design in which the voice coil is positioned over an undercut central pole piece with a large thermally stabilized neodymium magnet at the bottom and a high energy ceramic magnet on the top. A specially shaped, CNC machined steel cup completes the magnetic structure from the outside, creating a shielded magnet system with symmetrical flux density distribution along the gap. The long-throw voice coil experiences a symmetric driving force that substantially decreases inductance and back electromotive force modulations. The magnet structure is optimized using Finite Element Analysis technique, resulting in a radical improvement of driver linearity. The cone has a shallow, high integrity structure that is extremely rigid and dynamically stable. The large voice coil diameter allows for a more uniform cone movement, delivering clear and accurate reproduction. The vented motor design and high temperature rated voice coil provide a dramatic increase in power handling. D10.8 is an excellent woofer for high power "no compromise" audiophile systems and control monitors. It also may be used as a subwoofer in various configurations.

.

Specifications

• Article number D10.8
• Woofer Series D10 Series
• Woofer Type Poly Cone Woofer
• Nominal Diameter 10"
• Power Handling (RMS) 150 Watts
• Power Handling (max) 300 Watts
• Impedance (Z) 8 ohms
• Sensitivity (SPL at 1m / 2.83V) 90 dB
• Frequency Response 24 to 2,300 Hz
• Voice Coil Diameter 4"
• DC Resistance (Re) 6.5 ohms
• Resonant Frequency (Fs) 24 Hz
• Mechanical Q (Qms) 6.84
• Electromagnetic Q (Qes) 0.44
• Total Q (Qts) 0.41
• Diaphragm Mass Inc. Airload (Mms) 75.5g
• Mechanical Compliance of Suspension (Cms) 0.56 mm/N
• Surface Area of Cone (Sd) 434 cm²
• BL Product (BL) 13.4 Tm
• Compliance Equivalent Volume (Vas) 5.2 ft.³
• Maximum Linear Excursion (Xmax) 8 mm
• Cone / Diaphragm Material Poly Surround
• Material Foam
• Voice Coil Wire Material
• CCA Voice Coil
• Former Kapton® / Polyimide
• Basket / Frame Material Cast Aluminum
• Magnet Material Neodymium
• Sealed Volume 1.93 ft.³
• Sealed F3 43 Hz
• Vented Volume 5.71 ft.³
• Vented F3 24 Hz
