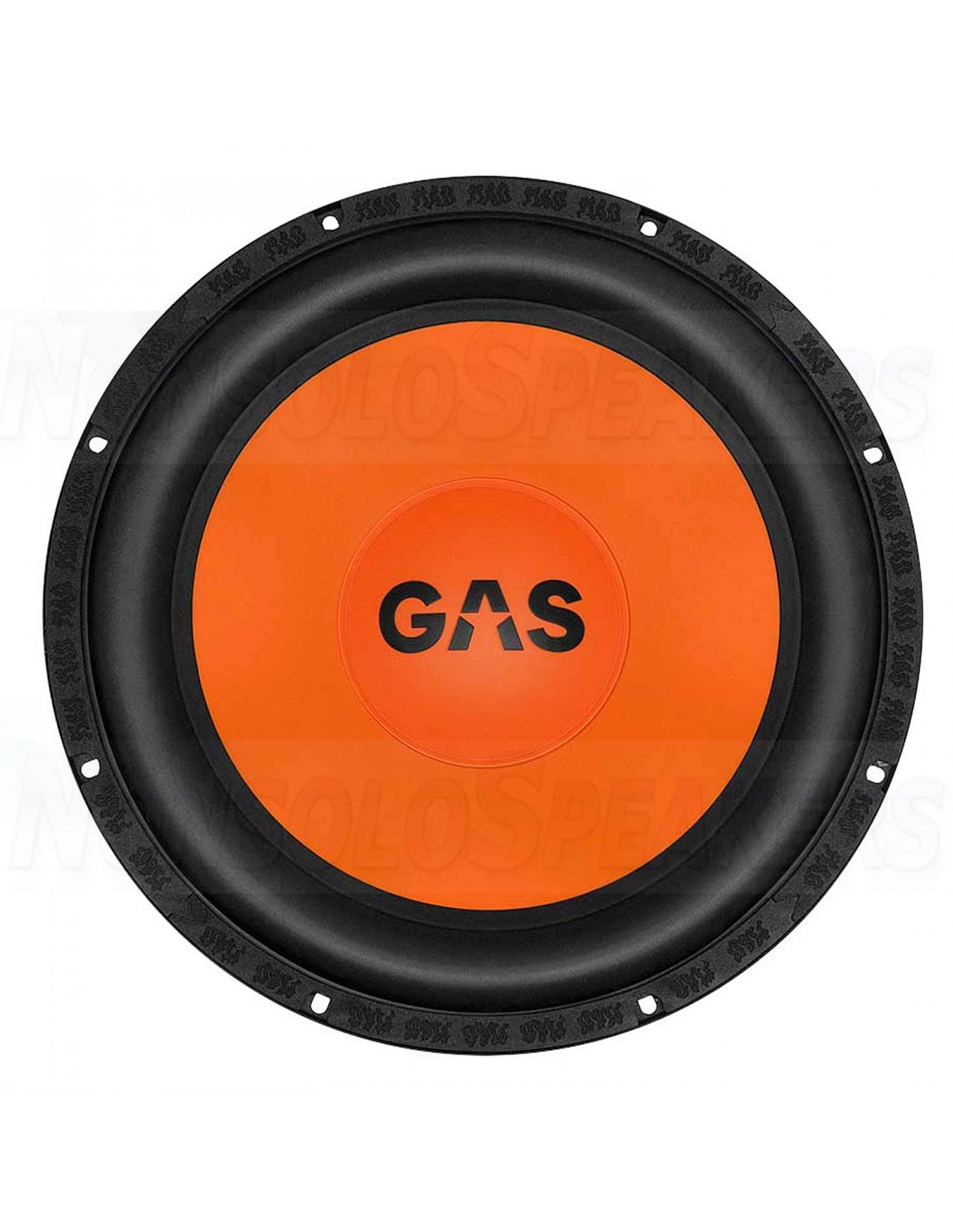

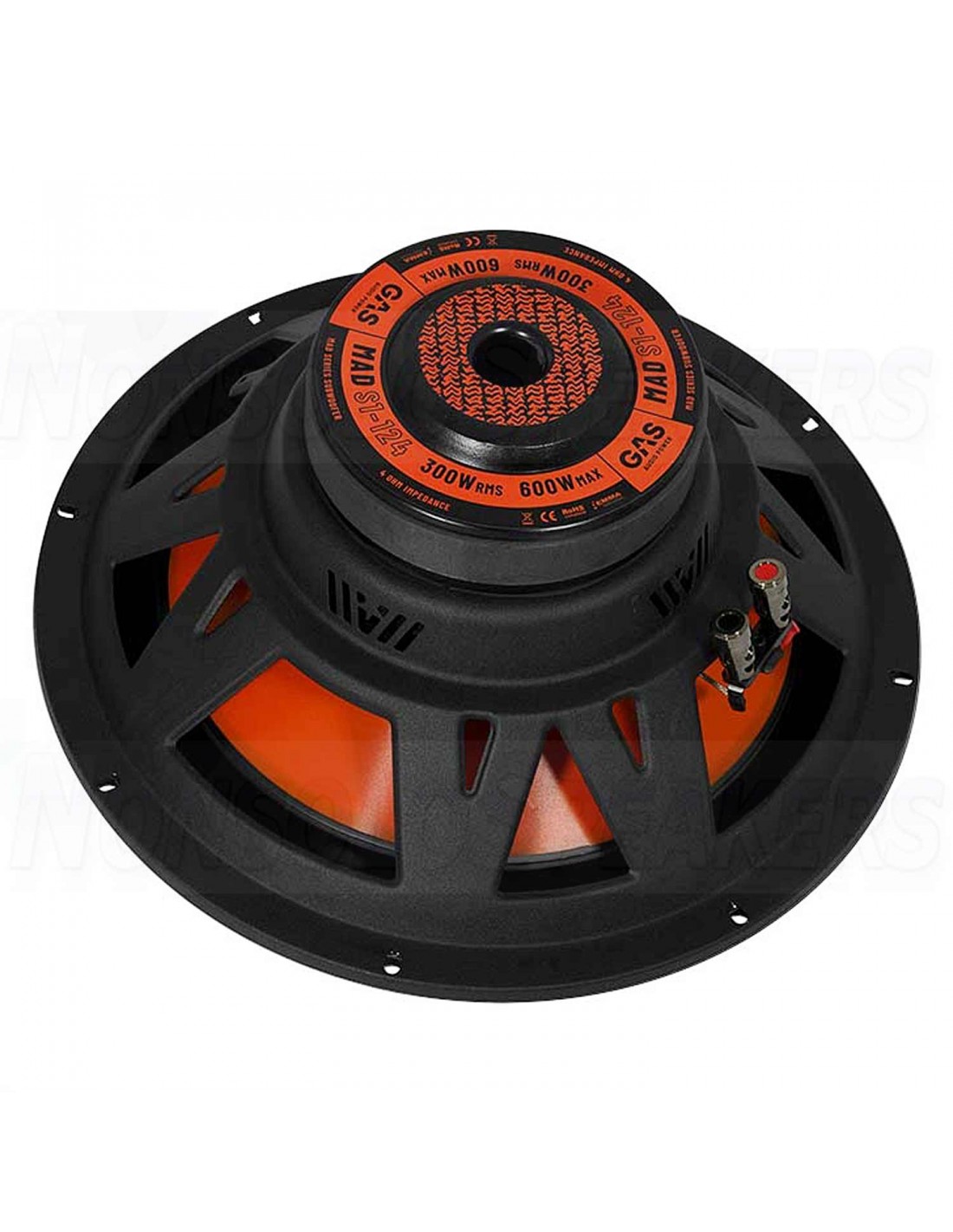

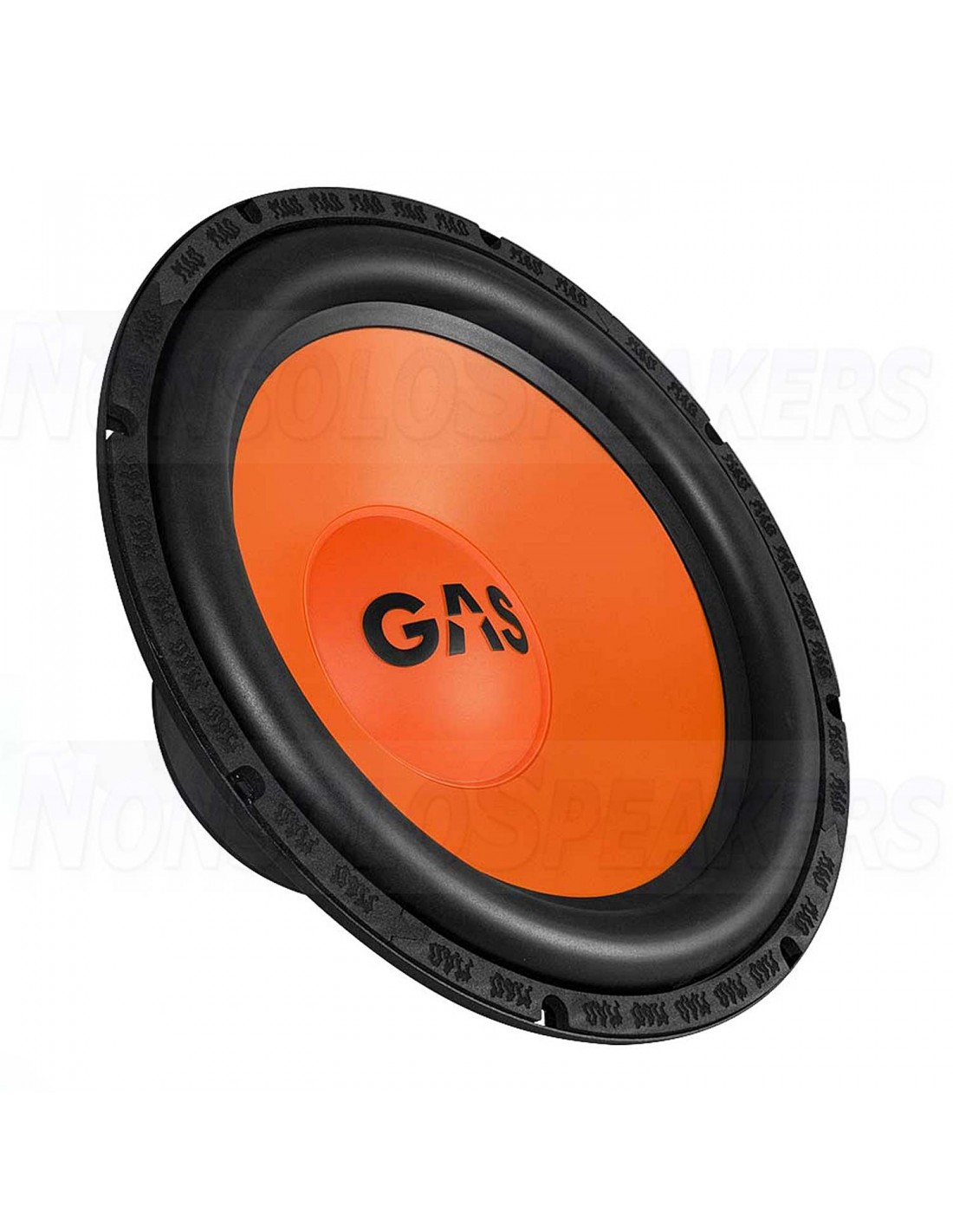

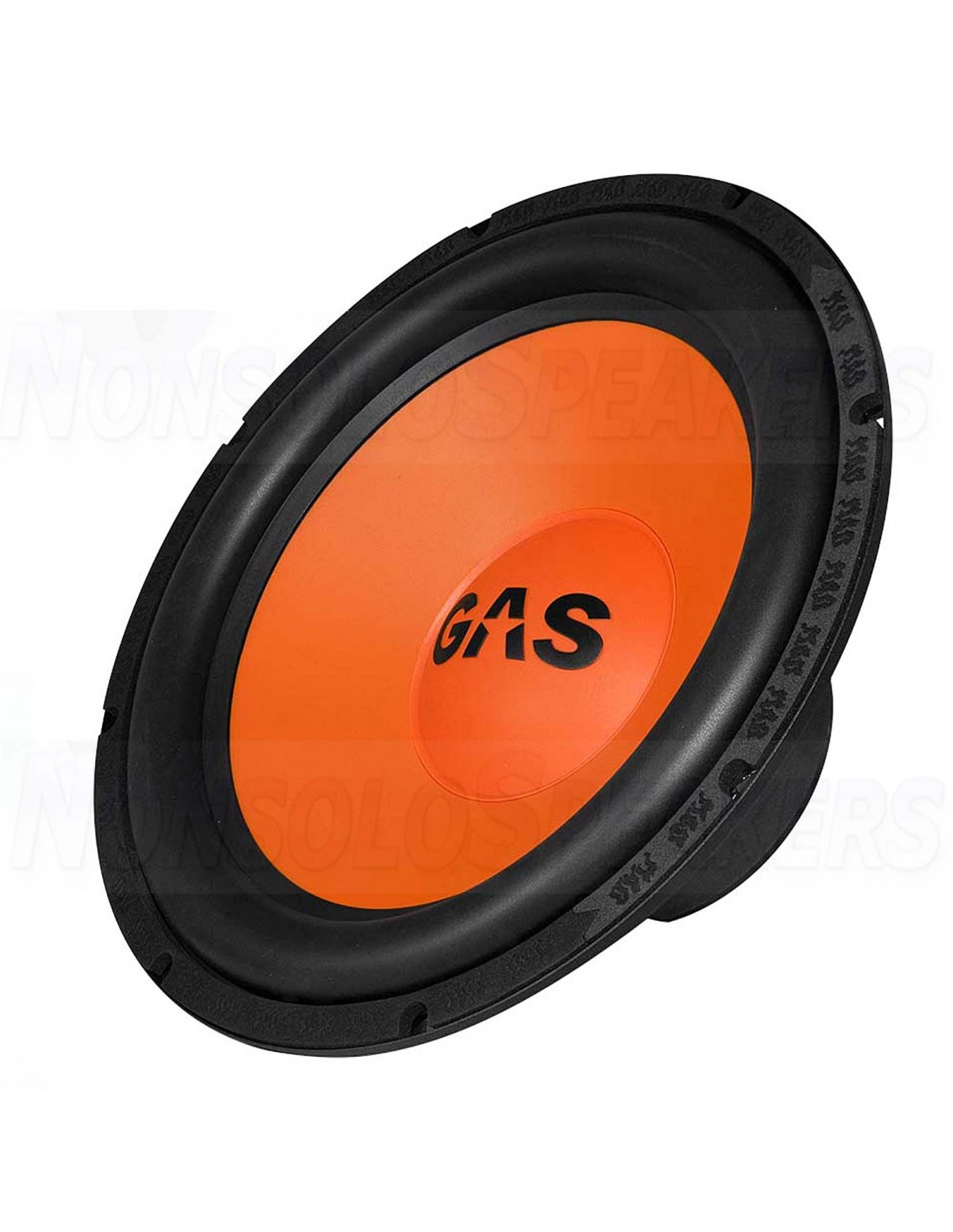

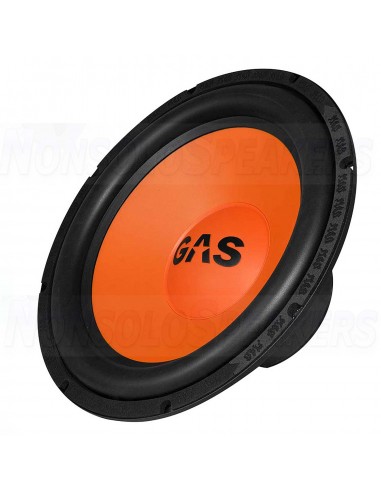

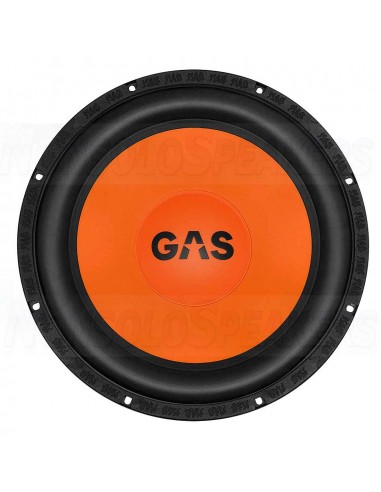

GAS MAD S1-124 12" 30cm subwoofer 4 Ohm

The GAS MAD S1-124 is a 12" (300 mm) car subwoofer suitable for mounting in a cabinet with a power of 300 W RMS.

MAD subwoofers are built to be LOUD and last for many years. Amazing emotions lead to the creation of impressive speakers "charged" with great subwoofers. Innovative and ground-breaking techniques are used to increase both durability and performance. All this to make sure you can crank up the volume and play music all day and all night.

We want you to be as LOUD as you can! The MAD S1 subwoofers have diaphragms made of IMPP (Injection Molded Polypropylene) that withstand the harshest resonances – even at really high SPL levels. Ever heard of the saying “Bang for the buck”? This has never been more true than with the MAD S1 series subwoofers.

Being "LOUD" is not only important, it's our religion. We all love when the bass is felt and sounds right. When creating the MAD S1 series subwoofers at GAS Audio Power, they made sure they would perform great in both closed and vented enclosures. The 51mm voice coil is made of PCW (Pure Copper Wire) and the dust cap as well as the canopy is made of IMPP for a unique 3D design.

.

The main features of the GAS MAD S1-124 subwoofer

• Subwoofer ferrite magnet with steel basket
• Injection Molded Polypropylene membrane

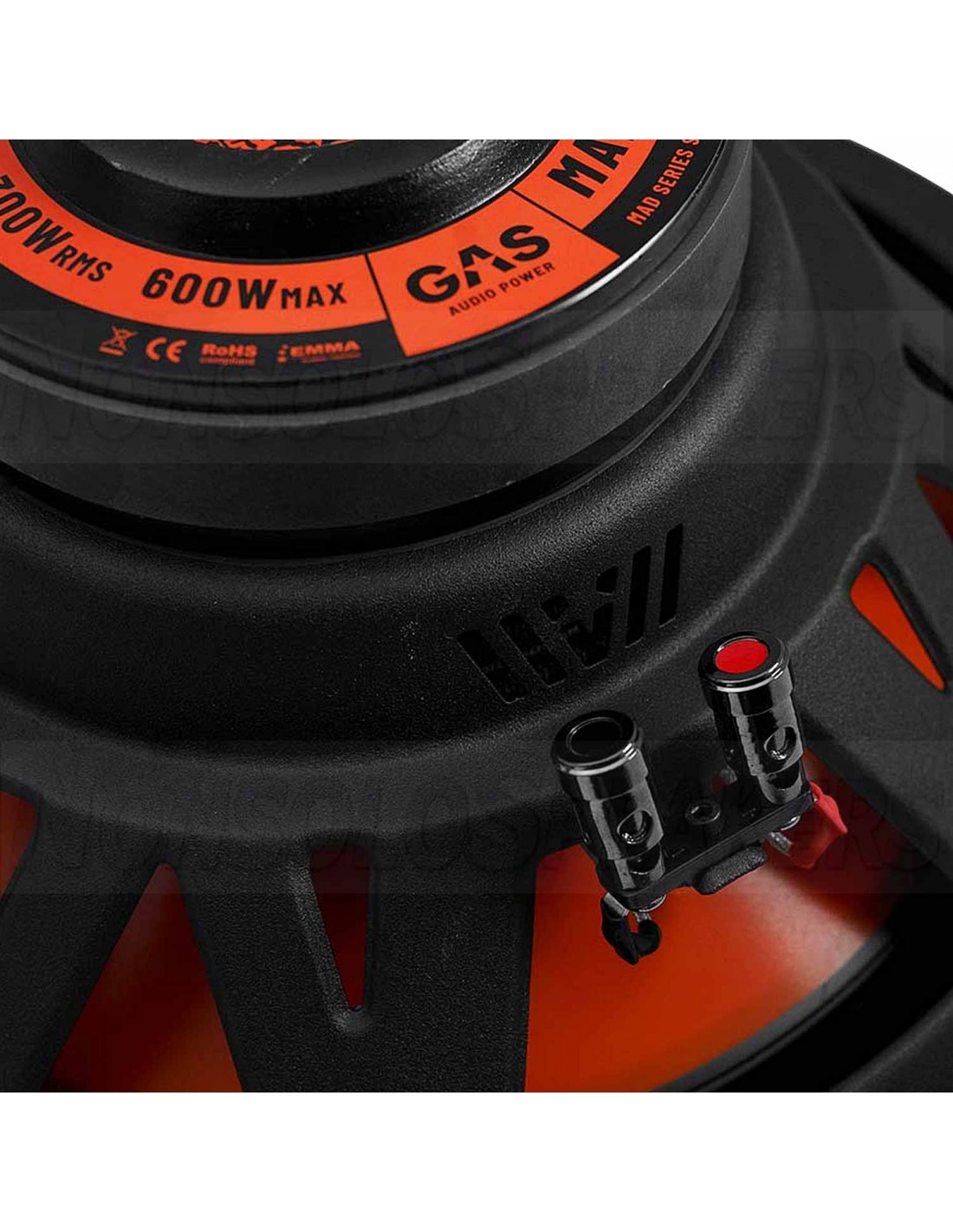

• Robust connection terminals
• Suitable for ventilated and closed boxes

.

Technical Specifications

• Power RMS/MAX: 300/600 W
• Subwoofer size: 12" - 300 mm
• Impedance: 4 Ohms
• Frequency range: 27-200 Hz
• Voice coil diameter: 51 mm
• Ferrite magnet
• Polypropylene membrane
• Rubber hinge
• Mounting diameter: 278 mm
• Installation depth: 126.5 mm
• Recommended volume of closed box: 30-45 L
• Recommended volume of bass reflex box: 44 L with nozzle 100x265 mm
• Weight: 3.48 kg
