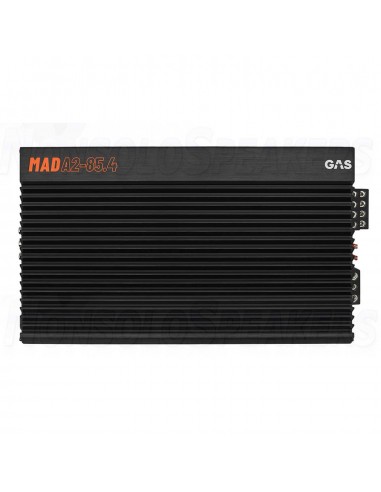

GAS MAD A2-85.4 4-channel amplifier

.

GAS MAD A2-85.4 is a 4-channel analog car amplifier with 4x 85/120 W or 2x 240 W RMS power.

.

Gamble with your sanity and go completely crazy with the A2 series amplifiers. The GAS MAD A2 features quite a few "cool" decisions when it comes to ventilation, such as a custom heavy and extremely powerful heatsink, as well as an enlarged side panel gap to allow air to pass freely under the amplifier - even in difficult mounting conditions.

Inspired by the near-perfect MAX series amplifiers, it was decided that one feature simply had to be included in the MAD series amplifiers: balanced differential inputs, which means less noise - and better sound. The powerful class AB amplifier topology ensures that the A2 amplifier delivers both power and smooth sound. This is a wideband amp, so throw everything you've got at it.

What is the difference between a regular sound system and an A2 amplifier? Well, apart from the amazing amount of power... Control, of course! The crossovers of the MAD A2 series have a 12 db steepness with a wide frequency range up to 4000 Hz. So you can build the system of your dreams. For maximum safety, a CLIP feature is included to help you know when 1% distortion is reached. In addition, the latest high-level input technology with "ATO", automatic power-on function is also added. A2 amplifiers are also equipped with state-of-the-art protection circuits that minimize the risk of damage from heat, overload or short circuits!

.

GAS MAD A2-85.4 parameters

.

• RMS power: 4x 85/120 W at 4/2 Ohms
• Bridge RMS power: 2x 240 W at 4 Ohms
• Frequency range: 15-25000 Hz
• Harmonic Distortion THD: 0.2%
• Signal/Noise ratio: >100 dB
• Input sensitivity: 0.5-6 V
• Built-in high pass HPF 15-4000 Hz
• Built-in low-pass filter LPF 50-4000 Hz
• Built-in Bass Boost 0-12 dB at 45 Hz
• Working voltage: 10-16 V
• Damping Factor: >130
• Fuse: 2x 40 A
• Dimensions: 338x208x52 mm (WxDxH)
