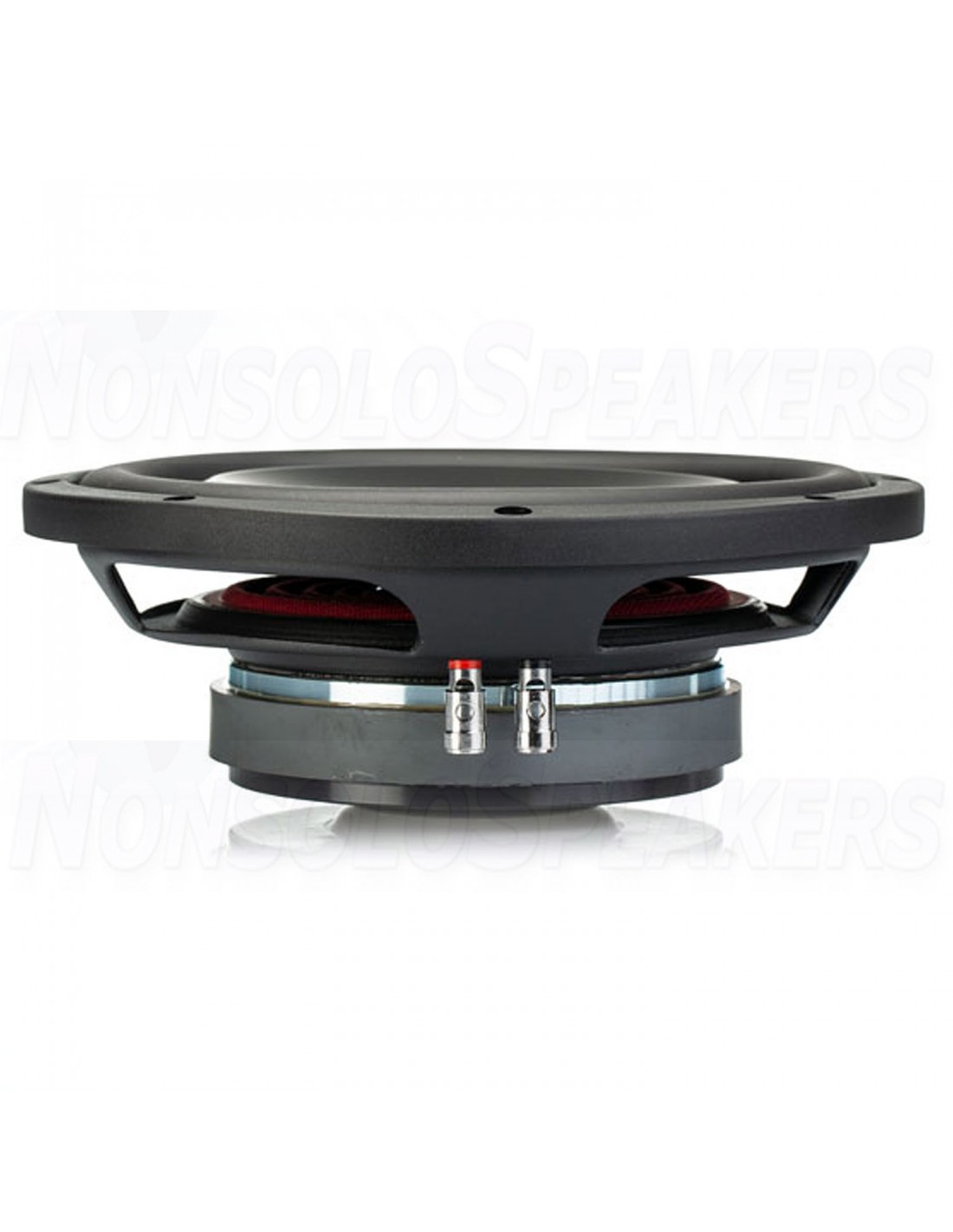

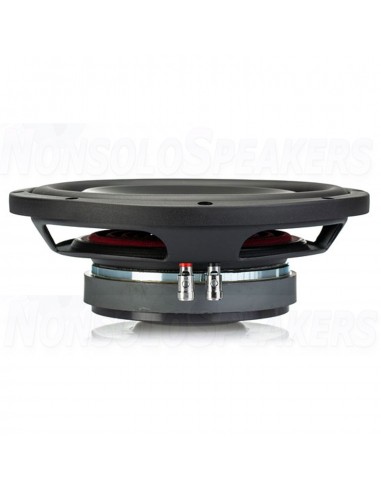

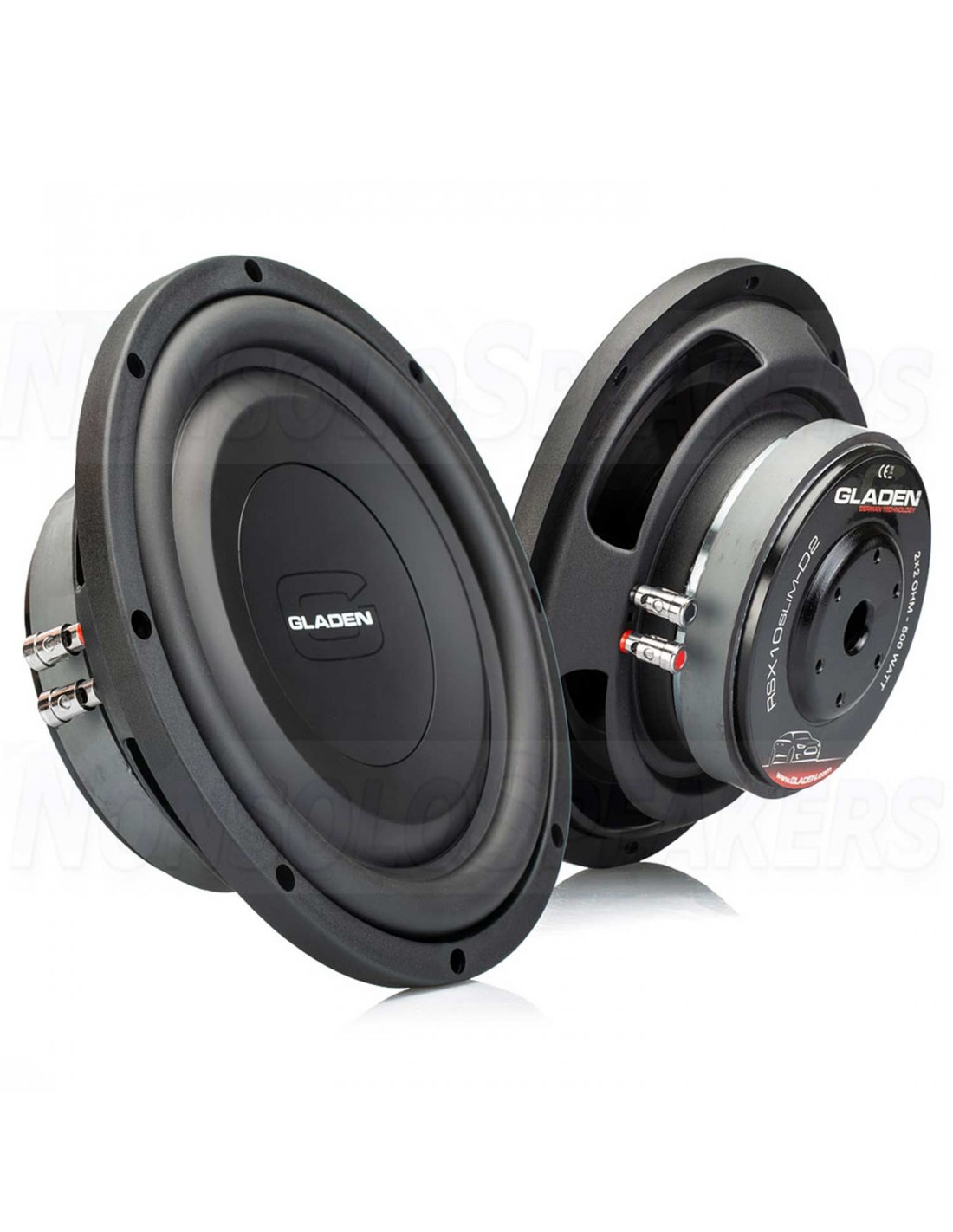

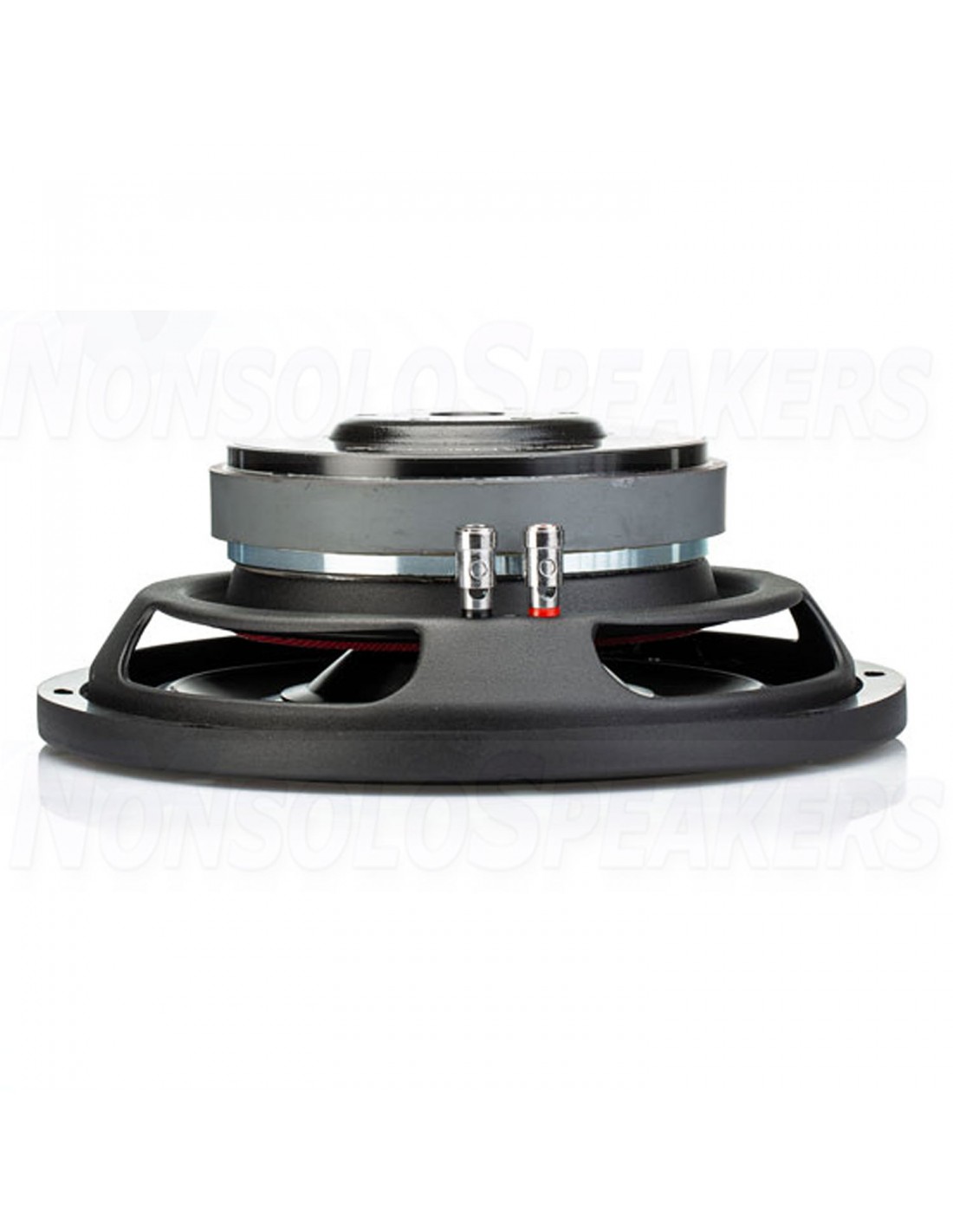

GLADEN RS-X10 SLIM D2 Subwoofer 25 cm Flat

GLADEN RS-X 08 SLIM D2 Subwoofer 20 cm Flat

25 cm subwoofer flat, 250 WRMS @ 2 x 2 ohms

The Gladen RSX - SLIM subwoofers enter the second generation. In addition to the low installation depth, the SLIM subwoofers can cope with the smallest volume and enable enormous bass reproduction. The new Gladen RSX-SLIM subwoofers are available in 8" (20 cm) and 10" (25 cm) sizes.

Technical specifications

20cm subwoofer

Load capacity: 250 WRMS, 500 watts max.

Impedance: 2 x 2 ohms

SPL: 86.6dB 1w1m

Outer diameter: 261mm

Installation diameter: 230 mm

Installation depth: 82 mm

Housing suggestion:

Closed (16 - 30 liters)

Bass reflex (30 - 40 liters) port: D 70 mm, L 150 - 250 mm

parameter

Z 2 x 2 ohms

Re 2 x 1.8 ohms

Fs 42 Hz

Qts 0.58

Q's 0.6

VAS 23.4 liters

Mms 107 gr

SD 350 cm²

Xmax 10mm +/-

Power 250W RMS

SPL 86.6dB 1w1m

EBP 70
