Fountek Neo X 3.0 Ribbon Tweeter
Fountek Neo X 3.0 Ribbon Tweeter
Fountek Neo X 3.0 Ribbon Tweeter
Fountek Neo X 3.0 Ribbon Tweeter
Fountek Neo X 3.0 Ribbon Tweeter
Fountek Neo X 3.0 Ribbon Tweeter
Fountek Neo X 3.0 Ribbon Tweeter
Fountek Neo X 3.0 Ribbon Tweeter
Fountek Neo X 3.0 Ribbon Tweeter
Fountek Neo X 3.0 Ribbon Tweeter

Fountek Neo X 3.0 Ribbon Tweeter

Out-of-Stock
€199.41 €209.90 -5%
Tax included
rating No review at the moment

Fountek Neo X 3.0 Ribbon Tweeter

Fountek’s Neo X 3.0 ribbon tweeter features Fountek’s third-generation ribbon tweeter technology, with a new 12 mm wide diaphragm that increases efficiency and extends range.


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Fountek Neo X 3.0 Ribbon Tweeter

-

Product description

Fountek’s Neo X 3.0 ribbon tweeter features Fountek’s third-generation ribbon tweeter technology, with a new 12 mm wide diaphragm that increases efficiency and extends range.

.

Highlights

3rd gen Fountek design with a black or silver faceplate

12 mm wide by 80 mm high reinforced ribbon diaphragm

High power handling for a true ribbon tweeter, 30 watts RMS

Extremely fast transient response, wide frequency response, and high sensitivity

.

Product details

Fountek’s reputation as an innovator in ribbon transducer technology continues with the Neo X series of ribbon tweeters. The Neo X 3.0 is built using third-generation Fountek ribbon driver technology, a strong neodymium motor structure, and built-in transformer to contribute to the responsiveness of this tweeter. A 12 mm wide by 80 mm high, sandwiched-aluminum ribbon diaphragm increases sensitivity and power handling, while limiting vertical dispersion for sharper imaging and reduced floor and ceiling reflections.

All of this combines to make the Neo X 3.0 an incredible, true ribbon tweeter with a super-wide (and flat) frequency response that extends from 1,200 Hz out to 40,000 Hz, while the wide horizontal off-axis dispersion makes for a larger listening sweet spot. The benign impedance makes the Neo X 3.0 a safe speaker to use with temperamental tube amplifiers. Recommended minimum crossover frequency: 2,000 Hz @ 12 dB/octave.

.

Specifications

Article numberNeoX3.0 black
Tweeter TypeRibbon
Tweeter SeriesX Series
Cone / Dome Diameter0.47'' W x 3.15'' H
Power Handling (RMS)30 Watts
Impedance (Z)8 Ω
Sensitivity (SPL at 1m / 2.83V)95 dB
Frequency Response1,200 to 40,000 Hz
DC Resistance (Re)0.02 ohms
Overall Outside Diameter2.47'' W x 5.67'' H

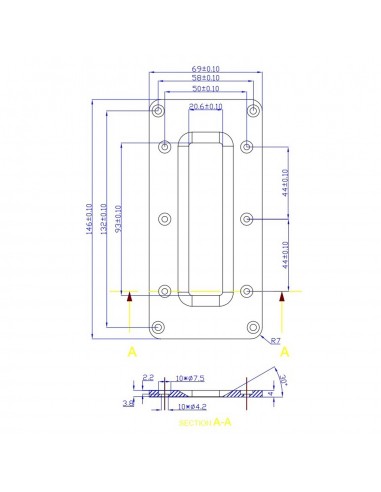

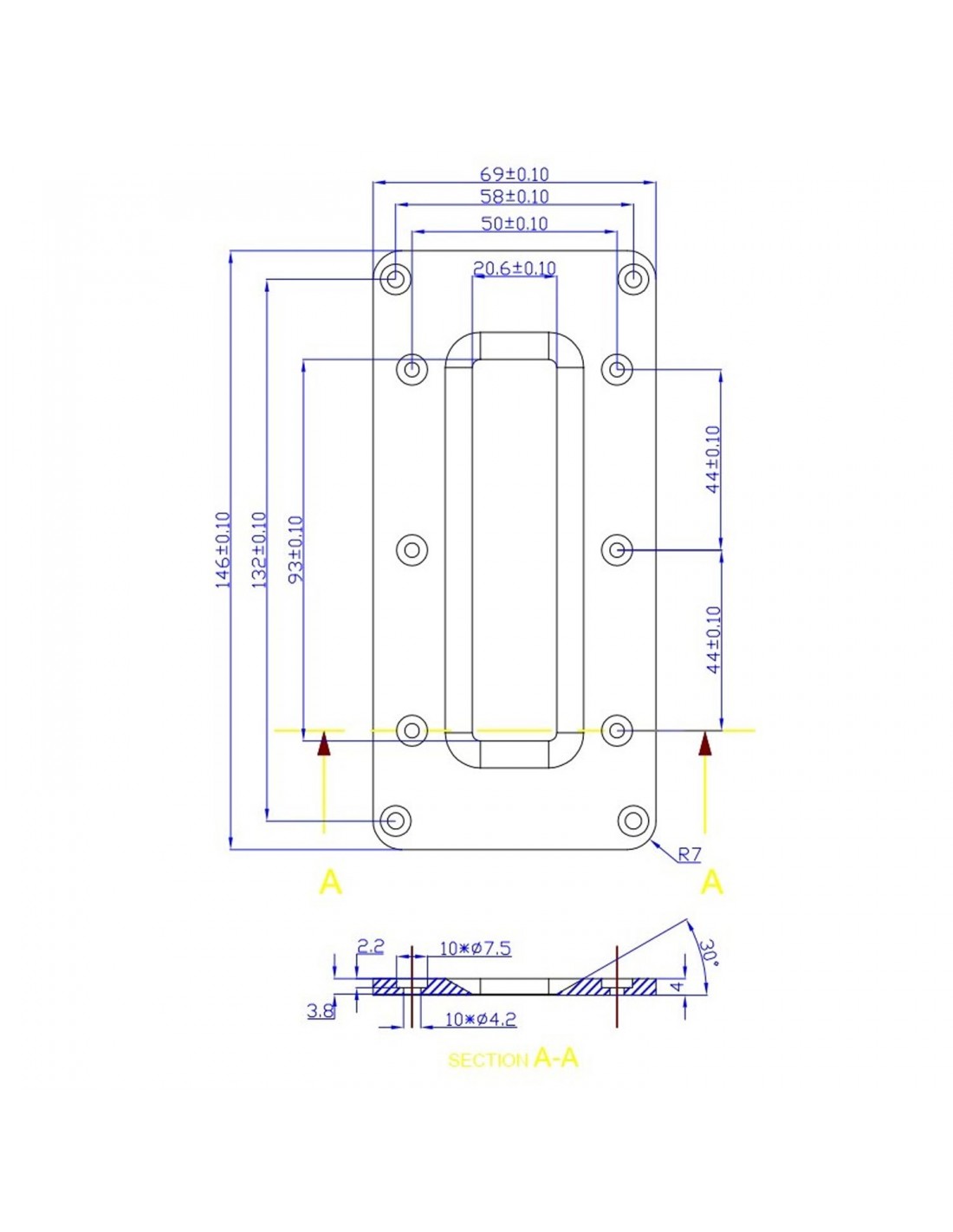

Cutout Diameter2,00'' W x 4.96'' H
Depth3.11"
Recommended cut frequency2,000Hz with 2nd order
Fountek Neo X 3.0
