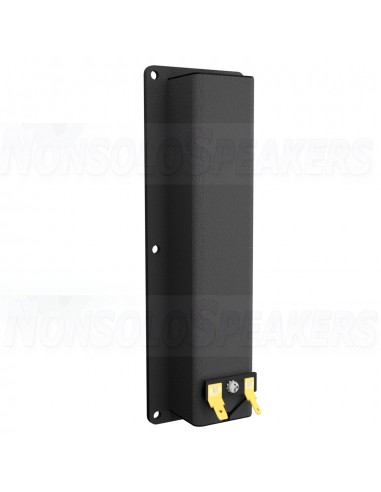

Mundorf AMT U160W1.1 Air Motion Transformer

Mundorf AMT U160W1.1 Air Motion Transformer

1 piece

4 Ohms · 55x175mm · Neodymium

AMT U160W1.1 combines it’s impressive SPL reserves with the decisive quality features of the AMT U.Series with Mundorf diaphragm: Exceptionally low K3 / K5 distortion data, a truly powerful music performance within the entire application range and, at the same time, the fine micro-dynamics and richness of music details that distinguish all Mundorf AMT’s. The first choice when life-like music performance has to be achieved at farther distant listening areas. Be it with big floor standers in large rooms or surround speakers in huge luxury hi-end home cinemas. Due to its front panel geometry, it is ideally suited for vertical grouping of several tweeters in one line (stacking). In fact, with its remarkable performance AMT U160W1.1 truly borders the domestic areas of PA applications

• power handling (continuous/programme) = 15/140 W
• frequency range = 1200-28000 Hz
• resonance frequency fs = 1750 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 93 dB (2,83V; 1m)
• DC resistance Re = 4,6 Ohm
• effective piston radiating area Sd = 68,1 cm²
• overall diameter d = 175x55 mm
