SEAS Prestige 27TDC - H1149-06 Dome Tweeter

Specifications

detail

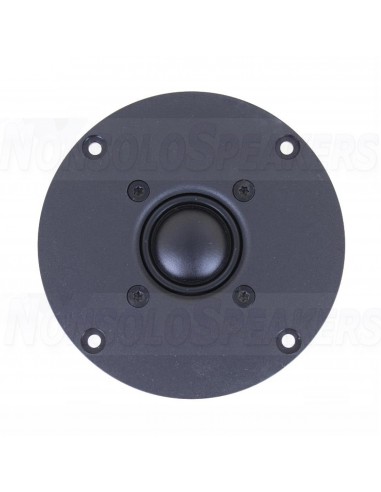

Seas Prestige 27TDC Tweeter

• 27TDC is a High Definition precoated fabric dome tweeter with a wide, soft polymer surround and a rear chamber.
• Sonotex precoated fabric diaphragm with high consistency and excellent stability against variations in air humidity.
• The voice coil is wound on an aluminium voice coil former with adequate ventilating holes to eliminate noise from internal air flow.
• Sonomax surround for low resonance, excellent mechanical linearity and stability without magnetic fluid damping.

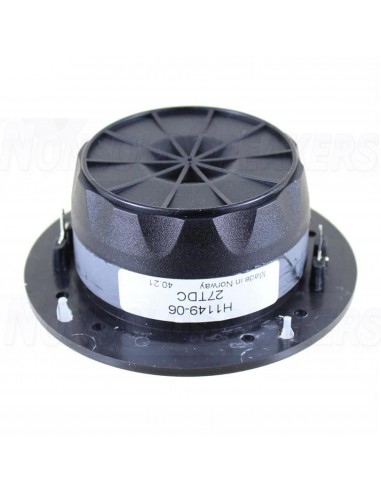

• Stiff and stable rear chamber with optimal acoustic damping allows the tweeter to be used with moderately low crossover frequencies.
• The chassis is precision moulded from glass fibre reinforced plastic, and its front design offers optimum radiation conditions.

Specifications

Dimensions and Mechanical Drawing

Frequency Response
