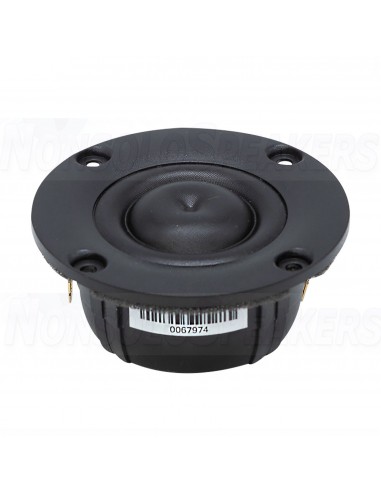

SB ACOUSTICS SB29RDNC-C000-4 - Tweeter 29mm

.

Product Details

SB Acoustics SB29RDNC-C000-4 Ring Dome Tweeter with Neodymium Magnet
This tweeter features a proprietary fabric ring dome with a large roll surround. Stabilizing the center of the dome greatly reduces distortion and brings the acoustic center of the tweeter back to the voice coil, with the added benefit of increased sensitivity. The tweeter has a chambered back designed to provide a lower resonance frequency and reduce back wave reflections from the dome. A copper cap is used on the pole piece.

.

Highlights

Non-resonant diaphragm design for minimum high frequency break-up
CCAW voice coil for low moving mass
Long life silver lead wires
Low resonance frequency
Copper cap on pole piece for reduced voice coil inductance and minimum phase shift
Inherently shielded neodymium motor system
Internal pressure equalization and flow resistor for non-resonant coupling of cavities
Compact design

.

Specifications

.
