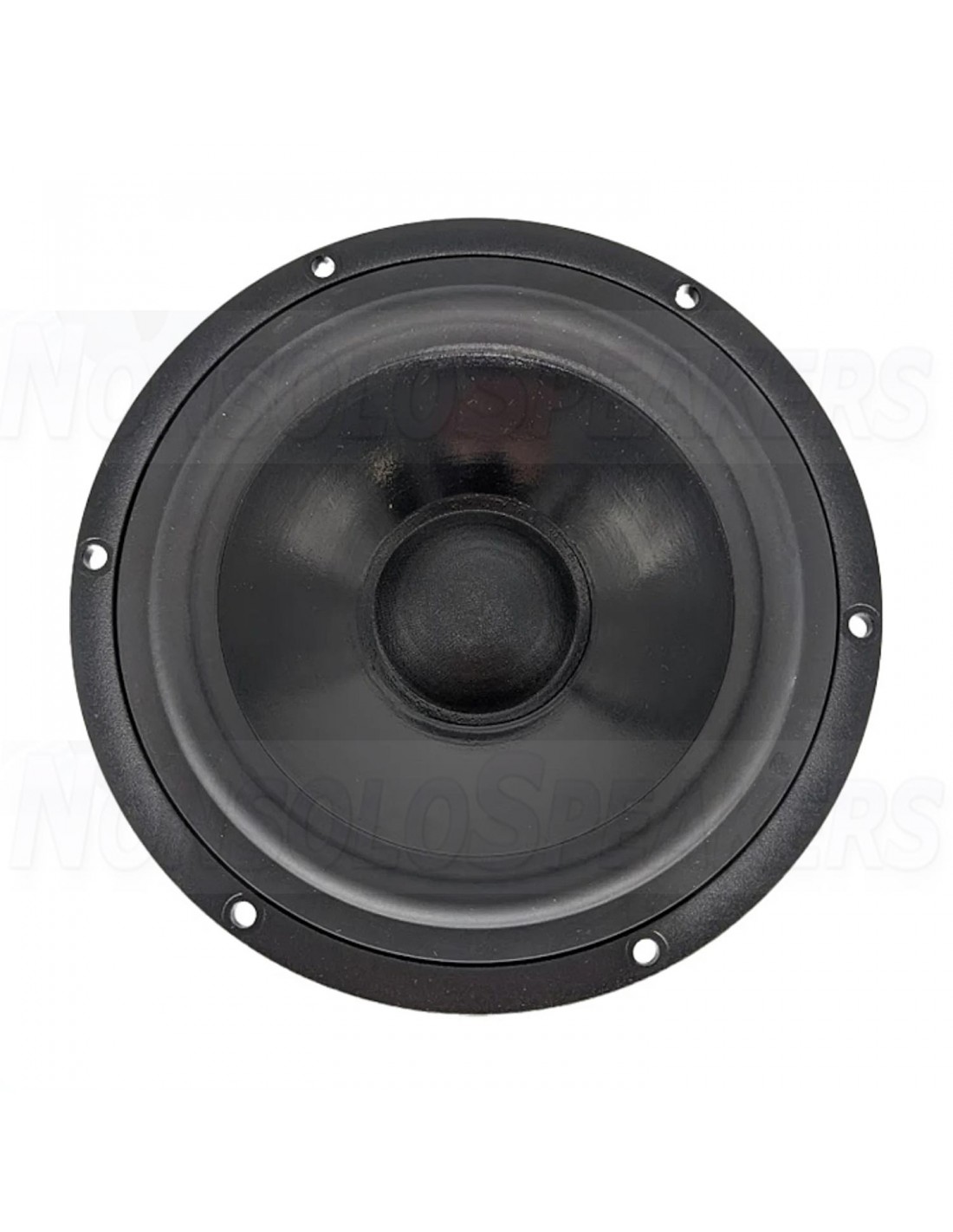

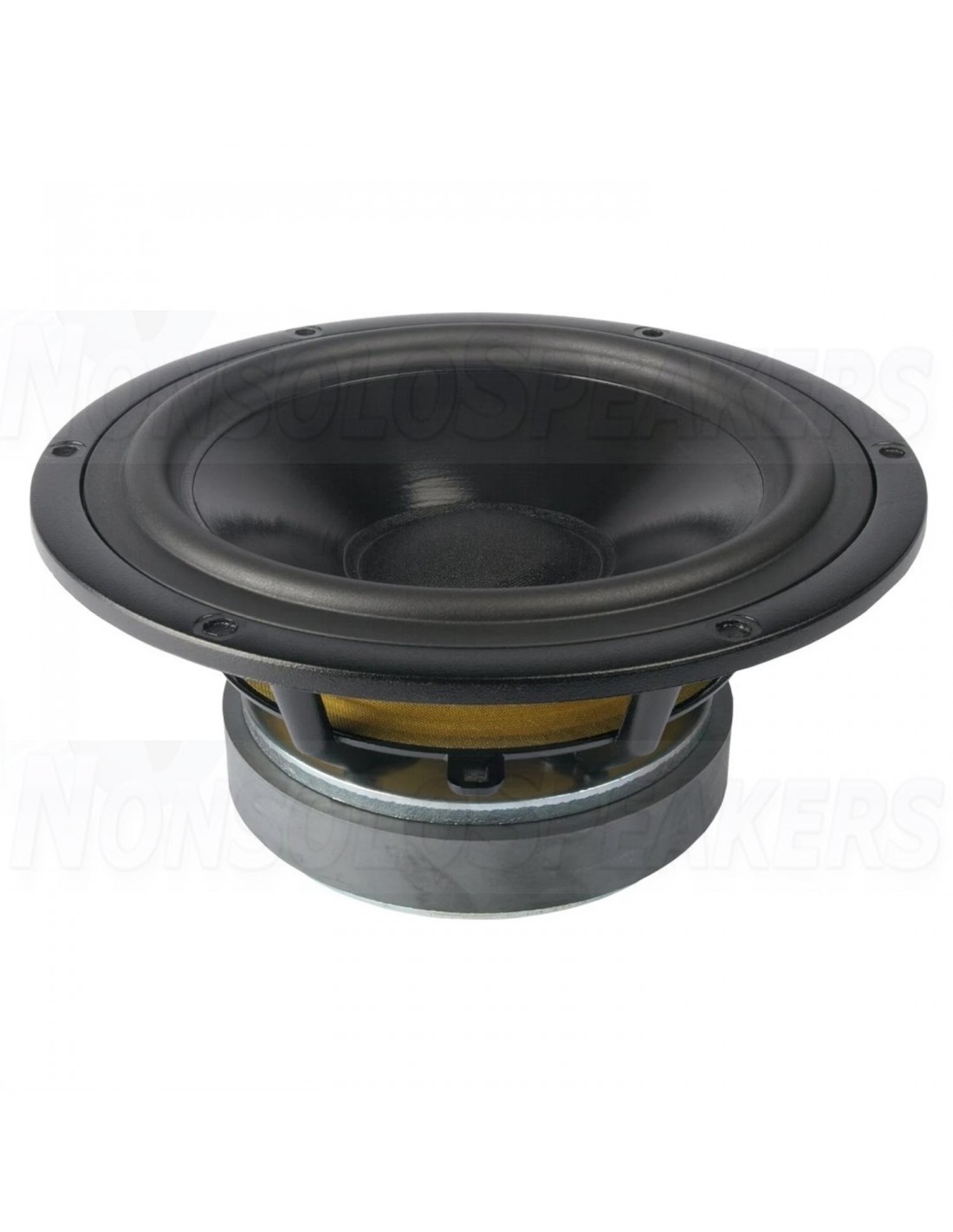

SEAS CA18RNX - H1215-08 Bass-mid woofer
.
Highlights
Long term power handling (RMS) is 80 Watts
Classical coated paper cone gives a smooth extended frequency response with a controlled roll-off
Large magnet system gives a good transient response
Extremely stiff and stable injection moulded metal basket
.
Product details
Seas CA18RNX - H1215-08 7" Coated Paper Cone Woofer
18 cm (6,5’’) cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Classical coated paper cone gives a smooth extended frequency response with a controlled roll-off.
A large magnet system gives a good transient response, and the bumped back plate together with the very long, and lightweight copper-clad aluminium voice coil allows for extreme coil excursion with low distortion. Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment.
Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
.
Specifications
Article numberCA18RNX
Woofer SeriesPrestige Series
Woofer TypeMidwoofer
Nominal Diameter7"
Power Handling (RMS)80 Watts
Power Handling (max)250 Watts
Impedance (Z)8 ohms
Sensitivity (SPL)88.5 dB 2.83V/1m
Frequency Response45 to 3,000 Hz
Voice Coil Diameter39 mm
Magnet Weight0.64 kg
DC Resistance (Re)5.8 ohms
Voice Coil Inductance (Le)1.2 mH
Resonant Frequency (Fs)35 Hz
Mechanical Q (Qms)1.90
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.31
Mechanical Compliance of Suspension (Cms)1.4 mm/N
Compliance Equivalent Volume (Vas)33 Liters
Maximum Linear Excursion (Xmax)6 mm
Overall Outside Diameter176 mm
Overall Depth78 mm
Baffle Cutout Diameter145 mm
# Mounting Holes6
Mounting Hole Diameter5 mm

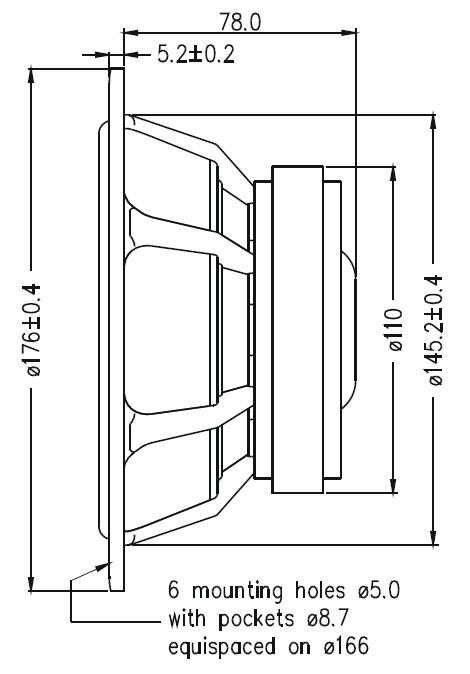

Dimensions and Mechanical Drawing

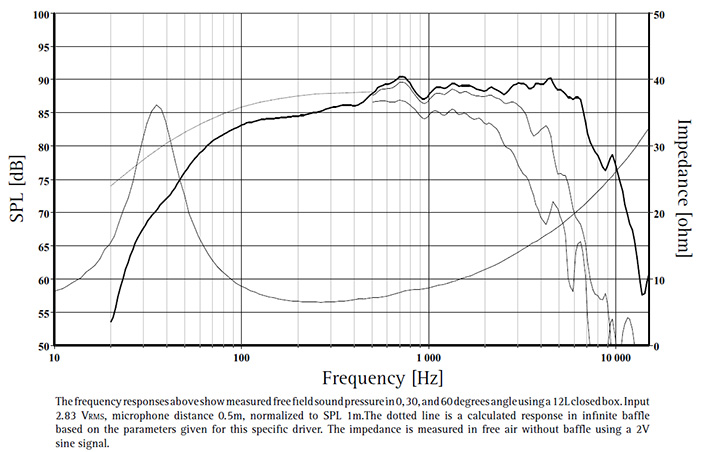

Frequency Response
