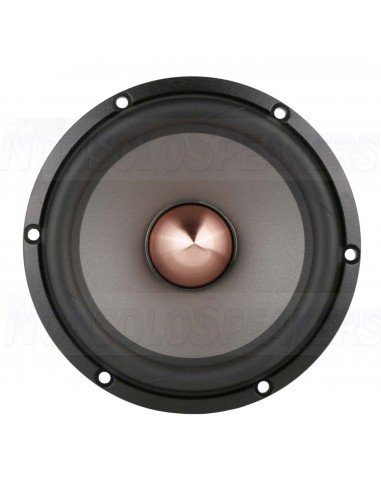

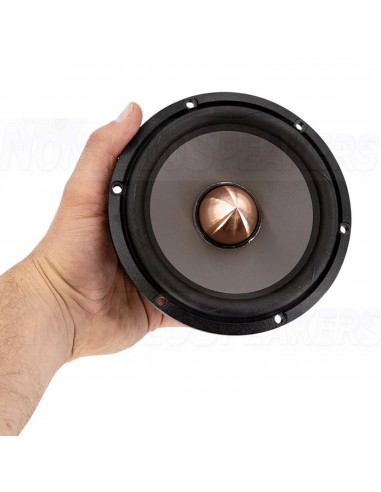

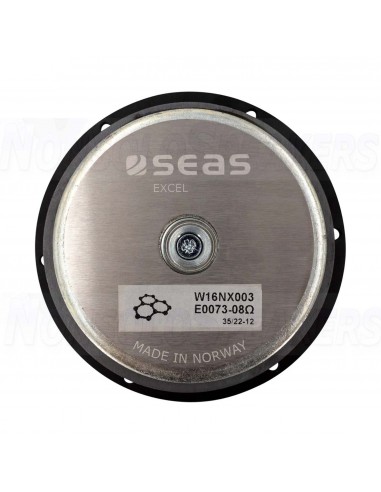

SEAS Excel Graphene W16NX003 - E0073-08 6" Woofer 8 Ohms

.

Seas Excel Graphene W16NX003 - E0073-08 6" Woofer 8 Ohms

The precision cast, machined and Graphene treated magnesium cone acts as a piston through the working frequency band without showing any sign of midrange resonances. A titanium voice coil former with a long copper clad aluminium winding for excellent force transfer, transient sound reproduction and large linear excursion. A unique radial reinforced rubber surround reduces radial resonances and prevents surround break up at large excursions.

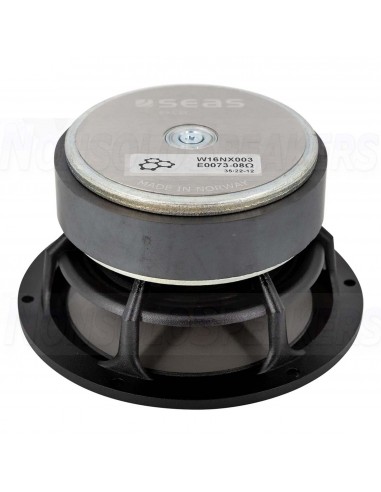

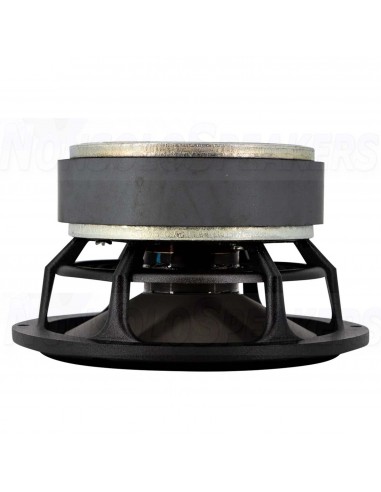

This combination results in very low mechanical damping for better clarity and brings out the micro details in the music. An FEA optimised magnet system with precisely fitted copper parts for excellent linearity, high power handling and low distortion. The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

.

Highlights

• FEA optimised magnet system
• Graphene treated magnesium cone
• Titanium voice coil former Unique radial reinforced rubber surround
• Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment.

Technical Specifications:

• Article number W16NX003
• EAN 0691046949080
• Woofer Series SEAS Excel series
• Woofer Type Woofer Nominal
• Diameter 6" Power
• Handling (RMS) 180 watts
• Power Handling (max) 300 watts
• Continuous Program Power -
• Impedance (Z) 8 ohms
• Sensitivity (SPL at 1m / 2.83V) 85.4 dB
• Frequency Response 20 - 3,000 Hz
• Voice Coil Diameter 39 mm
• Magnet Weight 900 grams
• DC Resistance (Re) 6.4 ohms
• Voice Coil Inductance (Le) 0.12 mH
• Resonant Frequency (Fs) 36 Hz
• Mechanical Q (Qms) 4.73
• Electromagnetic Q (Qes) 0.36
• Total Q (Qts) 0.34
• Diaphragm Mass Inc. Airload (Mms) 14.2g
• Mechanical Compliance of Suspension (Cms) 1.35 mm/N
• Surface Area of Cone (Sd) 94 cm²
• Volume of Displacement (Vd) 65.8 cm³
• BL Product (BL) -
• Compliance Equivalent Volume (Vas) 17 liters
• Maximum Linear Excursion (Xmax) 7 mm
• Driver's Mechanical Losses (Rms) -
• Cone / Diaphragm Material Graphene treated magnesium
• Surround Material Rubber
• Voice Coil Wire Material Copper-clad aluminum
• Voice Coil Former Titanium
• Dual Voice Coil -
• Basket / Frame Material -
• Magnet Material -
• Shielded -
• Overall Outside Diameter 146 mm
• Overall Depth 79 mm
• Baffle Cutout Diameter 127 mm
• Bolt Circle Diameter 137 mm
• Mounting Holes 6 Sealed
• Volume -
• Sealed F3 -
• Vented Volume -
• Vented F3 -
