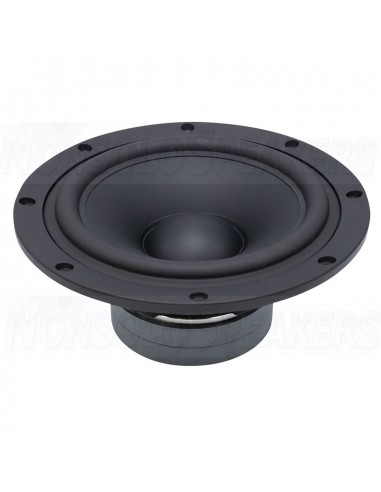

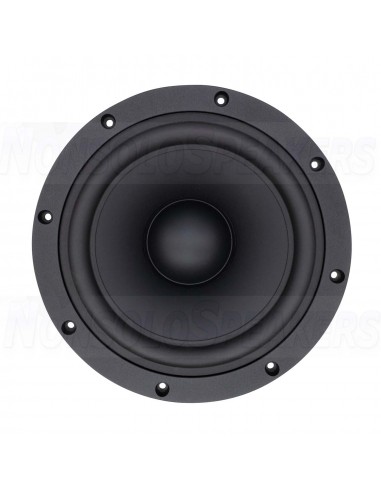

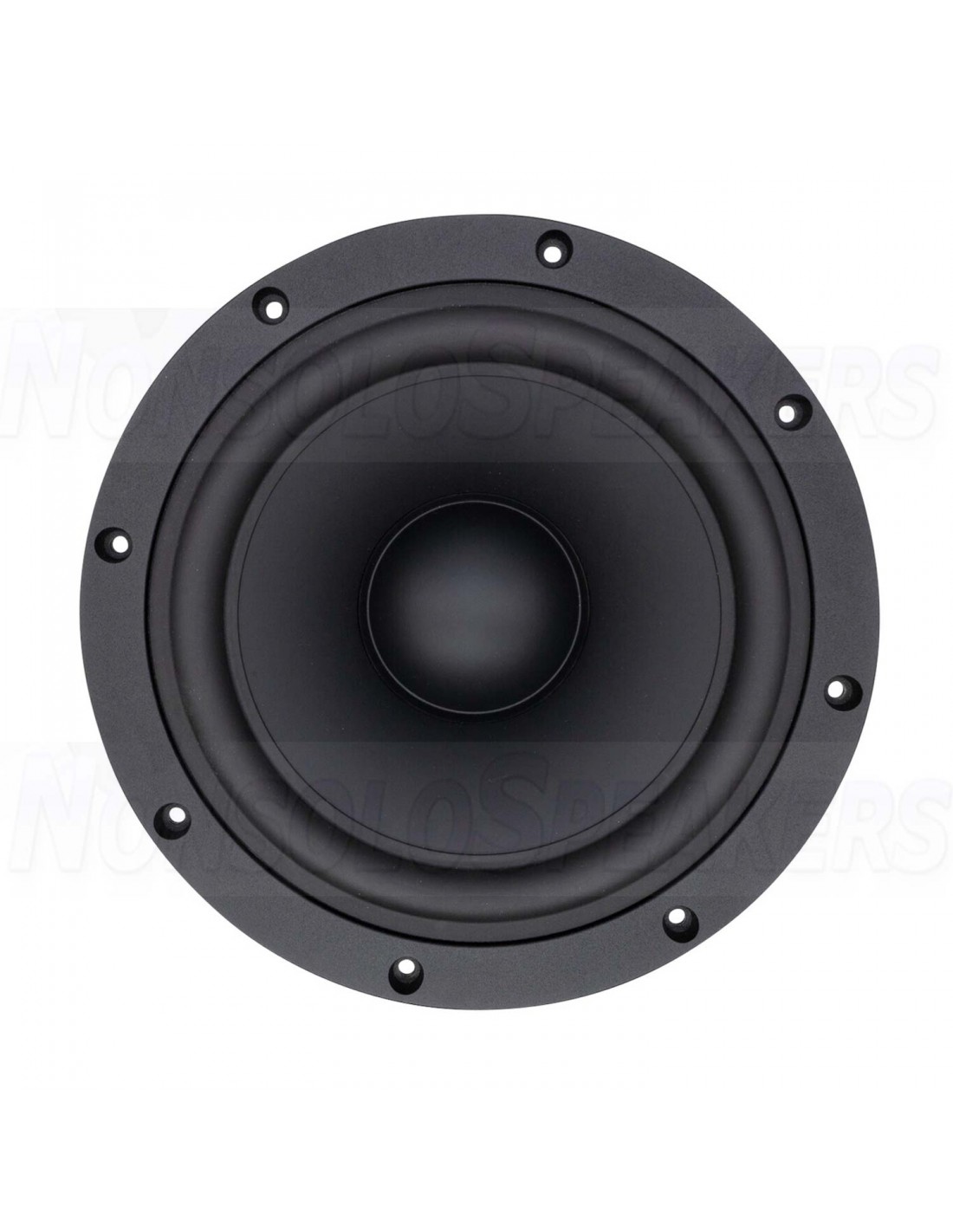

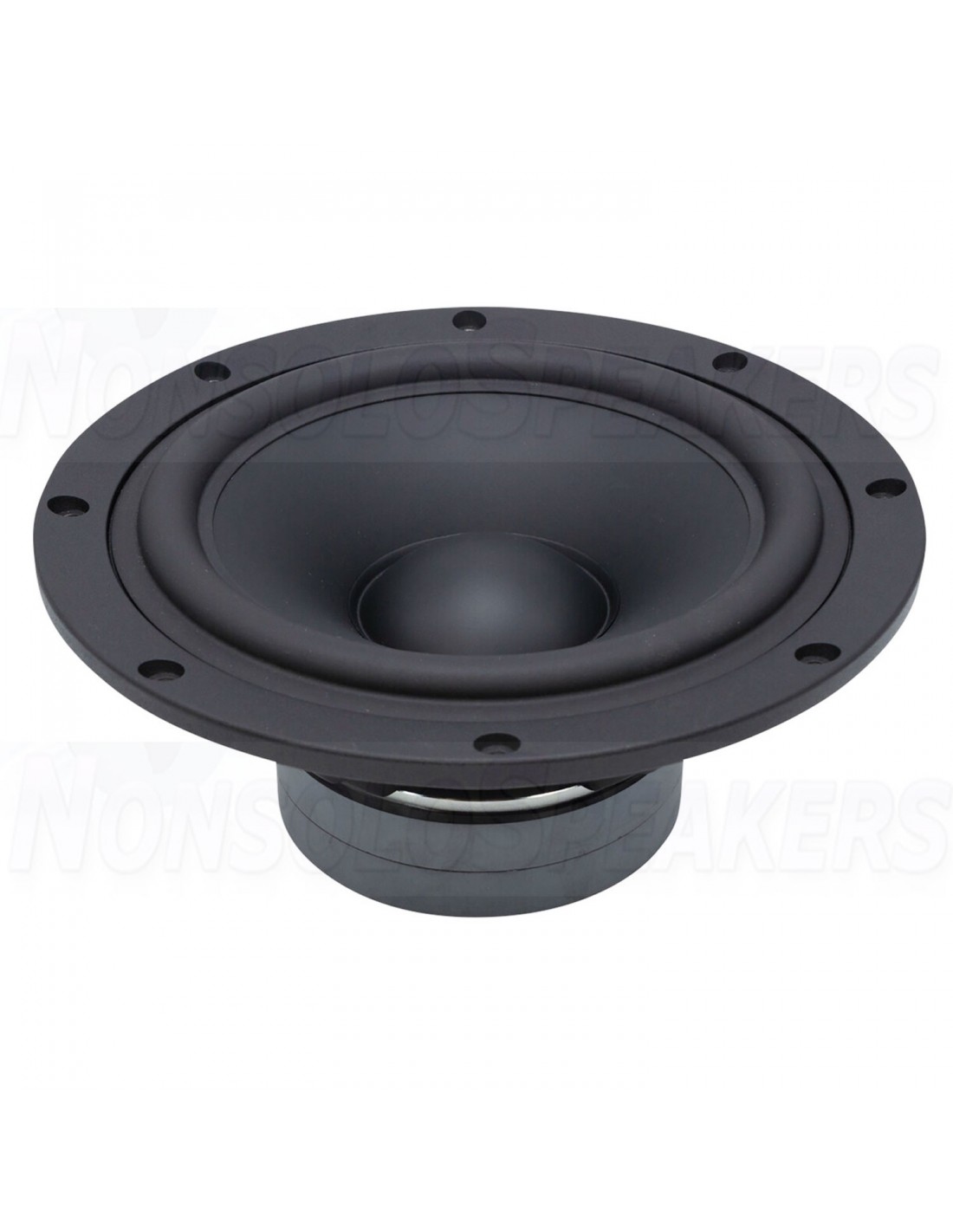

SB ACOUSTICS SB29NRX75-8- Woofer 10" 8 ohm

.

Product description

Hard paper cone for improved piston operation (made in-house)

Vented pole piece for minimum compression

Vented cast aluminum chassis for optimum strength and low compression

3" copper voice coil for improved power handling

Long life silver lead wires

Low damping rubber surround for improved dynamic linearity

Non-conducting fiber glass voice coil former for minimum damping

.

Product details

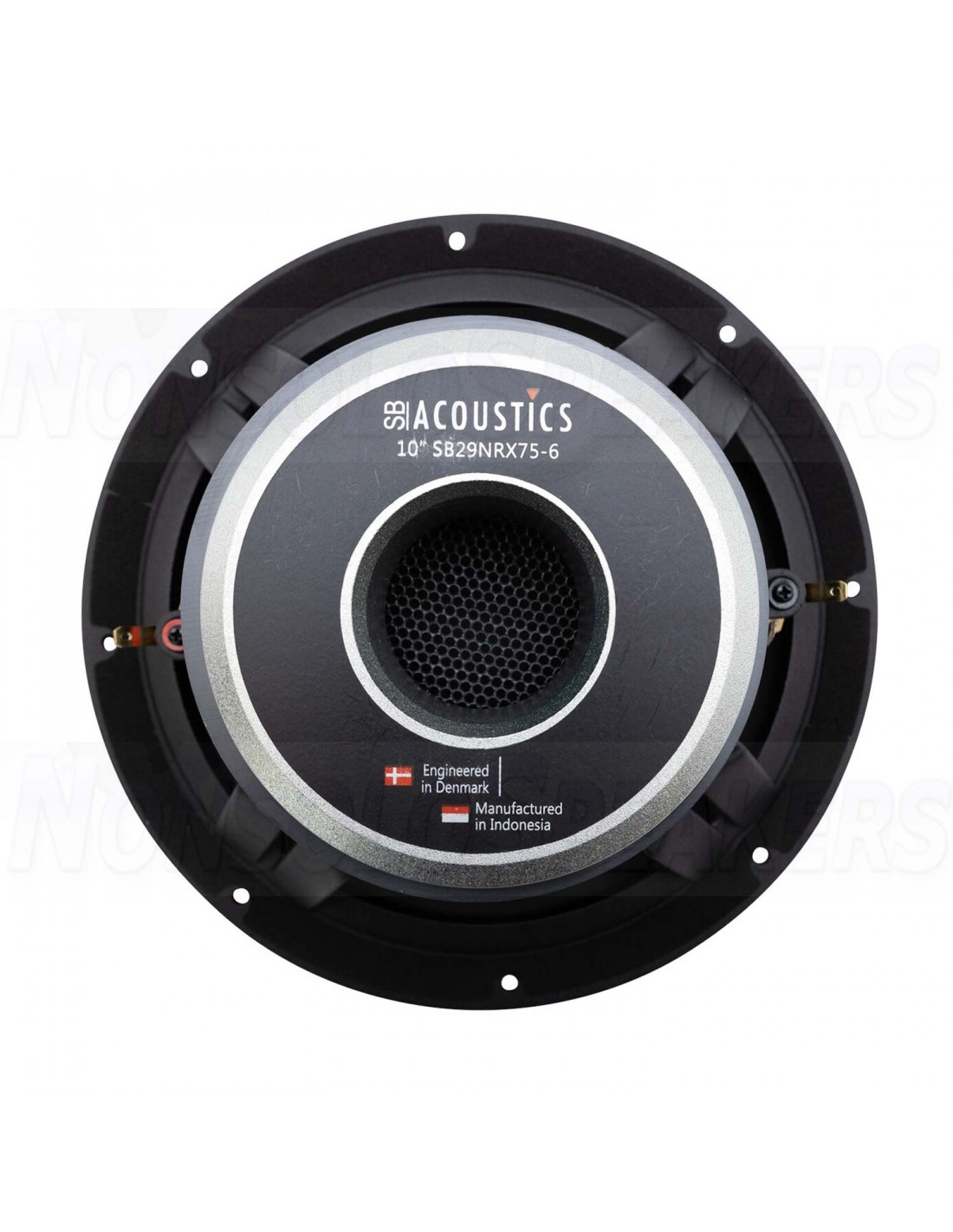

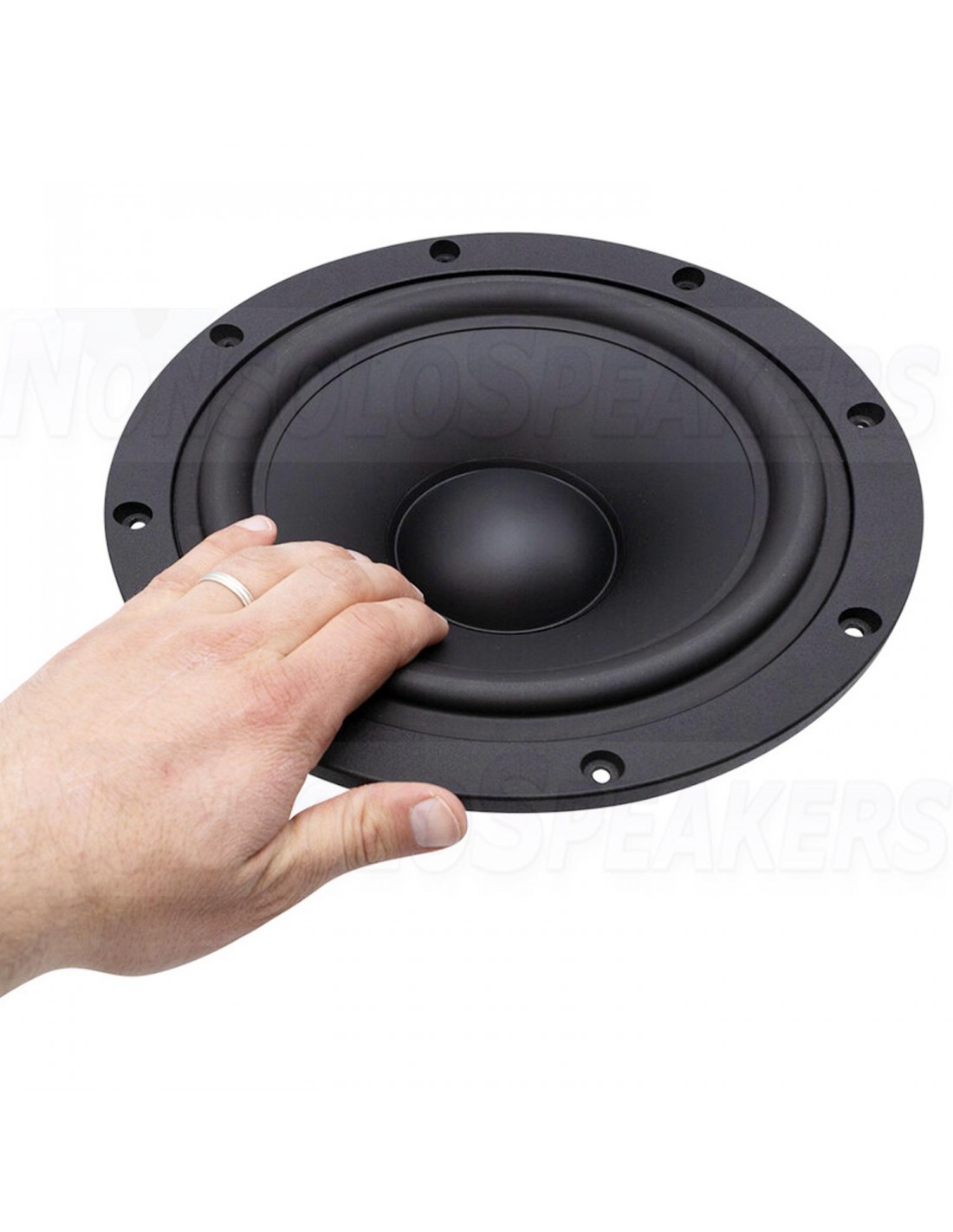

SB Acoustics SB29NRX75-8 10" Woofer

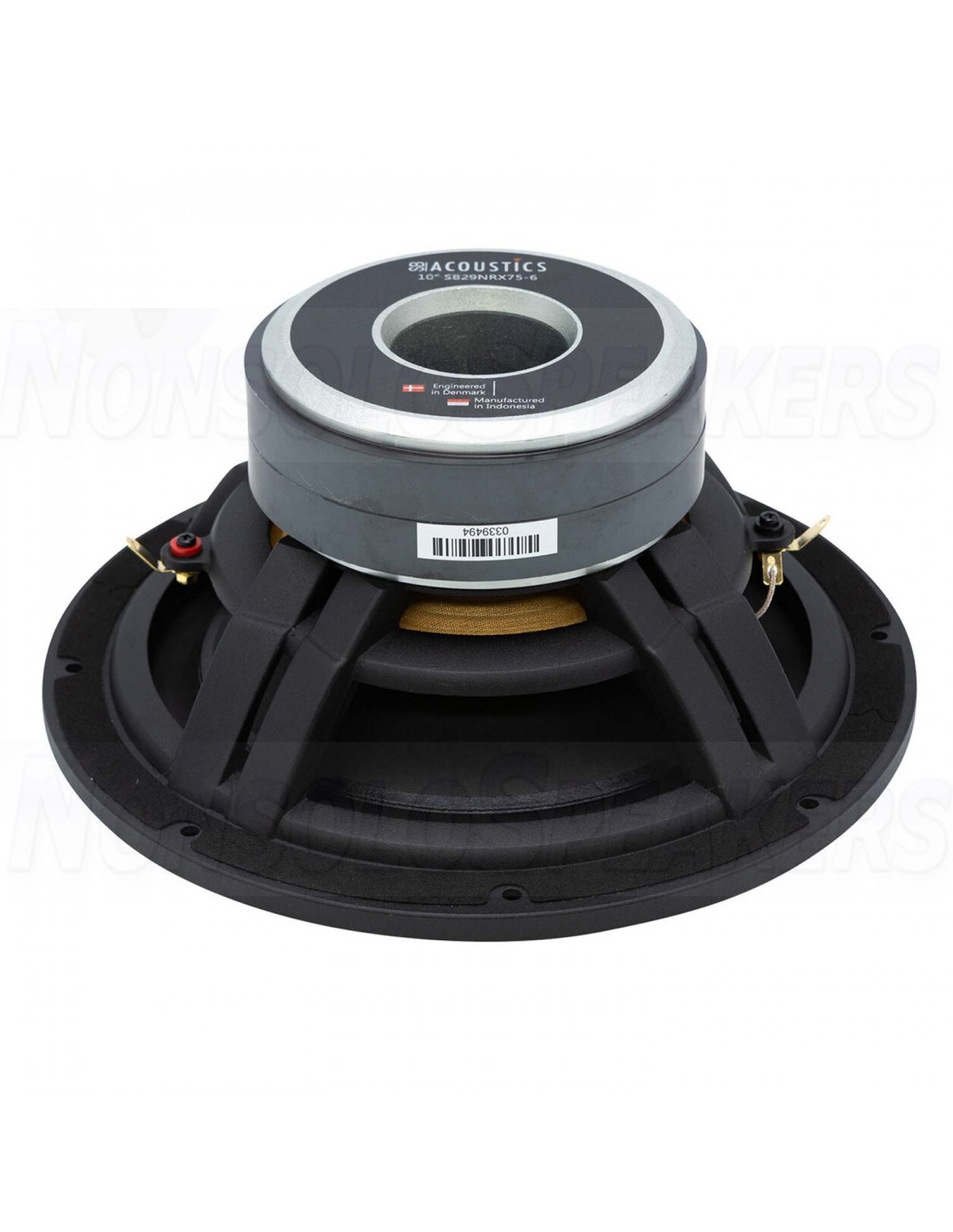

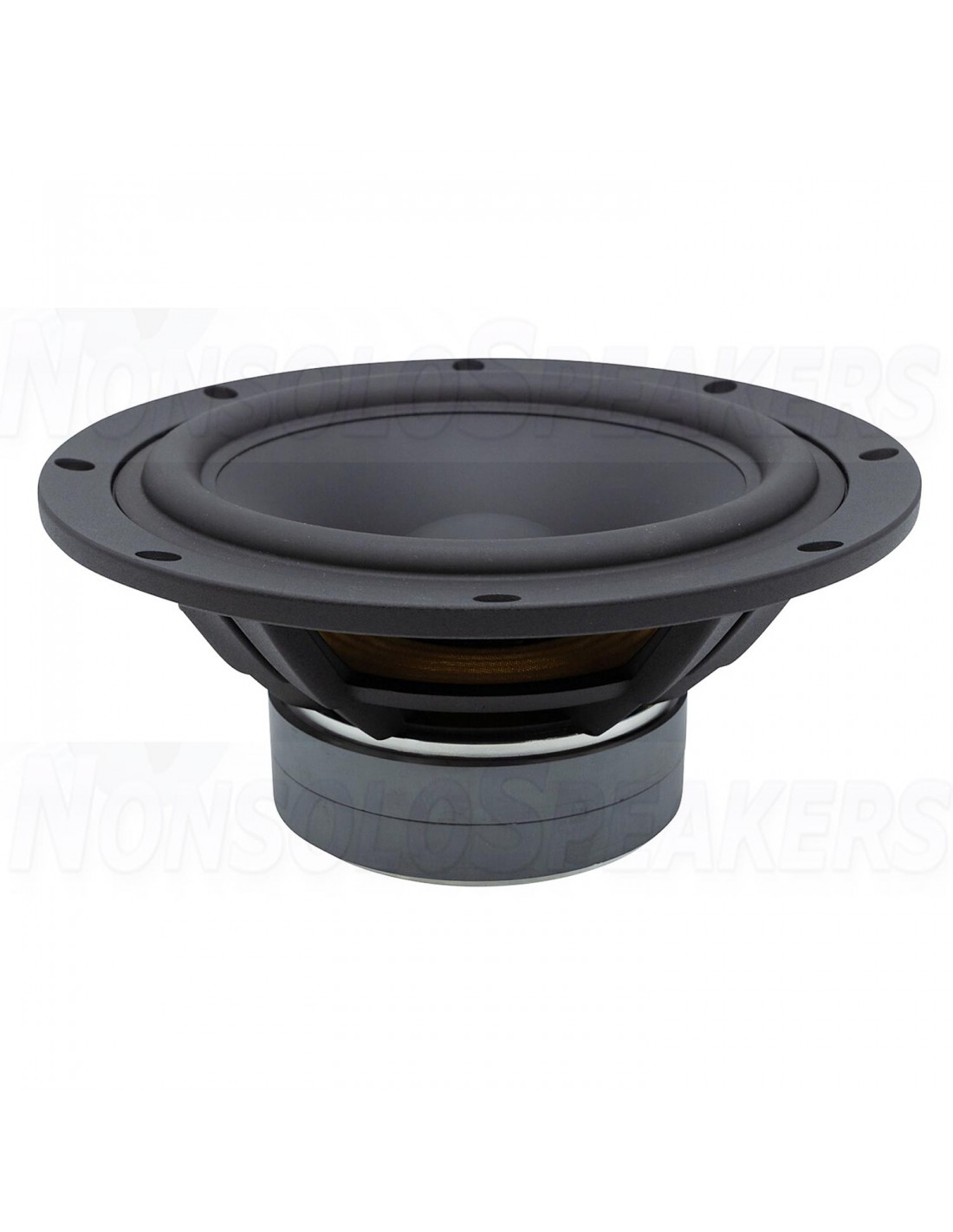

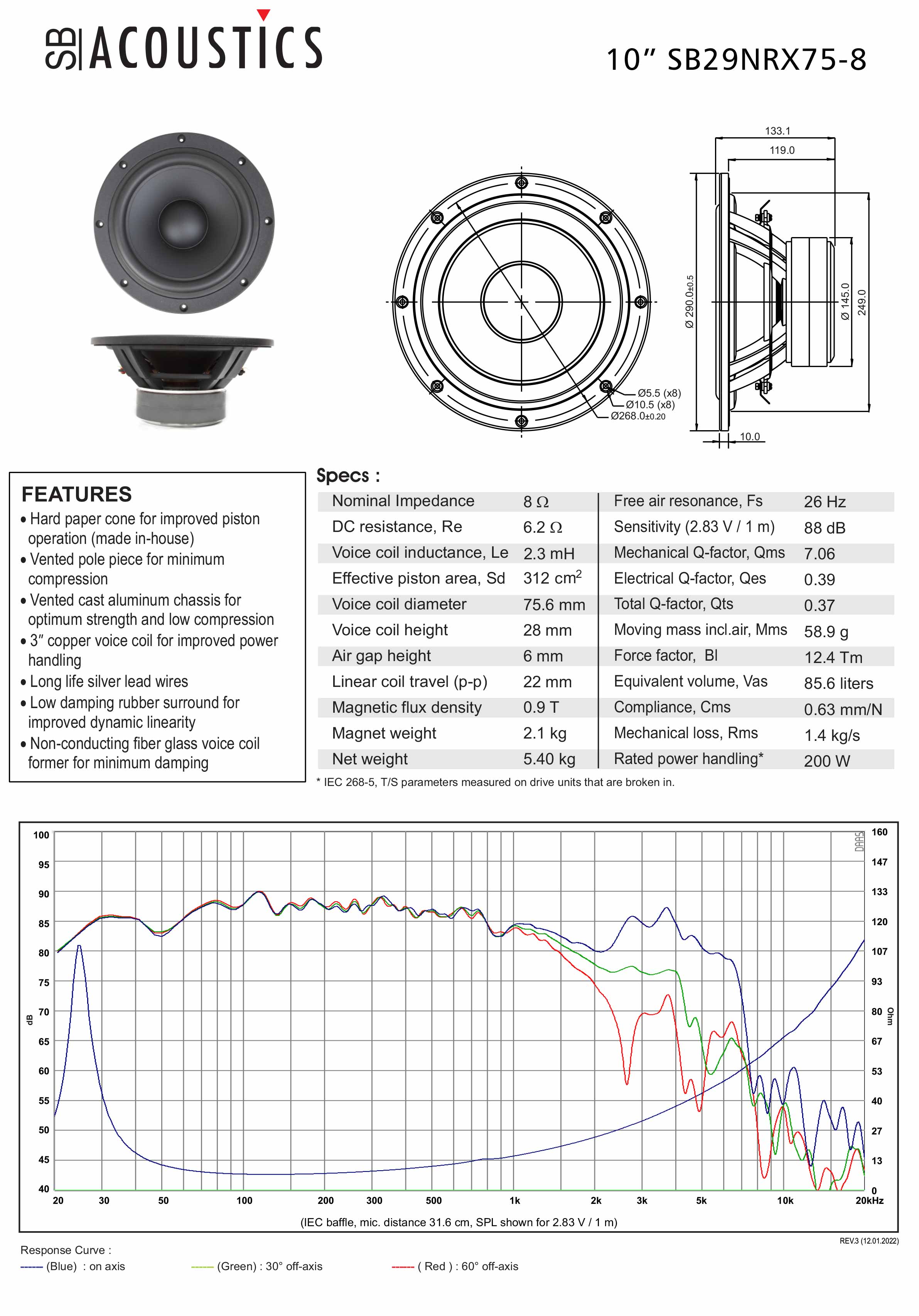

The SB29NRX75-8 10" woofer features a proprietary composition paper cone with a special coating. The rubber surround has been carefully chosen to properly dampen the cone movement. The open structure cast frame has been specially engineered for minimum reflections good air flow. This woofer will perform best in a ported enclosure. This driver will get down to 28Hz in a 2.0 cubic foot box with a 3" diameter port by 12" long. In a sealed box of 0.8 cubic feet your F3 is 48Hz. Frame is 290mm in diameter. Cutout diameter is 247mm. Depth is 119mm. Flange thickness of 10mm. Screw mounting diameter is at 268mm. Screw hole opening is 5.5mm.

.

.
