The Volt Loudspeakers B2500.1 is a 10" high-power subwoofer designed for state-of-the-art studio systems where dynamic range and analytical clarity are essential. This subwoofer combines a massive magnet system with superior engineering to deliver exceptional performance.

SHIPMENT IN 7-10 WORKING DAYS
€469.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€27.48
Shipping Time
.
Want to check another country or courier?

You might also like



Volt Loudspeakers B25001 10'' Subwoofer 8 ohm

The Volt Loudspeakers B2500.1 is a 10" high-power subwoofer designed for state-of-the-art studio systems where dynamic range and analytical clarity are essential. This subwoofer combines a massive magnet system with superior engineering to deliver exceptional performance.

.

Highlights

10" paper cone for rigidity and minimal coloration

Symmetrical field magnet system for maximum linearity

Dual rear suspensions for transient stability

Optimized for high-power studio applications

.

Product details

Volt Loudspeakers B2500.1 Subwoofer

The B2500.1 features a 10" cone constructed from rigid paper to ensure true piston movement with minimal coloration. Its symmetrical field magnet system, coupled with a long voice coil, allows for large linear excursions, critical for deep bass reproduction. The driver is equipped with dual rear suspensions that provide excellent transient stability, even at high power levels, ensuring consistent performance.

Operating within a frequency range of 25 to 1000 Hz, the B2500.1 has a sensitivity of 88 dB/W/m and can handle 250 watts AES power. It is available in 8, 16, or 24 ohm versions, providing versatility for various system configurations. The heavy-duty cast aluminum chassis adds to the driver’s durability and reliability, making it suitable for demanding audio environments​​.

.

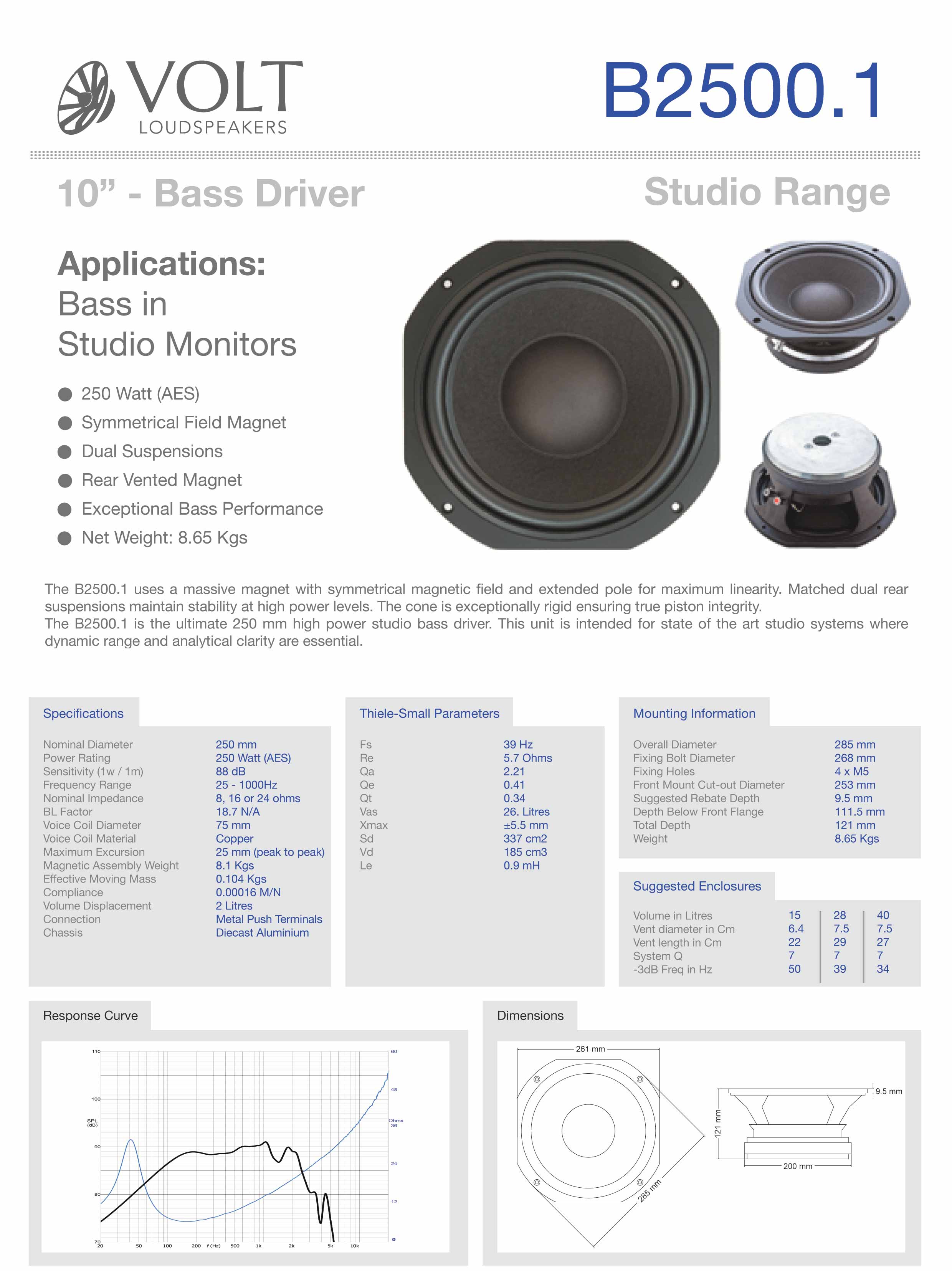

Technical Specifications:

Model Number: B2500.1
Nominal Diameter (mm): 250
Power Capacity (Watt AES): 250
Sensitivity (dB/watt/m): 88
Frequency Range (Hz): 25-1000
Impedance (Ohms): 8, 16, or 24
BL Factor: 18.7
Voice Coil Diameter (mm): 75
Voice Coil Material: Copper
Maximum Excursion (mm): 25 (before damage)
Magnet Assembly Weight (Kg): 8.1
Effective Moving Mass (Kg): 0.104
Compliance (M/N): 0.00016
Volume Displaced (litres): 2
Connection: Metal Push Terminals
Chassis: Painted Diecast Aluminium
Overall Diameter 285mm
Mounting Bolt Circle Diameter 268mm
Number and Size of Bolts 4 M5
Baffle Cutout Diameter 253mm front mount
Baffle Cutout Diameter 245mm rear mount
Depth 111.5mm below front flange
Depth 121mm total depth
Weight 8.65Kg
volt B25001
