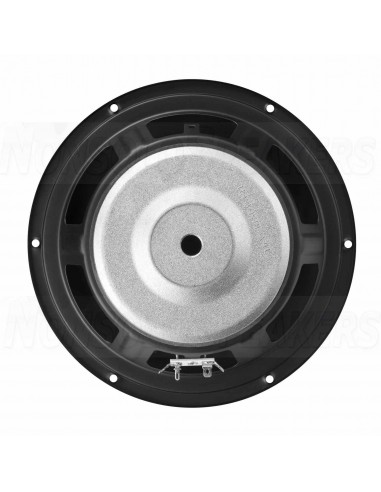

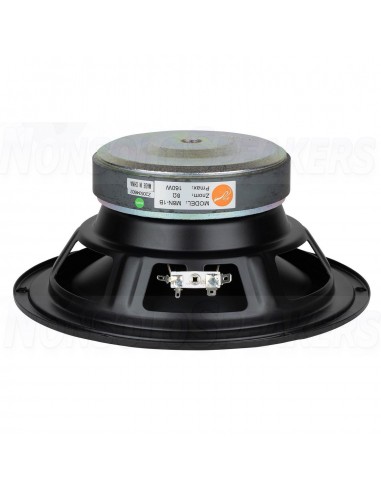

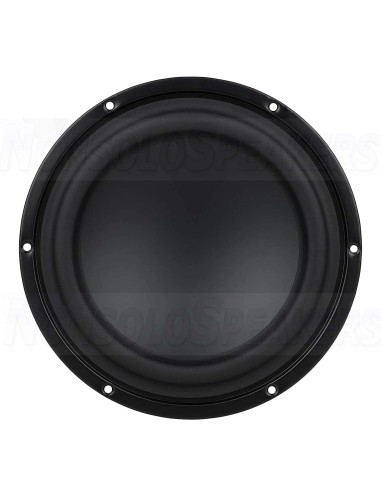

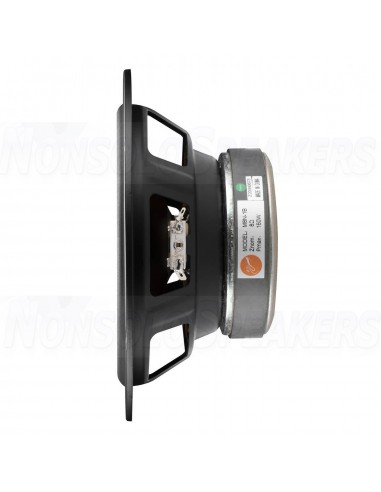

HiVi M8N-1B 8" Damped Aluminum/Magnesium Cone Woofer

The HiVi M8N-B has been optimized for extended and dynamic bass reproduction in vented systems. The clarity and accuracy provided by the unique one-piece aluminum/magnesium cone is remarkable.

.

Highlights

• Extremely rigid Aluminum/Magnesium cone
• Specially made high-loss rubber surround
• High power handling Kapton voice coil former
• Air transparent spider
• Symmetric Motor Drive (SMD) technology

.

Product details

HiVi M8N-1B 8" Damped Aluminum/Magnesium Cone Woofer

The HiVi M8N-B has been optimized for extended and dynamic bass reproduction in vented systems. The clarity and accuracy provided by the unique one-piece aluminum/magnesium cone is remarkable. This high rigidity diaphragm accurately reproduces transient attacks, contributing to a naturally dynamic and articulate sonic character in the bass and midbass regions. A high temperature Kapton voice coil, air transparent spider, and 15,9mm voice coil provide good power handling. This woofer can be used to good effect in a medium sized 2-way system or as a woofer in a 3-way system. Recommended crossover upper frequency region for a 2-way system design is 1-2 kHz..

.

Specifications

• Article number M8N-1B
• Woofer Type Bass-midwoofer
• Nominal Diameter 8"
• Power Handling (RMS) 80W
• Power Handling (max) 160W
• Impedance (Z) 8Ω
• Sensitivity (SPL at 1m / 2.83V) 88 dB
• Voice Coil Diameter 35mm
• DC Resistance (Re) 6.5Ω
• Resonant Frequency (Fs) 29 Hz
• Mechanical Q (Qms) 5.02
• Electromagnetic Q (Qes) 0.5
• Total Q (Qts) 0.45
• Diaphragm Mass Inc. Airload (Mms) 36.5g
• BL Product (BL) 9.6 N/A
• Compliance Equivalent Volume (Vas) 53.5L
• Maximum Linear Excursion (Xmax) 5.8 mm
• Voice Coil Former SV
• Magnet Material Ferrite Vented F3 40Hz
