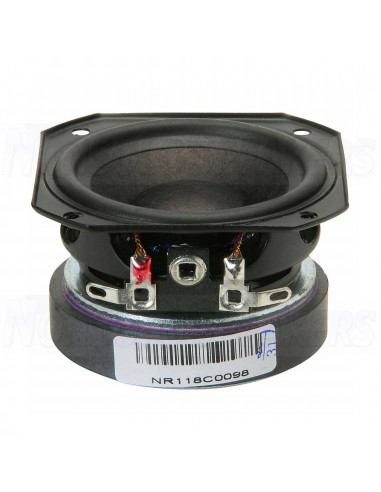

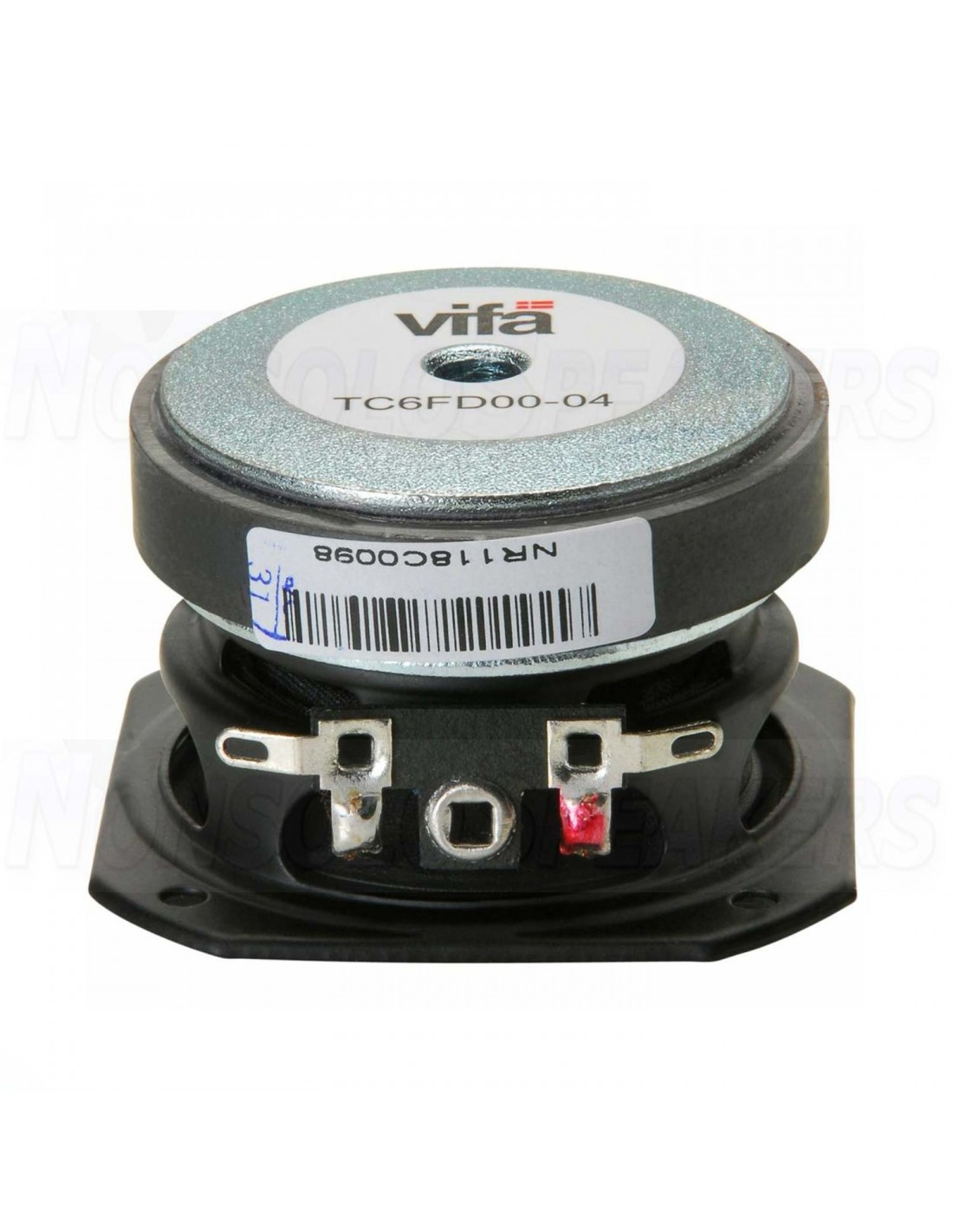

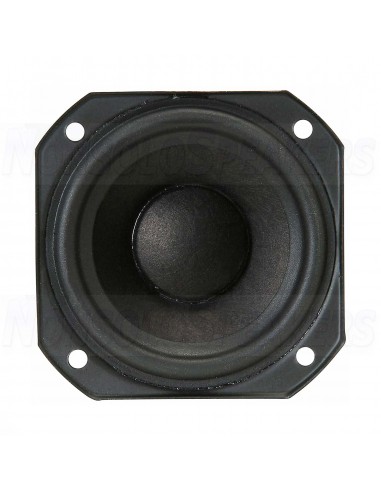

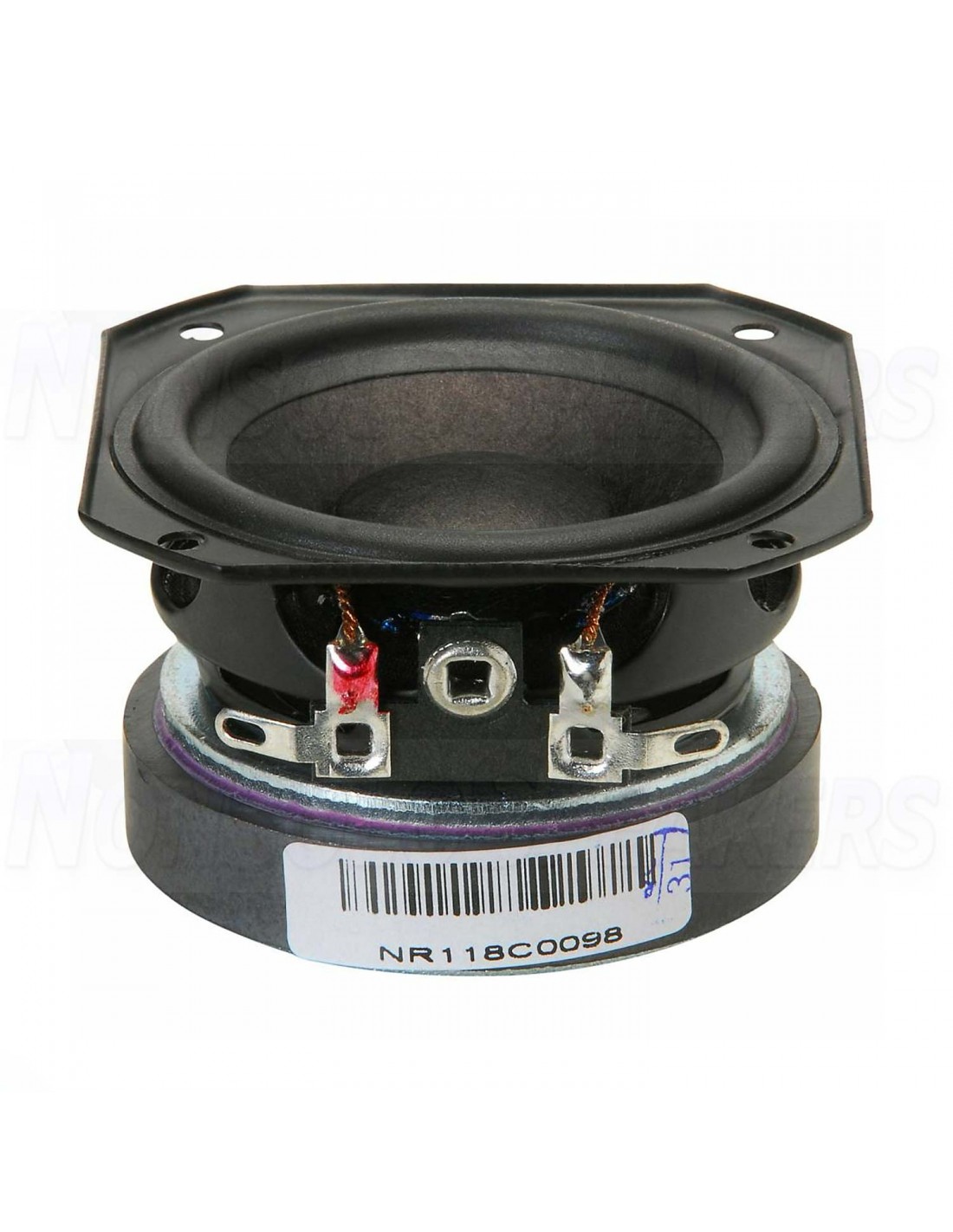

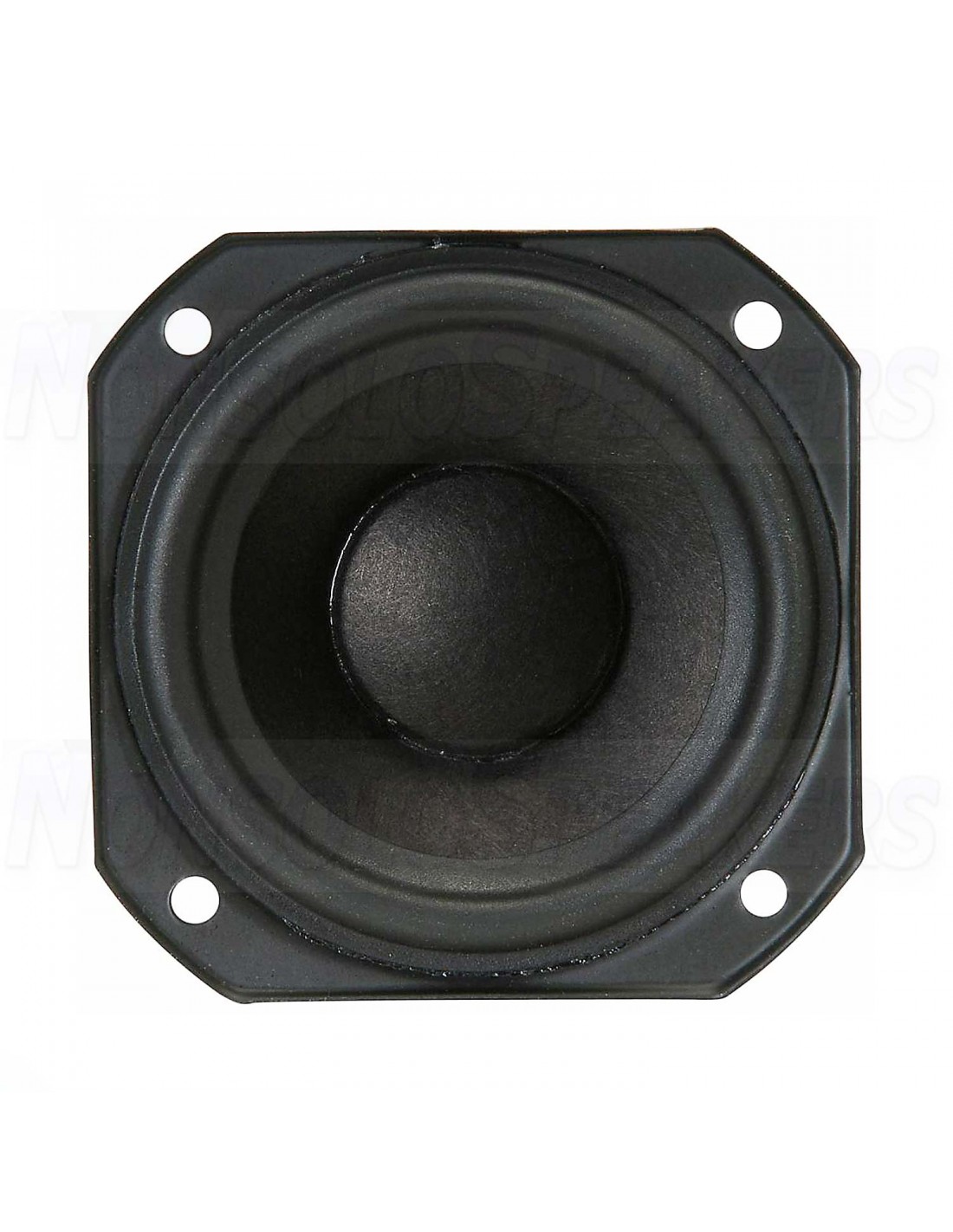

Peerless by Tymphany TC6FD00-04 2" Full Range Paper Cone Woofer 4 Ohm

Peerless by Tymphany TC6FD00-04 2" Full Range Paper Cone Woofer 4 Ohm

SHIPEMENT IN 7-10 WORKING DAYS
€18.45
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Peerless by Tymphany TC6FD00-04 2" Full Range Paper Cone Woofer 4 Ohm

Product description

Tymphany's well-engineered yet economical TC6FD00-04 2" full-range speaker provides accurate, non-fatiguing audio reproduction.

.

Highlights

Cost-effective ceramic ferrite magnet and stamped steel frame

Patented NRSC PentaCut cone technology controls resonances and improves performance

Under-spider venting increases power handling

Half-roll rubber surround for unrestricted travel

Copper pole piece cap controls impedance and extends HF response

.

Product details

Peerless by Tymphany TC6FD00-04 2" Full Range Paper Cone Woofer 4 Ohm

This TC family 2 inch 4 ohm full-range driver,with ferrite magnet, paper cone and rubber surround, and steel basket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with television and other compact applications in mind.

.

Specifications

Article number TC6FD00-04

Woofer Type Full Range

Nominal Diameter 2"

Power Handling (RMS) 15 Watts

Power Handling (max) 30 Watts

Impedance (Z) 4 ohms

Sensitivity (SPL at 1m / 2.83V) 81.5 dB

Frequency Response 150 to 20,000Hz

Voice Coil Diameter 0.75"

DC Resistance (Re) 3.5 ohms

Voice Coil Inductance (Le) 0.02 mH

Resonant Frequency (Fs) 175 Hz

Mechanical Q (Qms) 4.1

Electromagnetic Q (Qes) 1.29

Total Q (Qts) 0.98

Diaphragm Mass Inc. Airload (Mms) 1.22g

Mechanical Compliance of Suspension (Cms) 0.68 mm/N

Surface Area of Cone (Sd) 15.2 cm²

BL Product (BL) 1.92 Tm

Compliance Equivalent Volume (Vas) 0.008 ft.³

Maximum Linear Excursion (Xmax) 1 mm

Cone / Diaphragm Material Paper

Surround Material Rubber

Basket / Frame Material Steel

Magnet Material Ferrite

Overall Outside Diameter 2.17"

Overall Depth 1.37"

Baffle Cutout Diameter 1.97"

# Mounting Holes 4

Sealed Volume 0.02 ft.³

Sealed F3 165 Hz

Vented Volume 0.05 ft.³

Vented F3 100 Hz
