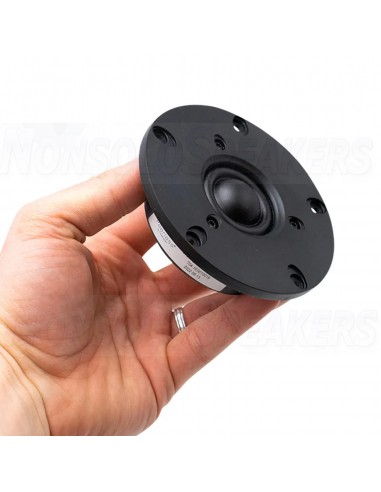

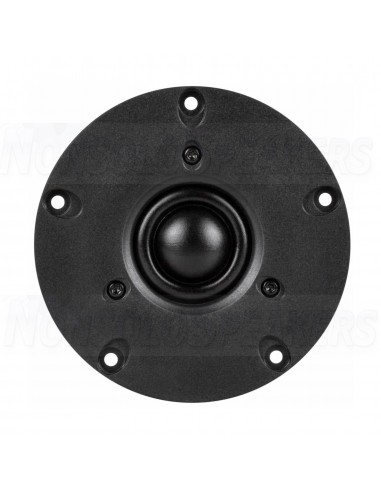

Peerless by Tymphany DX25TG59-04 Dome Tweeter
Peerless by Tymphany DX25TG59-04 Dome Tweeter
Peerless by Tymphany DX25TG59-04 Dome Tweeter
Peerless by Tymphany DX25TG59-04 Dome Tweeter
Peerless by Tymphany DX25TG59-04 Dome Tweeter
Peerless by Tymphany DX25TG59-04 Dome Tweeter
Peerless by Tymphany DX25TG59-04 Dome Tweeter
Peerless by Tymphany DX25TG59-04 Dome Tweeter

Peerless by Tymphany DX25TG59-04 Dome Tweeter

Peerless by Tymphany DX25TG59-04 Dome Tweeter

Tymphany's DX25TG59-04 tweeter's lightweight diaphragm with large surround structure gives extended high frequency response and superb off-axis characteristics, while the tuned rear chamber and extra-strong 5-hole faceplate yield excellent mechanical damping.

Out-of-Stock
€32.95
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Peerless by Tymphany DX25TG59-04 Dome Tweeter

.

Product description

Tymphany's DX25TG59-04 tweeter's lightweight diaphragm with large surround structure gives extended high frequency response and superb off-axis characteristics, while the tuned rear chamber and extra-strong 5-hole faceplate yield excellent mechanical damping.

.

Highlights

Extra-strong 5-hole faceplate

1" treated soft dome

Tuned chamber lowers resonance

Large surround increases range

.

Product details

Peerless by Tymphany DX25TG59-04 1" Fabric Dome Tweeter

This DX family tweeter features a 4 ohm 25 mm ferrofluid-cooled voice coil, a damped silk diaphragm with large surround roll to produce a low resonant frequency, and a ferrite magnet motor which adds heat sinking for power handling capacity. The faceplate features recessed mounting holes to minimize reflections.

,

Specifications

Article number DX25TG59-04

Tweeter Type Soft Dome

Tweeter Series DX Series

Cone / Dome Diameter 25 mm | 1"

Power Handling (RMS) 100 Watts

Impedance (Z) 4 Ω

Sensitivity (SPL at 1m / 2.83V) 92.8 dB

Frequency Response 2500 to 20,000 Hz

Resonant Frequency (Fs) 640 Hz

DC Resistance (Re) 2.93 ohms

Voice Coil Inductance (Le) 0.02 mH

Mechanical Q (Qms) 2.46

Electromagnetic Q (Qes) 0.74

Total Q (Qts) 0.57

Overall Outside Diameter 4.06”

Cutout Diameter 2.88”

Depth 1.25"
