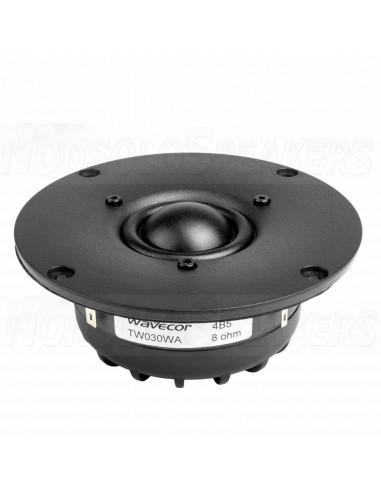

Wavecor TW030WA06 4 ohm, with ferro fluid tweeter
Wavecor TW030WA06 4 ohm, with ferro fluid tweeter

Wavecor TW030WA07 30 mm tweeter 8 ohm

Wavecor TW030WA07 30 mm tweeter 8 ohm

SHIPMENT IN 5-7 WORKING
€114.00

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Real high-end tweeter design with extremely low resonance frequency and distortion.
Thanks to the extensive internal venting between three internal cavities no air inside is trapped. This feature extends the usable frequency range downwards to an extend very rarely found on tweeters.
Adding the high power handling this tweeter is the natural candidate for high-end 2-way speaker systems.

    • Precision-coated textile diaphragm for improved consistency and high-frequency extension
    • Extreme internal venting through pole, voice coil former, and top plate to 3 internal chambers
    • Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
    • Reflection-free rear chamber design with solid reinforcement ribs
    • Large ferrite magnet for improved efficiency and transient response
    • With or without high-stability light ferro fluid
    • Flexible lead wires for higher power handling and larger excursion
    • Black anodized magnet structure for increased power handling and reduced power compression
    • Gold plated terminals to prevent oxidation for long-term reliable connection
    • Delivered with EVA gasket attached for hassle-free mounting and secure cabinet sealingTW030WA05-08-freq.-responseTW030WA05-08-dispersionTW030WA05-08-imp-response



 Parameter







Unit

 Nominal size

30

 [mm]

 Nominal impedance

4

8

 [ohm]

 Recommended freq. range

1.5-25

 [kHz]

 Sensitivity, 2.83V/1m, (average 1-20kHz)

91½

91

89

88½

 [dB]

 Voice coil diameter

30.4

 [mm]

 Voice coil height

1.7

 [mm]

 Air gap height

2.5

 [mm]

 Voice coil resistance, RDC

3.4

6.3

 [ohm]

 Voice coil inductance

20

28

 [μH]

 Magnet weight

260

 [g]

 Effective radiating area, Sd

11.5

 [sq.cm]

 Power handling, continuous, IEC 268-5,
 2.0kHz@12dB/oct.

50

60

50

60

 [W]

 Resonance freq., Fs

450

450

470

470

 [Hz]

 Moving mass, incl. air (free air, no baffle)

0.40

0.42

0.37

0.39

 [g]

 Force factor, Bxl

2.0

2.0

2.4

2.4

 [Tm]

 Mechanical Q, Qm

1.5

1.2

1.6

1.3

  -

 Electrical Q, Qe

0.96

1.01

1.19

1.25

  -

 Total Q, Qt

0.59

0.55

0.68

0.64

  -

 Suspension compliance, Cms

0.31

0.30

0.31

0.30

 [mm/N]

 Equiv. air volume, Vas

0.059

0.056

0.059

0.056

 [lit.]

 Total unit net weight

0.59

 [kg]

            Krm (note 1)

100

152

67

64

 [μohm]

            Erm (note 1)

0.85

0.82

0.91

0.92

  -

            Kxm (note 1)

3.3

2.8

5.1

4.3

 [mH]

            Exm (note 1)

0.56

0.56

0.56

0.56

  -
  • TW030WA05-to-08_outline_drawingTW030WA05-08_terminals
