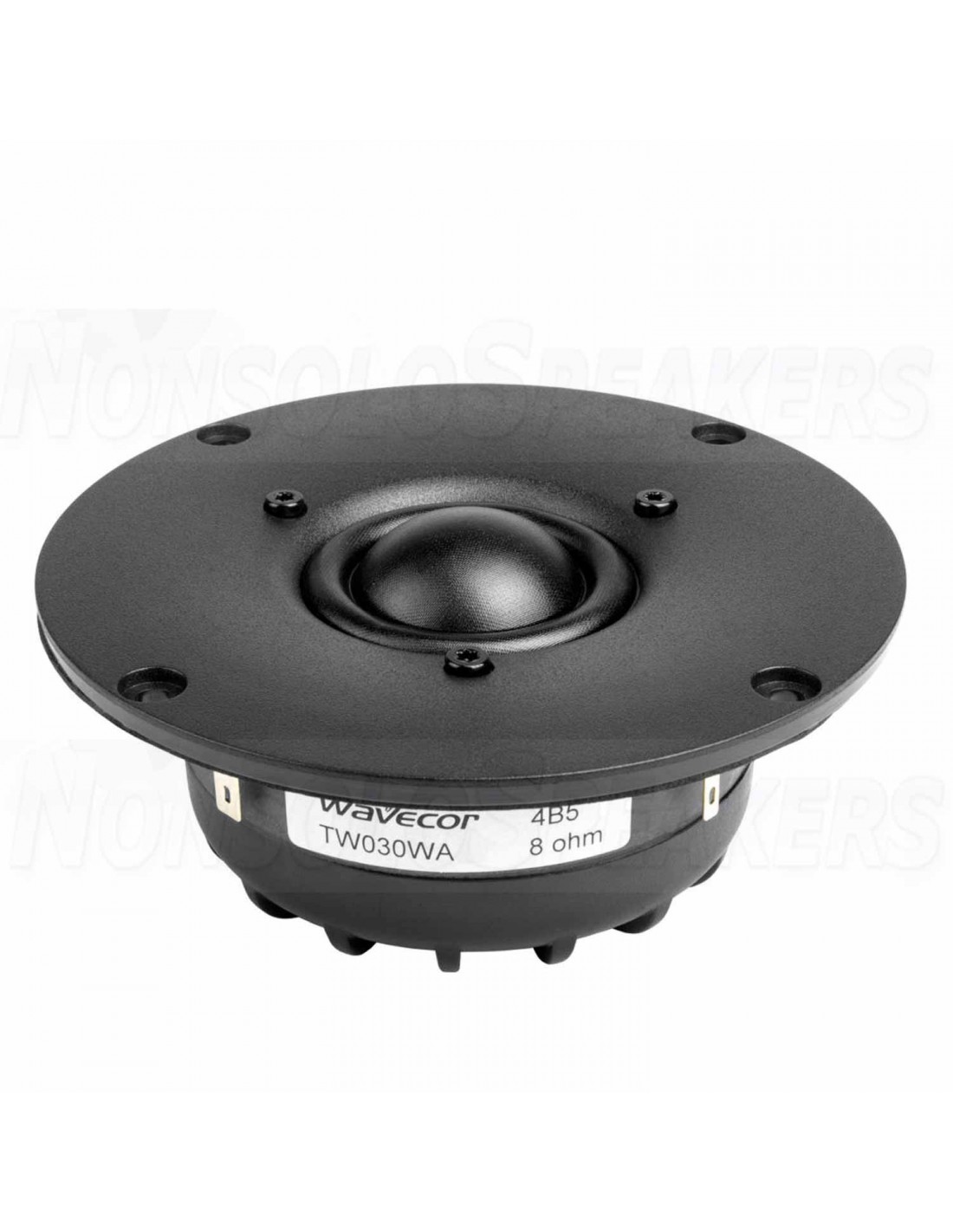

These four tweeter models share the same basic design but differ as follows:
TW030WA05: 4 ohm, no ferro fluid
TW030WA06: 4 ohm, with ferro fluid
TW030WA07: 8 ohm, no ferro fluid
TW030WA08: 8 ohm, with ferro fluid
Real high-end tweeter design with extremely low resonance frequency and distortion.
Thanks to the extensive internal venting between three internal cavities no air inside is trapped. This feature extends the usable frequency range downwards to an extend very rarely found on tweeters.
Adding the high power handling this tweeter is the natural candidate for high-end 2-way speaker systems.
- Precision-coated textile diaphragm for improved consistency and high-frequency extension
- Extreme internal venting through pole, voice coil former, and top plate to 3 internal chambers
- Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
- Reflection-free rear chamber design with solid reinforcement ribs
- Large ferrite magnet for improved efficiency and transient response
- With or without high-stability light ferro fluid
- Flexible lead wires for higher power handling and larger excursion
- Black anodized magnet structure for increased power handling and reduced power compression
- Gold plated terminals to prevent oxidation for long-term reliable connection
- Delivered with EVA gasket attached for hassle-free mounting and secure cabinet sealing
Parameter
UnitNominal size
30
[mm]
Nominal impedance
4
8
[ohm]
Recommended freq. range
1.5-25
[kHz]
Sensitivity, 2.83V/1m, (average 1-20kHz)
91½
91
89
88½
[dB]
Voice coil diameter
30.4
[mm]
Voice coil height
1.7
[mm]
Air gap height
2.5
[mm]
Voice coil resistance, RDC
3.4
6.3
[ohm]
Voice coil inductance
20
28
[μH]
Magnet weight
260
[g]
Effective radiating area, Sd
11.5
[sq.cm]
Power handling, continuous, IEC 268-5,
2.0kHz@12dB/oct.50
60
50
60
[W]
Resonance freq., Fs
450
450
470
470
[Hz]
Moving mass, incl. air (free air, no baffle)
0.40
0.42
0.37
0.39
[g]
Force factor, Bxl
2.0
2.0
2.4
2.4
[Tm]
Mechanical Q, Qm
1.5
1.2
1.6
1.3
-
Electrical Q, Qe
0.96
1.01
1.19
1.25
-
Total Q, Qt
0.59
0.55
0.68
0.64
-
Suspension compliance, Cms
0.31
0.30
0.31
0.30
[mm/N]
Equiv. air volume, Vas
0.059
0.056
0.059
0.056
[lit.]
Total unit net weight
0.59
[kg]
Krm (note 1)
100
152
67
64
[μohm]
Erm (note 1)
0.85
0.82
0.91
0.92
-
Kxm (note 1)
3.3
2.8
5.1
4.3
[mH]
Exm (note 1)
0.56
0.56
0.56
0.56
-
