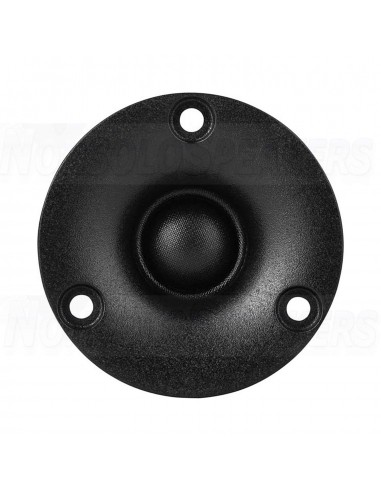

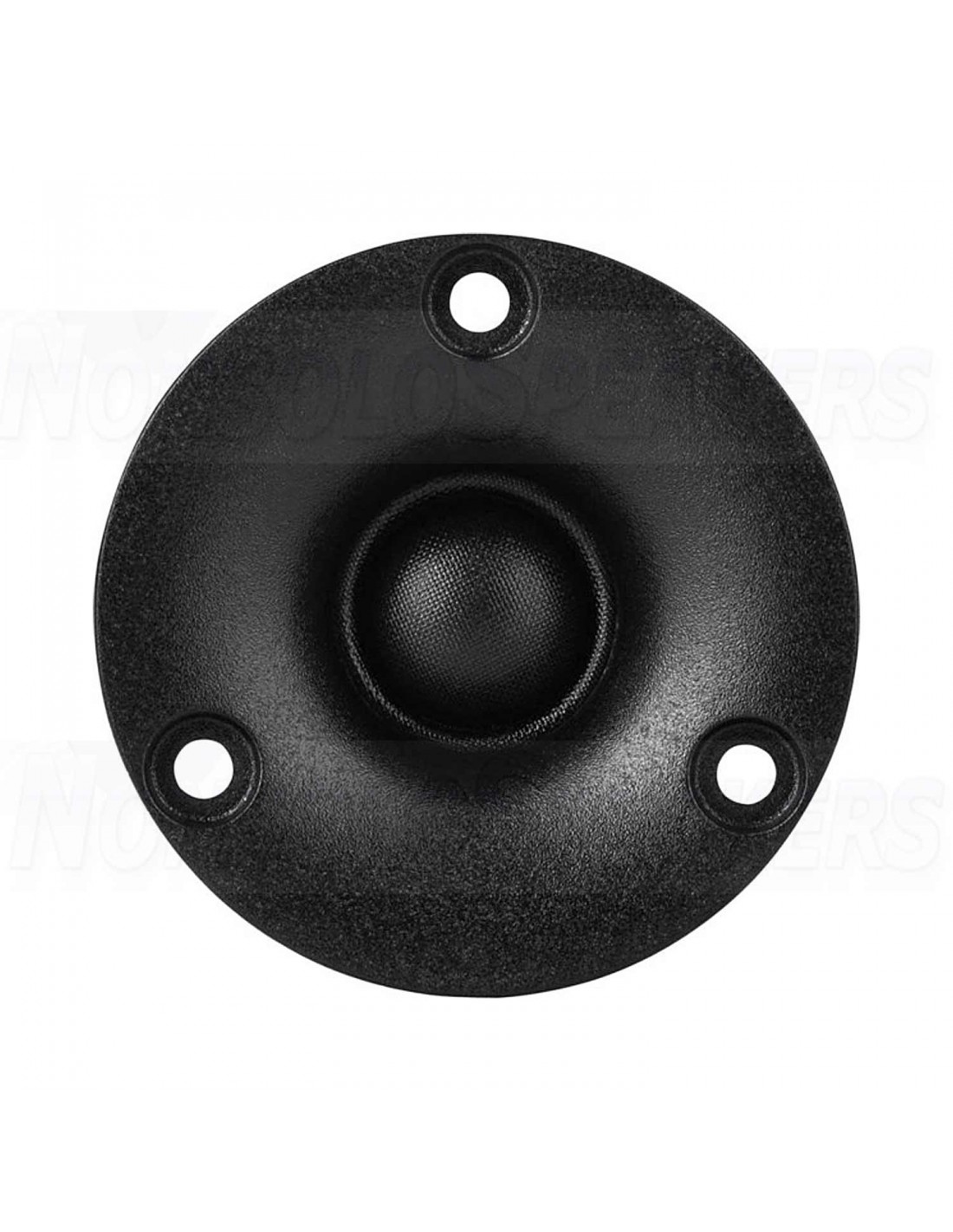

Wavecor TW013WA01 13 mm dome tweeter

TW013WA01 is a very compact high performance tweeter that is ideal either as a super tweeter in high-end Hi Fi speakers or as tweeter in very small compact 2-way systems.

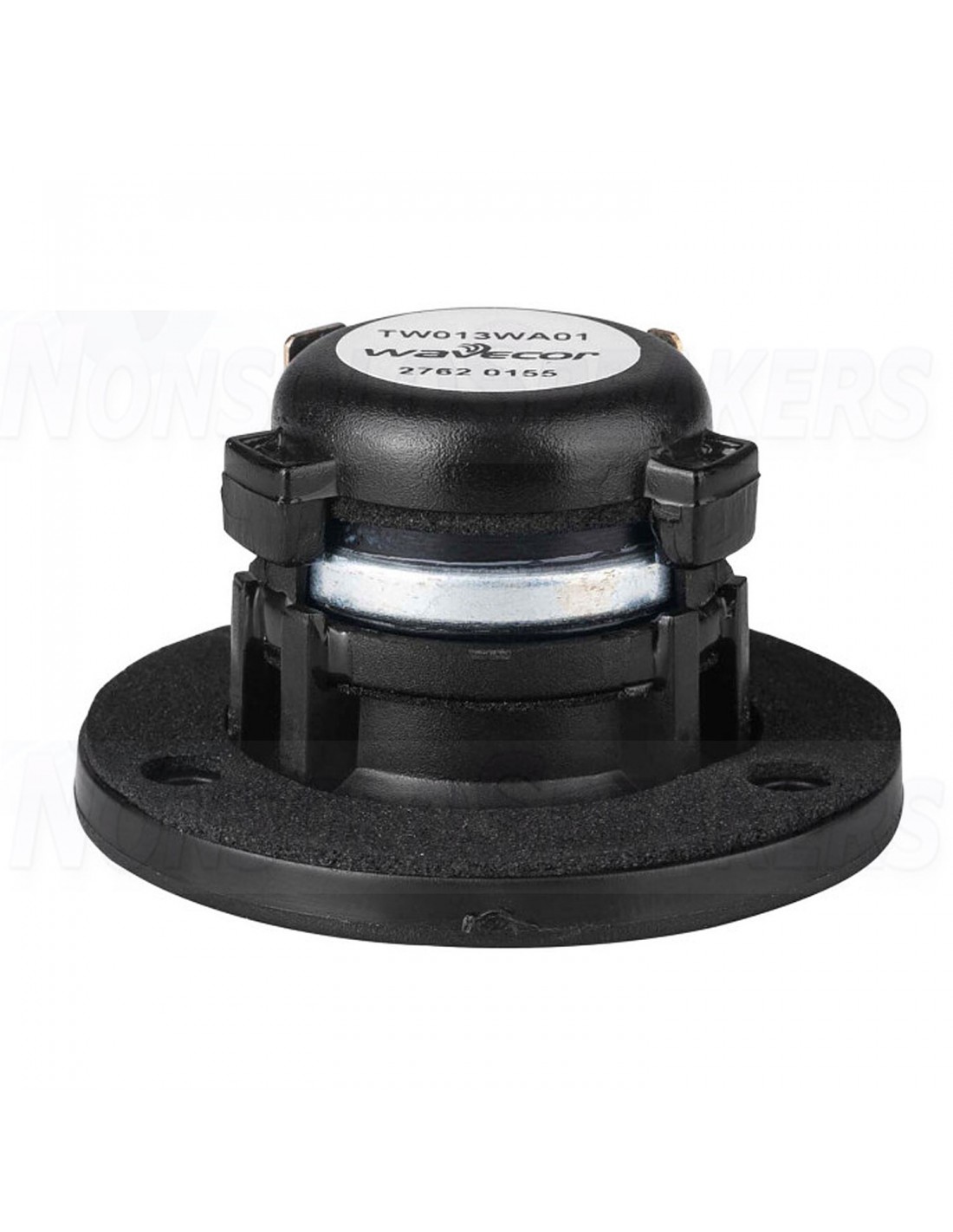

Innovation Despite being designed for ultimate high frequency performance no compromise has been accepted at the lower frequencies either. The TW013WA01 incorporates an external ring neodymium magnet, which allows effective venting through the center pole to a rear volume. It means that the TW013WA01 offers a very low resonance frequency for its size - even lower than many larger tweeters.

FEATURES

• • 13 mm design for best high frequency extension and off-axis frequency response
• • Internal volumes and rear venting chamber for low resonance frequency and low distortion
• • Precision-coated textile diaphragm for improved consistency and high-frequency extension
• • Optimized dome shape for ultrahigh frequency cutoff
• • Vented voice coil former for reduced distortion and compression
• • Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
• • High-stability ferro fluid for increased power handling
• • Flexible lead wires for higher power handling and larger excursion

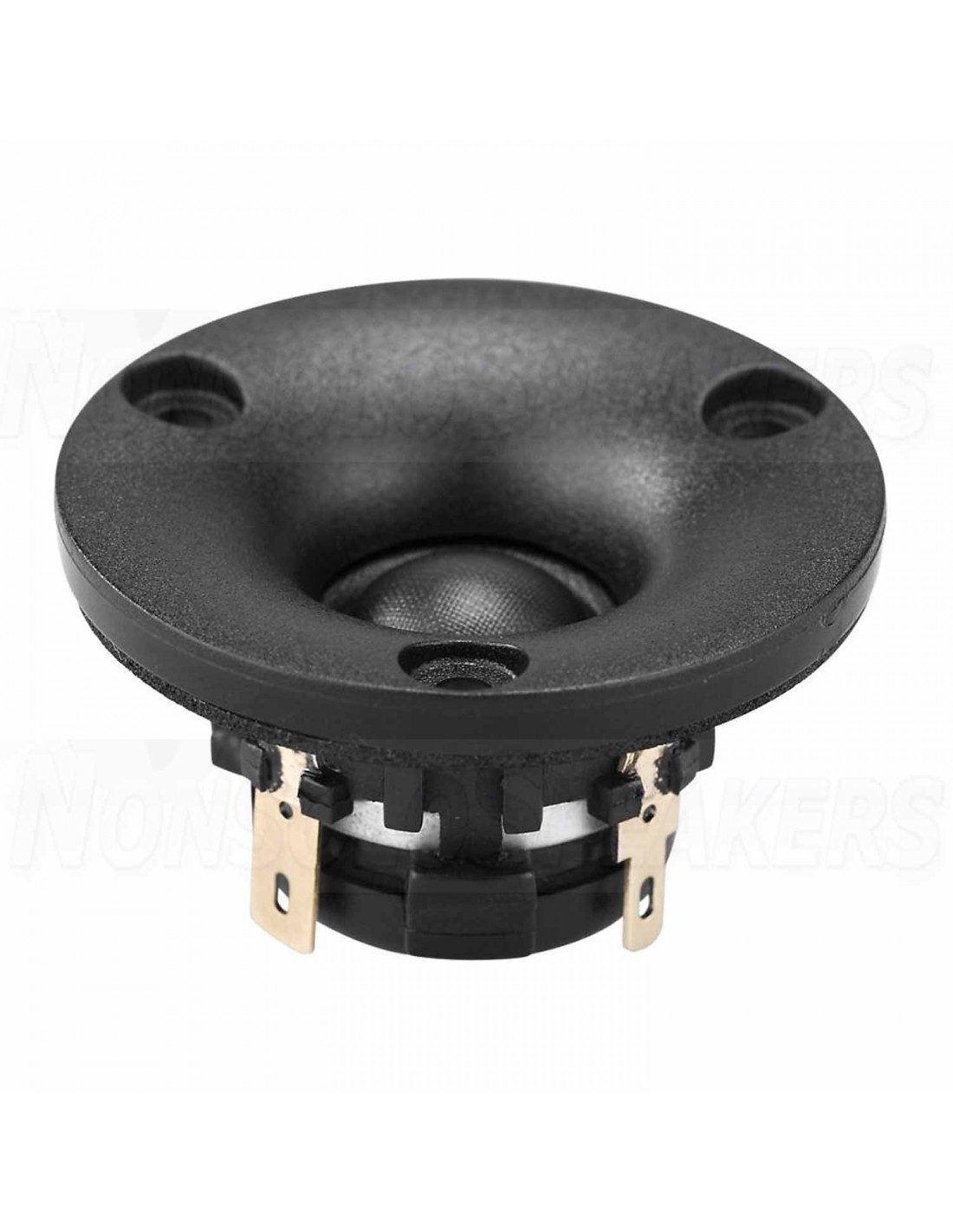

• • Gold plated terminals to prevent oxidation and ensure long-term reliable connection

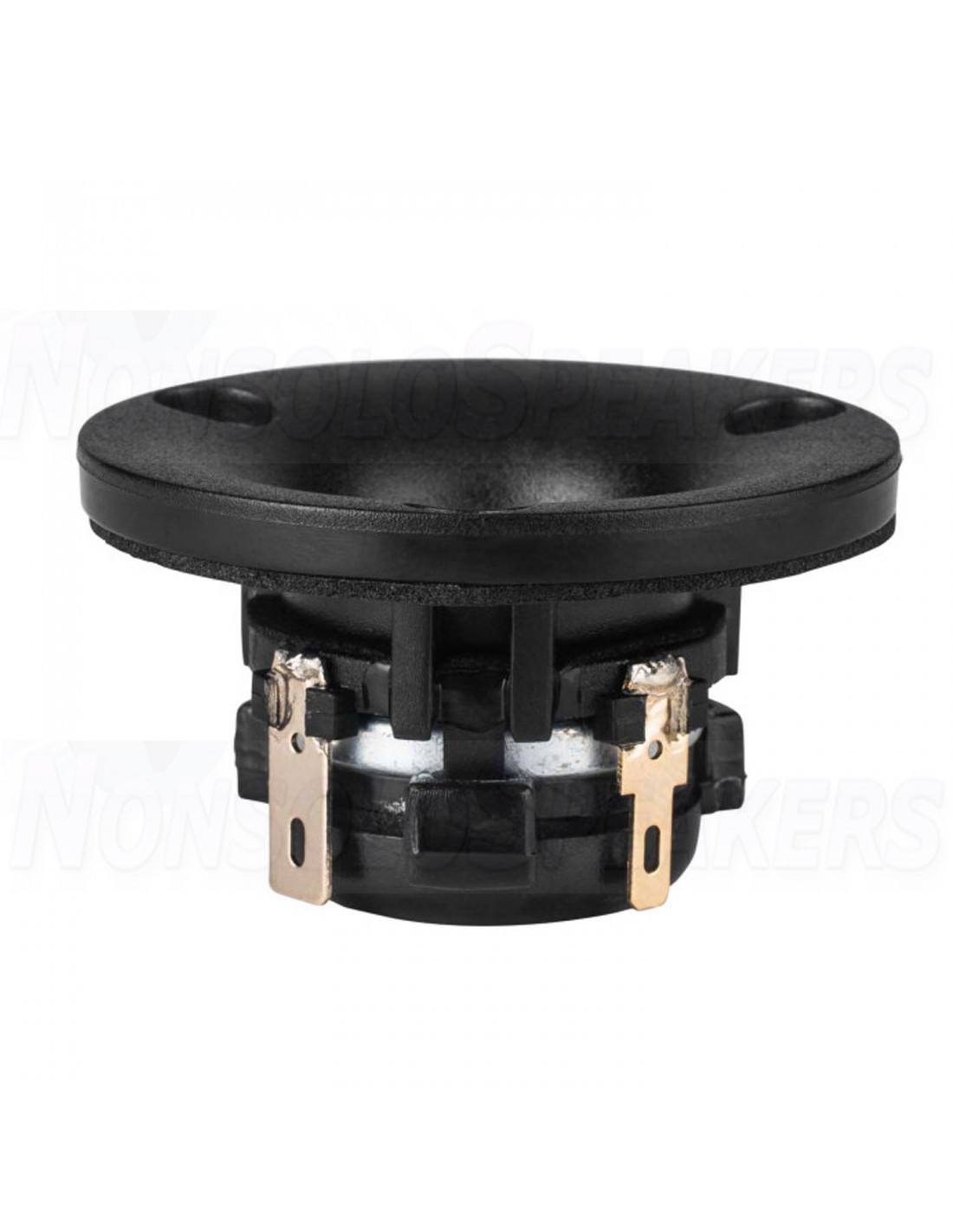

• • Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing

Product Details

Wavecor brand

Model TW013WA01

Part Number 298-2094

UPC 848864054483

Unit of Measure Each

Weight 0.07

Product Specifications

Cone / Dome Diameter 0.5 "

Cutout Diameter 1.24

Soft Dome Tweeter Type

Power Handling (RMS) 60 Watts

Impedance 4Ω

Frequency Response 5,000 to 40,000Hz

Sensitivity 87dB 2.83V / 1m

Thiele-Small Parameters

Resonant Frequency (Fs) 1300Hz

Voice Coil Inductance (Le) 0.017mH

Mechanical Q (Qms) 1.7

Electromagnetic Q (Qes) 5.3

Total Q (Qts) 1.29

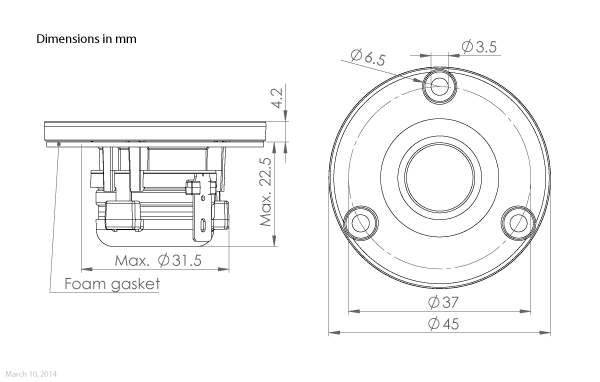

Mounting Information

Overall Outside Diameter 1.77 "

Depth 0.89 "
