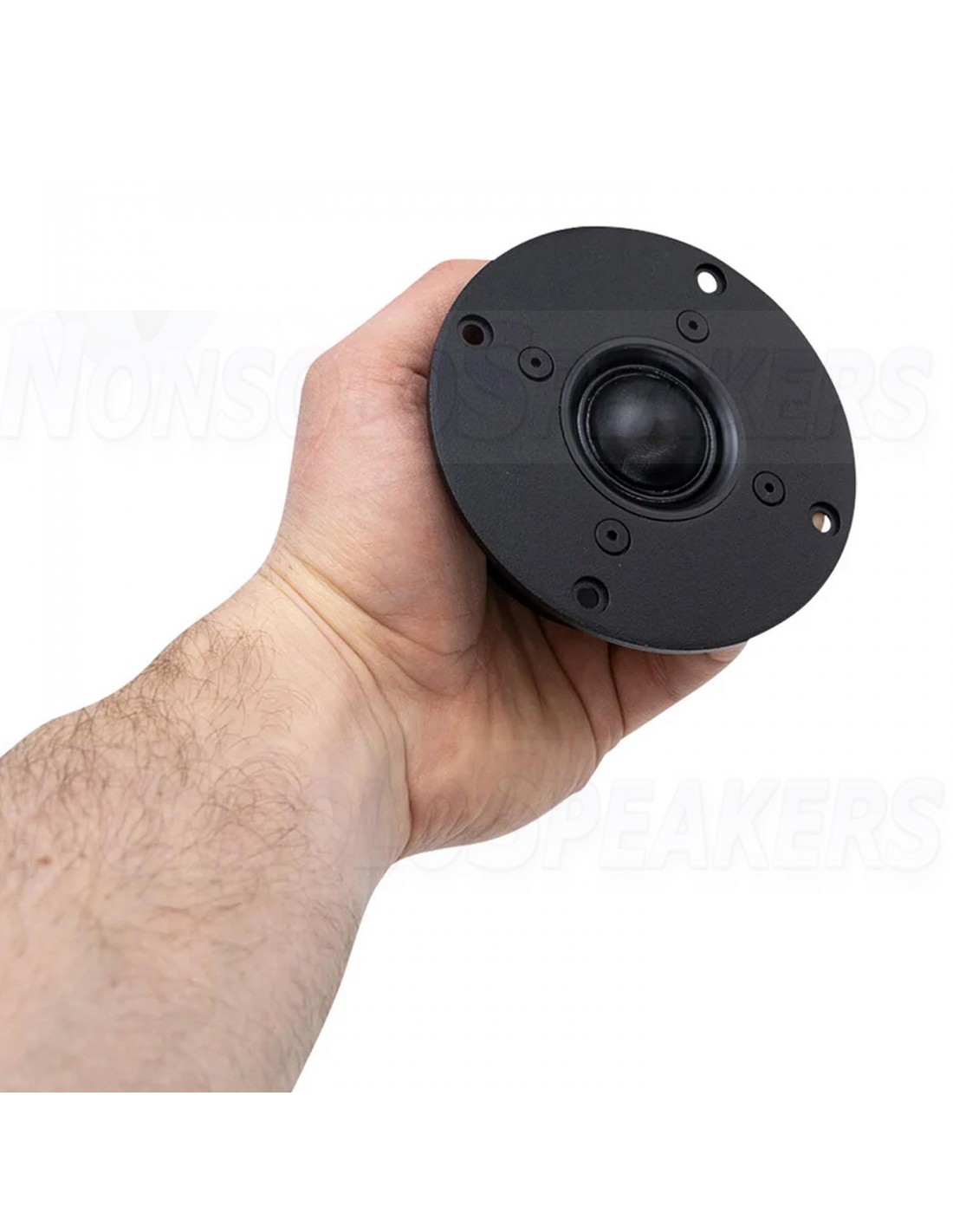

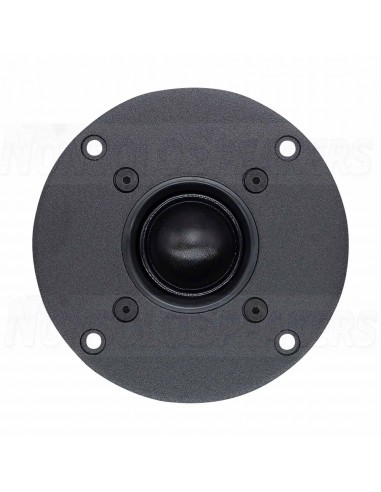

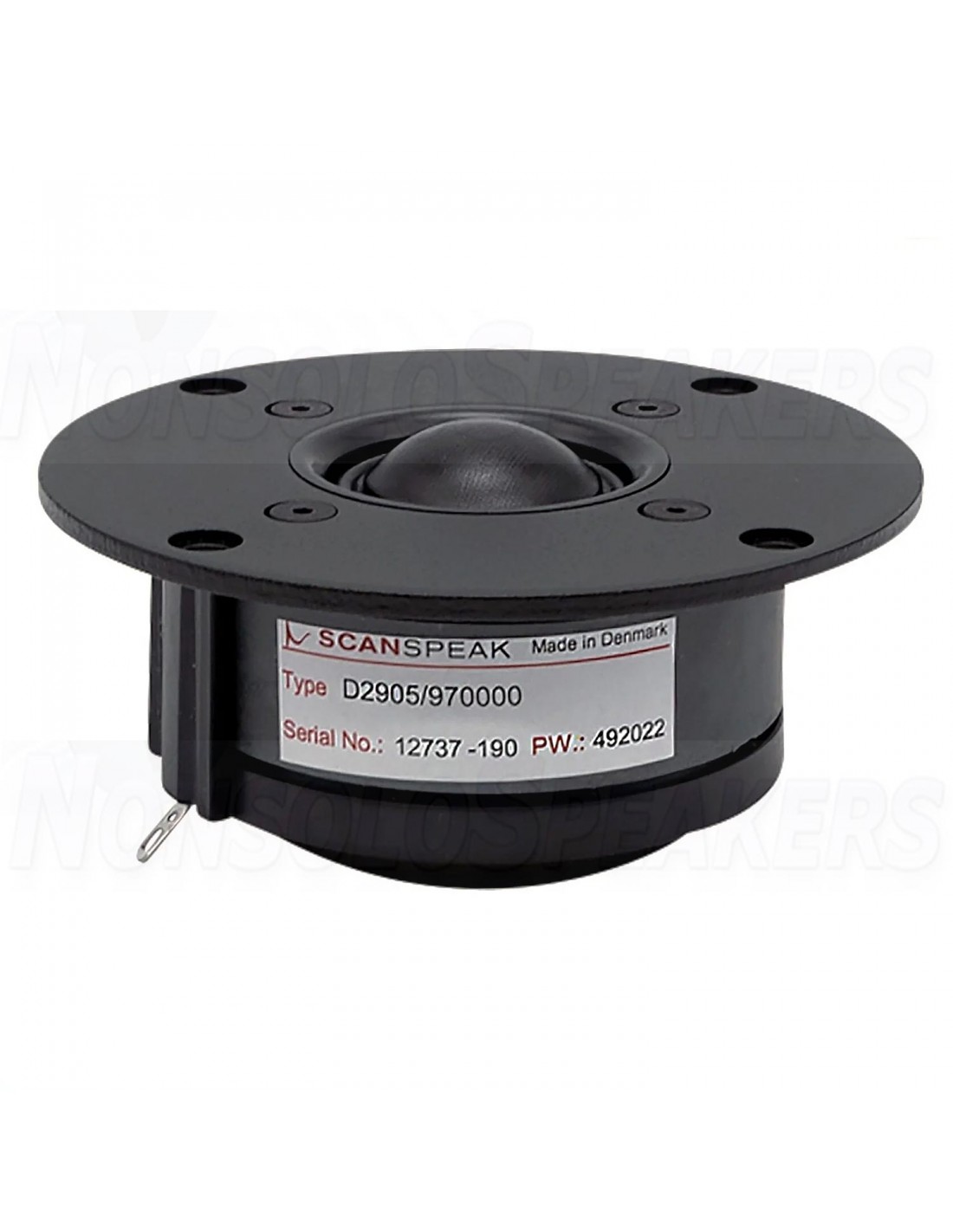

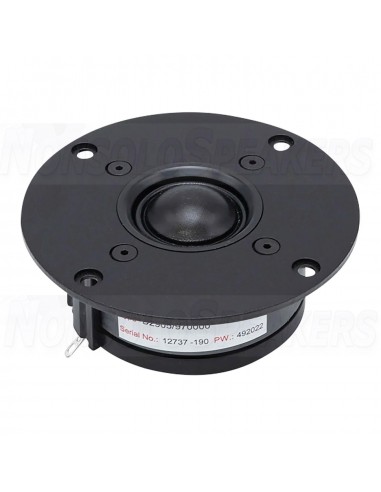

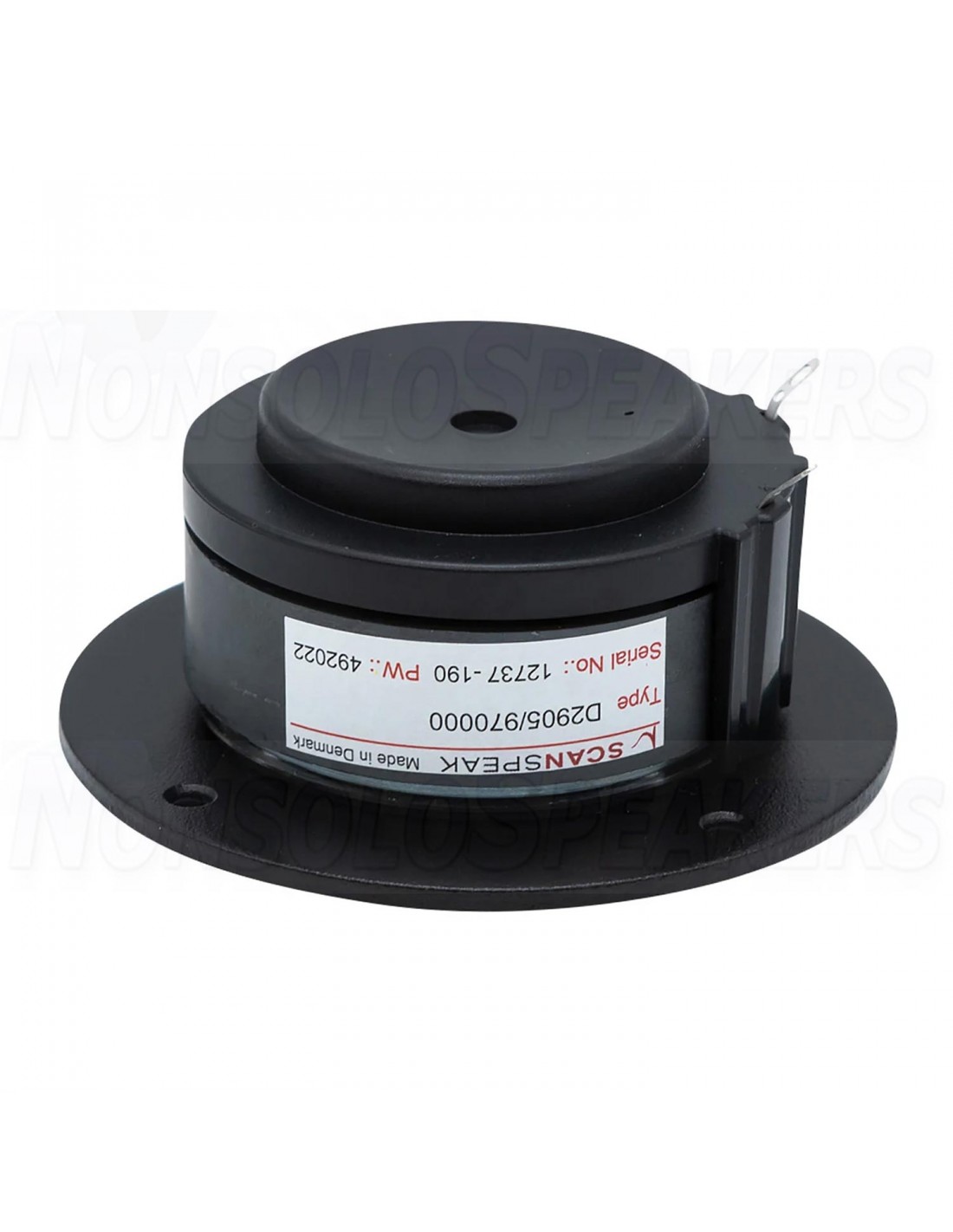

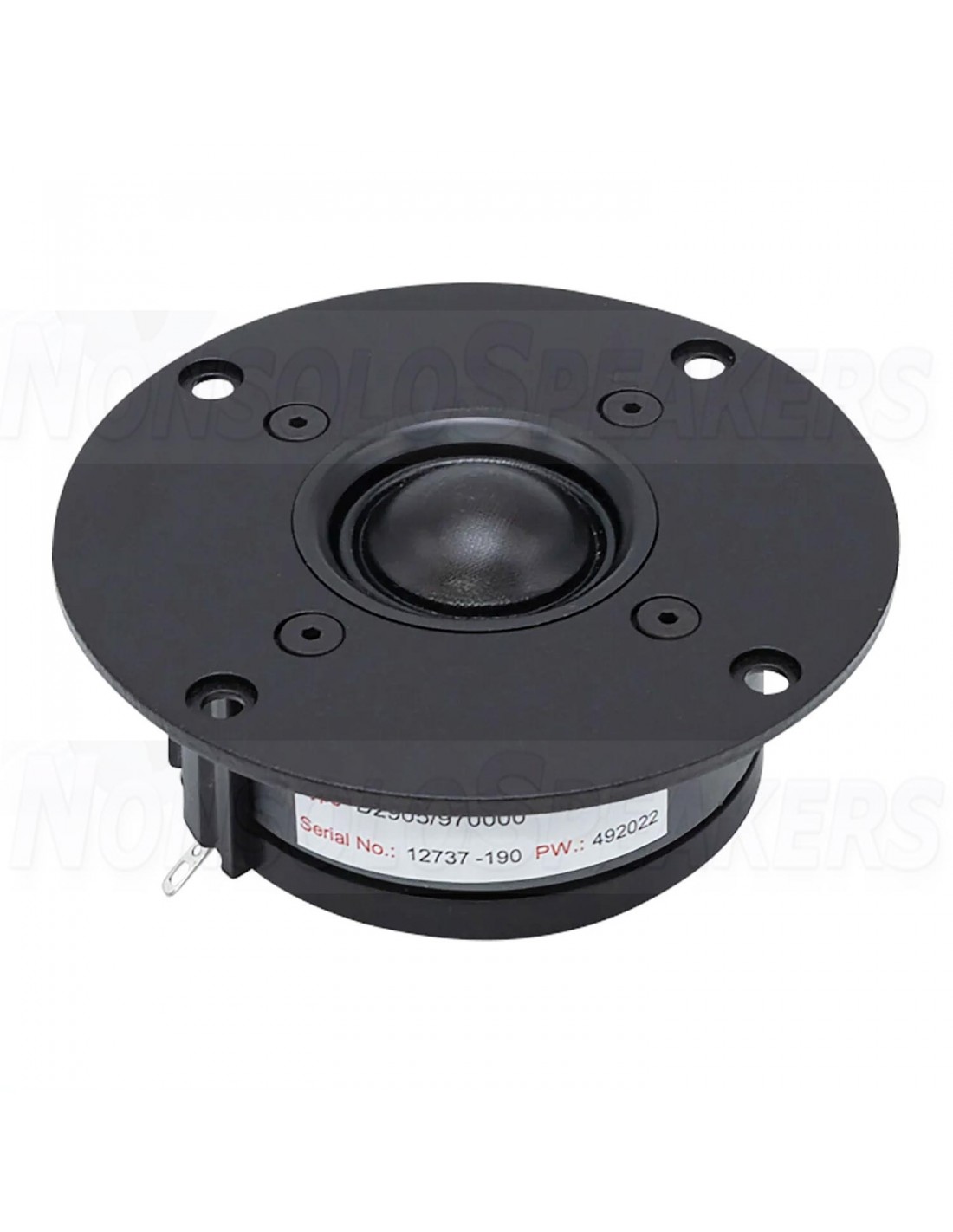

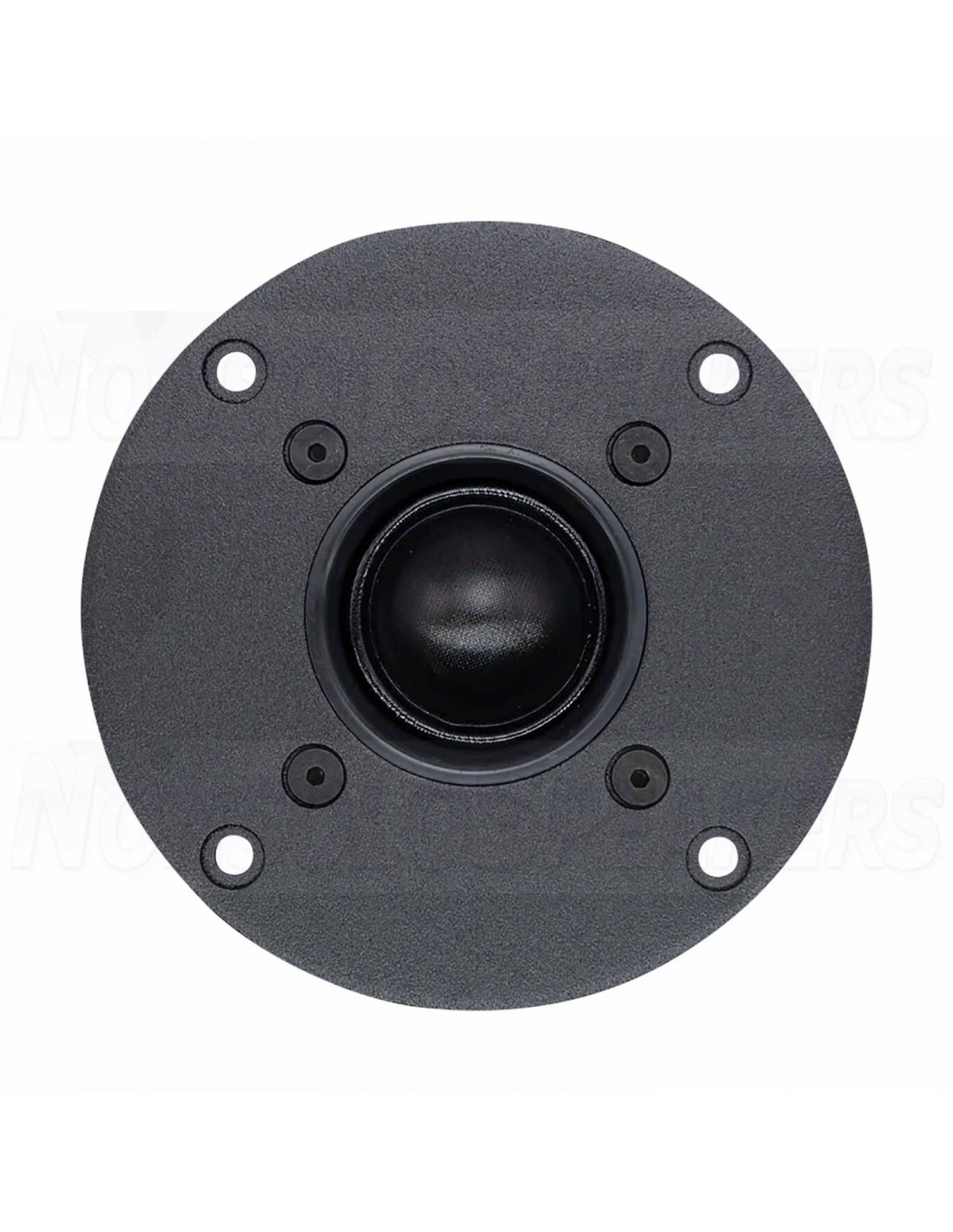

Scan-Speak Classic D2905/970000 Dome Tweeter

Product description

Patented Symmetrical Drive (SD-2) motor

Hand coated 1" Textile Dome Diaphragm

Low Resonance Rear Chamber

Black Aluminium Face Plate

Low viscosity Ferro Fluid

.

Product Details

Scan-Speak D2905/970000 1” Dome Tweeter 6 Ohms

The Scanspeak D2905/970000 has a high power handling of 225W and a frequency response of above 30KHz. Features include a hand-coated 25mm soft textile dome, an airflow optimized copper capped pole piece and a tuned rear chamber with an integral resonance damping plug.

This tweeter also benefits from the Scanspeak SD2 'Symmetrical Drive' system incorporating a copper capped and sleeved center pole piece;  this effectively forms a very low impedance shorted turn (called a Faraday ring) within the magnet circuit, the net result being that the voice coil impedance remains largely constant across it's operating frequency range resulting in a more linear output with greater top-end extension.

This is a highly advanced design with a sweet, detailed sound. Found in many high-end designs and is a top choice for DIY high-performance loudspeakers.

.

Specifications

.
