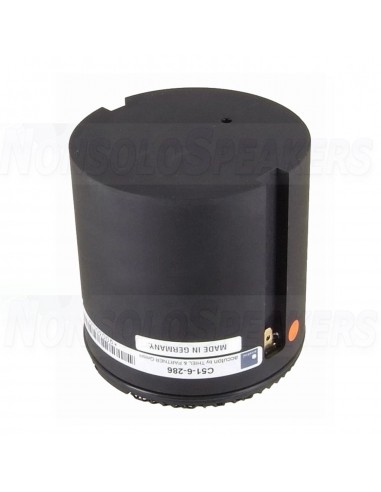

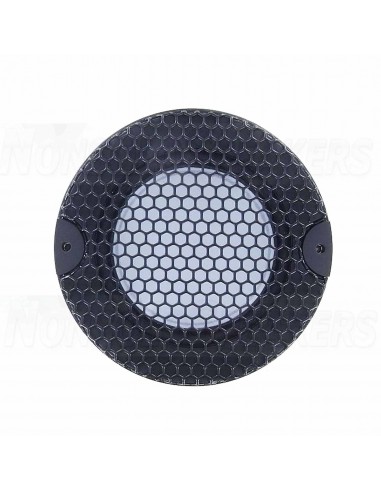

Accuton C51-6-286  Tweeter 6 Ohm 1 piece

The Accuton C51-6-286 is a tweeter with an ultra-hard 50mm ceramic cone in an 86mm aluminum enclosure. A proprietary clamping technique allows easy mounting and adaptation to various front panel designs. Since the diaphragm's breakup frequency is above the audible range and well damped, no diaphragm cutouts are required. A unique FEA-optimized underhang design with vented titanium voice coil former and dual neodymium magnet ensures low energy storage, excellent heat transfer and high excursion for low compression and extremely low distortion. The redesigned soft fabric surround centers the moving parts with improved linearity. We recommend our Accuton C51-6-286 in an application above 800 Hz.

.

Short Description:

51mm midrange/ tweeter/ full range driver with ceramic cone.

.

Mechanical data:

Overall diameter / faceplate 85.6 mm

Hole cutout 86 mm minimum front panel thickness 7 mm

Overall height 87 mm

Weight 1.15 Kg

.

Thiele-Small Parameter:

Sensitivity Spl 93 dB

Resistance(DC) Re 5.6 Ohm

Free air resonance frequency Fs 581 Hz

Mechanical quality Qms 4.86

Electrical quality Qes 1.61

Overall quality Qts 1.21

Effective diaphragm area Sd 24 Cm2

.

Voice coil parameters:

Power handling P 120 W RMS

Impedance 6 Ohm

Linear excursion Xmax +/-0.8 Mm

Voice coil carrier material Ti

Conductor material Cu

Drive type Underhung

Ferrofluid In air gap No
