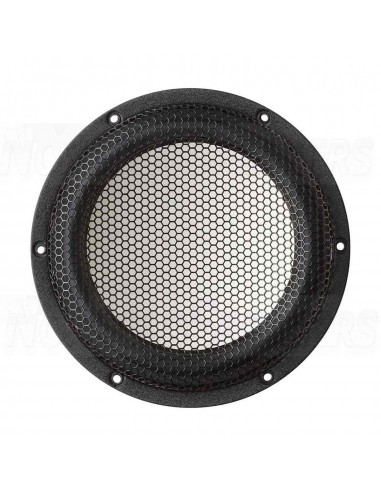

Accuton C173-6-096 Midrange 6 Ohm 1 piece

Accuton C173-6-096 Midrange 6 Ohm 1 piece

The Accuton C173-6-096 is a 7 inch high efficiency bass-midrange driver for 3-way designs. It features a large voice coil with a 55mm titanium voice coil former for high resolution in the midrange. Its large, 120mm neodymium magnet system provides very low distortion.

Short Description:

16 cm bass-midrange driver with ceramic cone. A magnet system with neodymium magnets drives the speaker. The underhang voice coil remains completely in the magnetic field in linear operation. It has a rear vented voice coil.

Mechanical data:

Overall diameter / front panel 173 mm

Hole cut-out 146 mm

Minimum front panel thickness 6.35 Mmmm

Overall height 102 mm

Magnet height 49.5 mm

Magnet diameter 120 mm

Screw holes For screws

According to Din 7984 / Ø 4.50 mm

Weight (pair) 8.5 Kg

Thiele-Small Parameters:

Sensitivity SPL 93 dB

Resistance(DC) Re 6.77 Ohm

Free air resonance frequency Fs 50 Hz

Equivalent volume Vas 16.99 Ltr

Mechanical Q factor Qms 4.68

Electrical quality Qes 0.24

Overall quality Qts 0.22

Effective diaphragm area Sd 130 cm2

Moving mass Mms 14.4 gr

Compliant diaphragm stress Cms 0.7 Mm/N

Mechanical resistance Rms 0.96 Kg*S

Voice coil parameters:

Power handling P 120 Watt

Impedance 6 Ohm

Linear excursion Xmax +/-5 mm

Voice coil diameter 55 mm

voice coil carrier material Ti

Conductor material Cu

Voice coil inductance Le 0.32 mH

Force factor Bl 11.4 N/A

Actuator type Bottom hung

Enclosure Recommendation Closed:

Vb: 4.1L, -18dB @ 40Hz, F-3dB: 175Hz, Q: 0.50 (clean transient response )

Vb: 11L, -15dB @ 40Hz, F-3dB: 170Hz, Q: 0.38 (extended bass for active systems)

Enclosure recommendation bass reflex:

Vb: 8L, Fres: 25Hz with passive radiator, -18dB @ 25Hz, Q: 0.38 (optimal A/V alignment).

Vb: 4.1L, port diameter: 50mm, length: 170mm, Fres: 82Hz, F-3dB: 85Hz, Q: 0.50 (typical A/V alignment)

Vb: 11L, port diameter: 50mm, length: 150mm, Fres: 53Hz, F-3dB: 55Hz, Q: 0.34 (extended bass)
