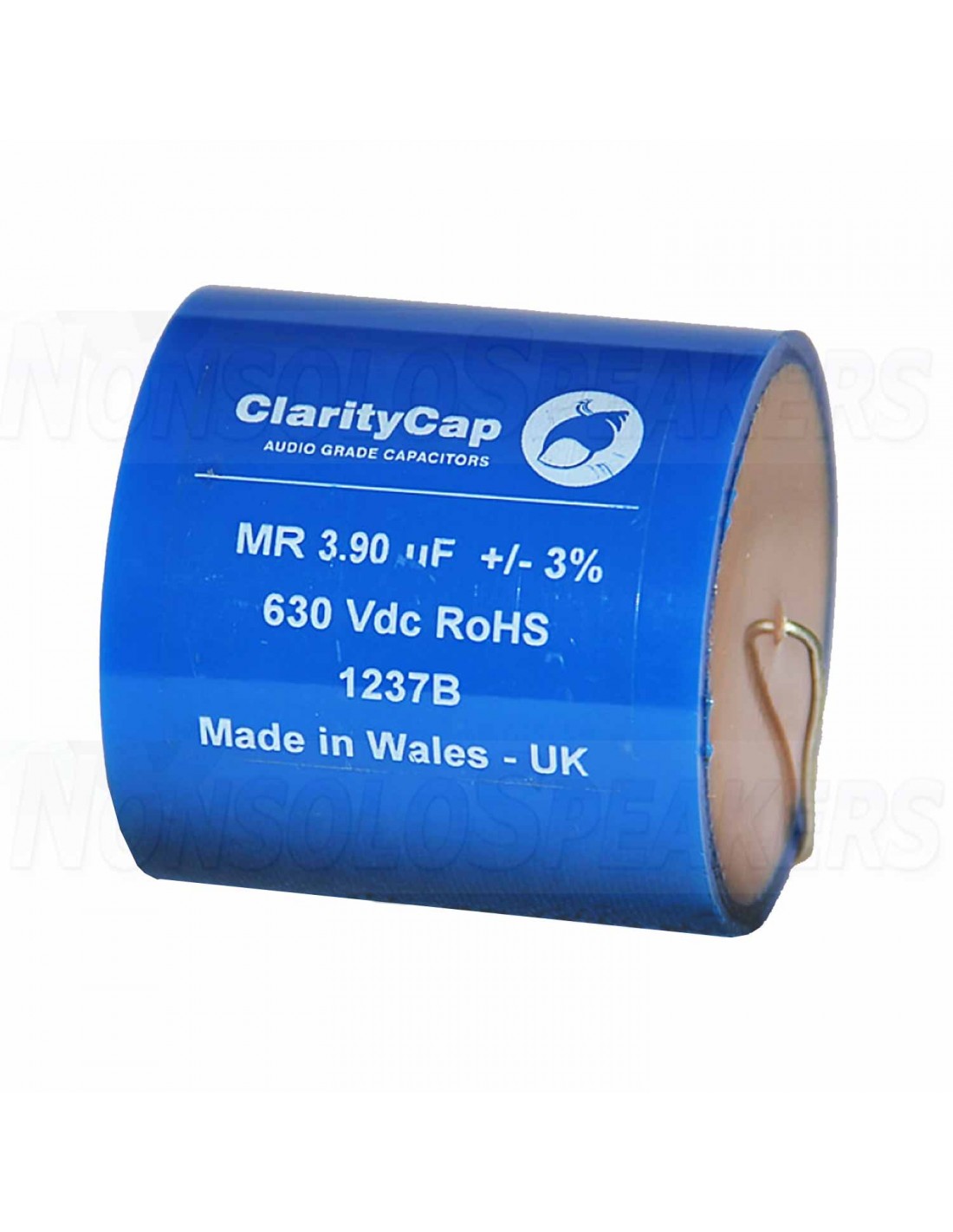

ClarityCap MR Capacitors Polypropylen 630Vdc 3%

ClarityCap MR Capacitors Polypropylen 630Vdc 3%

To select the version go to the drop-down below the price

The MR Series is the result of two years of research between ClarityCap and the University of Salford's Acoustics Research Centre.

No stone was left unturned: the research touched on all materials used in audio capacitors. All properties that depend on the manufacturing process and manufacturing technologies have been studied.

The main factor that was worked out was mechanical resonances, which affected the sound quality and the acoustic performance.

The MR series makes use of all the know-how gained as a result of the research program. It offers a superior product based on science and research. In use, industry experts, OEM's and audiophiles celebrate its spaciousness and its excellent separation ability.

The capacitor incorporates a non-standard polypropylene dielectric. There is also an ultra-pure aluminum metallization. The condenser is housed in acrylic tube. The result: MR is a capacitor that largely suppresses internal resonances.

The connections are made of hand-tinned copper. The capacitor comes in blue jacket with white resin only.

With less than 3% tolerance it is ensured that the components result in a balanced system.

-

Technical details

Tolerance +/-3%; lower values on request

Dissipation factor ≤ 0.001 @ 1 kHz, 20 °C

Rated voltage 400Vdc or 630Vdc

Insulation resistance ≥ 10 000 MΩ x µF / C, C>330nF ≥ 30 000 MΩ , C<330nF @ nominal voltage, 20 °C

Dielectric losses ≤ 0.1% @ 20 °C

tested withstand voltage 1.5 x nominal voltage, 30 seconds, without repetition

Environment, test class 55/100/56 to EN 60068 - 1 (IEC 68 - 1) bump test EN 60068 - 2 - 29 (EIC 68 - 2 - 29) test Eb 400m/s2, 1000 bumps

Temperature range -40 to +70 °C

Vibration EN 60068 - 2 - 6 (EIC 68 - 2 - 6)

Test Fc 100 to 500 Hz 0.75mm or 100m/s2
