PCB02 - Audikom PCB for crossover filters - 17x22cm

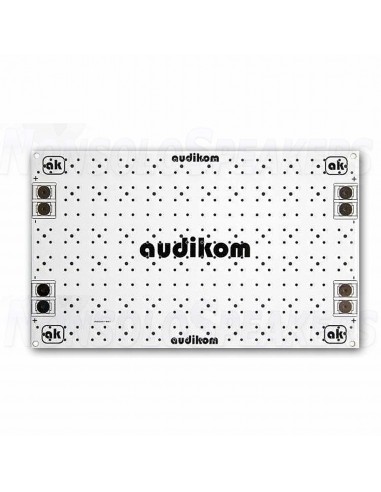

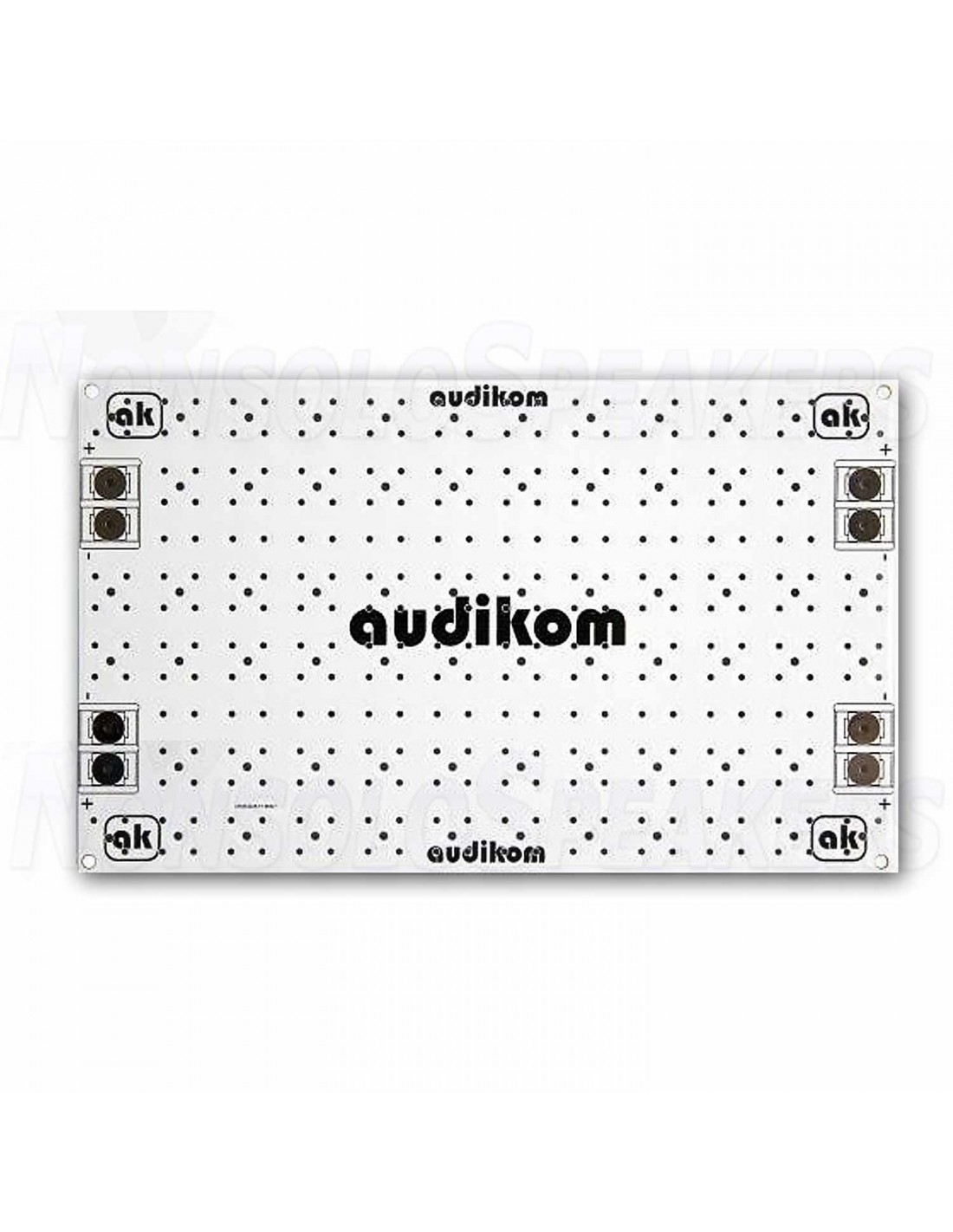

PCB01 has been designed for the prototyping and assembly of crossover filters. The Audikom bases have been designed to greatly simplify the assembly of a crossover filter, as they are equipped with holes suitable for the significant dimensions of the inductors and capacitors leads, as well as four-leaf clover pitches to be able to connect multiple components together without having to create "jumpers ".

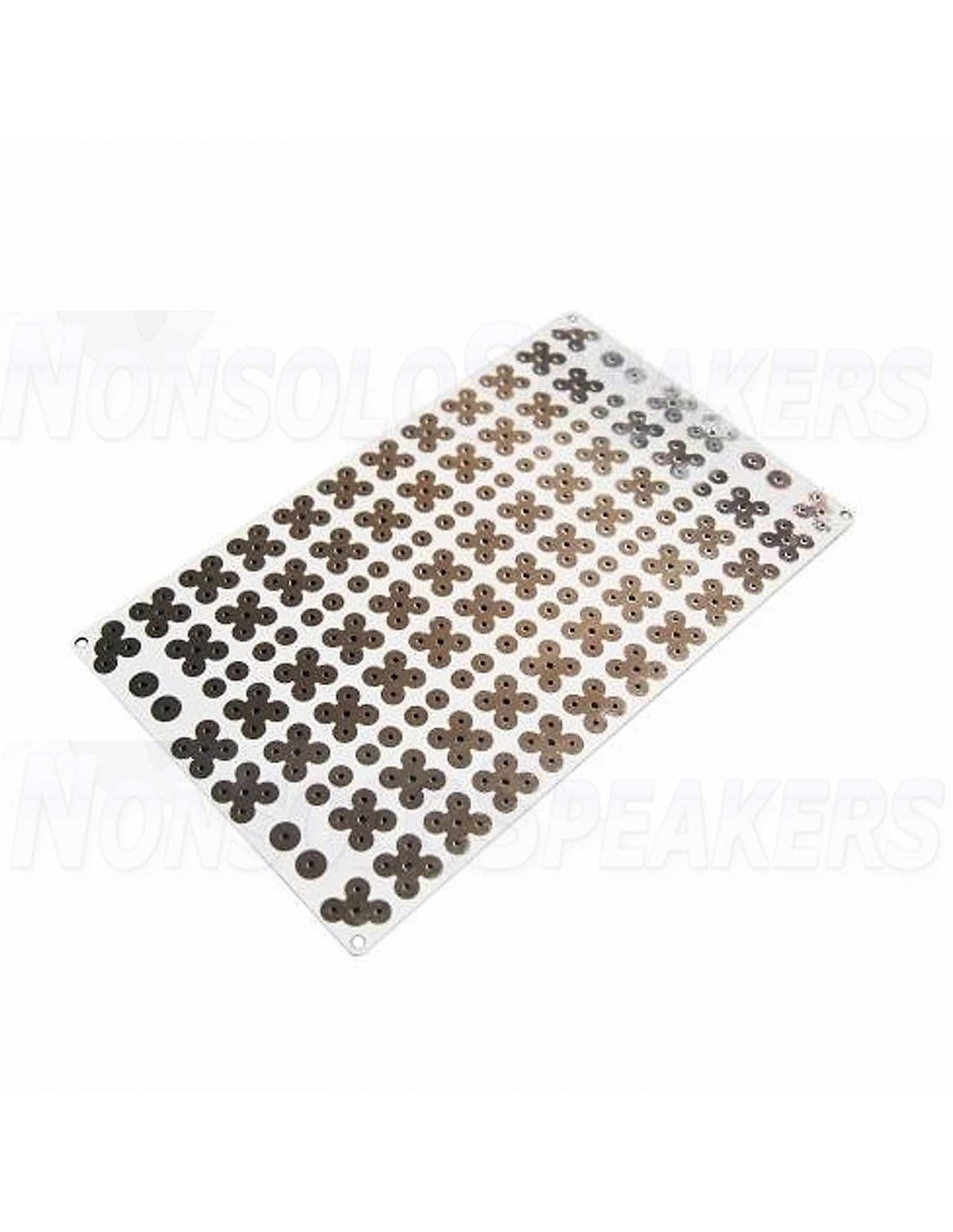

The PAD consists of 4 pitches with a 1.2mm hole and a central one with a 1.6mm hole to allow the interconnection of multiple components without having to make jumpers. It is also possible to connect two or more components, if they are not in the same PAD, using the rheophores of the components themselves to short-circuit the various PADs.

All PADs are pre-tinned with silver tin to ensure maximum ease of welding and maximum conductivity. The input and output pitches provide for the installation of a high quality clamp or the possibility of welding a cable. Price per single PCB.
