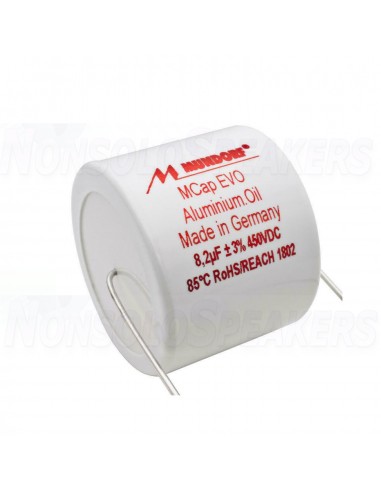

Mundorf MCap EVO Oil 0,010 to 100uF 350 to 450V

Mundorf MCap EVO Oil 0,010 to 100uF  350 to 450V

Available with different values 0,010 to 100µF

To select the version go to the drop-down menu below the price

The new EVO, range of capacitors from Mundorf incorporate their amazing EVOLUTION winding technology. This features an unusually narrow but tall capacitor reel. This format results in two benfits over the normal dimensioning of capacitors. Firstly, as a shorter width is required the signal path between the huge contact areas is greatly reduced, thus an extremely low equivalent series resistance/ESR is achieved. Secondly, in order to achieve the same capacitance the number of paralleled windings is larger than with regular caps, thus an minimized equivalent series inductivity/ESL is achieved.

The winding process is incredibly precise, the reels are spooled by hand in especially developed housing. Resulting in near avoidance of vibration and microphonic effects during the winding process. Furthermore Mundorf use the purest Polypropylene foil vaporized with the thickest metal layer possible. The Capacitors are manufactured with one leadout larger than the other to allow for horizontal and vertical mounting, the shorter lead also indicates the caps outer foil.

The MCap EVO Oil combines the magic of the MCap EVO‘s sound characteristic with the acoustic advantages of oil impregnated capacitors. Furthermore, the oil verion has an additional wrapping process. The screen print on the can comes in red giving it an appropriate quality look.

Specifications

• Capacitance range 0.01uF to 100uF
• Temperature range -25 to +125°C
• RoHS compliant, lead-free
• Voltage rating 350Vdc to 450Vdc
