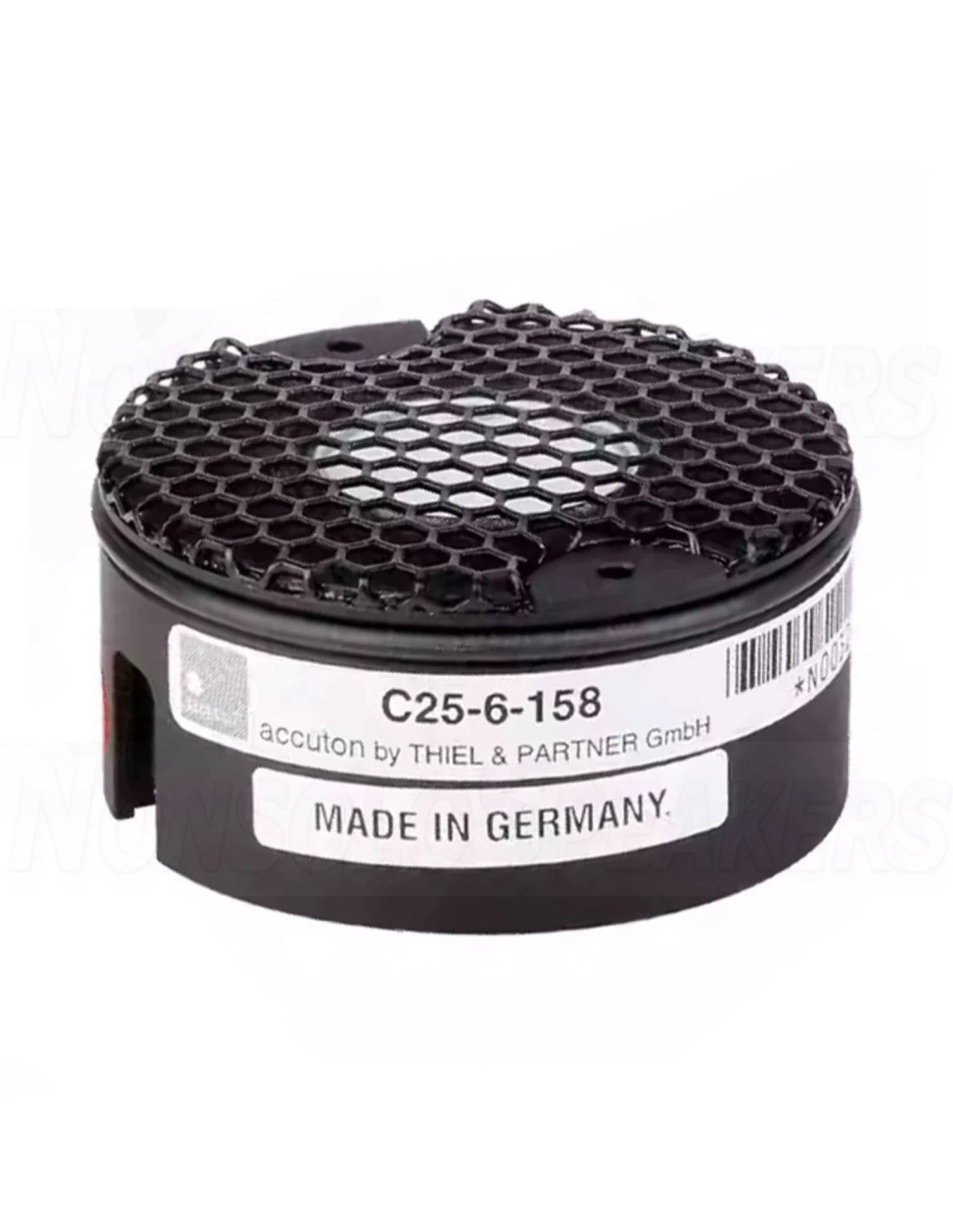

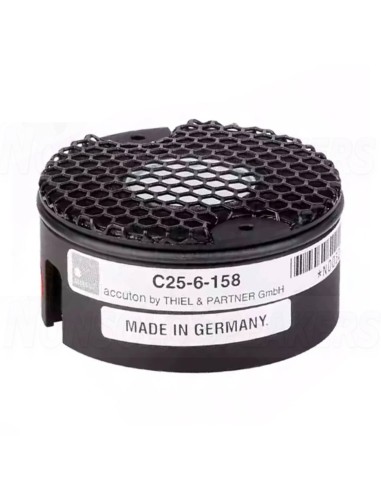

Accuton C25-6-158 Tweeter 6 Ohm 1 piece

The Accuton C25-6-158 is a tweeter with an ultra-hard 25mm ceramic cone in a 58mm aluminum enclosure. A proprietary clamping technique allows easy mounting and adaptation to various front panel designs. Since the diaphragm's breakup frequency is above the audible range and well damped, no diaphragm cutouts are required. A unique FEA-optimized underhang design with vented titanium voice coil former and dual neodymium magnet ensures low energy storage, excellent heat transfer and high excursion for low compression and extremely low distortion. The redesigned soft fabric surround centers the moving parts with improved linearity. We recommend our Accuton C25-6-158 in an application above 2000 Hz.

.

Short Description :

25 mm tweeter with ceramic cone. A magnet system with neodymium magnets drives the speaker. The underhang voice coil remains completely in the magnetic field during linear operation.

.

Mechanical data:

Overall diameter / front plate 57.6 mm

Hole cut-out 58 mm

Minimum front panel thickness 6 mm

Overall height 28 mm

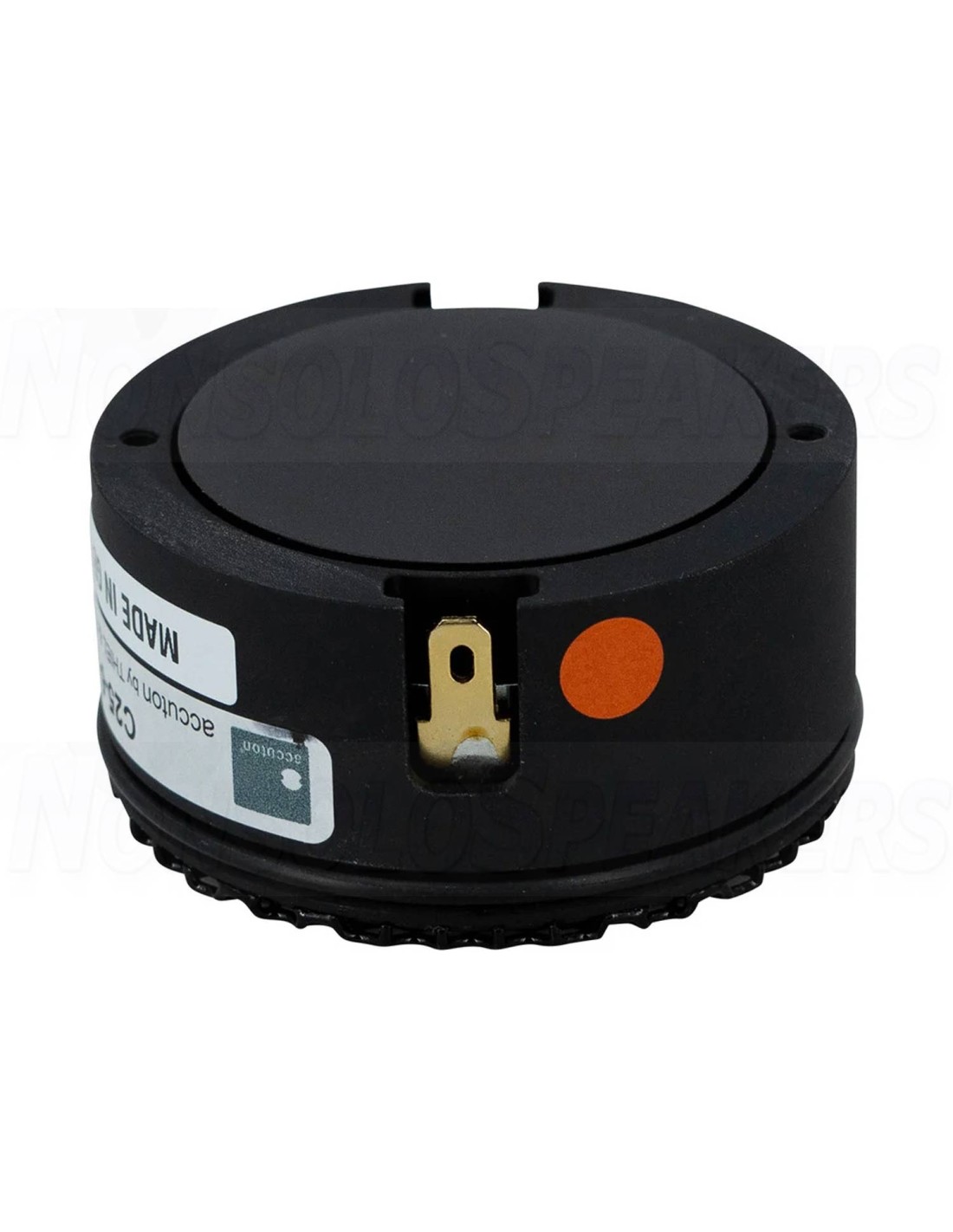

Connection For flat plug +: 4.8 X 0.8 / -: 2.8 X 0.8 mm

Weight (pair) 0.6 Kg

.

Thiele-Small Parameter:

Sensitivity Spl 92.5 dB

Resistance(DC) Re 5.69 Ohm

Free air resonance frequency Fs 905 Hz

Mechanical quality Qms 2.87

Electrical quality Qes 0.97

Overall quality Qts 0.73

Effective diaphragm area Sd 5.94 cm2

Moving mass Mms 0.28 G

Membrane stress compliance Cms 0.235 mm/N

Mechanical resistance Rms 0.86 Kg*S

.

Voice coil parameters:

Power handling P 100 Watt

Impedance 6 Ohm

Linear excursion Xmax +/-0.9 mm

Voice coil diameter 25 mm

Voice coil carrier material Ti

Conductor material Cu

Voice coil inductance Le 0.02 mH

Force factor Bl 3.27 N/A

Drive type Underhung

Ferrofluid In air gap No
