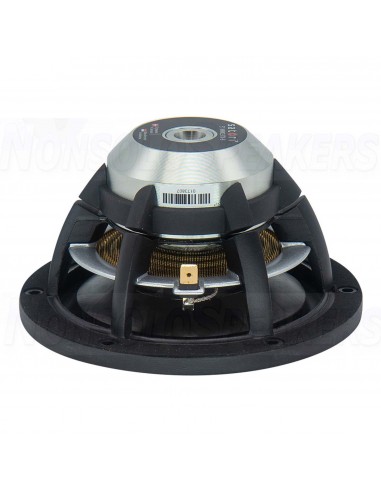

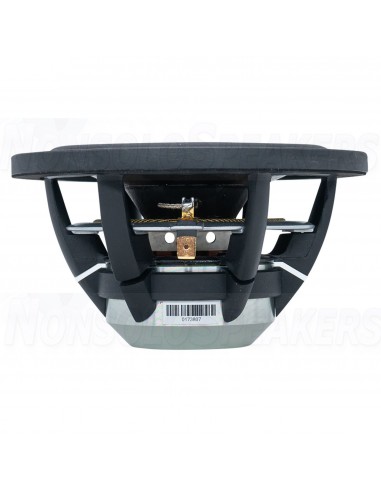

SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer
SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer
SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer
SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer
SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer
SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer
SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer
SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer
SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer
SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer
SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer
SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer
SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer
SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer

SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer

SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer

The Satori MW16P-8 provides a vented aerodynamic cast aluminum chassis for optimum strength and low compression.

SHIPMENT IN 7/10 WORKING DAYS
€255.55 €269.00 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics Satori MW13TX-8 TeXtreme 5" Mid-woofer

-

Product description

Advanced TeXtreme® cone

Vented aerodynamic cast aluminium chassis

Soft low damping rubber surround

Advanced BIMAX spider

Powerful optimized low distortion neodymium motor

.

Product Details

SB Acoustics Satori MW13TX-8 TeXtreme 5" Cone Mid-Woofer - 8 Ohms

Premium 5″ woofer with Neodymium magnet, aerodynamic chassis and woven TeXtreme cone. TeXtreme is an advanced, super-thin carbon fibre fabric that maximizes the strength-to-weight ratio. The spread tow technology offers several advantages over regular Spread tow fabrics, such as very low crimp, lower weight and improved cosmetics (cones are very flat and smooth). The laminated thin-ply TeXtreme® material has an excellent stiffness-to-weight ratio (though surpassed by beryllium, it is also significantly less expensive). Available in 4-ohms and 8-ohms models.

.

Specifications

Article numberMW13TX-8
Woofer SeriesSatori
Woofer TypeMidwoofer
Nominal Diameter5"
Power Handling (RMS)50 Watt
Continuous Program Powertest
Impedance (Z)8 Ohms
Sensitivity (SPL at 1m / 2.83V)87 dB
DC Resistance (Re)6Ω
Voice Coil Inductance (Le)0.18mH
Resonant Frequency (Fs)40 Hz
Mechanical Q (Qms)4.99
Electromagnetic Q (Qes)0.34
Total Q (Qts)0.32
Diaphragm Mass Inc. Airload (Mms)7.3g
Surface Area of Cone (Sd)70cm²
Compliance Equivalent Volume (Vas)14.8 liters
Maximum Linear Excursion (Xmax)5 mm
