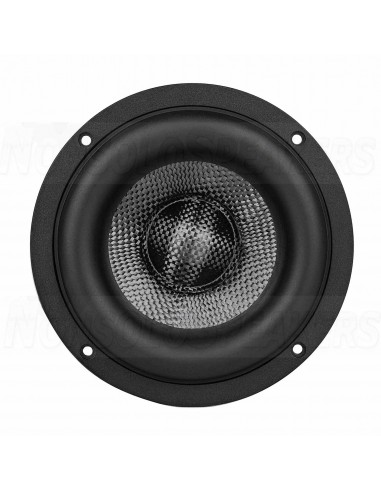

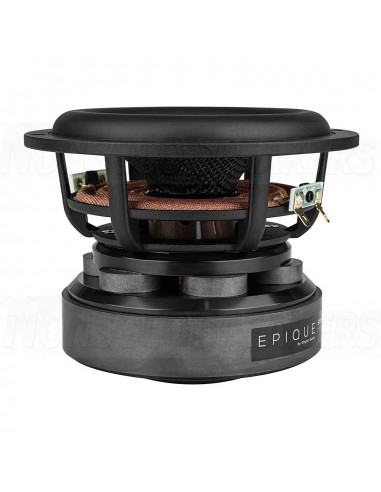

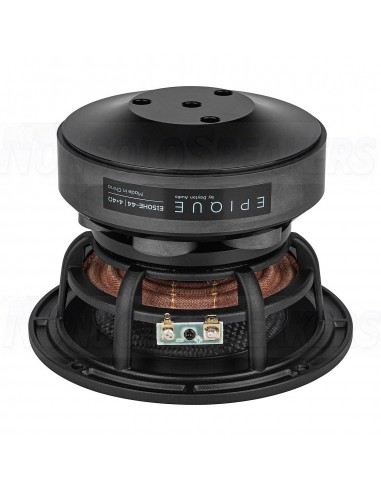

Dayton Audio E150HE-44 5-1/2" DVC MMAG Extended Range Subwoofer 4 Ohm per Coil

Dayton Audio's ground breaking Epique E150HE-44 5-1/2" carbon fiber cone dual voice coil woofer is engineered to produce premium performance with controlled response. Thanks to its revolutionary MMAG dual gap motor, the motor force is nearly constant even when driven to the limits of its 14 mm Xmax. Capable of unheard-of excursion for its size while delivering smooth response with low distortion, the E150HE-44 woofer gives you the opportunity to create systems that provide extraordinary accuracy and fidelity.

Highlights

• Patented dual gap MMAG motor design allows exceptional linearity for minimal distortion
• Lightweight damped carbon fiber cone delivers remarkably smooth response up to 45 degrees off axis
• Incredibly linear 14 mm excursion to produce class leading low frequency extension and control
• Extensive inductance control extends high frequency response and helps lower distortion
• Substantial venting keeps the voice coil cool to minimize power compression
• Dual 4 ohm voice coils enable a variety wiring configurations and flexibility

.

Product Description

Combining world class performance with a reasonable cost, the Epique E180HE-44 7" carbon fiber cone woofer from Dayton Audio sets a new standard in versatility, distortion, and response for small speakers. Featuring a carbon fiber cone, dual voice coils, custom tooled suspension, FEA optimized motor, cast aluminum frame, ample venting, and extensive induction control, the E180HE-44 pushes the limits of performance for a 7" driver. Capable of exceptional performance in everything from small subwoofers to 2-way designs, this versatile driver will redefine what is possible from compact speaker systems.

.

Key Specs:

Nominal Diameter: 7"

Power Handling (RMS): 200

Watts Power Handling (MAX): 400 Watts

Impedance: 4+4 Ω

Frequency Response: 25 - 3000 Hz

Sensitivity: 83.7 dB 2.83V/1m

Voice Coil Diameter: 1.5"

Maximum Linear Excursion: 14.7mm

.

The heart of the E180HE-44 is the patented MMAG dual gap motor assembly. This unique design uses 2 top plates spaced between 6 smaller gap balancing magnets creating more dynamically stable magnetic gaps with more consistent flux than the more common dual gap arrangements. The combination of the MMAG motor and the underhung voice coil gives the E180HE-44 zero loss of motor force (Bl) even when driven to 10 mm of excursion, and an overall excursion capability of over 14 mm (at 70% Bl). This incredible excursion capability allows extremely low harmonic and intermodulation distortion to ensure remarkably clean output even when driven to high output levels. Furthermore, the motor includes a full length copper sleeve surrounding the pole which offers extensive induction control to lower Le and improve high frequency response, while simultaneously lowering distortion, reducing power compression, and increasing thermal power handling.

.

Carbon Fiber Is All About Performance Cone View of E180HE-44

The rigid carbon fiber cone gives the E180HE-44 a unique look while offering a number of performance advantages. With one of the highest strength to weight ratios of readily available materials, carbon fiber keeps the moving mass to a minimum enabling extended low frequency extension without sacrificing efficiency. The woven cone has excellent damping properties which keeps unwanted resonances under control for incredibly smooth response all the way up to 3,000 Hz. Optimized cone and dustcap profiles make sure that there is no deformation when exposed to high stress so the smooth response and low distortion remains consistent even when pushed to high output levels. Finally, the outside edge of the cone has been reinforced to further control cone breakup and help maintain controlled off axis dispersion.

.

.
