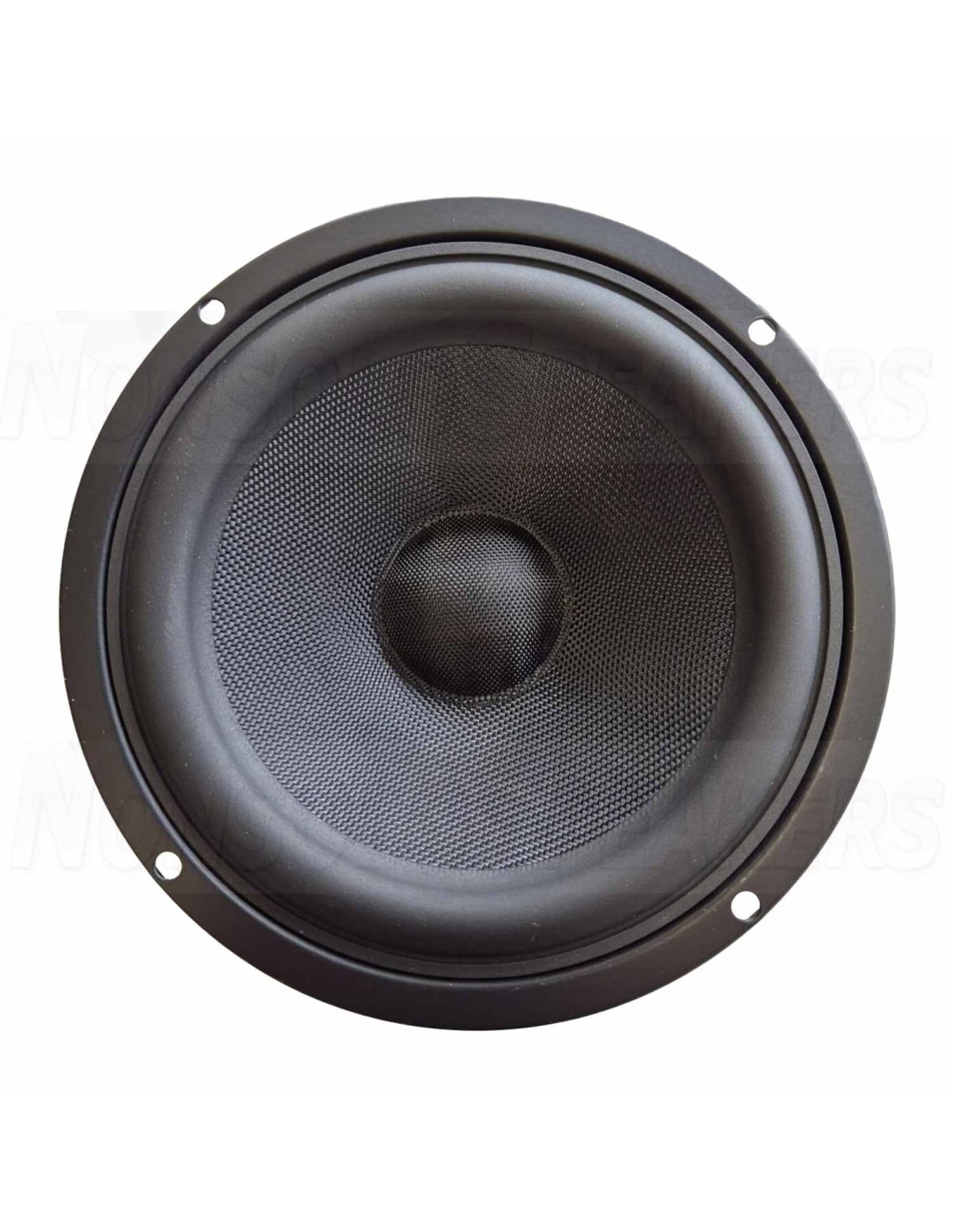

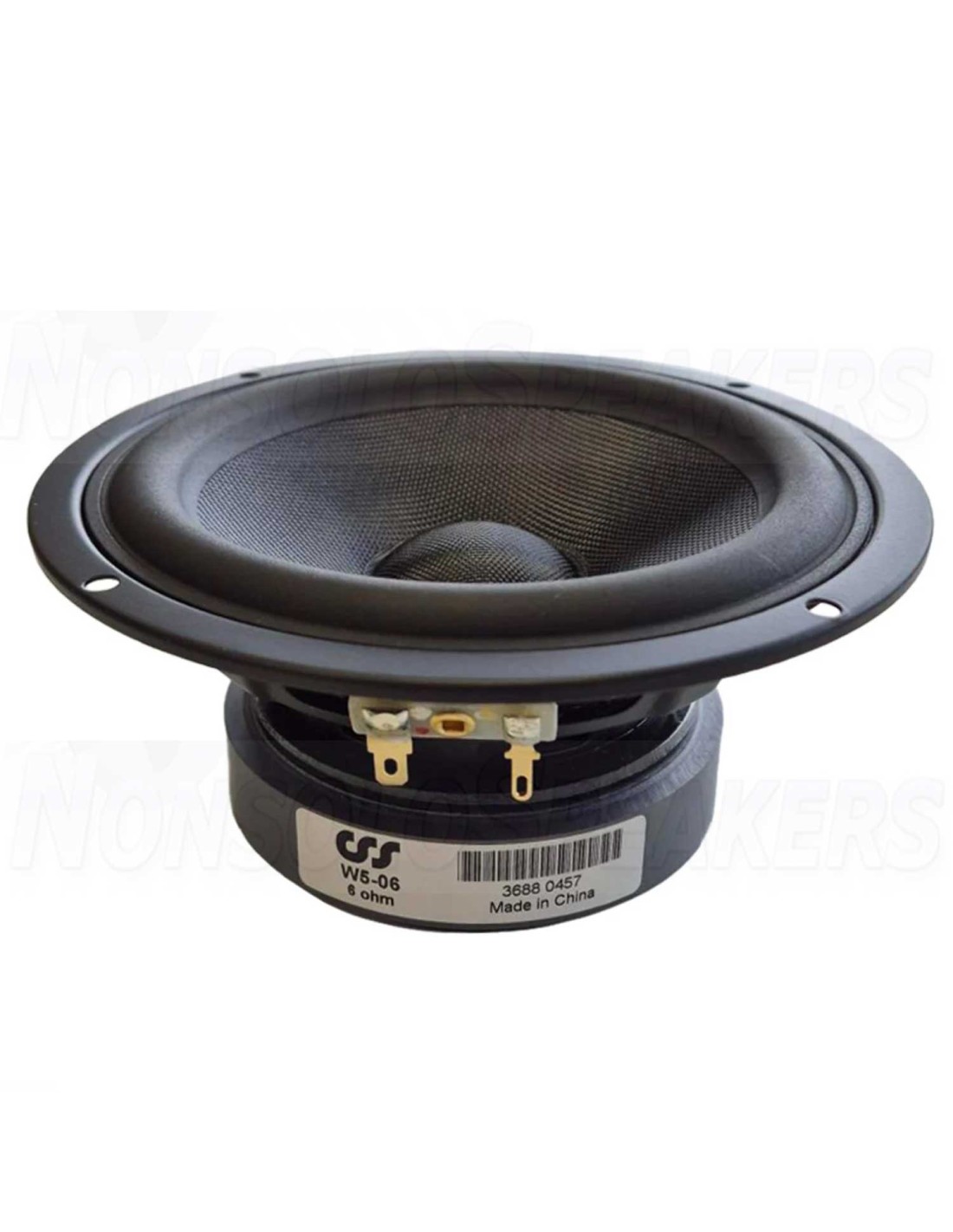

CSS W5-06 Bass-midwoofer 5,25"

With excellent performance in both low and mid frequencies, the CSS W5-06 bass-midwoofer delivers impressive sound quality for a 5-1/4" driver.

Variants
CSS W5-06 Bass-midwoofer 5,25"
CSS LDW6 Bass-midwoofer 6,5"
CSS LDW7 Bass midwoofer 7"

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



CSS W5-06 Bass-midwoofer 5,25"

.

Product description

With excellent performance in both low and mid frequencies, the CSS W5-06 bass-midwoofer delivers impressive sound quality for a 5-1/4" driver. Featuring a powerful motor and robust construction, this woofer is ideal for a wide range of audio applications, from home theaters to professional sound systems. It is also prominently featured in the highly regarded Torii speaker kits, known for their exceptional audio fidelity.

.

Highlights

  • Powerful motor for high efficiency and compact design
  • 1" diameter 4-layer voice coil enhances power handling and low-frequency response
  • Aluminum former keeps the voice coil cool for high power handling
  • Extended pole piece creates a symmetrical magnetic field for lower distortion
  • Aesthetic low-profile mounting flange looks good without flush mounting

.

Product details

CSS W5-06 5-1/4" Bass-midwoofer

The CSS W5-06 combines a powerful motor, a 1" 4-layer voice coil, a vented pole piece, and a large rubber surround to maximize its excursion capabilities. This combination of features makes the W5-06 a versatile driver that can be used as a bass driver in a small 2-way system, as a midrange driver in a 3-way system, or even in portable Bluetooth speaker designs. The W5-06 is a key component in the Torii speaker kits, providing the foundation for their renowned sound quality.

.

Technical Specifications

  • Article number W5-06
  • Woofer Type Bass-midwoofer
  • Nominal Diameter 5.25”
  • Impedance (Z) 6 Ω
  • Sensitivity (SPL at 1m / 2.83V) 86.9 dB
  • DC Resistance (Re) 4.7 Ω
  • Resonant Frequency (Fs) 39 Hz
  • Mechanical Q (Qms) 8
  • Electromagnetic Q (Qes) 0.53
  • Total Q (Qts) 0.50
  • Diaphragm Mass Inc. Airload (Mms) 12.2 g
  • Mechanical Compliance of Suspension (Cms) 1.35 mm/N
  • Surface Area of Cone (Sd) 93 cm2
  • BL Product (BL) 5.2 Tm
  • Compliance Equivalent Volume (Vas) 16.6 ltr
CSS W5-06
6 Items

.

What is Creative Sound Solutions (CSS)?

Are you looking for an audio experience that is both high quality and authentic? Then look no further than Creative Sound Solutions (CSS). CSS is based in southeast Michigan and has been under new management since 2017. The company is known for its passion for excellent audio quality. CSS stands out in the high-end audio industry for its commitment to science-based audio performance without relying on pseudoscience or unproven "secret sauces."

Why choose CSS?

Technical expertise: CSS combines more than 30 years of experience in speaker design with in-depth technical knowledge. The result is speakers that not only sound great, but are also based on sound engineering principles.

Quality over quantity: CSS's products are not among the cheapest on the market. This is a conscious decision. CSS is committed to providing the best sound experience, with each component carefully selected and tested for real performance improvements.

Innovation and functionality: With features like the XBL^2 engine and distortion-reducing shorting rings, CSS shows that the focus is on delivering sonic benefits that really matter.

CSS' philosophy: Science meets sound

At CSS, we believe that good sound should not be shrouded in mystique. By focusing on proven theories and extensive testing, CSS takes an honest and transparent approach to audio design. This means that you won't find any unsubstantiated claims or unnecessary additions at CSS, but pure quality based on scientific research.

CSS: A connection with the customer

CSS shares a passion for DIY (do-it-yourself) audio with its customers. This translates into products that are not only of the highest quality, but also meet the needs and requirements of audio enthusiasts. CSS products were designed with both performance and usability in mind, so that every customer, regardless of their experience, can create an excellent audio experience.

CSS and your audio experience

When you choose CSS, you choose a brand committed to excellence in every aspect of audio design. Whether you're a seasoned audiophile or just starting out, CSS provides you with the tools and expertise to realize your audio visions. With CSS products, you're guaranteed an audio experience that exceeds your expectations.
