CSS Criton 3TD-X Tower Speaker Kit with Superior Amber Crossover

Name: CSS Criton 3TD-X Tower Speaker Kit with Superior Amber Crossover
Brand: CSS
SKU: CSS Criton 3TD-X
Price: 4299 EUR
Availability: OutOfStock

1CSS Criton 3TD-X Tower Speaker Kit with Superior Amber Crossover

The CSS Criton 3TD-X Tower Kit is a top-of-the-line DIY speaker kit designed to deliver exceptional audio performance for audiophiles

Variants

Out-of-Stock

€4,299.00

Tax included

No review at the moment

Estimated Shipping Costs

Shipping Costs

€72.00

Shipping Time

Want to check another country or courier?

CSS Criton 3TD-X Tower Speaker Kit with Superior Amber Crossover

Product description

The CSS Criton 3TD-X Tower Kit is a top-of-the-line DIY speaker kit designed to deliver exceptional audio performance for audiophiles. This kit is a part of the Criton series by Creative Sound Solutions, known for their high-quality components and meticulous design. with Superior Amber Crossover design.

Highlights

3-way tower design using LD25X tweeter, LDW6 mid woofer, and dual LDW7 woofers
Wide dispersion speaker without a waveguide, providing even directivity
Three crossover options for customization
High-quality construction and components for premium sound
Superior Amber Crossover version

Product details

CSS Criton 3TD-X Tower Kit with Superior Amber Crossover

The Criton 3TD-X Tower Kit is designed for audiophiles seeking superior sound quality with the flexibility and satisfaction of building their own speakers. The kit comes with detailed instructions, SmartNode crossover boards for easy assembly, and optional MDF flat packs for those who prefer a more straightforward build process.

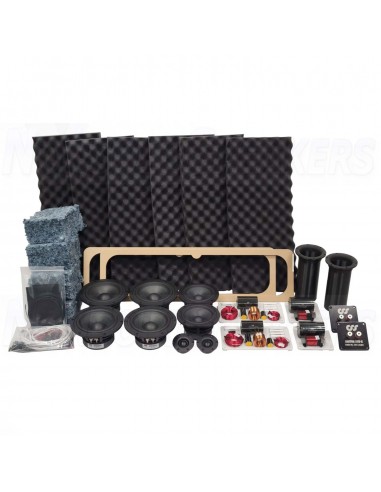

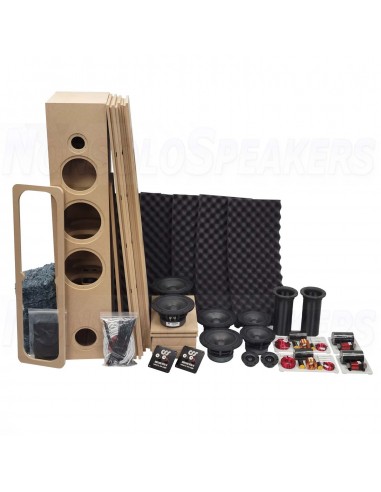

The Criton 3TD-X Tower Kit includes all necessary components to build a pair of high-performance 3-way tower speakers. This kit features the LD25X tweeter for high-frequency clarity, a dedicated LDW6 midrange driver for detailed mids, and dual LDW7 woofers for powerful bass. The speakers are designed to deliver a flat frequency response from 32 Hz to 20 kHz, ensuring high fidelity and accurate sound reproduction.

This kit comes with the crossover: - Superior Crossover with Jantzen Amber Z-Caps featuring pure copper foil for the tweeter section

The speakers have a nominal impedance of 4 ohms and a sensitivity of 87.8 dB, making them compatible with a wide range of amplifiers (recommended power: 30-300 watts). The tower design measures 105,4cm H x 21,6cm W x 34,3cm D and weighs 31,75 kg per speaker when assembled.

Technical Specifications

Item number: Criton-3TD-X-Tower-Kit-AMBER
Nominal diameter bass: 7" x 2, midrange: 6.5", tweeter: 1"
Power handling (QMW): bass: 80 watts x 2, midrange: 80 watts, tweeter: 75 watts
Sensitivity (SPL at 1m / 2.83V): bass: 86 dB, midrange: 88.4 dB, tweeter: 90 dB
Frequency response: bass: 30-4,500 Hz, midrange + tweeter: 2,000-22,000 Hz
Voice coil diameter: bass: 40 mm, midrange: 40 mm, and tweeter: 25 mm
DC resistance (Re): bass: 6.4 Ω, midrange: 4.8 Ω, tweeter: 6.4 Ω
Voice coil inductance (Le): bass: 0.17 mH, midrange: 0.16 mH mH and tweeter 0.07 mH
Resonance frequency (Fs) bass 30 Hz, midrange 50 Hz, and tweeter 865 Hz.
Mechanical quality factor (Qms) bass 9, midrange 11.1, and tweeter 4.21
Electrical quality factor (Qes) bass 0.39, midrange 0.44, and tweeter 1.85
Total quality factor (Qts) bass 0.37, midrange 0.42, and tweeter 1.28
Cone area (Sd) bass 131 cm², midrange 93 cm²
# Mounting holes bass 6, midrange 4, tweeter 6

Reference CSS Criton 3TD-X

What is Creative Sound Solutions (CSS)?

Are you looking for an audio experience that is both high quality and authentic? Then look no further than Creative Sound Solutions (CSS). CSS is based in southeast Michigan and has been under new management since 2017. The company is known for its passion for excellent audio quality. CSS stands out in the high-end audio industry for its commitment to science-based audio performance without relying on pseudoscience or unproven "secret sauces."

Why choose CSS?

Technical expertise: CSS combines more than 30 years of experience in speaker design with in-depth technical knowledge. The result is speakers that not only sound great, but are also based on sound engineering principles.

Quality over quantity: CSS's products are not among the cheapest on the market. This is a conscious decision. CSS is committed to providing the best sound experience, with each component carefully selected and tested for real performance improvements.

Innovation and functionality: With features like the XBL^2 engine and distortion-reducing shorting rings, CSS shows that the focus is on delivering sonic benefits that really matter.

CSS' philosophy: Science meets sound

At CSS, we believe that good sound should not be shrouded in mystique. By focusing on proven theories and extensive testing, CSS takes an honest and transparent approach to audio design. This means that you won't find any unsubstantiated claims or unnecessary additions at CSS, but pure quality based on scientific research.

CSS: A connection with the customer

CSS shares a passion for DIY (do-it-yourself) audio with its customers. This translates into products that are not only of the highest quality, but also meet the needs and requirements of audio enthusiasts. CSS products were designed with both performance and usability in mind, so that every customer, regardless of their experience, can create an excellent audio experience.

CSS and your audio experience

When you choose CSS, you choose a brand committed to excellence in every aspect of audio design. Whether you're a seasoned audiophile or just starting out, CSS provides you with the tools and expertise to realize your audio visions. With CSS products, you're guaranteed an audio experience that exceeds your expectations.
