Dayton Audio BR-1 2-Way Bookshelf Monitor Speaker Kits, Pair

The Dayton Audio BR-1 6.5inch (16.5cm) 2-Way Monitor Kit is not only a great sounding speaker system, it is also an effective teaching tool for those wanting to explore the speaker building hobby.

.

highlights

• Inexpensive, easy-to-build 2-way system for the novice speaker builder

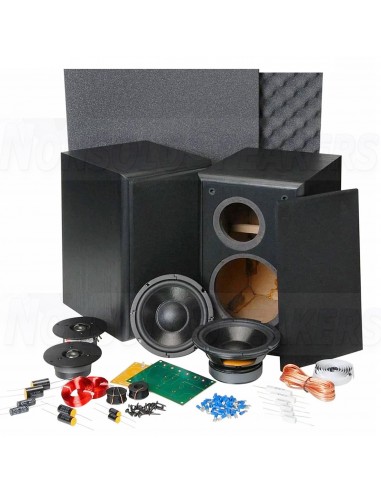

• Includes everything you need to build a pa
• Perfect introduction to the theory, construction and soldering of loudspeakers
• The fully finished case allows this kit to be completed in a few hours

.

product details

Dayton Audio BR-1 6.5inch | 6.5" 2-way bookshelf monitor speaker kit, pair

The high-end Dayton Audio BR-1 2-way monitor is based on the popular Dayton Audio DC28F-8 1-1/8inch (2.9cm) silk dome tweeter and DC160-8 6.5inch (16.5cm) woofer. It was designed to provide a low cost, easy to build 2-way system for the novice speaker builder. The end result is a kit that can be put together in a matter of hours and has a sound to rival systems costing two or three times its modest price!

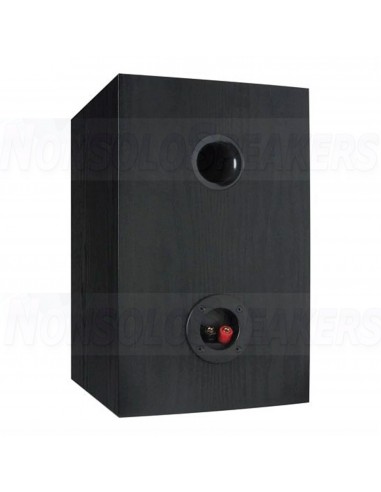

Overall, the speakers are smooth and detailed, with a wide soundstage that belies their small size. The tonal balance is on the warm, neutral side, which is comfortable with most genres of music. The bass is also impressive for a system of this size. The cabinets are constructed of 2/3 inch (1.6 cm) thick MDF covered with a discreet "black ash" vinyl laminate and include grilles with black fabric. All driver holes are CNC precision cut for a perfect fit. The tweeter is flush mounted to reduce diffraction effects.

.

Specifications:

• Impedance: 8 ohms
• Frequency Response: 43-18,000 Hz
• SPL: 85 dB 2.83V/1m
• Power Handling: 100 watts max
• Cabinet Dimensions: 14-1/4inch (36.2cm) H x 8 -2/3inch (22cm) W x 11inch (28cm) D.
• cabinet options Ready
• speaker type bookshelf
• woofer diameter 16.5 cm
• initial assessment 8 ohms
• Construction 2-way
• Color Black
• Housing dimensions (H x W x D) 14-1/4inch (36.2cm) x 8-2/3inch (22cm) x 11inch (28cm)
