Overnight Sensations MT DIY speaker kit

Product description

Build your own high-end near-field monitors with the highly regarded Overnight Sensations MT speaker pair kit designed by Paul Carmody. This kit includes nearly everything to build a pair of speakers, including: a pair of knock-down cabinets, drivers, ports, and crossover components.

,

Highlights

Quick, economical build that delivers surprisingly big sound from a small box

1.27cm MDF cabinets have been precisely CNC cut for perfect fit-and-finish

Perfect size for use as small monitors and computer speakers

This kit is an excellent choice for an amateur speaker building hobbyist

.

Product details

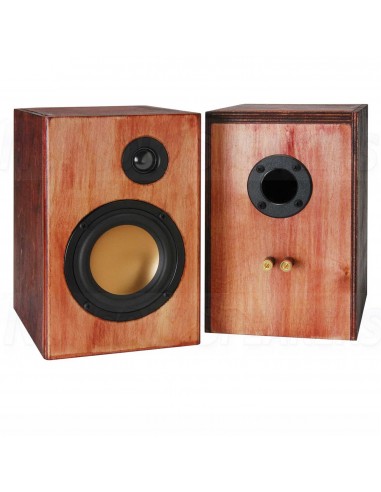

Overnight Sensations MT Speaker Kit Pair

When Paul Carmody first listened to the Overnight Sensations speakers that he designed he exclaimed, "I wish I had a time machine. I would go back to my bedroom when I was in Jr. High or High School and give these to myself. These are the little bookshelf speakers I imagined I had: huge soundstage, deep bass, and tiny box. In reality, back then all I had were some impish Minimus-7s."

The Overnight Sensations are designed to be a quick, economical build that can put out a surprisingly big sound in a small box. Could be a weekender project for an addict, a gift for a teenager (see above), or—in Paul's case—a set of small, full-bodied monitors that he could listen to while grading papers.

To start a do-it-yourself’er off right, this kit includes a pair of high-grade 1.27cm Baltic birch cabinets that have been precisely CNC cut and rabbeted for perfect fit-and-finish when assembling the cabinet, as well as perfect driver fit.

For the Overnight Sensations' driver arrangement, Paul selected the versatile Dayton Audio ND20FA-6 1.91cm neodymium silk dome tweeter and mated it to the attractive HiVi B4N 10cm aluminum midbass woofer. To extract as much bass as possible, Paul decided upon a cabinet size of roughly 0.16 cubic feet (4.5 liters) which is tuned to 53 Hz using a 3.5cm diameter port that is 15.2cm long.

.

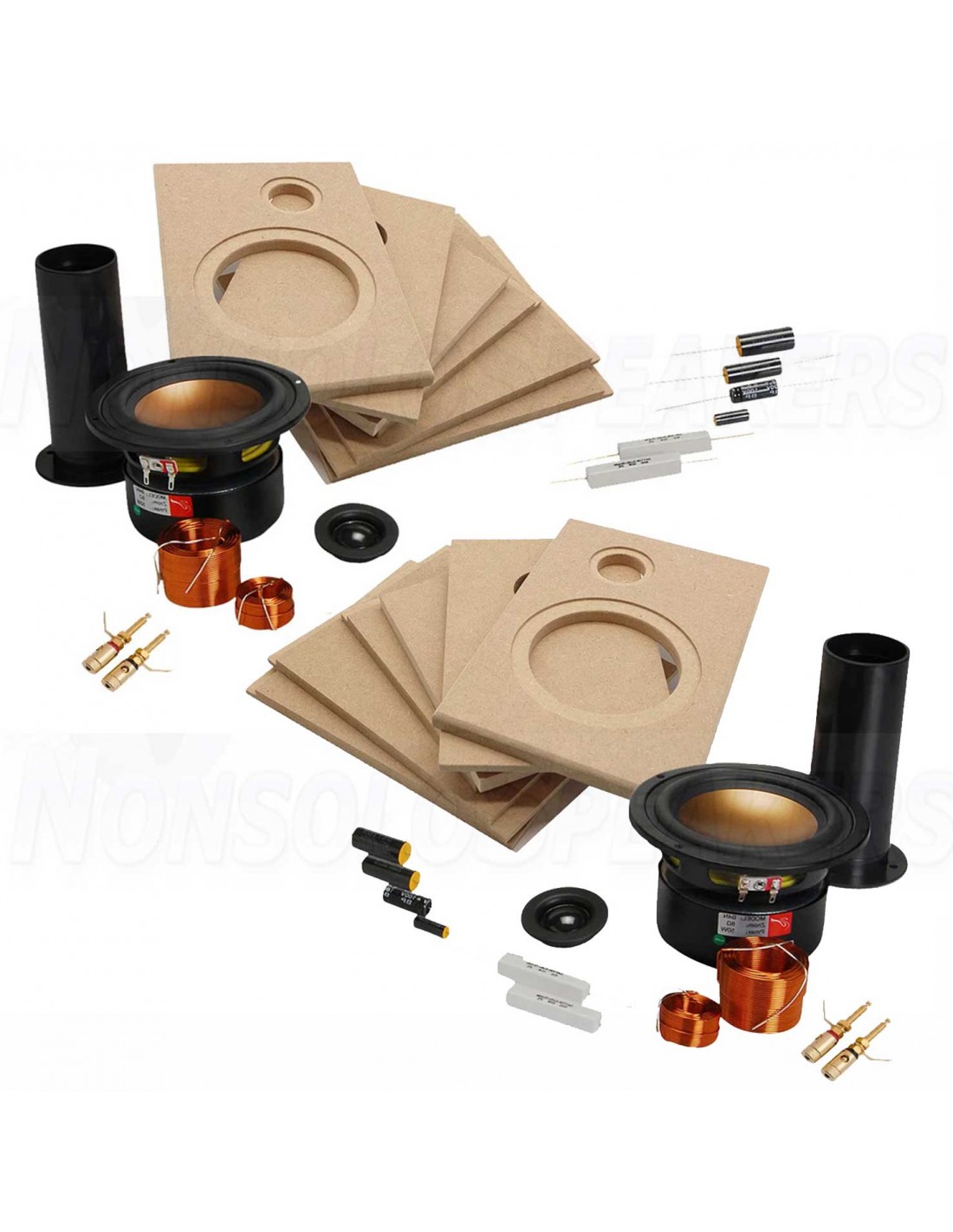

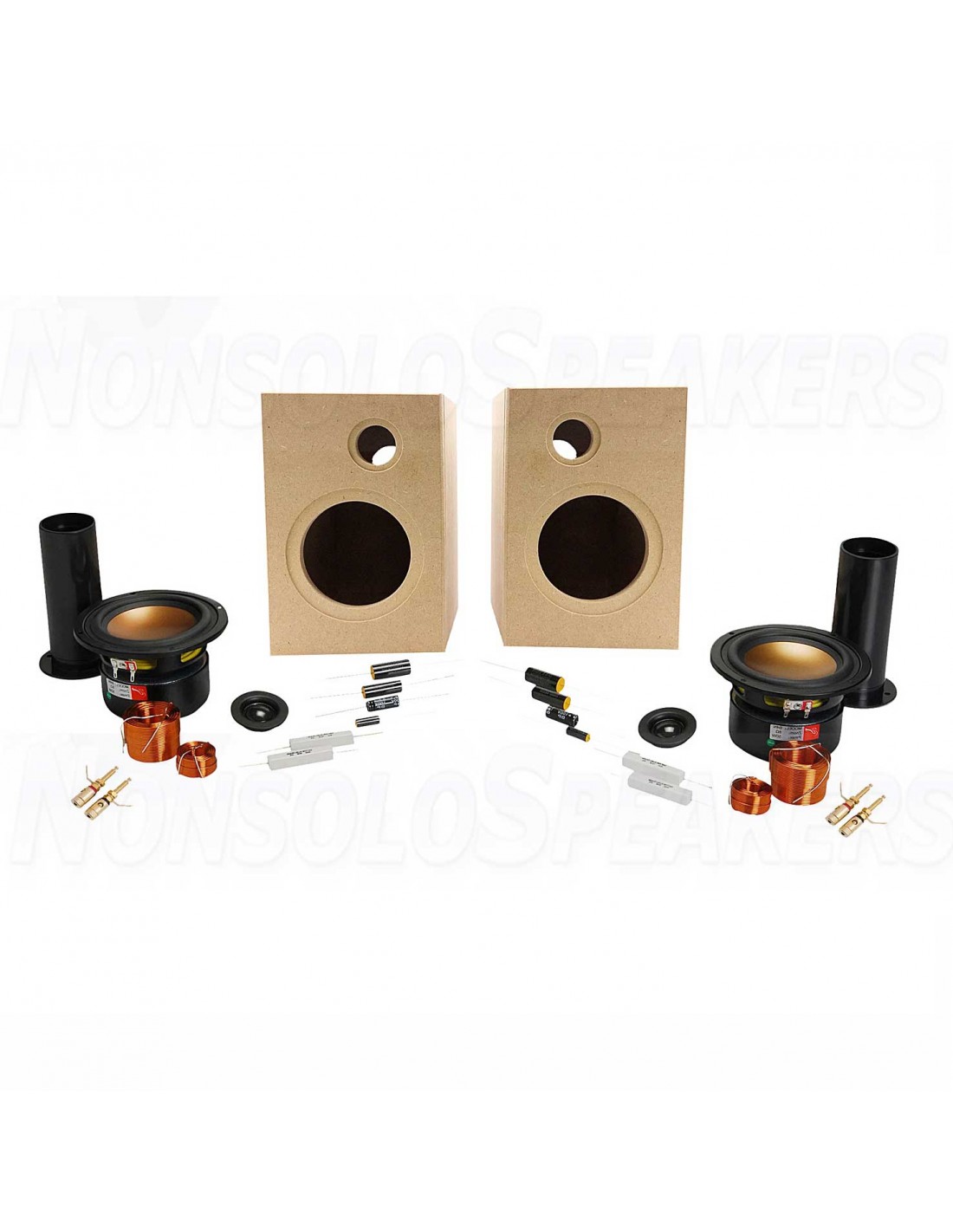

This kit includes nearly everything you need to build a top-notch pair of speakers in no time flat, including: a pair of knock-down cabinets, drivers, ports, and crossover components.

.

Included Components:

Qty Part Number Description

2 004-10 Dayton Audio DNR-10 10 Ohm 10W Precision Audio Grade Resistor

2 004-6 Dayton Audio DNR-6.0 6 Ohm 10W Precision Audio Grade Resistor

2 027-402 Dayton Audio DMPC-0.22 0.22uF 250V Polypropylene Capacitor

2 027-412 Dayton Audio DMPC-1.5 1.5uF 250V Polypropylene Capacitor

2 027-415 Dayton Audio DMPC-2.2 2.2uF 250V Polypropylene Capacitor

2 027-424 Dayton Audio DMPC-6.8 6.8uF 250V Polypropylene Capacitor

2 255-030 Jantzen 1204 0.35mH 20 AWG Air Core Inductor

2 255-252 Jantzen 1078 1.1mH 18 AWG Air Core Inductor

2 260-388 Port Tube 3.5cm ID Adjustable

2 275-030 Dayton Audio ND20FA-6 1.91cm Neodymium Dome Tweeter

2 297-429 HiVi B4N 10cm Aluminum Midbass Round Frame

2 091-340 Binding Post Banana Jack Pair w/Tab

1 081-435 25-Pack #6 x 1.91cm Pan Head Deep Thread Black Screws

1 Red/Black 16 AWG 2-conductor Power Speaker Wire 2 meters

2 Overnight Sensations Audio Cabinet

.

Specifications: Power handling: 25 watts RMS/50 watts max • Frequency response: 45-20,000 Hz (-3 dB) • Impedance: 8 ohms • Sensitivity: 83 dB 1W/1m • Dimensions: 23cm H x 15.2cm W x 21.3cm D.
