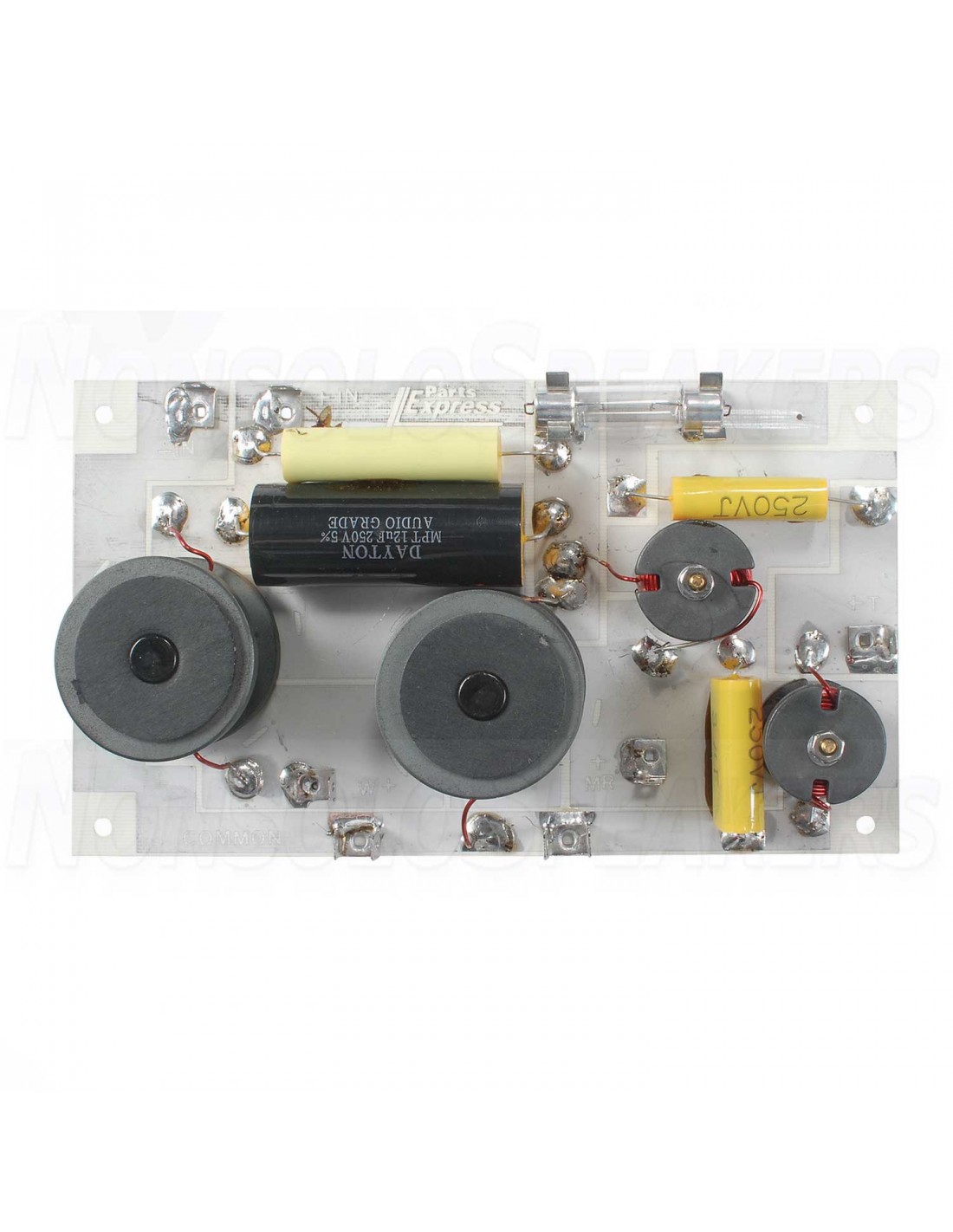

3-Way Speaker Crossover 800/4,500 Hz | 8 Ohms | 200W Assembled
3-Way Speaker Crossover 800/4,500 Hz | 8 Ohms | 200W Assembled

3-Way Speaker Crossover 800/4,500 Hz | 8 Ohms | 200W Assembled

Out-of-Stock
€69.00
Tax included
rating No review at the moment

3-Way Speaker Crossover 800/4,500 Hz | 8 Ohms | 200W Assembled


Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



3-Way Speaker Crossover 800/4,500 Hz | 8 Ohms | 200W Assembled

.

Product description

This network is an excellent choice for high power 3-way systems. The woofer section rolls off 6 dB at 800 Hz while the tweeter section uses a 12 dB per octave roll off at 4,500 Hz. The midrange section uses a true band pass filter with a response of 750-5,000 Hz. 12 dB per octave roll off.

.

Highlights

Crossover network is an excellent choice for higher power 3-way systems

The midrange section uses a true band pass filter with a response of 750-5,000 Hz

All crossover frequencies are rated into an 8 ohm load

.

Product Details

3-Way Speaker Crossover  800/4,500 Hz | 8 Ohms | 200W

This crossover network is an excellent choice for higher power 3-way systems. The woofer section rolls off 6 dB at 800 Hz while the tweeter section uses a 12 dB per octave roll off at 4,500 Hz. The midrange section uses a true band pass filter with a response of 750-5,000 Hz. 12 dB per octave roll off. All crossover frequencies are rated into a 8 ohm load. Dimensions: 178 mm W x 102 mm D x 38 mm H

260-230
